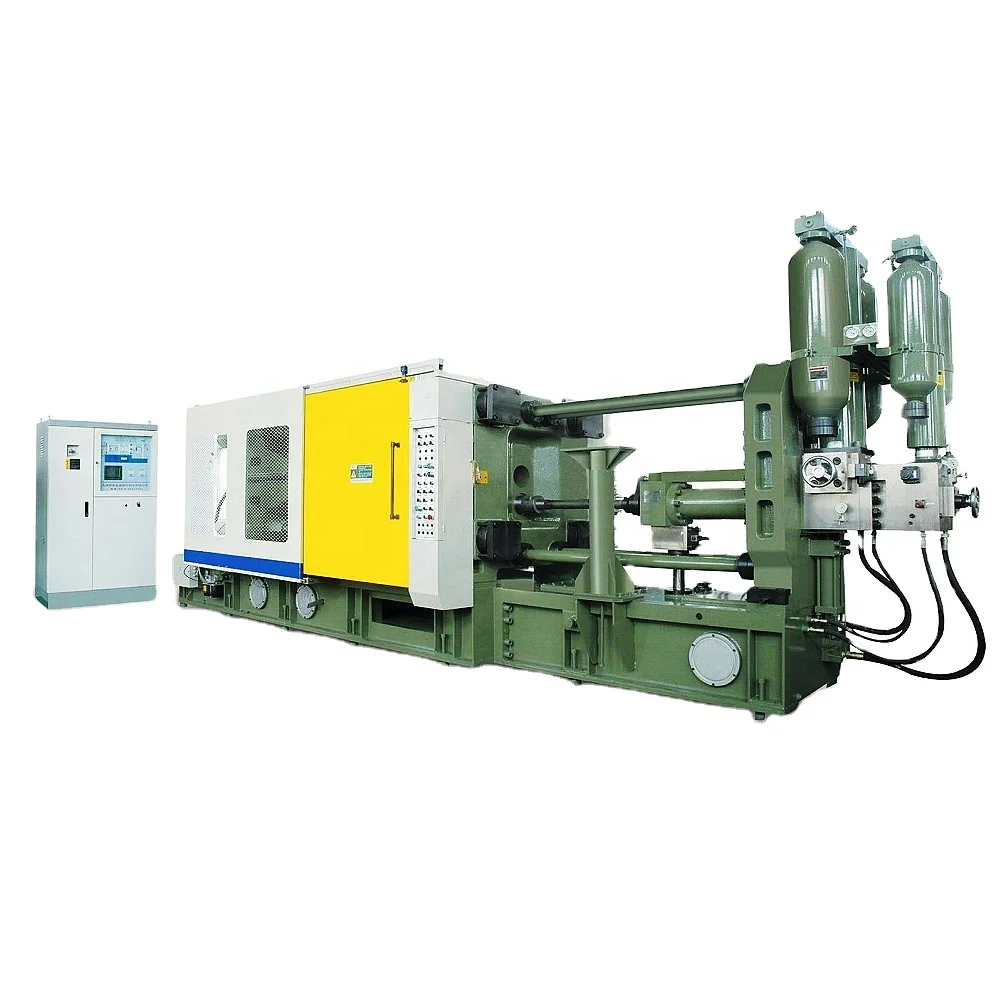

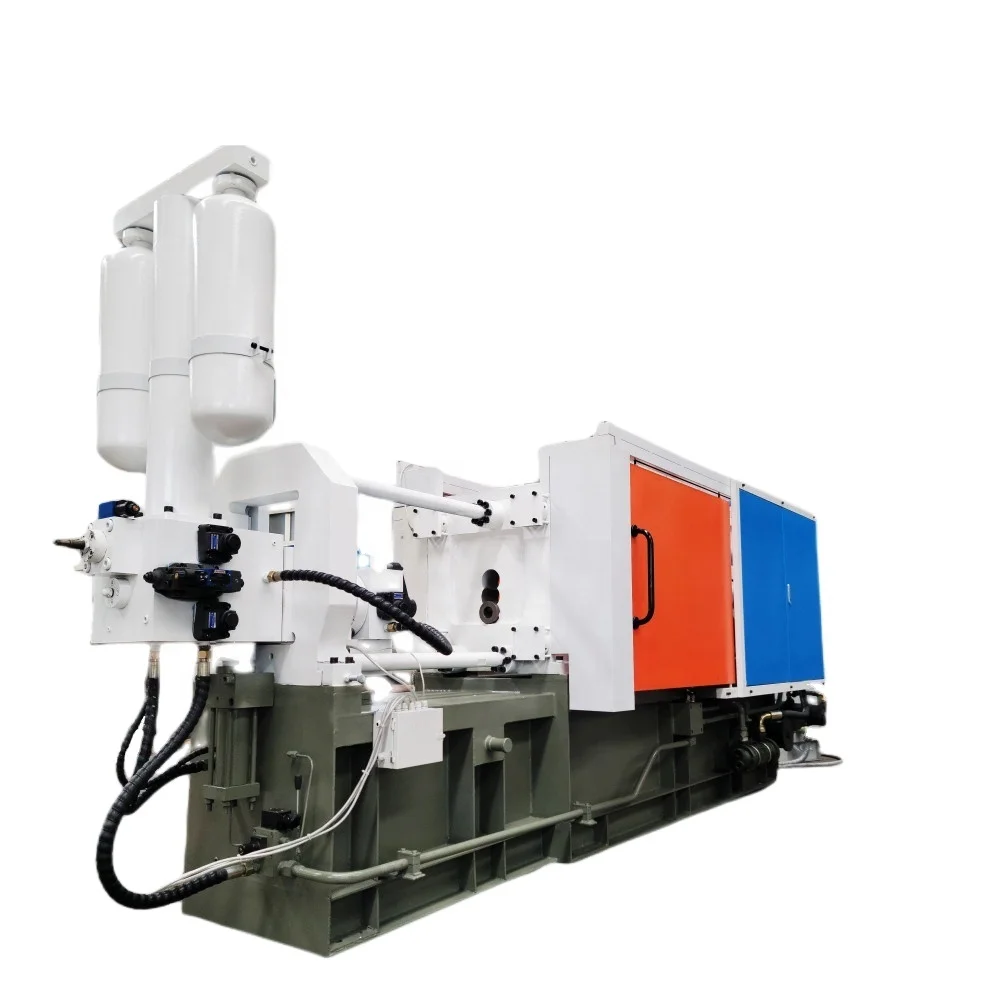

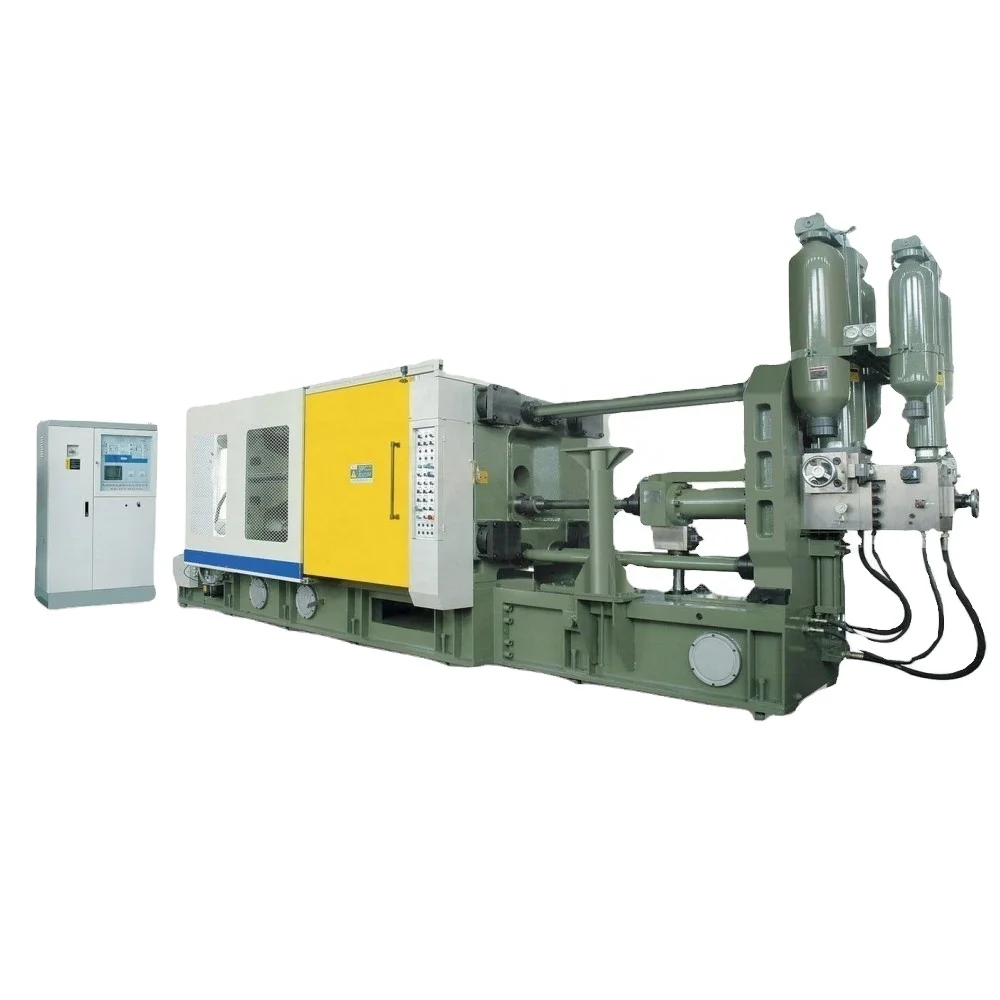

250 Tons Used Zinc Alloy Zamak Die Casting Machine

Share on (1600790006089):


Price:US$ 15’000.00

Quantity:


Product Overview

Description


 company























Product Description





250 Tons Used Zinc Alloy Zamak Die Casting Machine is suitable for some industrial parts, such as aviations, cars, motorcycles, telecommunication meters and household electrical appliances. It is an ideal equipment to produce mass aluminum, magnesium, copper and other non-ferrous metals, but also suitable for producing cast parts which is difficult-casting, high-quality and complex structure.



The machine adopt PLC programmable controller to control transmission system of fluid drive and mould assembly uses expansion structures of two toggles so that to keep steady and reliable mould locking force. Besides, injection system adopts third classis injection speed and first classis pressurized structures.

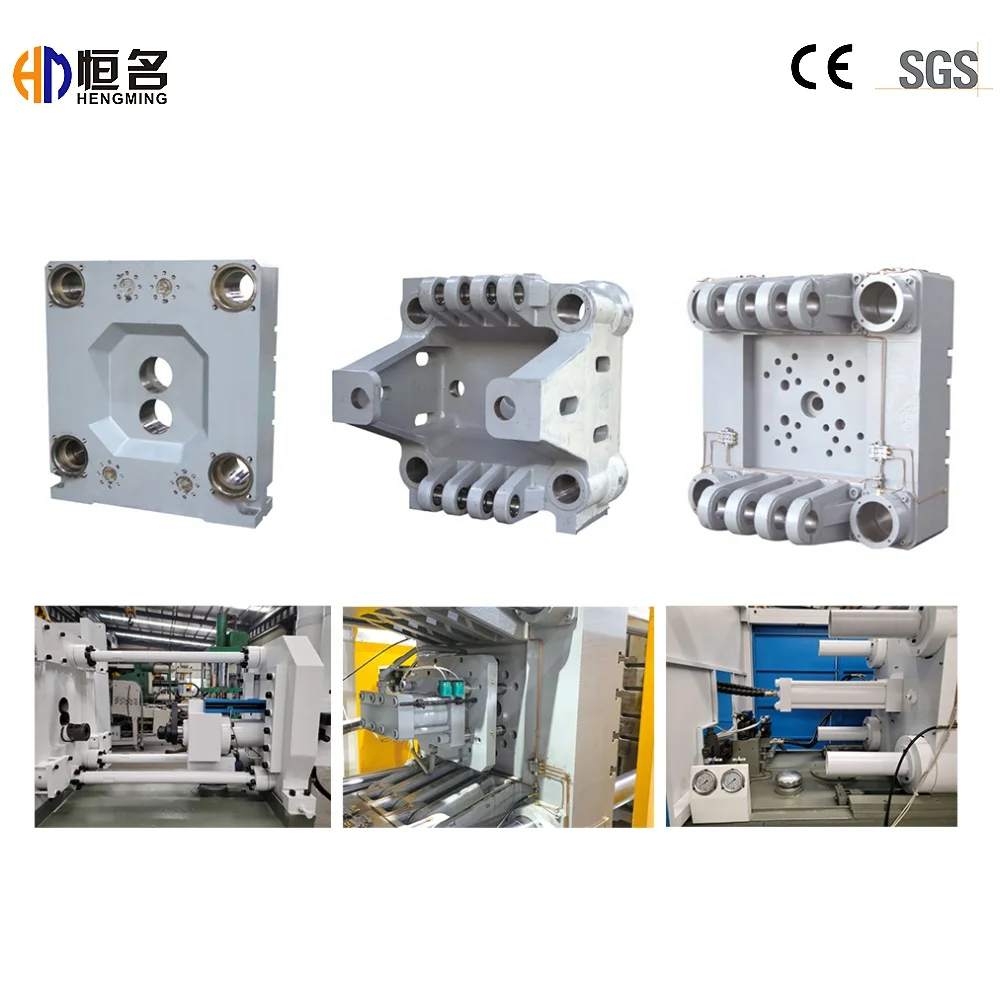

product displayproduct display2main components








To guarantee the machine's excellent performance, high accuracy, and high efficiency, 250 Tons Used Zinc Alloy Zamak Die Casting Machine adopt high quality components from world famous brands like Rexroth,Yuken,Siemens,Kamui etc .





production equipmentscertificates

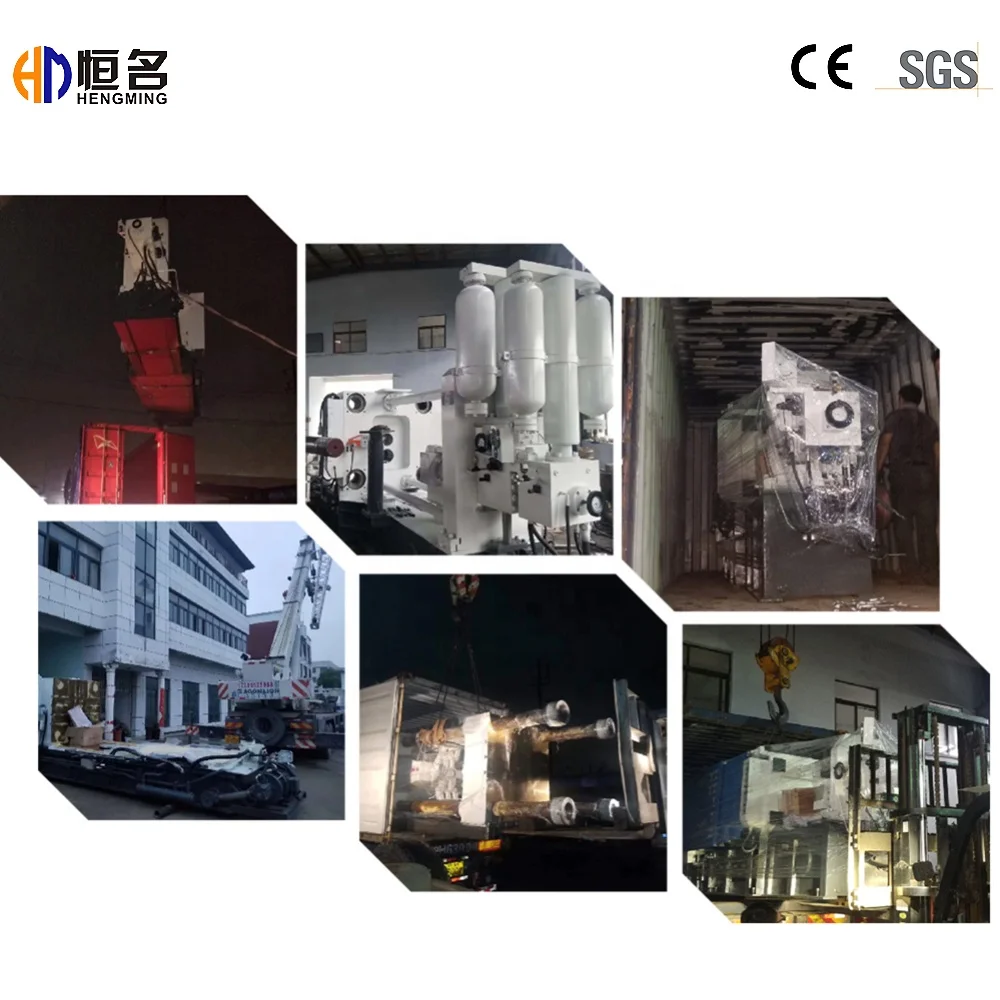

Packaging & Shipping


 packing


machine application





Specification


 specification



































































































Specification



Unit



HM-C180



Die locking force



KN



1800



Inner space between tie bars(H*V)



mm



480*450



Die thickness



mm



220-550



Die stroke



mm



350



Ejection stroke



mm



85



Ejection force



KN



100



Injection force



KN



100-220



Injection position



mm



0,-140



Injection stroke



mm



350



Diameter of pressure chamber



mm



50,60,70



Weight of feeding metal per time(AL)



Kg



2.5



Casting projected area



Cm2



160-679



Circle period



S



7



Pipe line pressure



Mpa



13



Motor power



KW



15



Machine weight



Kg



7000



Overall dimension(L*W*H)



m



5.22*1.19*2.35









Why Choose Us


 why choose us





FAQ





FAQ








Q: Are you a factory?
A: YES!We are manufacturer of the 250 Tons Used Zinc Alloy Zamak Die Casting Machine.Our company specialized in manufacturing and exporting die casting machine for over 20 years.

Q:What certificate you can provide?
A:We have CE & SGS cetificates.

Q:What is the delivery time for the pressure die casting machine?
A: 7 days if the machine in stock.If not,It will takes 20-30 work days according your quantity and required model.

Q:What service you can provide?
A:We provide one-stop service of die casting project. We provide machine, automatic robots,furnace,mold etc. What's more, we also help our customer in cost estimation,factory layout,manufacturing technological upgrading etc.

Q:What's the guarantee time for die casting machine?
A: We providing a 12 months' guarantee period for our machine since the arrival of destination port.

Q:What's after-sale service you will provide?
A: We provide lifetime warranty service for machines. During the warranty period, we provide spare parts that are not artificially damaged free of charge, and after the warranty period expires, we provide damaged parts at the cost price.Local install&training service are also provided if necessary.
