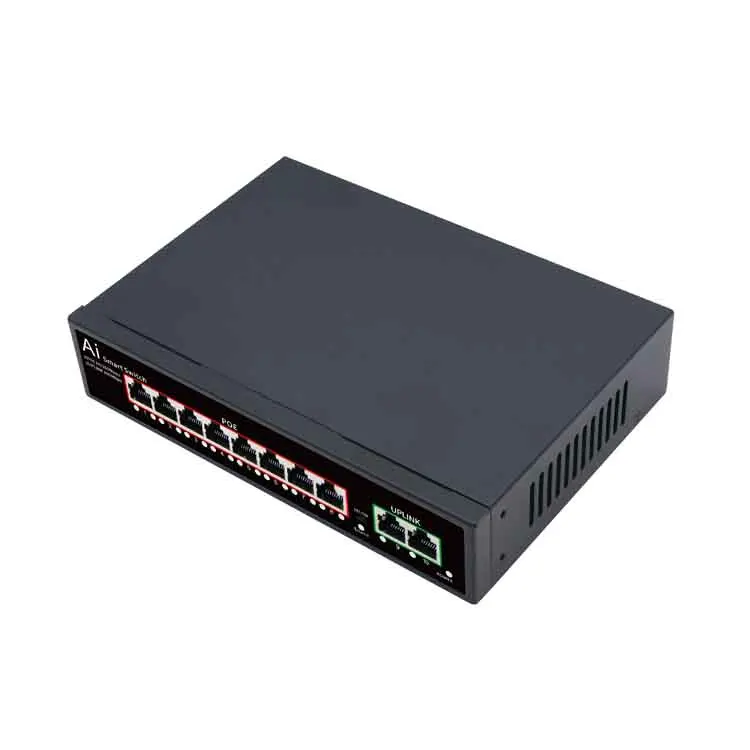

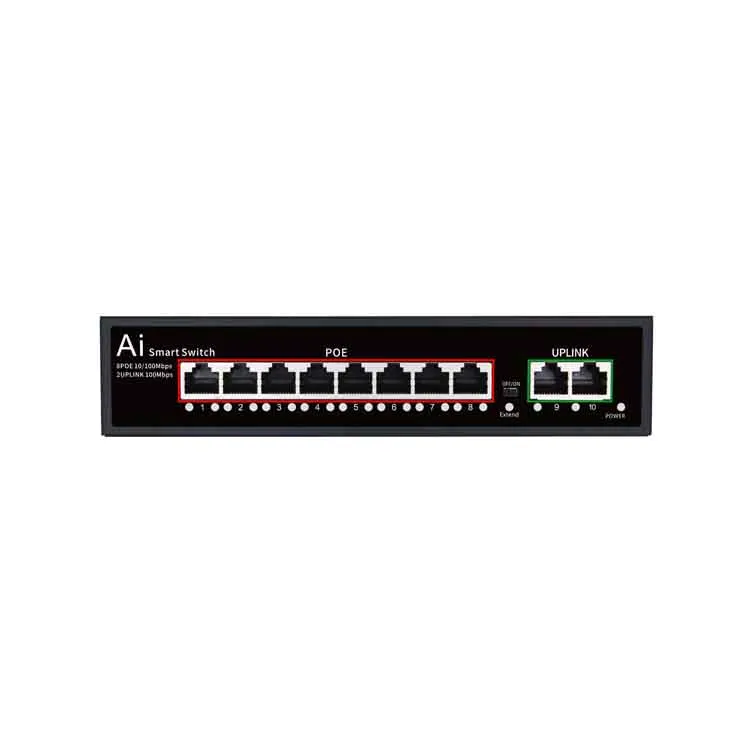

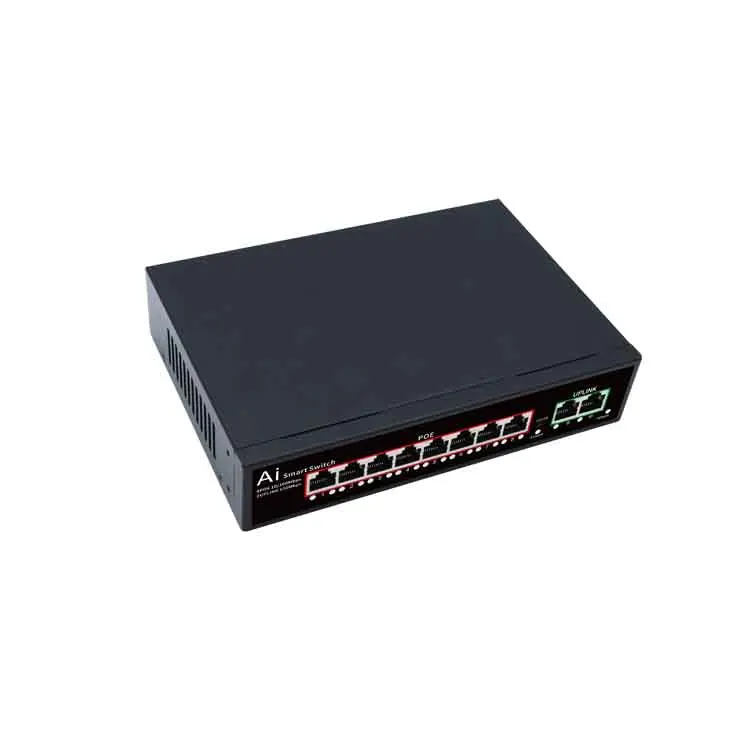

Professional manufacturer 48v poe switch 8 port poe switch 8 poe ports 2 uplink port unmanaged network switch for cctv
- Category: >>>
- Supplier: Shenzhen Mosslink Technology Co. Limited
Share on (1600790048072):
Product Overview
Description
Products Description
Product Paramenters
Technical parameter list | ||
Product Name | 8 ports 10/100Mbps POE Switch(8+2) | |
Product Model | S1010FPE | |
DATA PIN | 1/2+,3/6- 4/5+7/8- | |
Power Supply Type | Build In, 1/2+,3/6- | |
PoE Output Power | 15.4W/30W | |
Connector | 8*100Mbps POE port, 2*100mbps RJ45 Uplink | |
Network Medium | Cat5 (UTP) or more | |
Technology | ||
Network Standards | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet | |
PoE power | 15.4W per port(IEEE802.3af). Internal power supply Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) | |
Processing types | Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control | |
Address database Table Size | 2K MAC address | |
Buffer memory | 48Kb embedded memory per unit | |
Backboard Bandwidth | 2Gbps Full duplex | |
Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission | |
Power | ||
Input | DC52V | |
PoE power consumption | 15.4W per port(IEEE802.af/at) | |
Overload current protection | Present | |
Mechanical | ||
Casing | Metal | |
Installation | DESKTOP/Rack mounting with Bracket | |
Interface | ||
LED Indicators | System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error | |
Environment specification | ||
Operating temperature | -10-55℃(32-104℉) | |
Storage temperature | -40-70℃(14-158℉) | |
Operating humidity | 90% maximum relative humidity, non-condensing | |
Storage humidity | 95% maximum relative humidity, non-condensing | |
Regulatory Approval | ||
ISO | Manufactured in ISO9001 facility | |
Safety | CE/CCC | |
Warranty | 2 years | |
Dimensions | 202*140*45mm (L*W*H) | |
Weight | N.W:0.98Kg G.W:1.2Kg | |
Company Profile
Shenzhen Mosslink Electronics Co.,Ltd is a professional manufacturer focus on wireless comnetwork device, including 4G/5G wifi
routers, Outdoor Router, 5G/4G Mifi, wireless Bridges, 5G CPE, Outdoor CPE, wireless AP/AC, POE switches, etc.
Our products have been certified by CE, FCC, BIS, ISO and ROHS certifications and already widely used in public, to guarantee the
safety of property and lives of people. We have strong R&D team which can provide professional OEM &ODM services( like software and hardware customization) and innovative customized solutions to meet the various requirements from different clients all over the world.
Our main goal is to provide high quality products and good service to our clients.We sincerely hope to establish long-term
relationship with you,if you have any questions, feel free to contact us.
routers, Outdoor Router, 5G/4G Mifi, wireless Bridges, 5G CPE, Outdoor CPE, wireless AP/AC, POE switches, etc.
Our products have been certified by CE, FCC, BIS, ISO and ROHS certifications and already widely used in public, to guarantee the
safety of property and lives of people. We have strong R&D team which can provide professional OEM &ODM services( like software and hardware customization) and innovative customized solutions to meet the various requirements from different clients all over the world.
Our main goal is to provide high quality products and good service to our clients.We sincerely hope to establish long-term
relationship with you,if you have any questions, feel free to contact us.
Production Process
Certifications
Our Advantages
FAQ
Q: Can we get a lower price? Any Discount?
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q:How is the warranty? Do you provide technical support?
A:Most products come with a 12-month warranty with strong technical support on 24/7.. Human causes and other brands are not included.
Q:What's MOQ?
A:The MOQ depends on your requirements for color, size, material and so on.
Q:Do you accept PCBA orders only?
A:Of course, as a OEM/ODM manfuactuer, we can provide PCBA in a short time with good quality.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q:Shipping Method and Shipping Time?
A:1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and area.
2. By Air,port to port: about 7-12 days depends on port.
3. By Sea,port to port: about 20-35 days
4. Agent appointed by customer.
Q:Can you provide ODM service?
A:Yes, We work on ODM orders.Which means size, material, casing design, packing solution, even Software and and hardware., will depend on your requests, and your logo will be customized on your products.
Q:How is the warranty? Do you provide technical support?
A:Most products come with a 12-month warranty with strong technical support on 24/7.. Human causes and other brands are not included.
Q:What's MOQ?
A:The MOQ depends on your requirements for color, size, material and so on.
Q:Do you accept PCBA orders only?
A:Of course, as a OEM/ODM manfuactuer, we can provide PCBA in a short time with good quality.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q:Shipping Method and Shipping Time?
A:1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and area.
2. By Air,port to port: about 7-12 days depends on port.
3. By Sea,port to port: about 20-35 days
4. Agent appointed by customer.
Q:Can you provide ODM service?
A:Yes, We work on ODM orders.Which means size, material, casing design, packing solution, even Software and and hardware., will depend on your requests, and your logo will be customized on your products.
