zhijing Silicon carbide Ceramic Stick SSIC Sic Solid Rod For Kiln Hanging Furniture
- Category: >>>
- Supplier: Shandong Zhijing New Material Co. Ltd.
Share on (1600790249598):
Product Overview
Description

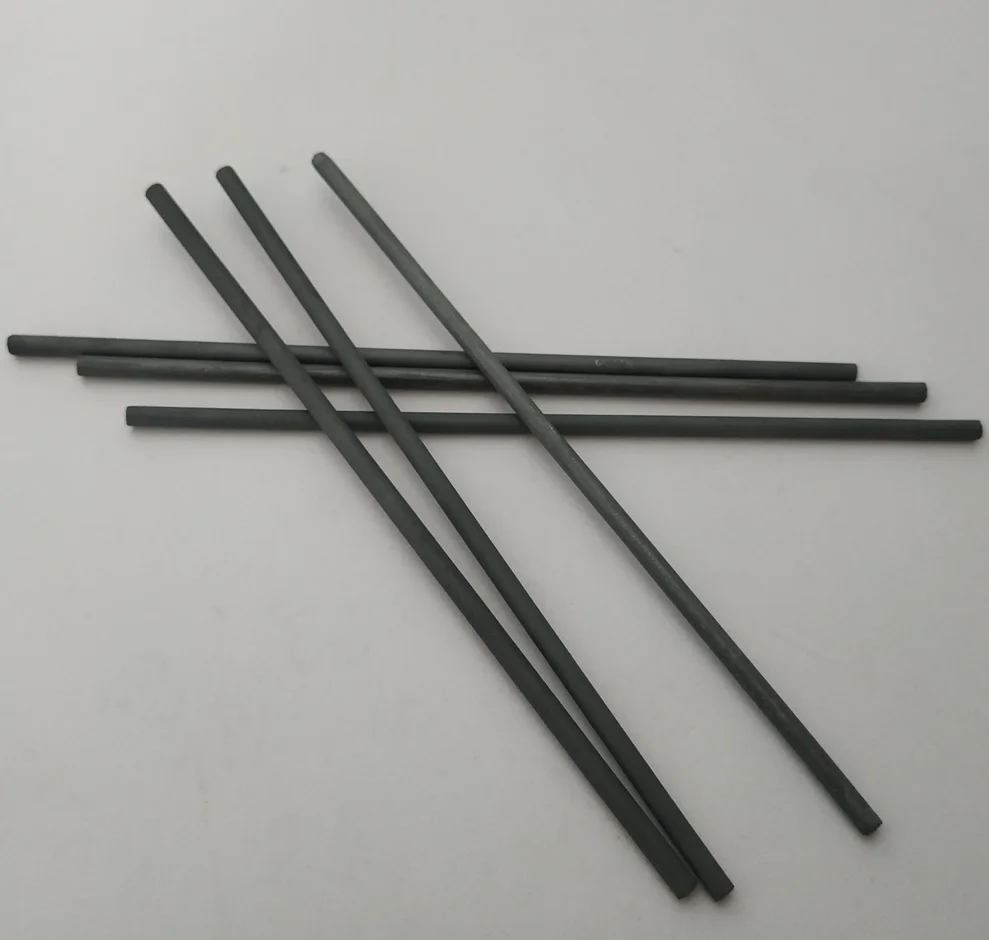

silicon carbide rod
As a new material, silicon carbide has high temperature resistance, degree, high hardness, wear resistance, corrosion resistance, oxidation resistance, relatively small specific gravity and other excellent properties and characteristics. Non-pressure sintered silicon carbide with its high hardness and excellent acid and alkali corrosion resistance, in high temperature, high wear, serious corrosion in the harsh environment can be used for a long time, suitable for kiln sintering rod

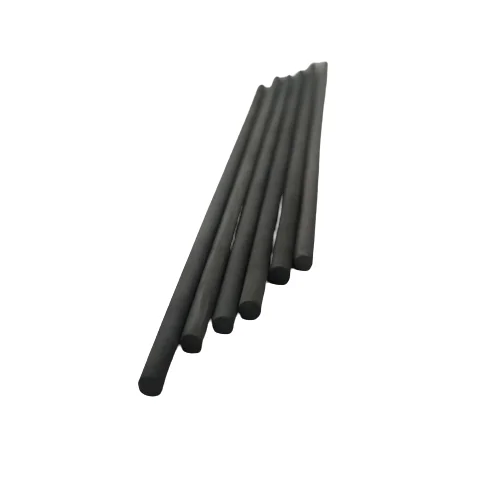

silicon carbide stick
Silicon carbide rod kiln hanging burning small fine rod, can be used as kiln hanging burning spoon or a variety of ceramic parts, as a kind of auxiliary sintering kiln hanging burning ceramic rod, high temperature resistance, the current application range is very wide
Specification
项目 Item | 单位 UNIT | 常压烧结碳化硅 SSIC | 反应烧结碳化硅 RBSIC/SISIC | 重结晶烧结碳化硅 RSIC |
最高使用温度 Max working temp. | ℃ | 1600 | 1380 | 1650 |
密度 Density | g/cm3 | ＞3.1 | ＞3.02 | ＞2.6 |
气孔性 Open Porosity | % | ＜0.1 | ＜0.1 | 15% |
抗弯强度 Bending Strength | Mpa | ＞400 | 250(20℃) | 90-100(20℃) |
Mpa | 280(1200℃) | 100-120（1100℃) | ||
弹性模量 Modulus of Elasticity | Gpa | 420 | 330(20℃) | 240 |
Gpa | 300(1200℃) | |||
热传导系数 Thermal Conductivity | W/m.k | 74 | 45(1200℃) | 24 |
热膨胀系数 Coefficient of Thermal Expansion | K-1x10 -6 | 4.1 | 4.5 | 4.8 |
维式硬度 Vickers Hardness HV | Gpa | 22 | 20 | |
耐酸碱度 Acid Alkaline-proof | 优（excellent） | 优（excellent） | 优（excellent） |
Company Profile
Packaging & Shipping
Package details
1. 5-50 pieces in a wooden box (fully enclosed, safe, and secure)
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
Shipping details
1.Professional car transport to various ports in China, then loaded by a professional shipping company.
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
FAQ
Q1: What's the properties of silicon carbide products?Low density (3.07 to 3.15 g/cm3)
High hardness (HV10 ≥ 22 GPa)
High Young’s modulus (380 to 430 MPa)
High thermal conductivity (120 to 200 W/mK)
Low coefficient of linear expansion (3.6 to 4.1x10-6/K at 20 to 400°C)
Maximum operating temperature of SiSiC under inert gas: 1,350°C
Excellent thermal shock resistance of SiSiC: ΔT 1,100 K
Erodible Corrosion and wear resistant even at high temperatures
Toxicologically safe
Q2.How are the products' quality?
The products will be strictly inspected before shipment, so the quality could be guaranteed.at the same time, mature
production technology ensuring the quality satisfy international request.
Q3:What is the Warranty for the products?
For all the products,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the
shipping cost and replacement.
Q4.What is the service life of the products?
The service life of different products is unlike.It also depends on your using condition and method.
Q5:Are you a manufacture or trader?
We are a professional silicon carbide products manufacturer.
Zhijing has been established since 2020 in China.
Q6:What's your shipping port?
Qingdao port.
Q7.Can we visit your company?
Sure,welcome at any time,seeing is believing.
Q8. Do you provide samples?
Yes, we can offer sample for you to check the product specification and quality.
Q9. Do you accept OEM?
Yes, we can do OEM. In the case of ensuring product safety, it can be customized according to your needs. To this end, our
technical staff will make technical recommendations based on your request.
Q10:What format of the file do you need if I want my own design?
JPG, AI, CDR or PDF are acceptable.
Q11.What's the MOQ of trial order?
No limit,We can offer the best suggestions and solutions according to your condition.
Q12.What are the payment terms?
Usually T/T,but L/C,Western Union etc are available for us. 30% in advance, 70% balance before shippment.
Q13. How long is delivery time?
The delivery time will be determined according to the quantity of the order. Generally it is 1-3 working days if the goods are in
stock. Or it is 15 working days if the goods are not in stock.
High hardness (HV10 ≥ 22 GPa)
High Young’s modulus (380 to 430 MPa)
High thermal conductivity (120 to 200 W/mK)
Low coefficient of linear expansion (3.6 to 4.1x10-6/K at 20 to 400°C)
Maximum operating temperature of SiSiC under inert gas: 1,350°C
Excellent thermal shock resistance of SiSiC: ΔT 1,100 K
Erodible Corrosion and wear resistant even at high temperatures
Toxicologically safe
Q2.How are the products' quality?
The products will be strictly inspected before shipment, so the quality could be guaranteed.at the same time, mature
production technology ensuring the quality satisfy international request.
Q3:What is the Warranty for the products?
For all the products,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the
shipping cost and replacement.
Q4.What is the service life of the products?
The service life of different products is unlike.It also depends on your using condition and method.
Q5:Are you a manufacture or trader?
We are a professional silicon carbide products manufacturer.
Zhijing has been established since 2020 in China.
Q6:What's your shipping port?
Qingdao port.
Q7.Can we visit your company?
Sure,welcome at any time,seeing is believing.
Q8. Do you provide samples?
Yes, we can offer sample for you to check the product specification and quality.
Q9. Do you accept OEM?
Yes, we can do OEM. In the case of ensuring product safety, it can be customized according to your needs. To this end, our
technical staff will make technical recommendations based on your request.
Q10:What format of the file do you need if I want my own design?
JPG, AI, CDR or PDF are acceptable.
Q11.What's the MOQ of trial order?
No limit,We can offer the best suggestions and solutions according to your condition.
Q12.What are the payment terms?
Usually T/T,but L/C,Western Union etc are available for us. 30% in advance, 70% balance before shippment.
Q13. How long is delivery time?
The delivery time will be determined according to the quantity of the order. Generally it is 1-3 working days if the goods are in
stock. Or it is 15 working days if the goods are not in stock.
