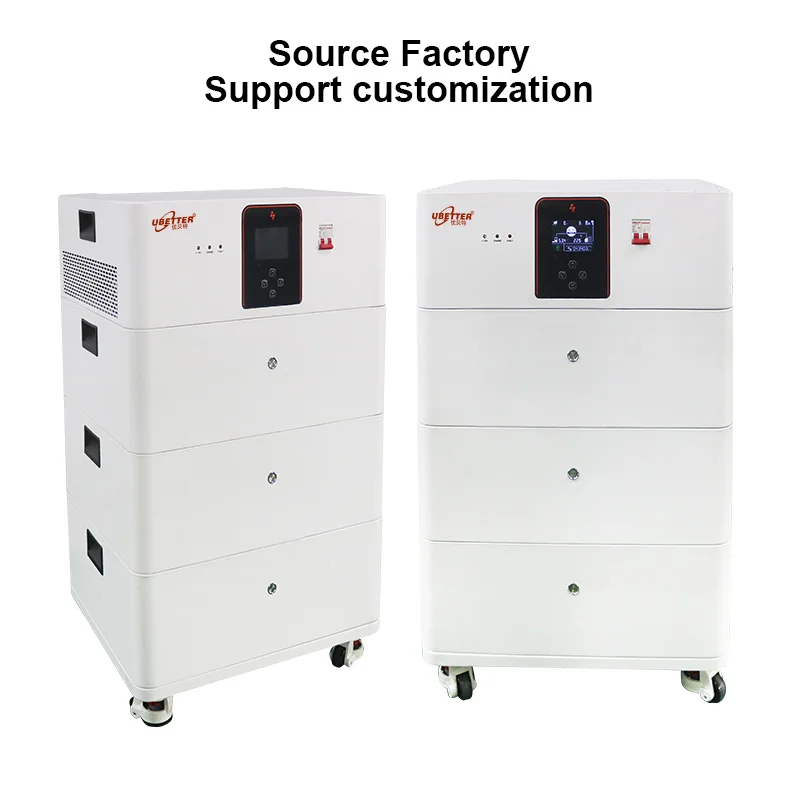

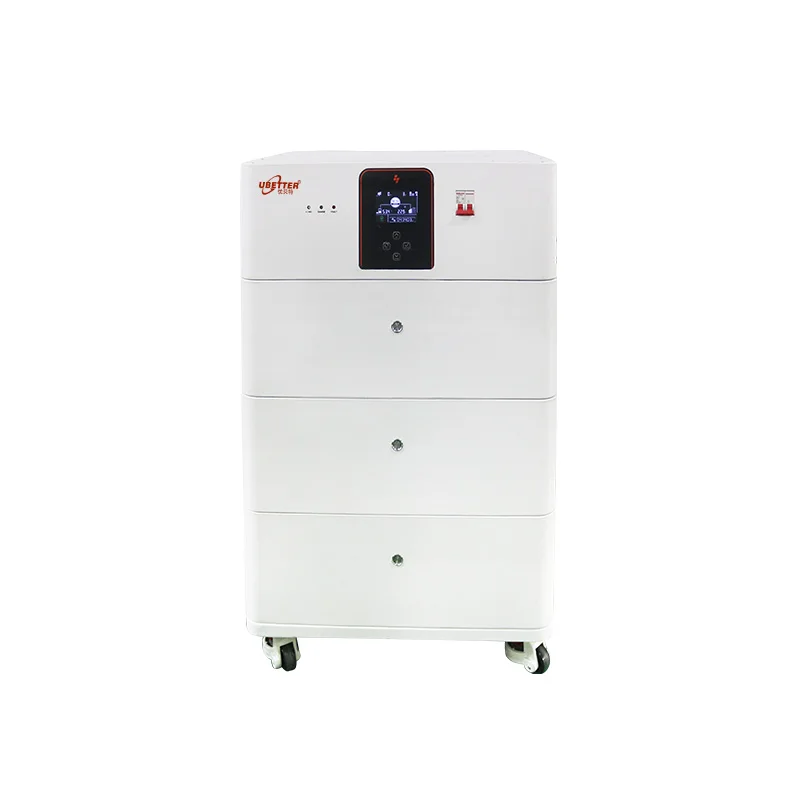

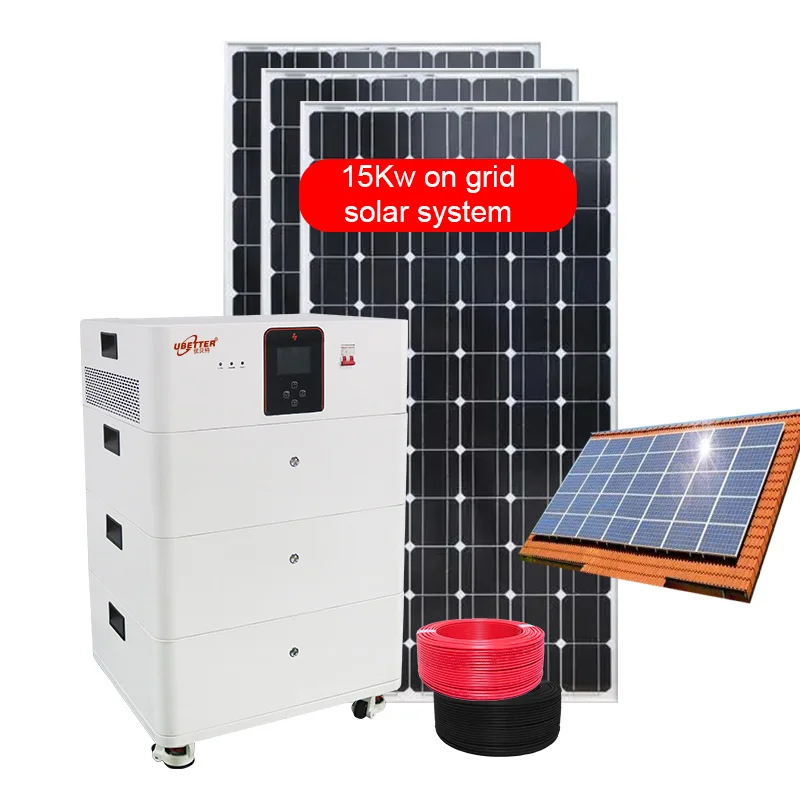

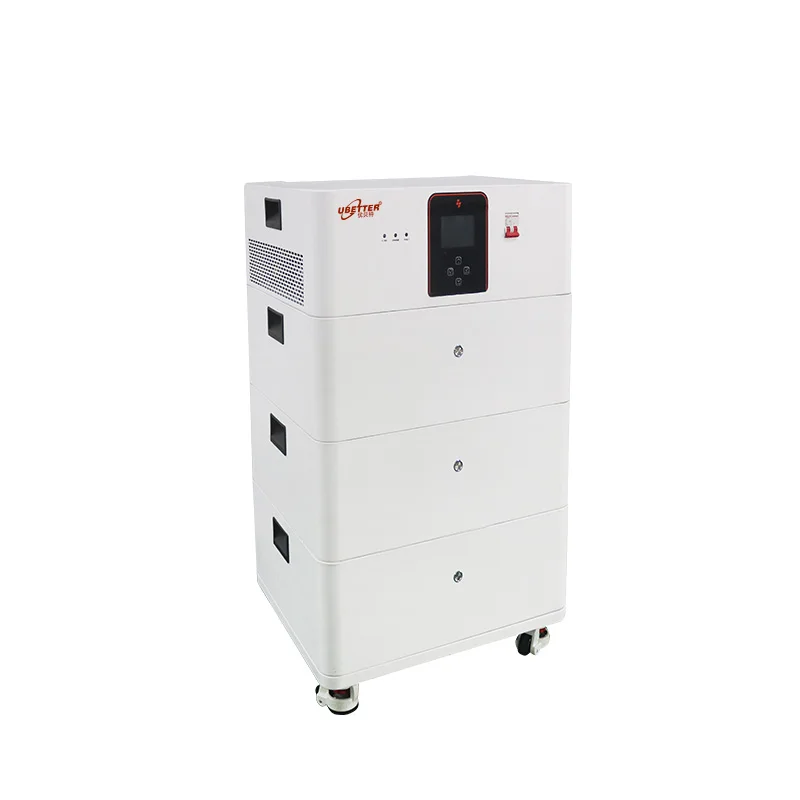

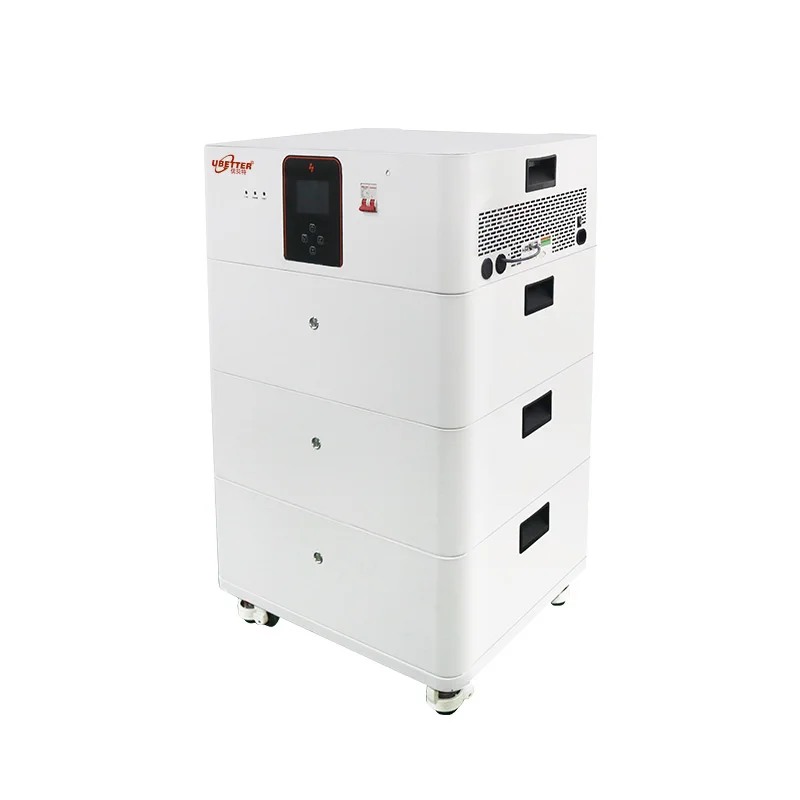

Renewable Solar Power Generator 5Kw 10Kw 15Kw 20kw 25kw off grid solar system for home energy storage power system
- Category: >>>
- Supplier: Ubetter Technology Company Limited
Share on (1600790348286):
Product Overview
Description
Product Description
Product introduction.
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's
energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on
and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your
appliances running for days.
energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on
and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your
appliances running for days.
Electrical Characteristics | Nominal Voltage | 48V |
Nominal Capacity | 100Ah | |
Energy | 4800Wh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >5500 cycles @ 1C 80% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |
Charge Current | 100A | |
Max. Charge Current | 100A | |
Charge Cut-off Voltage | 59.4±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max.Pulse Current | 150A(<3s) | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
IP Class | IP65 | |
Mechanical | Plastic Case | ABS/Metal |
Approx.Dimensions | 520*460*195mm/Customized | |
Approx.Weight | 52kg |
