Vacuum tightness tester for food packaging bags Full self foaming water vapor tightness tester Quick leak test

Product Overview

Description

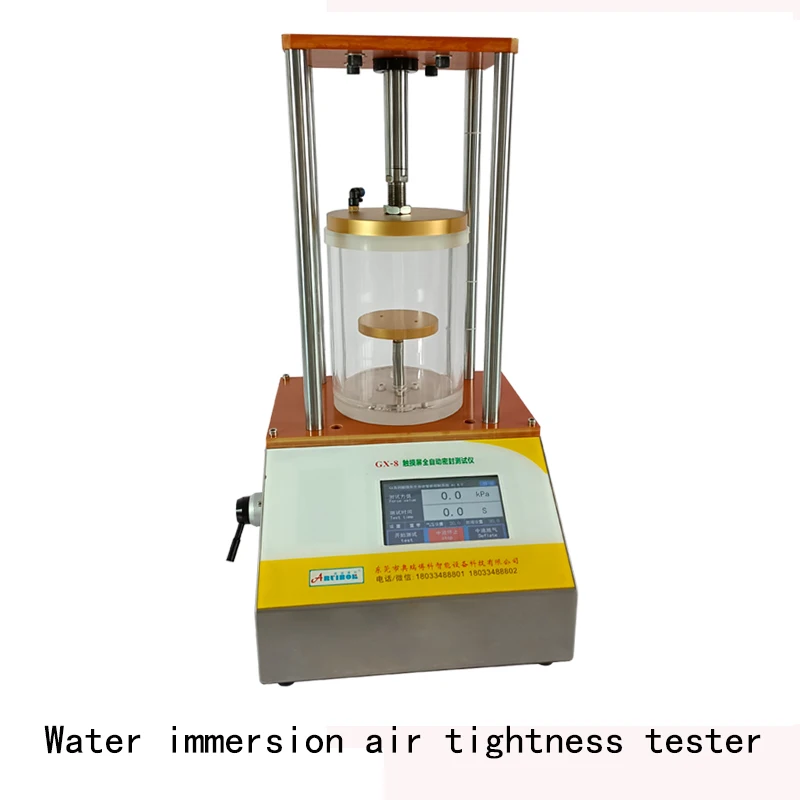

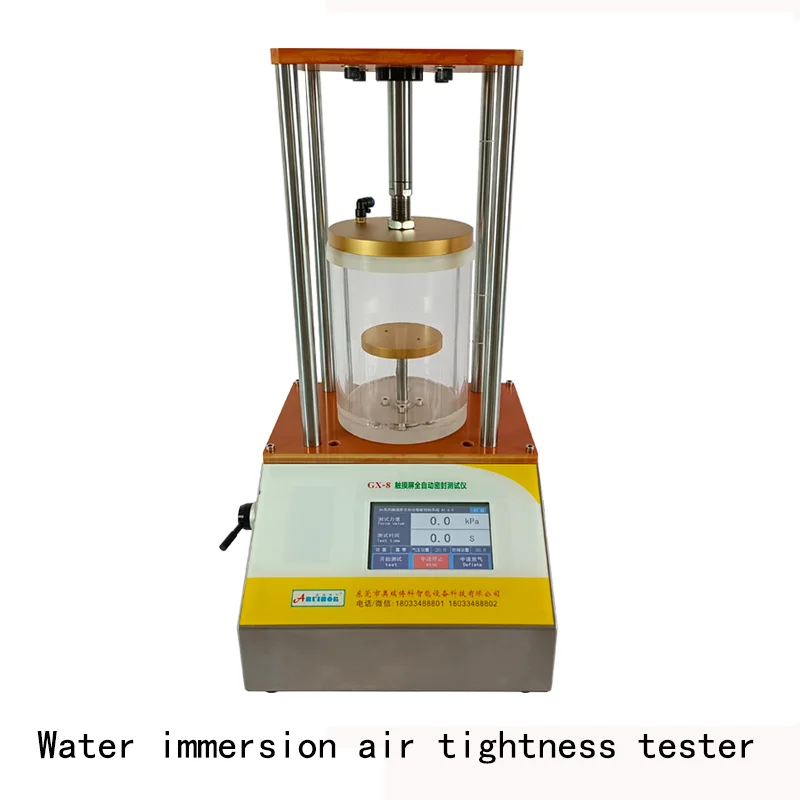

GX-8 series positive pressure immersion testing machine immersion air tightness tester

Comply with the waterproof standard of the International Electrotechnical Commission (IEC) (IPX6-IPX7-IPX8)

Test method: simulate the IPX2-IPX8 sample of IEC 60529 Edition 2.1:2001-02, completely immerse in water according to the specified normal use state, and directly observe the waterproof performance of the product.

GX-8 series positive pressure immersion testing machine simulates the waterproof test of electronic products or other products (such as water imitation mobile phones, watches, lenses, electric toothbrushes, electronics and valuables, etc.), with superior performance, intuitive test and no damage to the products. The product design conforms to the national and international standards, and is a necessary professional testing instrument for production enterprises, scientific research institutions and testing institutions.



The sealing performance of multiple products can be tested at one time, which can ensure no water ingress during product testing Do not damage * (For training), the test is intuitive

System parameters:

This machine has drainage function, easy to use

Touch screen (7-inch screen) display control

Positive pressure pressurized model, pneumatic control

Air source pressure: 0.2-0.7MPa

Test pressure range: 0-80 kPa (expandable), display resolution 0.01 kPa.

Automatic air pressure compensation

Timing control range: 0~9999 seconds, arbitrary adjustment, display resolution 0.1 seconds.

Test setting: any setting.

Exhaust pipe: Φ 8mm high-quality polyester TPU pipe imported from Taiwan

Sealing performance standards: simulated ISO, GB/T 15171, ASTM D3078 IEC 60529 Edition 2.1:2001-02

Effective size of vacuum chamber: Φ 200mm × 260 mm (H) (standard configuration)

Body size: 480 * 450 * 1100 mm (H)

Power supply: 220V/50Hz

Power supply safety protection: equipped with power supply safety protection measures.

Net weight: 42kg

Configuration: host Sealing barrel, patented sealing ring, electric wire Instructions, certificate of conformity, warranty certificate, one for each of the above etc.
