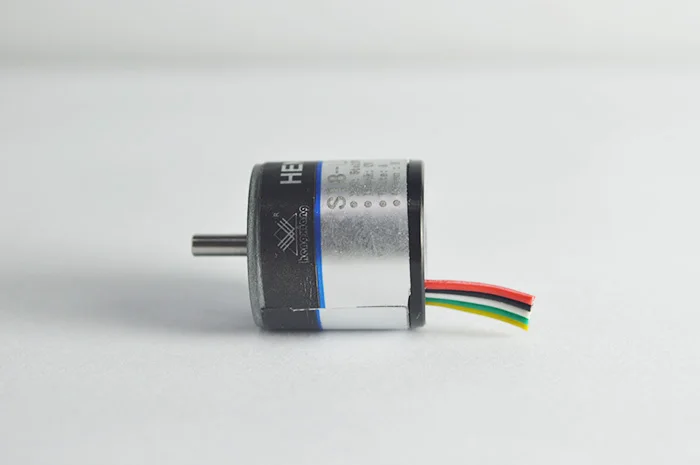

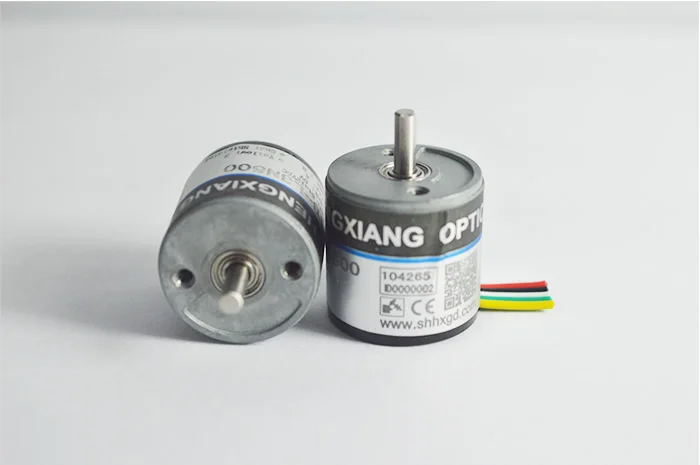

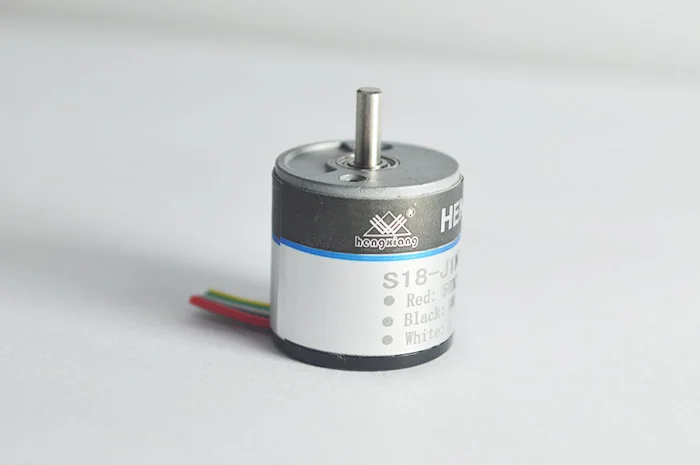

2.5mm dia shaft small and high quality rotary switch encoder with high pulse S18 rotary encoder switch
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1600790416622):
Product Overview
Description
Product Description
-HENGXIANG brand--The trustworthy partner
-CE approved--advantaged product quality;
-Fast delivery--strong stock product ability;
-Factory directly provide a competitive price;
-One-stop service--for your efficient purchasing experience;

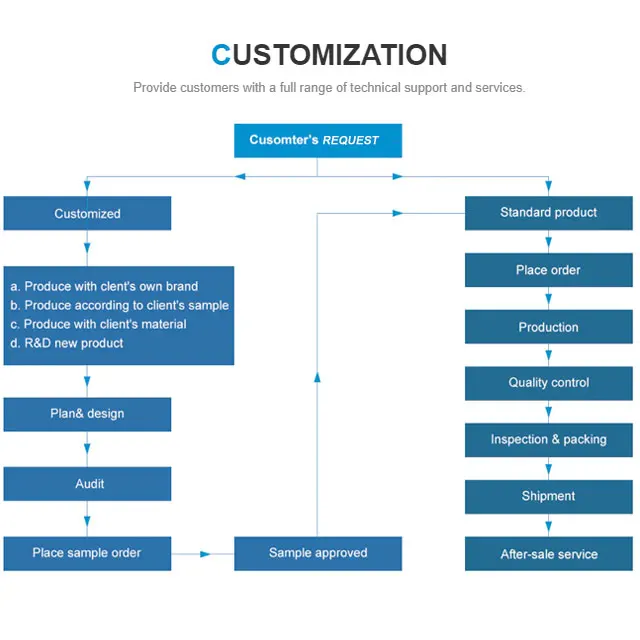

-OEM design accepted--customized design, your own brand accepted.
-CE approved--advantaged product quality;
-Fast delivery--strong stock product ability;
-Factory directly provide a competitive price;
-One-stop service--for your efficient purchasing experience;
-OEM design accepted--customized design, your own brand accepted.
Brand | HENGXIANG |

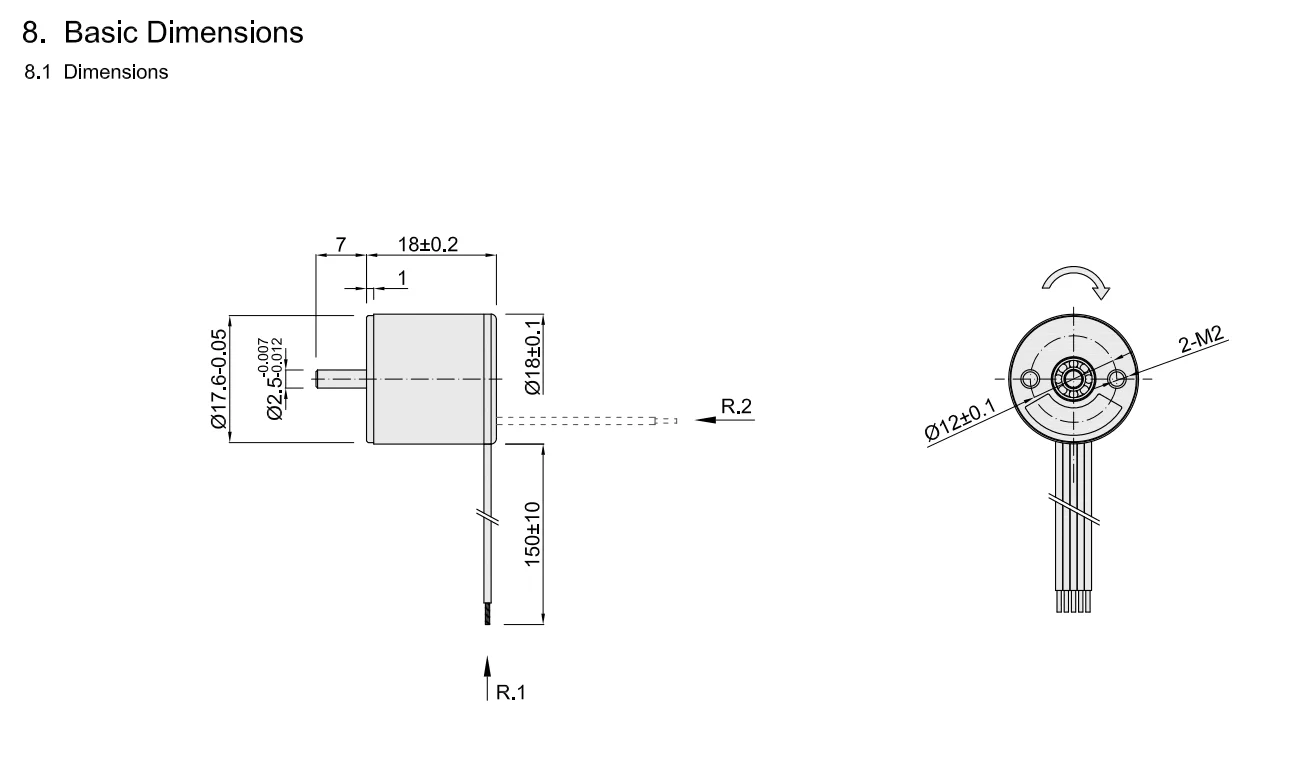

External dimensions | External diameter: 18mm |
Thickness: 18mm | |

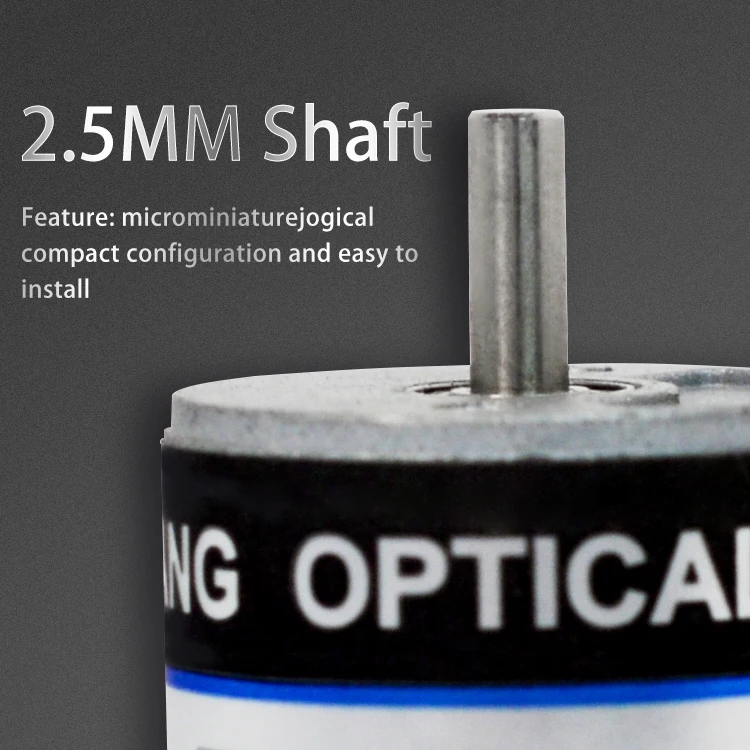

Solid Shaft Diameter: ⌀2.5mm | |

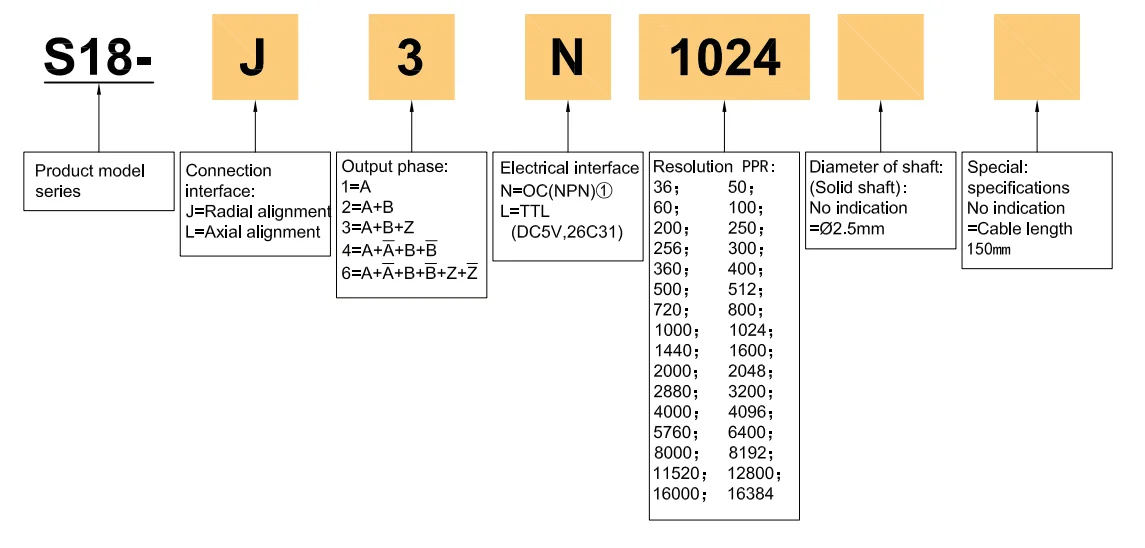

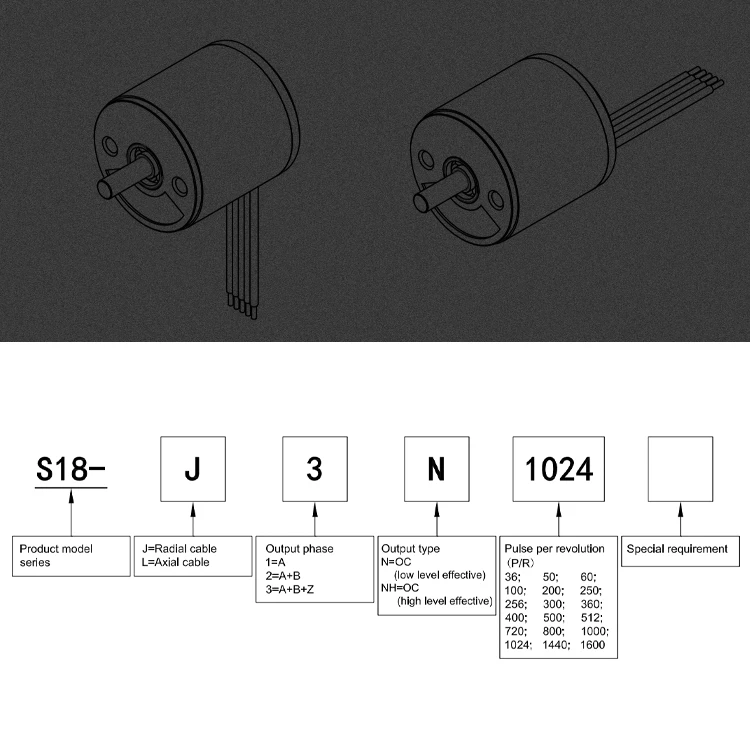

Resolution | 36;50;60;100;200;250;256;300;360;400;500;512;720;800;1000;1024；1440;1600 |
Output phase | Phase A,B,Z |
Supply voltage | DC5V ; DC8-30V |
Outlettype | Cable out from side |
Cable out from back | |
Output mode | Collector open circuit output(NPN &PNP) |
Environmental temperature | Operating temperature: -20~+80° (Non icing) |
Storage temperature: -25~+85° (Non icing) | |
Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
Top Resonse Frequency | 100kHz Max |
Top Rev | 5000rpm |
Protection grade | IP50 |
Consumption current | 50mA Max |
Rise/ Fall time | 100nsec Max |
Shaft Load | Radial: 2N; Axial:2N |
Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually |
Shock(endure) | 49/m/s2,three times for X,Y,Z direction individually |

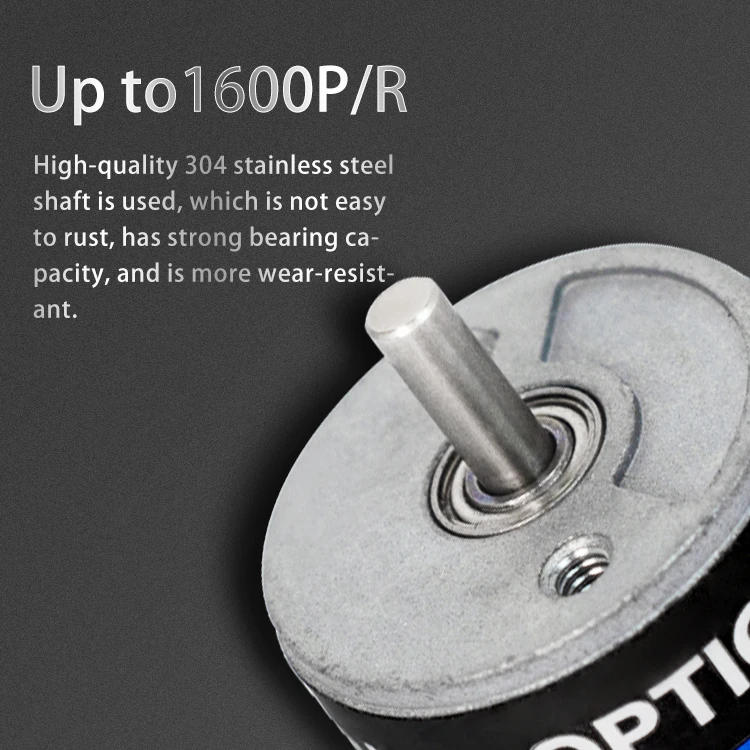

Shaft Material | 304 stainless steel |

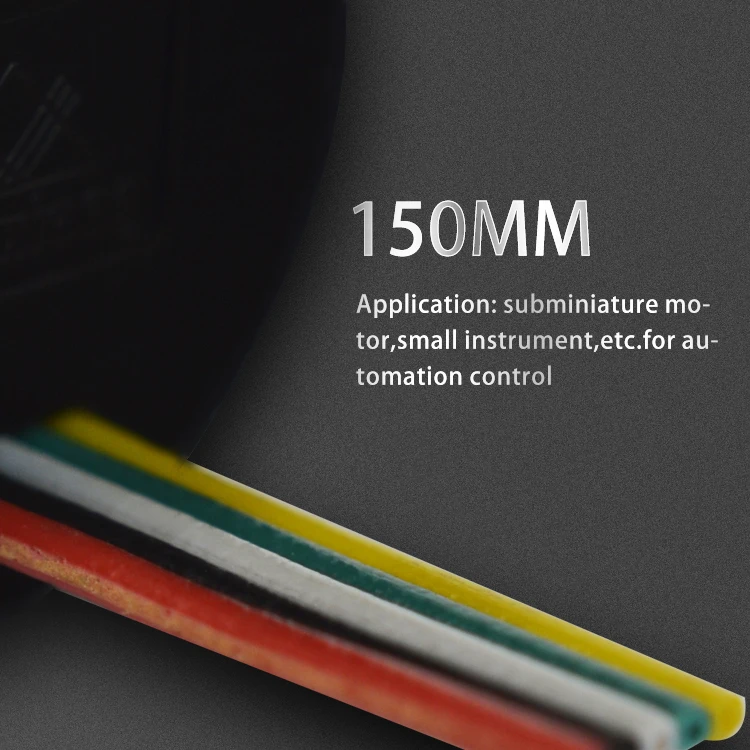

Cable length | 150mm |
Shell | Aluminium Alloy |
Package | Carton box |
Net weight | About 20g (with package) |
Certification | CE |
Product Usage
--inspection machine of electronic omponents--Pipeline radar
--Manual image measuring instrument
--Hydraulic transmission test comprehensive test bench
--Automatic bar feeder
--Intelligent Fertilizer
--Lifting and metallurgical three-phase asynchronous motors
--Solar air conditioner
--Armature rotor test system
--Manual image measuring instrument
--Hydraulic transmission test comprehensive test bench
--Automatic bar feeder
--Intelligent Fertilizer
--Lifting and metallurgical three-phase asynchronous motors
--Solar air conditioner
--Armature rotor test system
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Then all encoders will be put into a bigger carton to prepare shipment.
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical、mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture.
After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment 、Water conservancy equipment、Electrical equipment、Textile machinery、Carpentrymachinery、Injection machinery、Vulcanizateequipment 、Medical device、CNC machine、Metallurgical machine、Printing machinery、testing machine、Elevator、Servo motor、Packing machine, etc. , and has won trust and high reputation from clients .
After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment 、Water conservancy equipment、Electrical equipment、Textile machinery、Carpentrymachinery、Injection machinery、Vulcanizateequipment 、Medical device、CNC machine、Metallurgical machine、Printing machinery、testing machine、Elevator、Servo motor、Packing machine, etc. , and has won trust and high reputation from clients .
Our Services & Strength
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
