Тестер герметичности воздуха/тестер водонепроницаемости часов/тестер утечки воздуха

Product Overview

Description

system parameter
This machine has a drainage function, which is convenient and easy to use
Touch screen (7-inch screen) display control
Positive pressure pressurized model, pneumatic control
Air source pressure	0.2-0.7MPa
Test pressure range	0-80 kPa(Scalable) ,display resolution 0.01kPa
Automatic compensation of air pressure, automatic filling, filling and venting
Timing control range	0~9999 seconds, arbitrary adjustment, display resolution 0.1 seconds
Experimental setup	Any settings
Exhaust pipe	Φ 8mm high-quality polyester TPU pipe imported from Taiwan
Sealing performance standards	Imitate ISO,GB/T 15171,ASTM D3078 IEC 60529 Edition 2.1:2001-02
Effective size of vacuum chamber	Φ200mm×260 mm (H)(standard configuration)
Machine dimensions	480*450*1100 mm (H)
power supply	220V/50Hz
Power supply safety protection	Equipped with power supply safety protection measures
Net weight	42kg
configuration	Host. Sealed drum. Patented seal. Wire. Instructions. Certificate. Warranty. 1 piece each of the above. wait

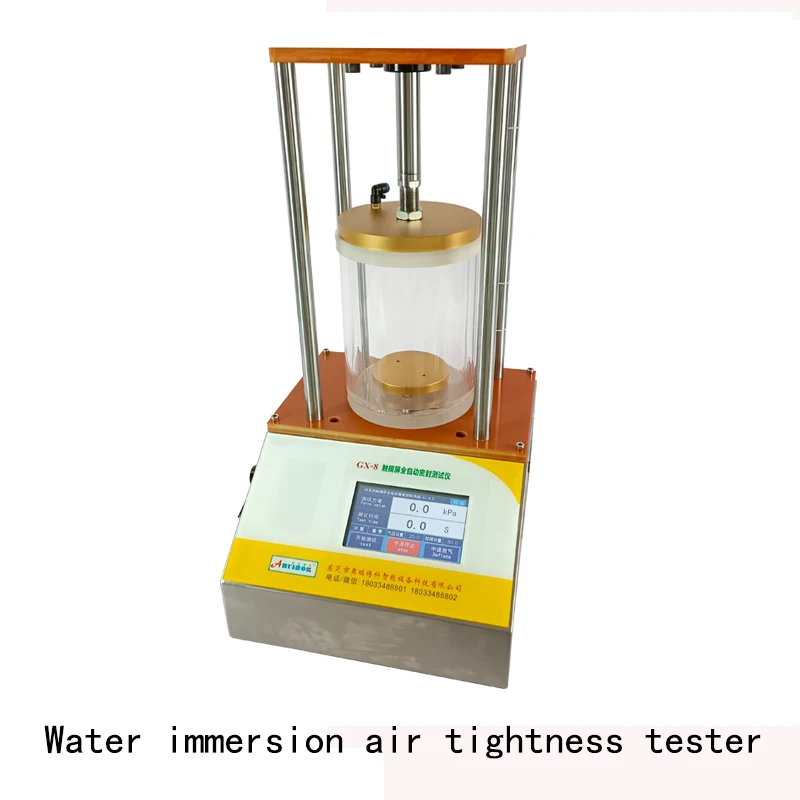

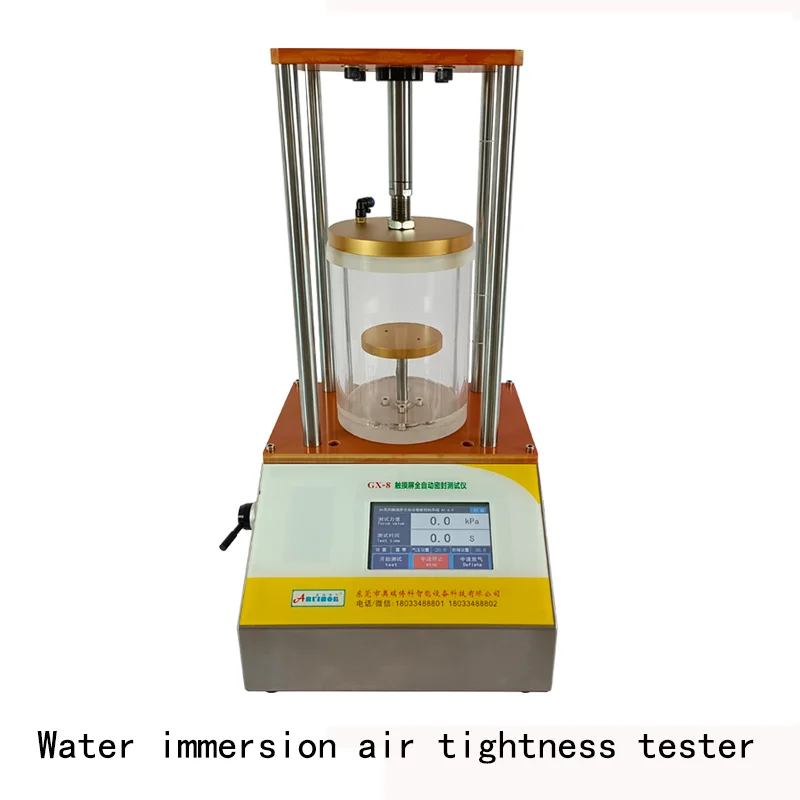

GX-8 series positive pressure immersion testing machine immersion air tightness tester

Comply with the waterproof standard of the International Electrotechnical Commission (IEC) (IPX6-IPX7-IPX8)

Test method: simulate the IPX2-IPX8 sample of IEC 60529 Edition 2.1:2001-02, completely immerse in water according to the specified normal use state, and directly observe the waterproof performance of the product.

GX-8 series positive pressure immersion testing machine simulates the waterproof test of electronic products or other products (such as water imitation mobile phones, watches, lenses, electric toothbrushes, electronics and valuables, etc.), with superior performance, intuitive test and no damage to the products. The product design conforms to the national and international standards, and is a necessary professional testing instrument for production enterprises, scientific research institutions and testing institutions.



The sealing performance of multiple products can be tested at one time, which can ensure no water ingress during product testing Do not damage * (For training), the test is intuitive
