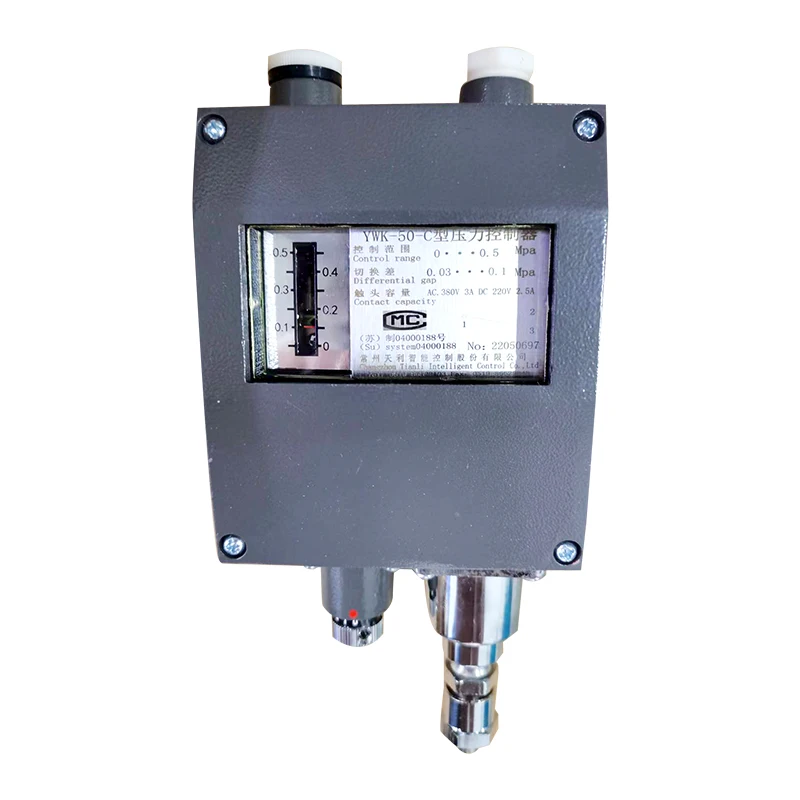

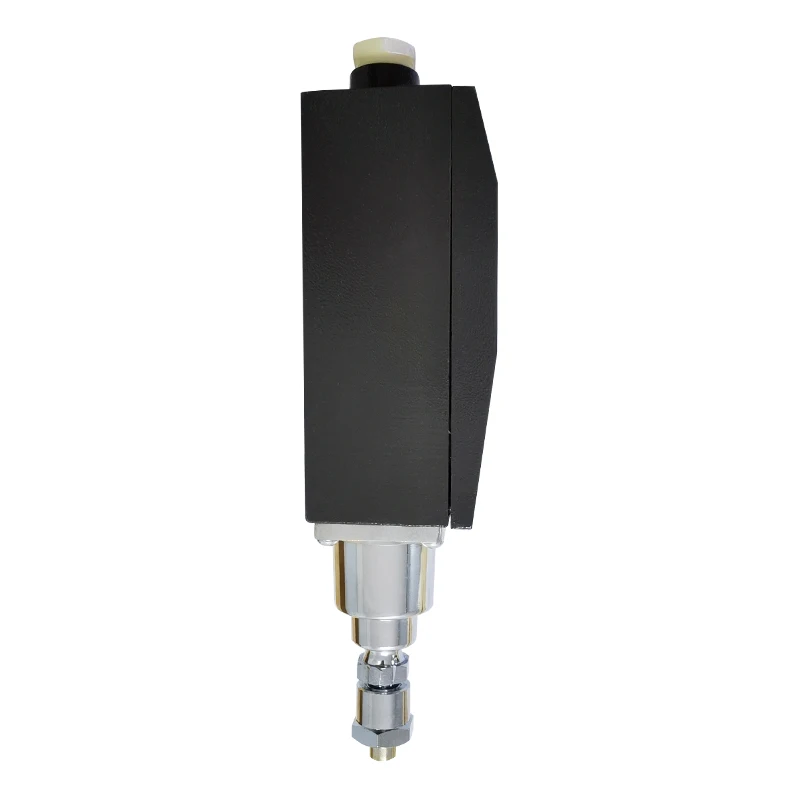

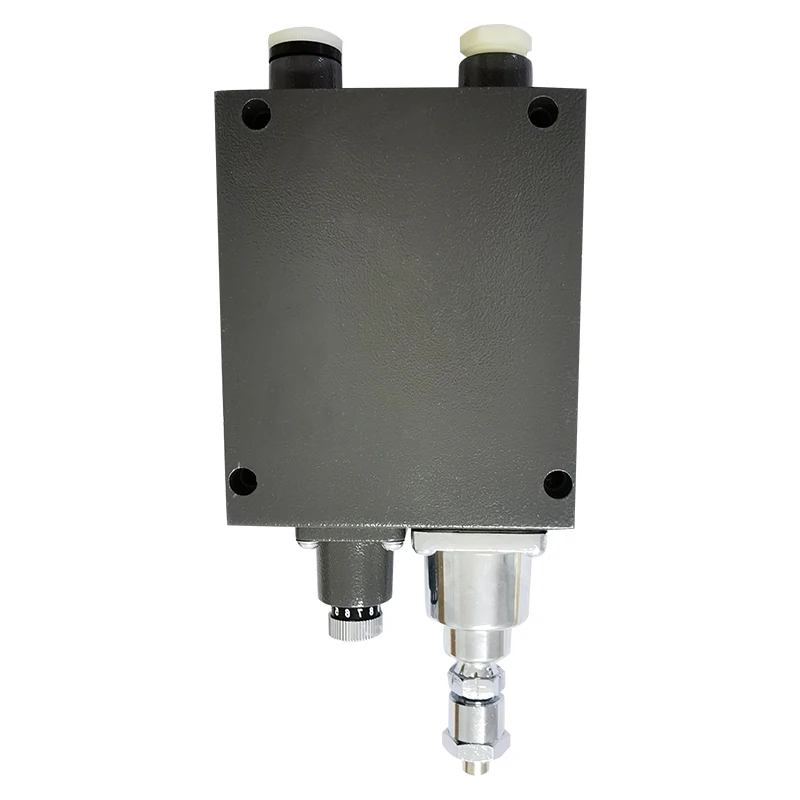

Tianxiang Vessel Pressure Controllers adjustable range from 0.1 to 0 MPa YWK 50 C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam
Tianxiang Vessel Pressure Controllers adjustable range from -0.1 to 0 MPa YWK-50-C Pressure Switches for gas steam

Tianxiang Vessel Pressure Controllers adjustable range from 0.1 to 0 MPa YWK 50 C Pressure Switches for gas steam

Share on (1600790449554):


Price:$35.00 - $43.00

Quantity:


Product Overview

Description



Product Description


The sensor of YWK-50-C Pressure Switches is Bellowes. The Switches can be suitable for gas,steam such gasous medium and fluid medium. The Set Point is adjustable ,the adjustable range is from -0.1 Mpa to 4Mpa. It utilize waterproof Cast-Aluminum enclosure, so it can meed the requriement for vessel .




Specification


Dead Band Adjustable


Series No.
Set Point Adjustable Range Mpa
Dead Band Adjustable Range Mpa
Set Point Error Mpa
Repeatablity Error Mpa
Remarks
1
-0.1…0
0.0035…0.026
±0.004
0.002
same subjects as series No. from 6 to 11
2
0…0.1
0.006…0.028
±0.004
0.002
Medium to be controlled will not exert corrosion to Brass, Tin-Bronze,Lead,Tin welding material.
3
0…0.2
0.01…0.08
±0.008
0.004
4
0…0.3
0.025…0.01
±0.012
0.006
5
0…0.5
0.03…0.1
±0.02
0.001
6
0…0.8
0.07…0.25
±0.032
0.016
Medium to be controlled will not exert corrosion to Brass,1Cr18Ni9Ti SS,Tin-Lead welding materials
7
0…1
0.07…0.25
±0.04
0.02
8
0…1.5
0.1…0.28
±0.06
0.03
9
0…2
0.12…0.3
±0.08
0.04
10
0…3
0.15…0.5
±0.12
0.06
11
0…4
0.25…0.6
±0.16
0.08

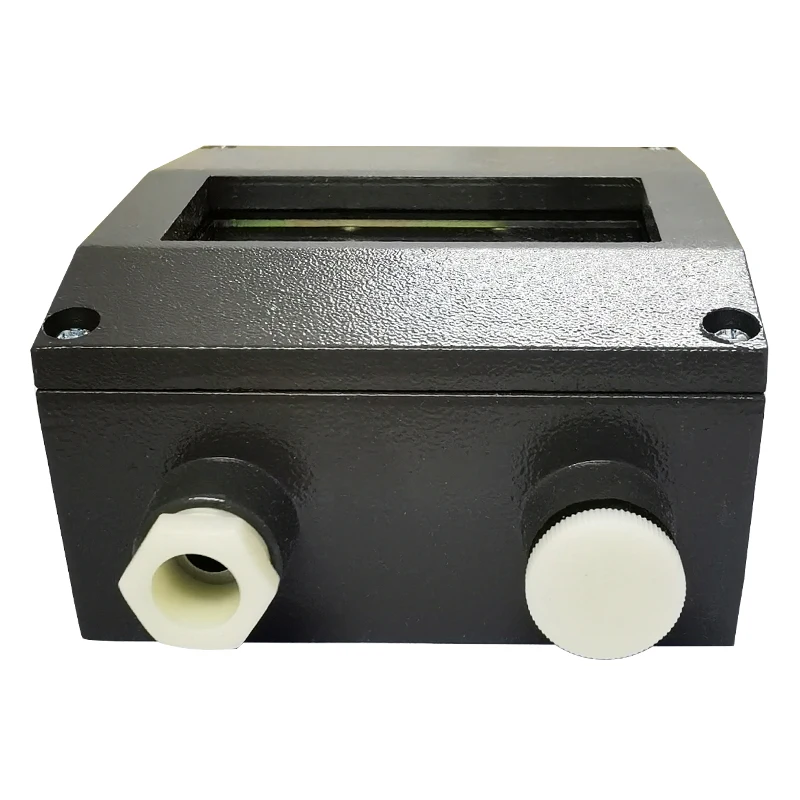

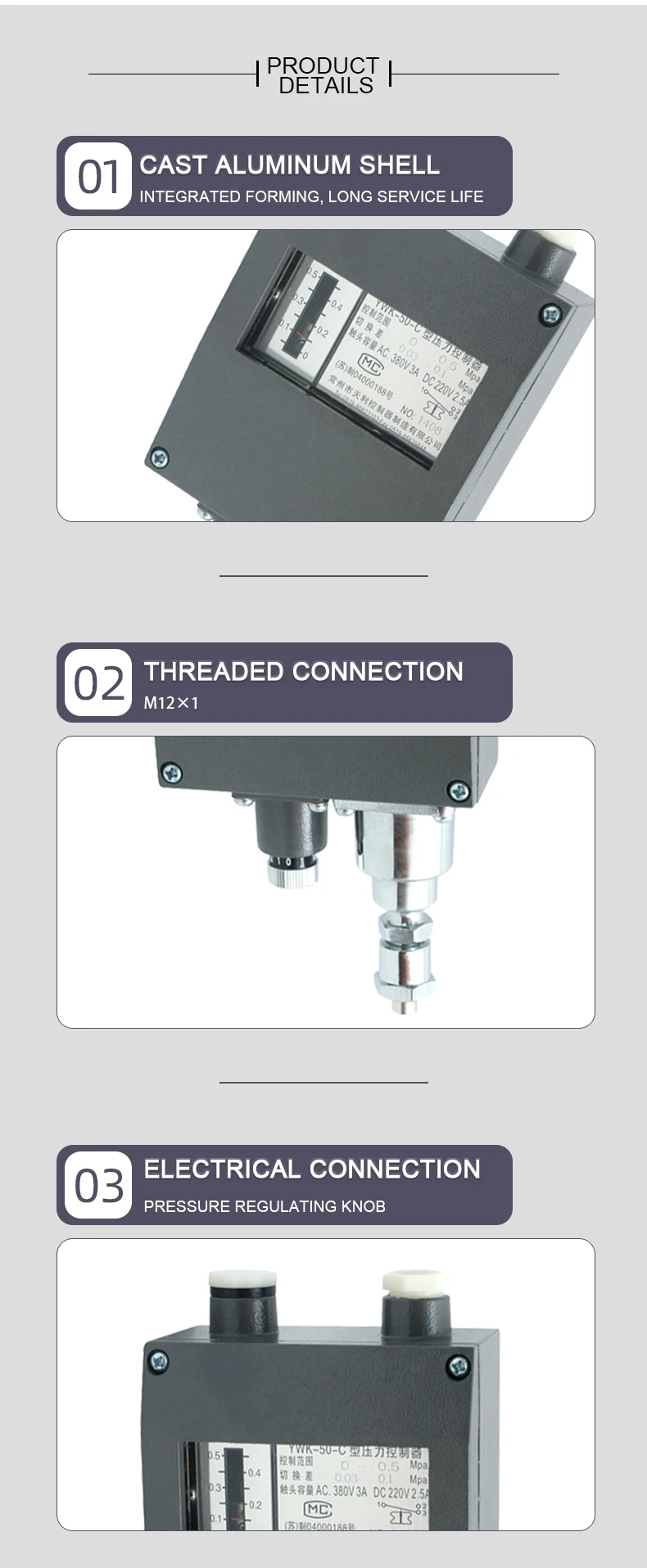

Details Images

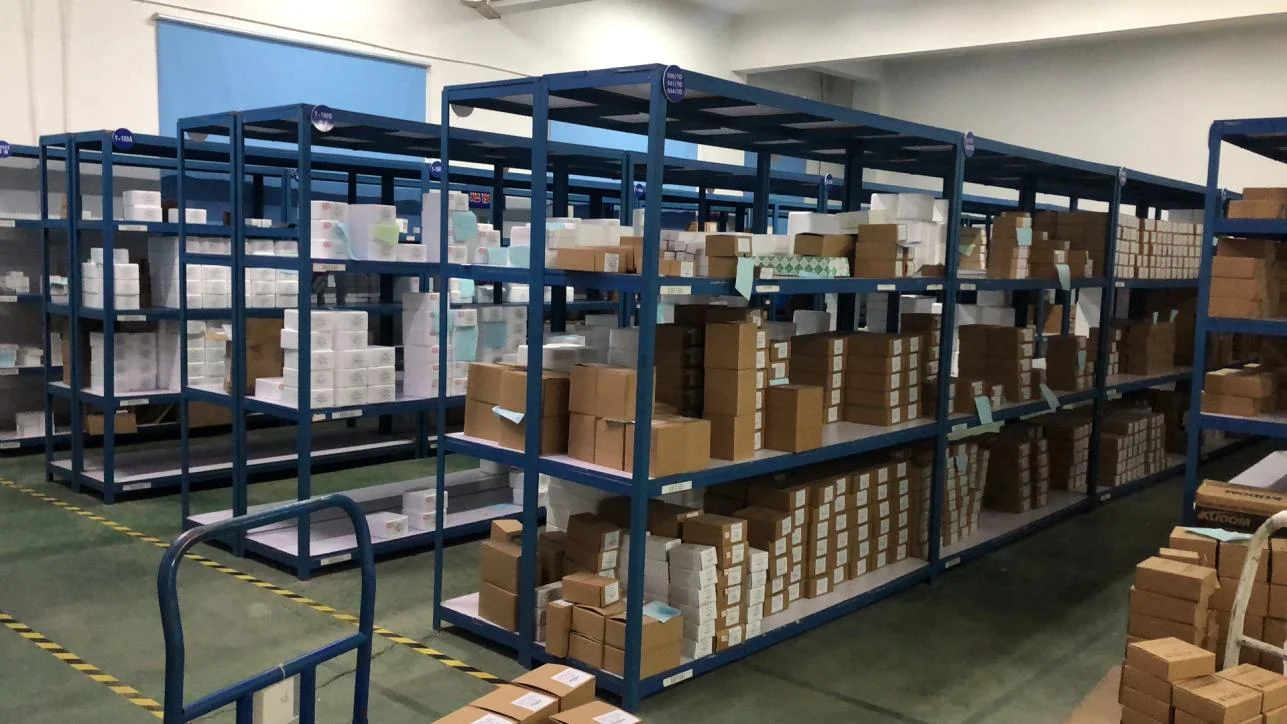

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

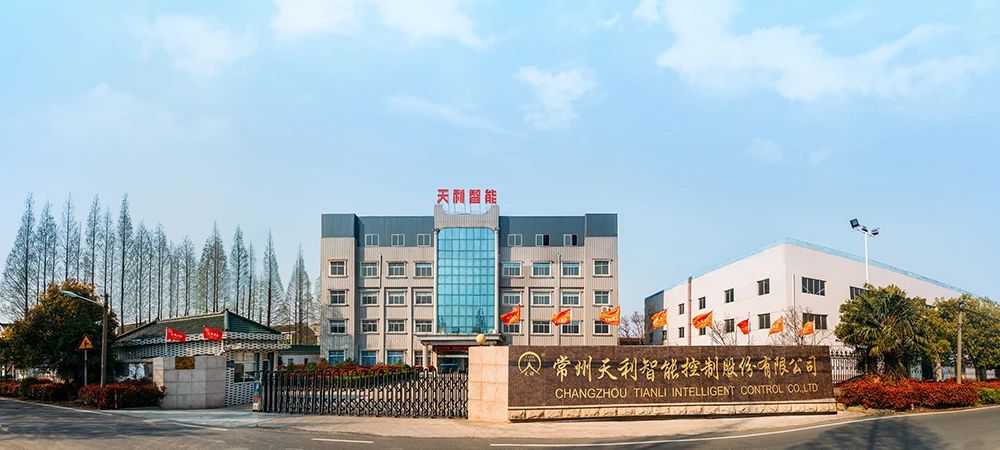

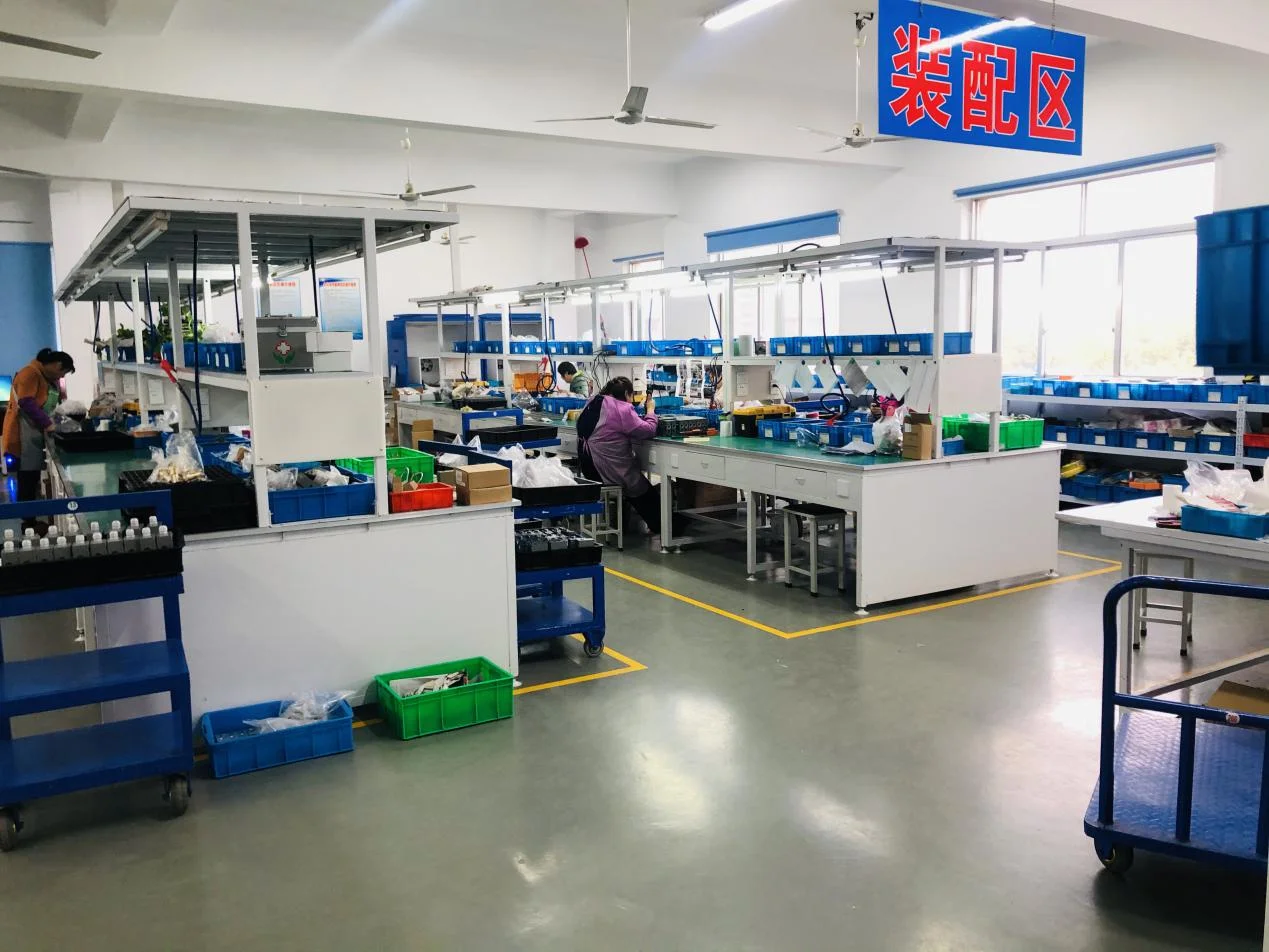

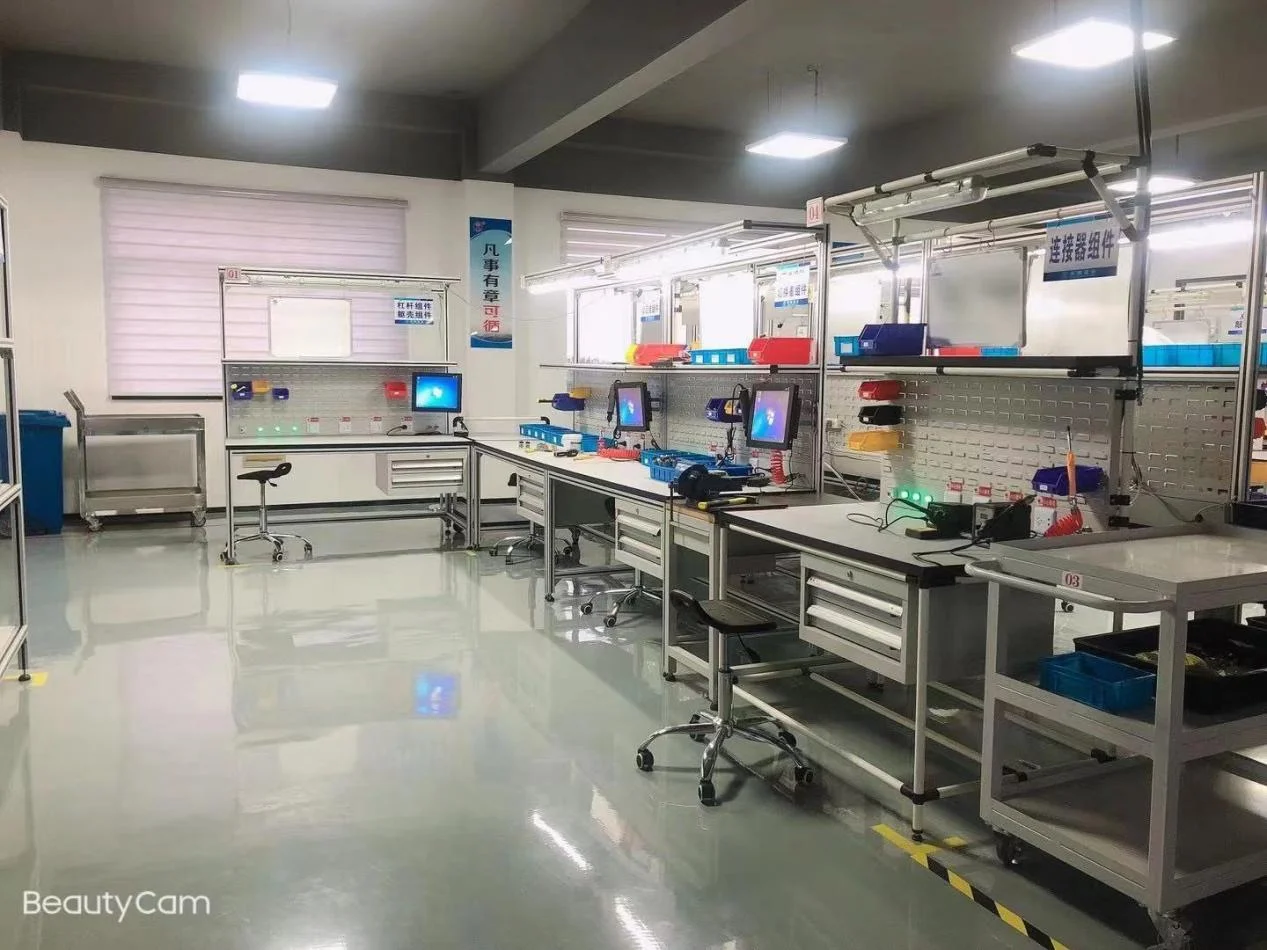

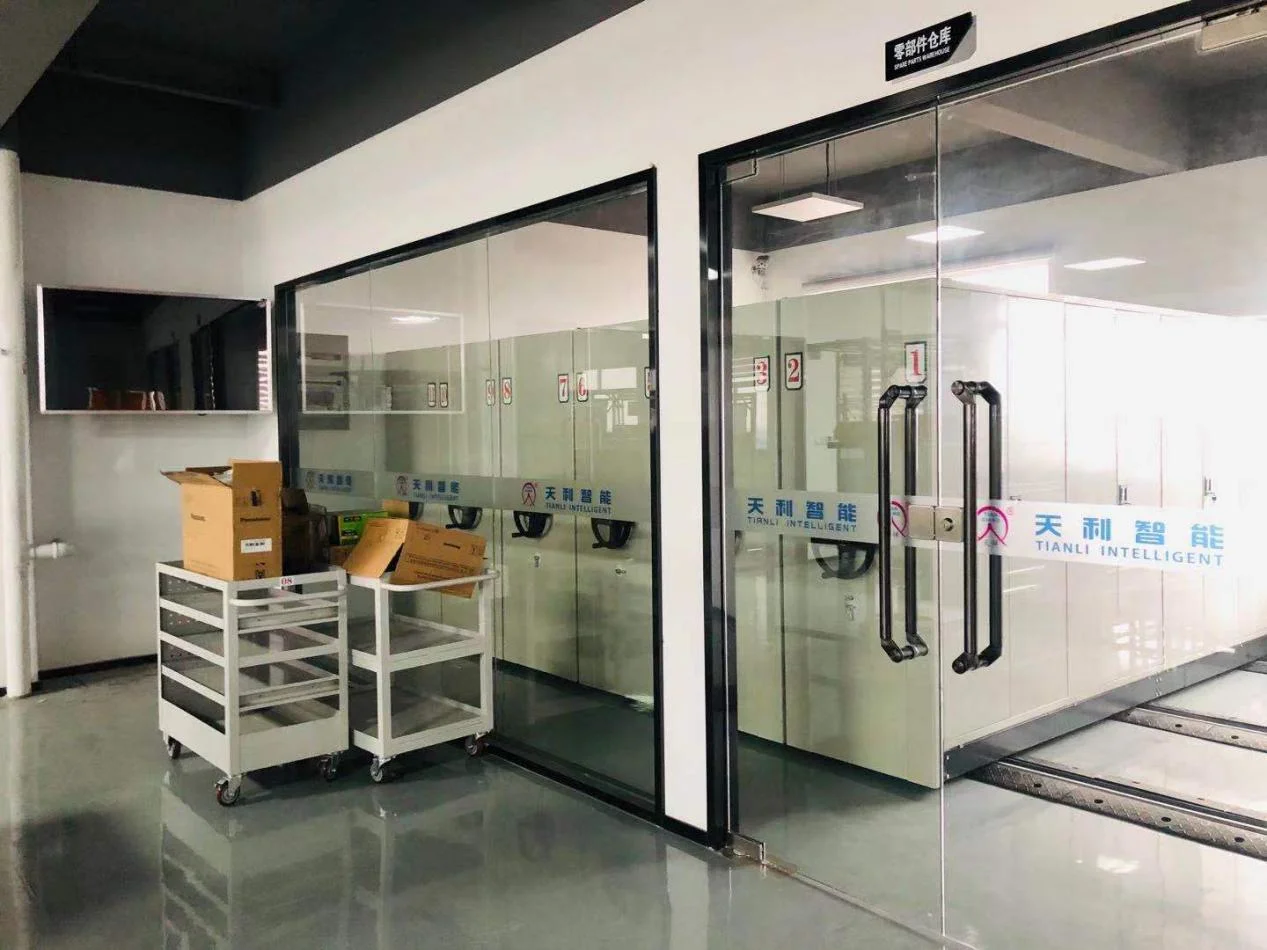

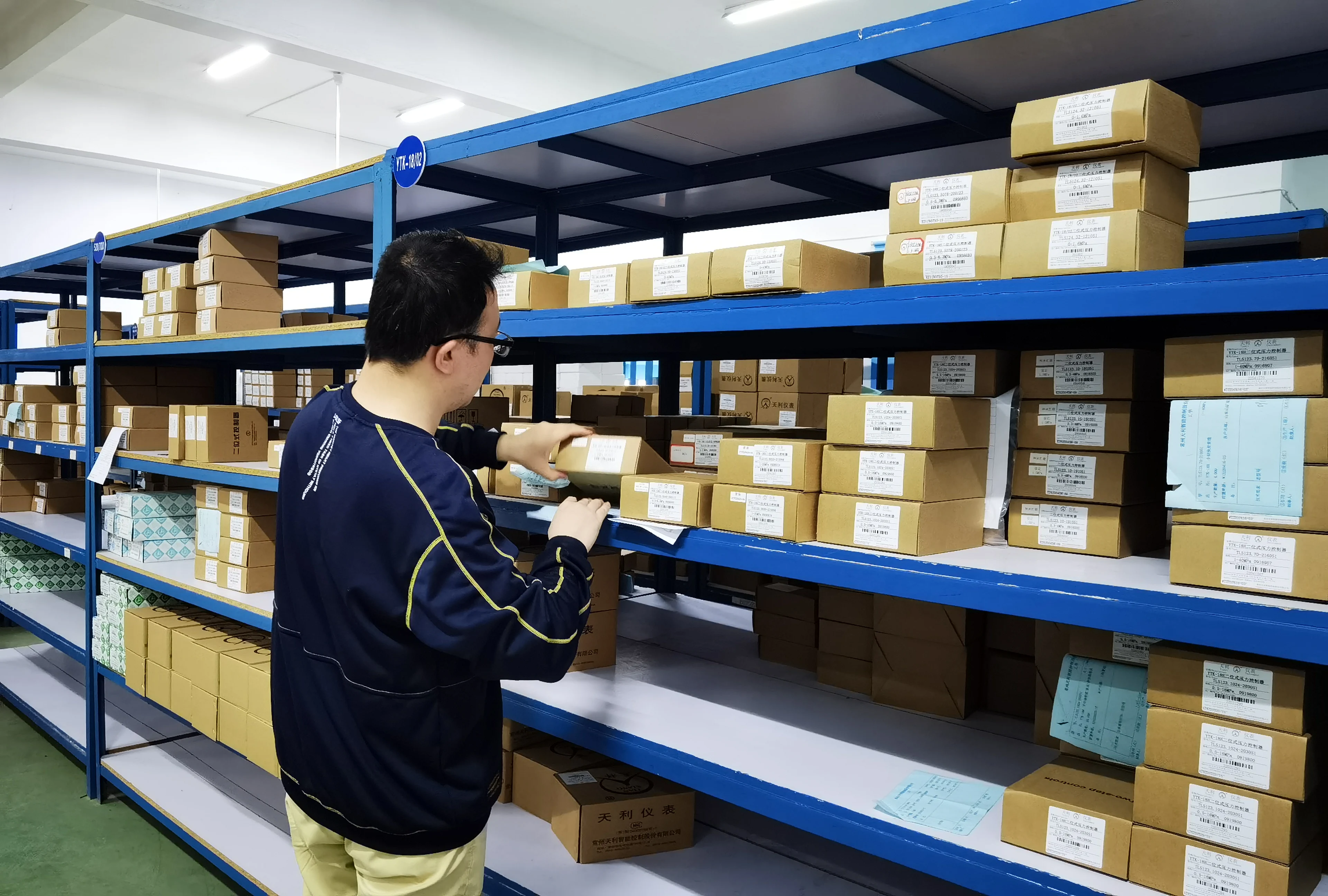

Company Profile




Changzhou Tianli Intelligent Control Co.,Ltd is a ISO9001:2000 proved high-Tech. Enterprise. We are professional in manufacturing products includes: Pressure/Differential Transmitters, Indicating Pressure Switches, Two-level Pressure Switches,Stainless Pressure Gauges, Shakeproof Pressure Gauge,etc. We serve a countrywide market of oil and gas, chemical, petrochemical, chemical fiber,power industries ,metallurgy,medical, light industry , telecommunication industries and Self-check & Control center of refregrating equipment, Self-alarm in process application and protection.
