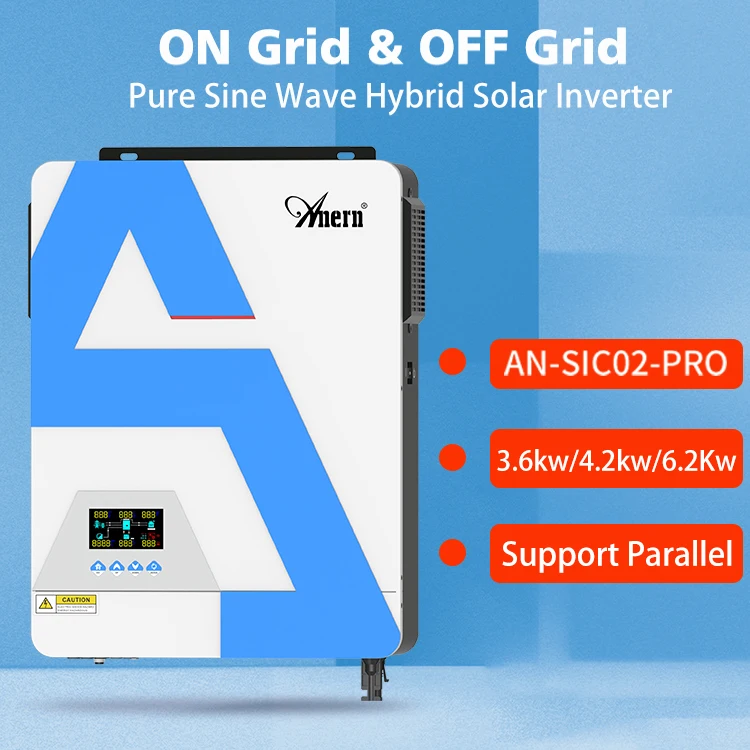

Anern off grid solar inverter 3000w factory 48v MPPT 80A 500VDC PV Input 220VAC portable PV inverter
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd
Share on (1600790516554):
Product Overview
Description
Recommend Products
One Product Description
The AN-SCI02 Pro series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business,and it also delivers a value added,easy to install system that provides efficient power globally for every need.
Key Features:
Key Features:
★ Anern patent design
★ Stable, efficient and maintenance-free product design concept

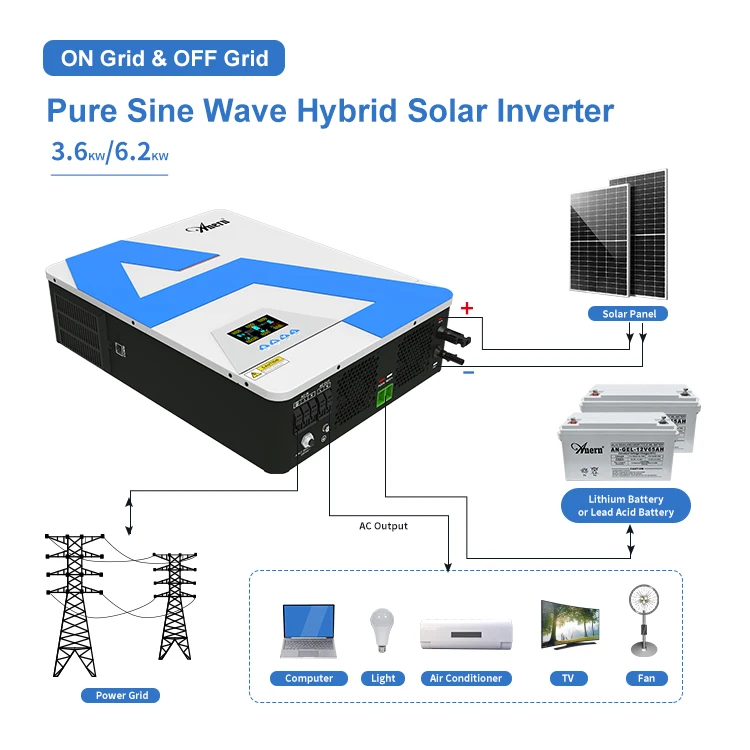

★ Convert the direct current generated by the solar panel into alternating current and supply to the loads
★ Directly connect to the load, no need to connect to any battery
★ Monitored by WIFI wireless
★ Chieving remote monitor and operation through mobile phone APP
★ Monitor and troubleshoot with USB/RS232
★ It combines a wide PV input range MPPT controller
★ It can convert solar energy from PV to loads directly and the remaining solar energy converted to batteries synchronously
★ Directly connect to the load, no need to connect to any battery
★ Provided flexible, diverse, safe and reliable system solutions for family and industrial uniterrupted power supply
★ Wide utility input range(90Vac-280Vac)
★ For reliable grid even in the most challenging environments
★ Stable, efficient and maintenance-free product design concept
★ Convert the direct current generated by the solar panel into alternating current and supply to the loads
★ Directly connect to the load, no need to connect to any battery
★ Monitored by WIFI wireless
★ Chieving remote monitor and operation through mobile phone APP
★ Monitor and troubleshoot with USB/RS232
★ It combines a wide PV input range MPPT controller
★ It can convert solar energy from PV to loads directly and the remaining solar energy converted to batteries synchronously
★ Directly connect to the load, no need to connect to any battery
★ Provided flexible, diverse, safe and reliable system solutions for family and industrial uniterrupted power supply
★ Wide utility input range(90Vac-280Vac)
★ For reliable grid even in the most challenging environments

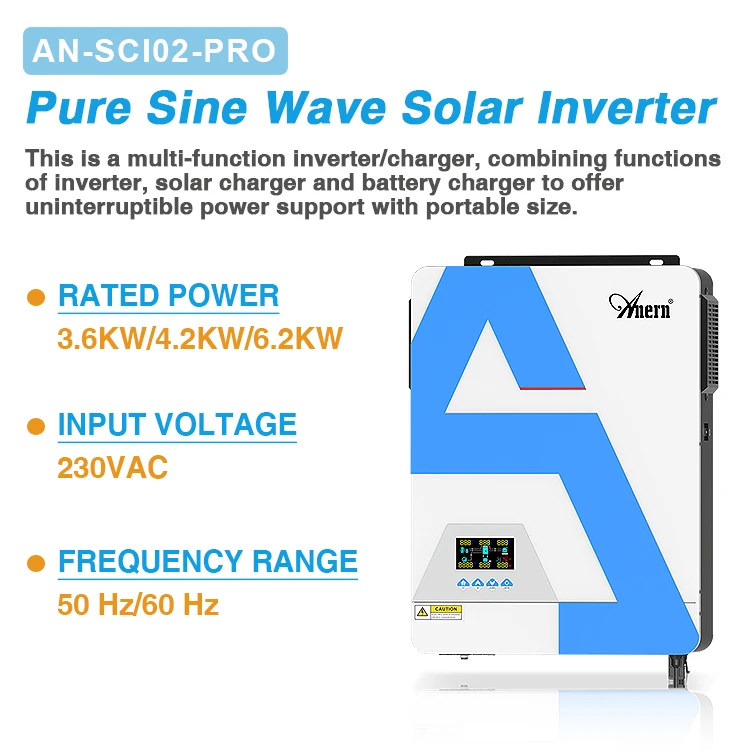

Model | SCI02-PRO-3600 | SCI02-PRO-6200 | ||
RATED POWER | 3600W | 6200W | ||
INPUT | Voltage | 230 VAC | ||
Selectable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | AC Voltage Regulation (PV Mode) | 230VAC ± 5% | ||
Surge Power | 7200VA | 12400VA | ||
Efficiency (Peak) PV to INV | 96.8% | |||
Efficiency (Peak) Battery to INV. | 94% | |||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
SOLAR CHARGER | Maximum PV Array Power | 3600W | 6200W | |
MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |||
Maximum PV Array Open Circuit Voltage | 500 VDC | |||
Maximum Efficiency | 98% | |||
PHYSICAL | Dimension, D x W x H (mm) | 100 x 300 x 440 | ||
Net Weight (kgs) | 10 | 11 | ||

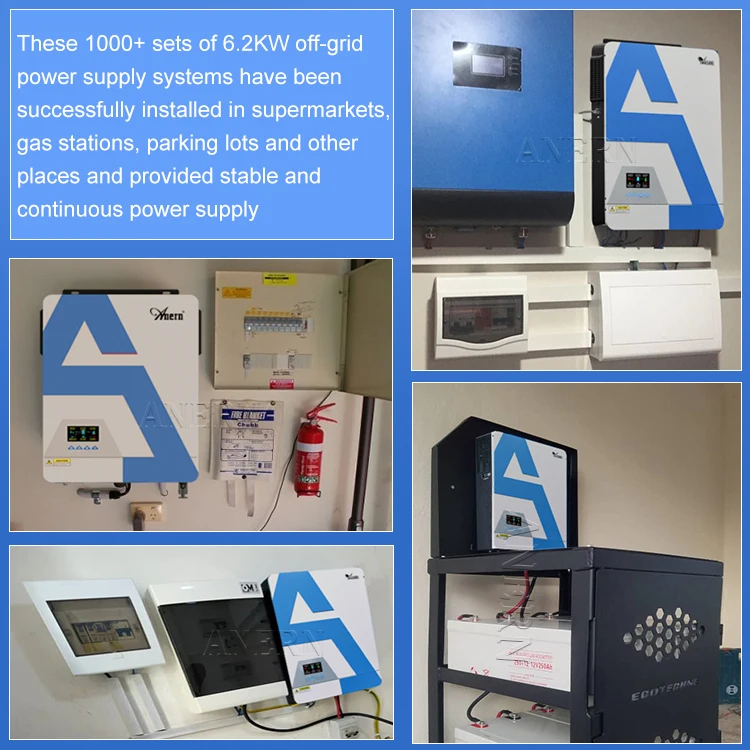

Project

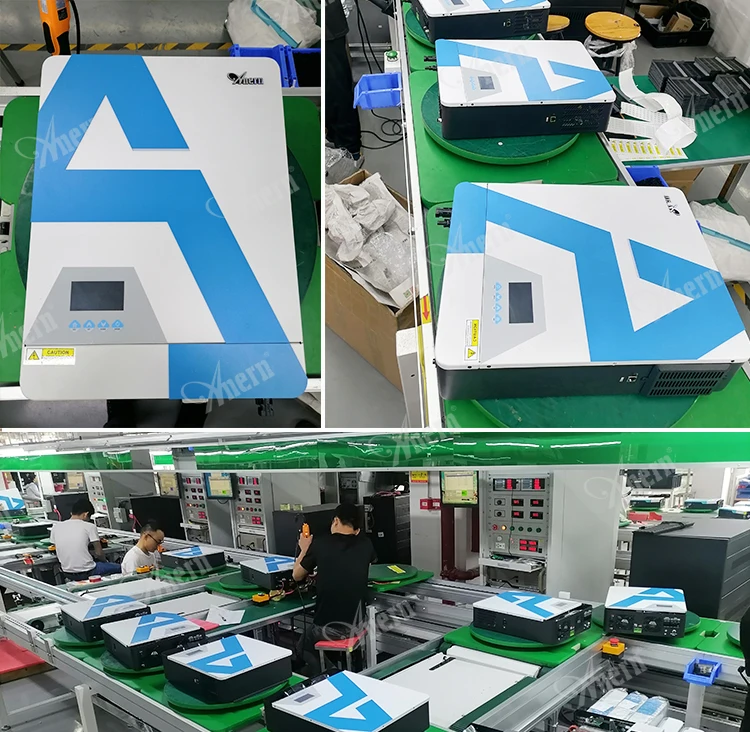

Anern Factory
Certifications
Company Profile
Anern can offer OEM/ODM services as per your specific requirements by our formidable technical team.
