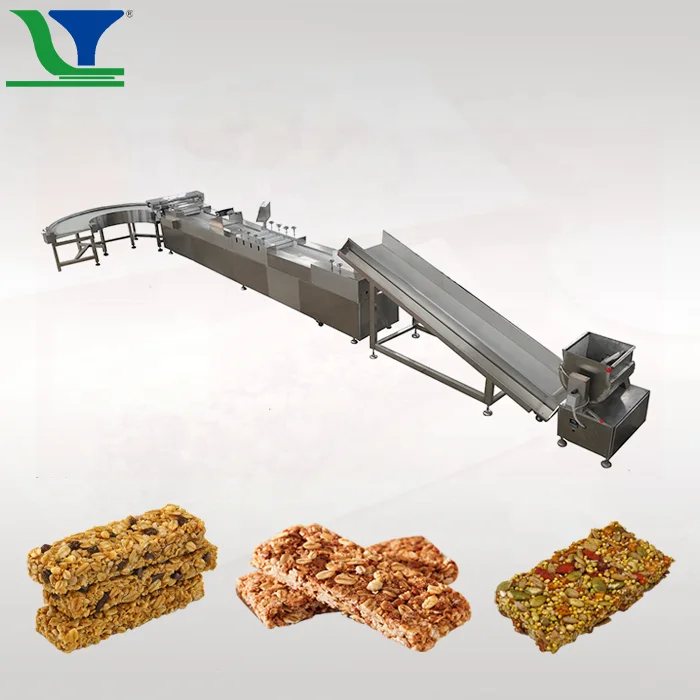

Automatic Sesame Snacks Bar Extruder Machine Cereal Brittle Production Line Protein Nut Candy Bar Making Machines
- Category: >>>
- Supplier: Shandong,Light,M&e,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Application: Mainly used in the production of nut /seeds peanut candy bar, etc.
Features:
1.nut /seeds bar, sesame bar, etc..
2．mechanical massage, no damage to the nut particles.
3． mechanical transmission, no pump, positioning accuracy, good forming effect.
4． Adopt cutter of guillotine type to cut the products.
1.nut /seeds bar, sesame bar, etc..
2．mechanical massage, no damage to the nut particles.
3． mechanical transmission, no pump, positioning accuracy, good forming effect.
4． Adopt cutter of guillotine type to cut the products.
Item | Contents |
Power | 2.2kw |
Cooling Belt | 5m |
Capacity | 2t/8h |
Material | Food contacted part stainless steel |
Dimension | 6800x1000x1000mm |

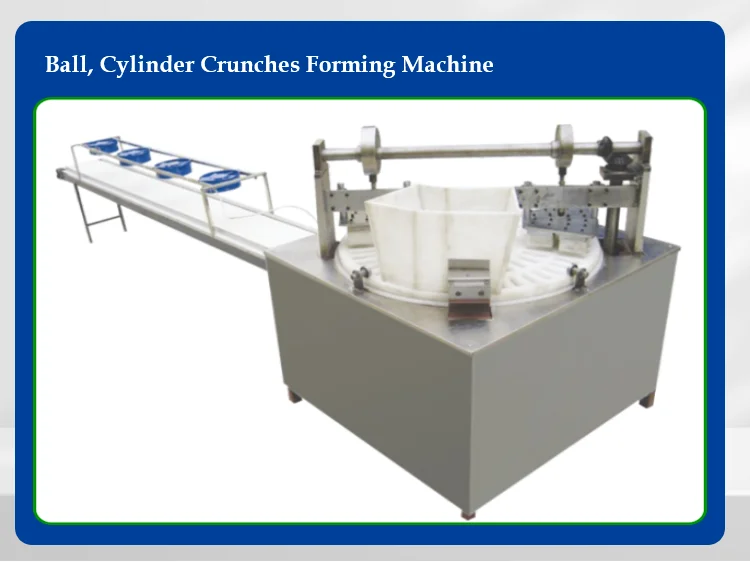

Application: Suitable for grain food, grain kind of food production, such as shape of cylinder suitable for shaping products with special shapes, such as cylinder, ball, cake etc.
Features: Rotating-disk type with small floor area and up-down refrigeration.
No air supply, producting directly.
Discharging and feeding material automatically.
Easy operation, easy maintenance.
No air supply, producting directly.
Discharging and feeding material automatically.
Easy operation, easy maintenance.
Item | Contents |
Production Capacity | 120-150kg/h |
Total Power | 2.0kw |
Weight | 800kg |
Dimension | 3500×1200×800mm |
Details Images
Sample Show
Chocolate Enrobing Machine Line 1 set
Cereals Bar Slitting And Cutting Machine with Cooling Conveyor
Model: LT-400S The belt width: 400mm ( Also can be 600 width of belts)
Capacity: 150-300kg/h, Power: 15kw,
Cooling tunnel: 6000mm length
Dimension: (L*W*H)14000*1400*1600mm
Capacity: 150-300kg/h, Power: 15kw,
Cooling tunnel: 6000mm length
Dimension: (L*W*H)14000*1400*1600mm
Chocolate Enrobing Machine Line 1 set (food contacted part stainless steel)
Width of wiremesh:600mm ( Also can be 900 width of belts)
Outside dimensions: 2000(L)*1300(W)*1800(L)
Mixing motor: 0.5kw, blower: 0.74kw, water Heating:6kw, heating pipe:1kw, mass Pump:2.2kw
Wiremesh driving motor: 0.37kw, vibrating motor: 0.18kw, de-tailer motor:0.12kw
Outside dimensions: 2000(L)*1300(W)*1800(L)
Mixing motor: 0.5kw, blower: 0.74kw, water Heating:6kw, heating pipe:1kw, mass Pump:2.2kw
Wiremesh driving motor: 0.37kw, vibrating motor: 0.18kw, de-tailer motor:0.12kw
Cooling Tunnel
Width of conveyor belt: 600mm. ( Also can be 900 width of belts)
Total length of 14m cooling tunnel: 14M; Width: 970mm; The height from belt to ground: 1000±30mm ;
Speed of conveyor belt: 3~6 m/min
Total length 14 meters is are equipped with 2sets/5HP cooling unit and 2sets/40m2 evaporator.
Humidity: <50%。
Voltage: 380V/50HZ/3Phase, or made according to customer’s requirement
Total length of 14m cooling tunnel: 14M; Width: 970mm; The height from belt to ground: 1000±30mm ;
Speed of conveyor belt: 3~6 m/min
Total length 14 meters is are equipped with 2sets/5HP cooling unit and 2sets/40m2 evaporator.
Humidity: <50%。
Voltage: 380V/50HZ/3Phase, or made according to customer’s requirement
