KEFAI Automatic Alu Pvc Liquid Blister Packing Machine Gum Liquid Chocolate Sauce Jam Blister Packaging Machine
- Category: >>>
- Supplier: Wuhan Kefai Innovation Machinery Co. Ltd.
Share on (1600790589413):
Product Overview
Description
Product Description
Features
Features:
1, the main transmission part of the parallel shaft helical gear reduction box, novel structure, smooth operation, long life, low noise.
2, heat sealing station fixed, forming, indentation, blanking and other parts can move freely adjust the spacing, correction is convenient and simple.
3, the manipulator traction, stroke adjustable, can adapt to different sizes of the packaging.
4, flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
1, the main transmission part of the parallel shaft helical gear reduction box, novel structure, smooth operation, long life, low noise.
2, heat sealing station fixed, forming, indentation, blanking and other parts can move freely adjust the spacing, correction is convenient and simple.
3, the manipulator traction, stroke adjustable, can adapt to different sizes of the packaging.
4, flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
Note
1, optional cursor tracking plate sealing device.
2, optional organic glass cover shell.
3. Optional ink-jet coding (word) device
2, optional organic glass cover shell.
3. Optional ink-jet coding (word) device
Application

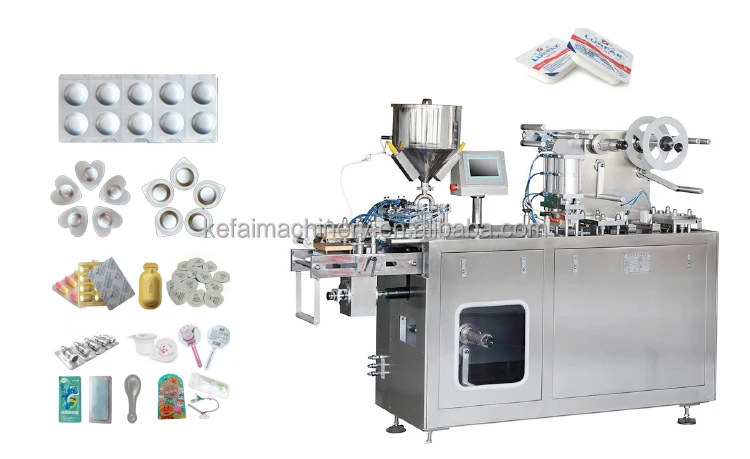

KEFAI Machine Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.

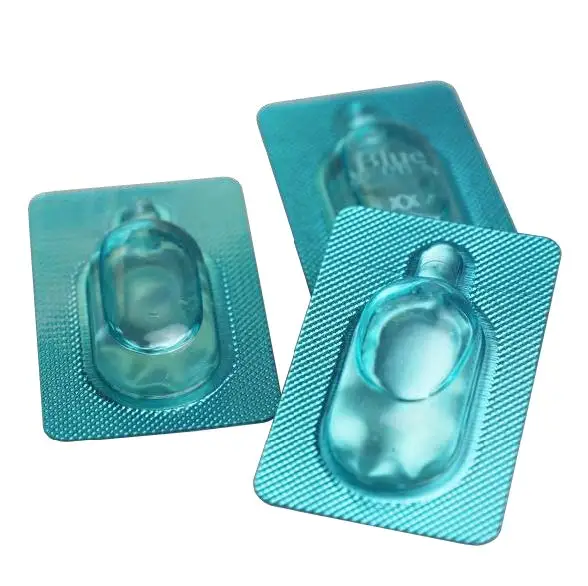

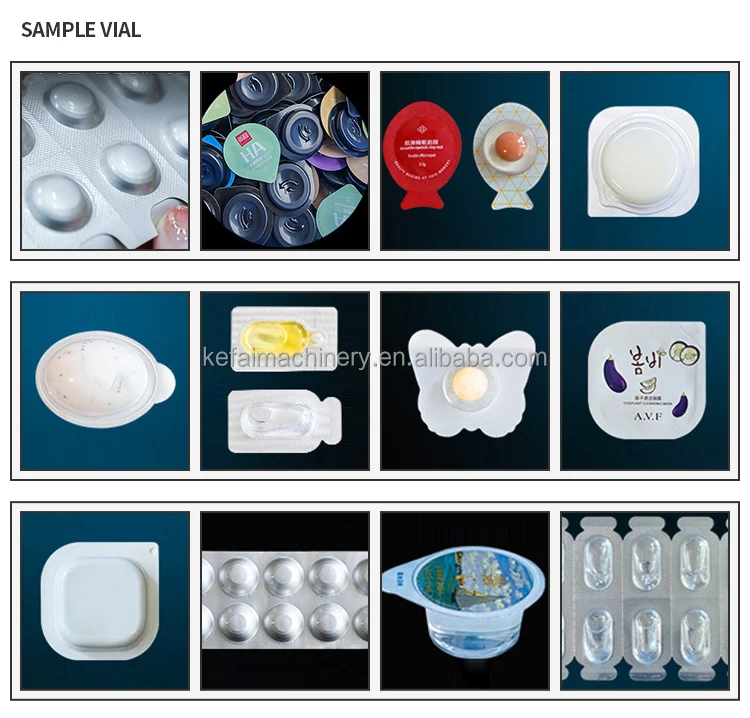

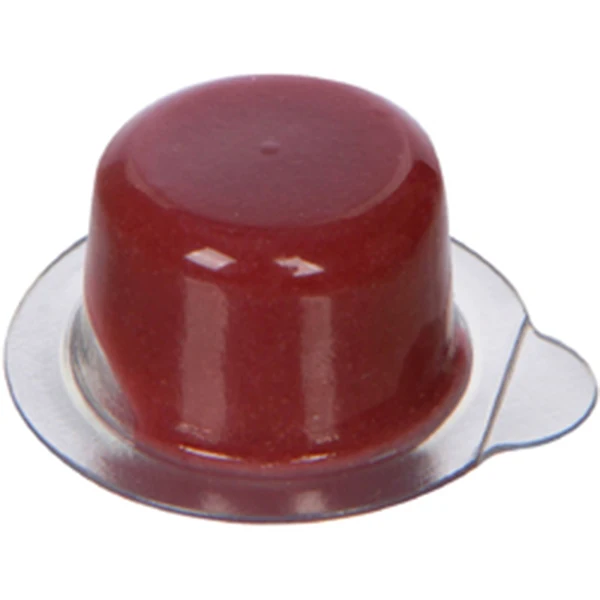

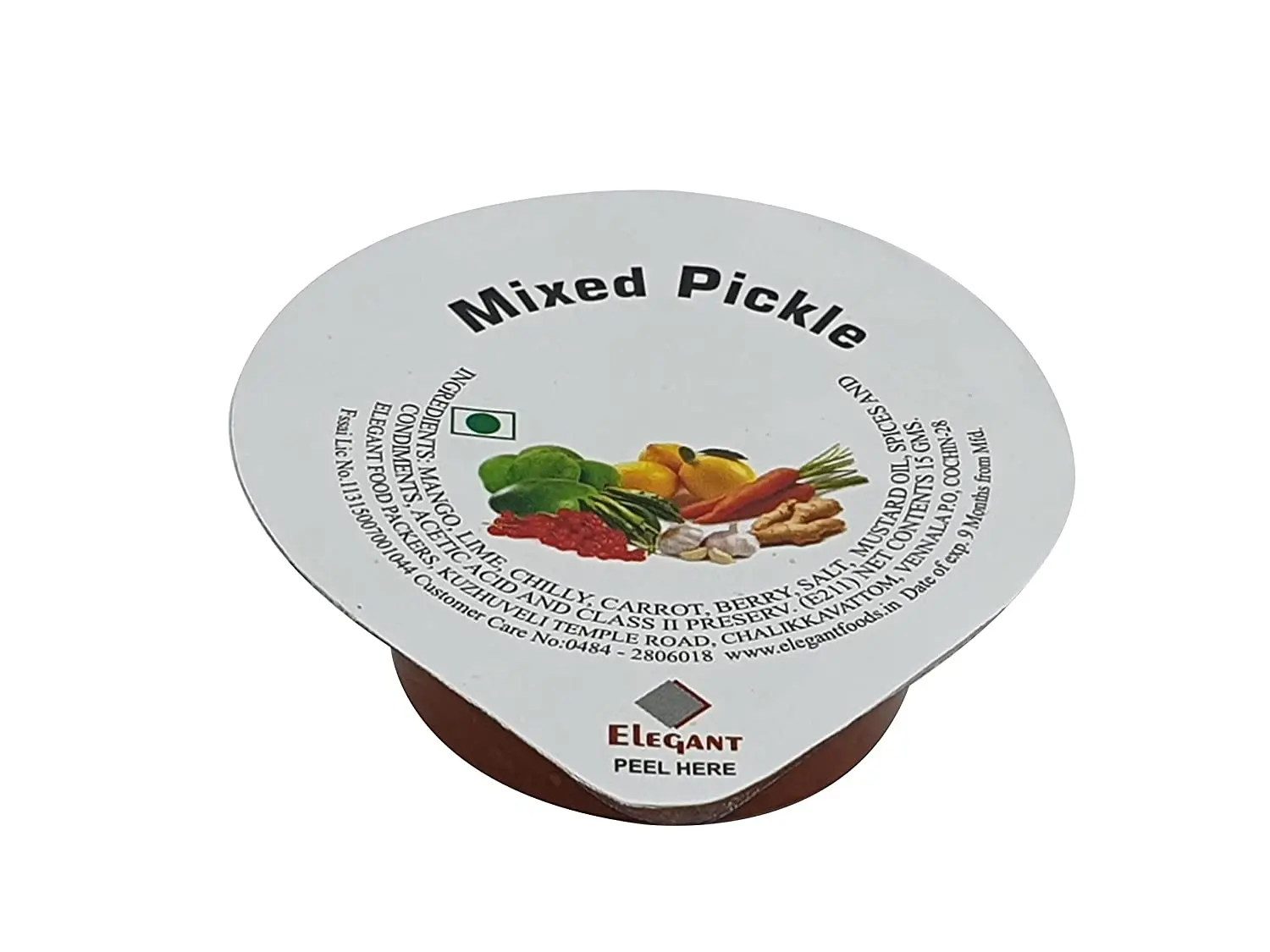

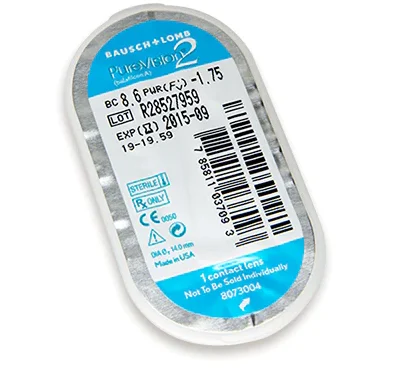

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc
Specification
Following specification is one of the model, please kindly send us your detailed requirements, we will choose the suitable model for you.
item | value |
Production Capatity | 2400 edition/hour |
Punch speed | 25-50 pieces/min |
Max. forming depth | Maximum 30mm |
Max. Forming Area | 115*80*14mm |
Max Forming Depth | 26mm or customized |
Stroke range | 20-70mm |
PVC hard Film | (0.15-0.5)*80mm PTP Aluminum film (0.02-0.035)*80mm |
Air pressure | 0.6mpa-0.8mpa |
Power | 380V/220V 50Hz 4kw |
Main motor power | 0.75kw |
Material types | PVC, PET, PS, composite film,aluminium foil |
Material width | 120mm |
Mould cooling | tap water or recycled water 60L/h |
Overall dimension | 1800*650*1750mm |
Weight | 450KG |

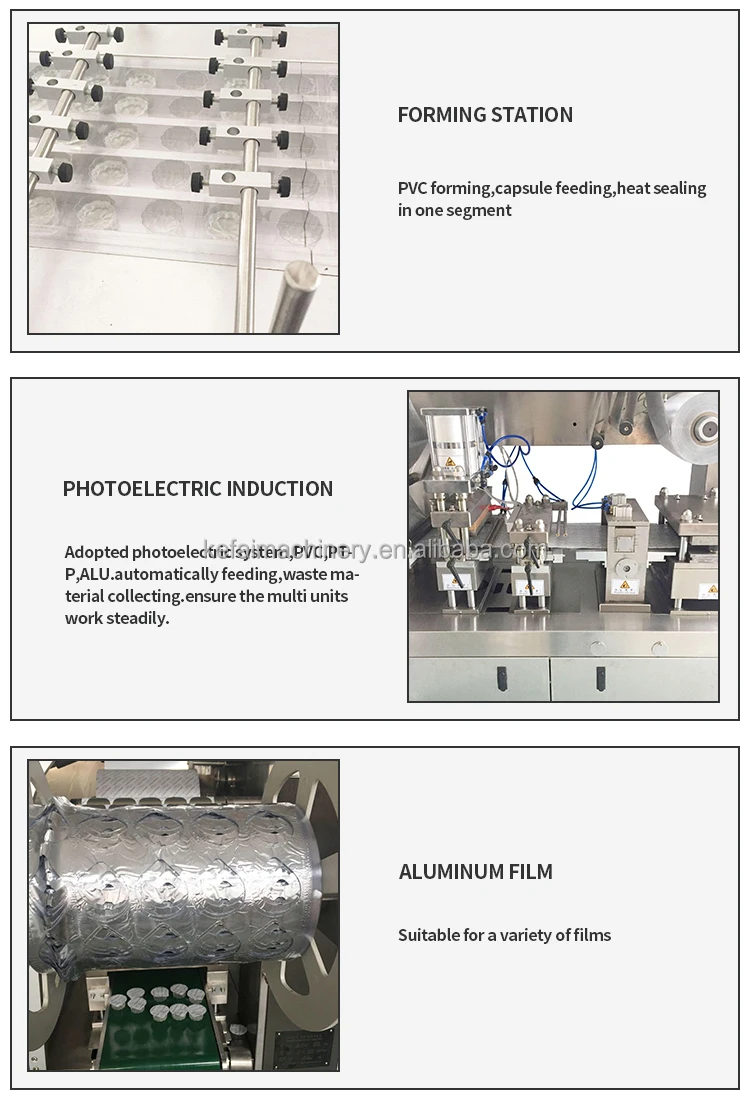

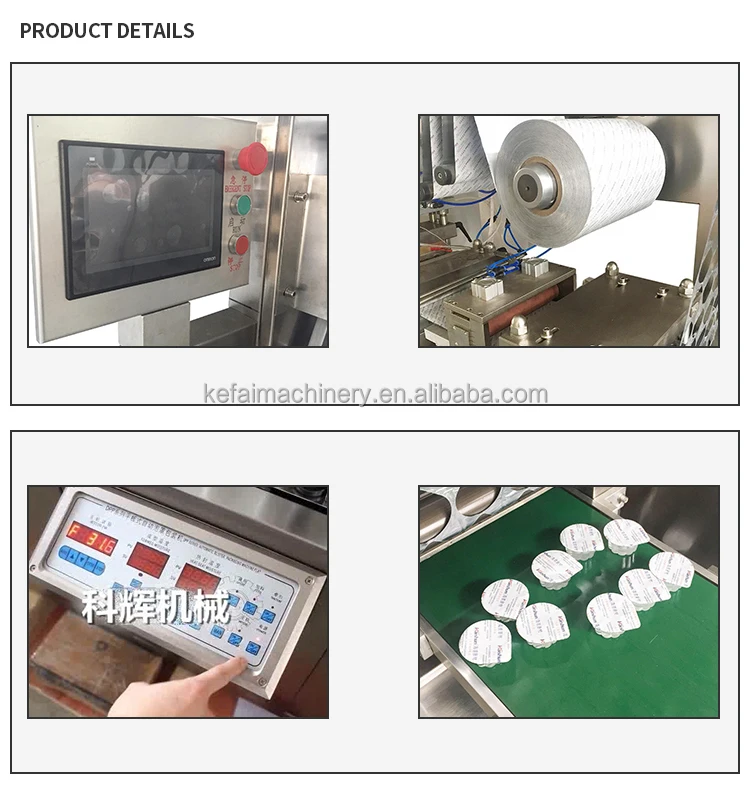

Deatils images
For More Details,
Please Send An Inquiry To Get It.
Packing & Delivery
All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, the wrapped by stretch film to protect it from moist. The precision part needs flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory. All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Company Profile
FAQ
1.Are you a factory or trading company?·
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
