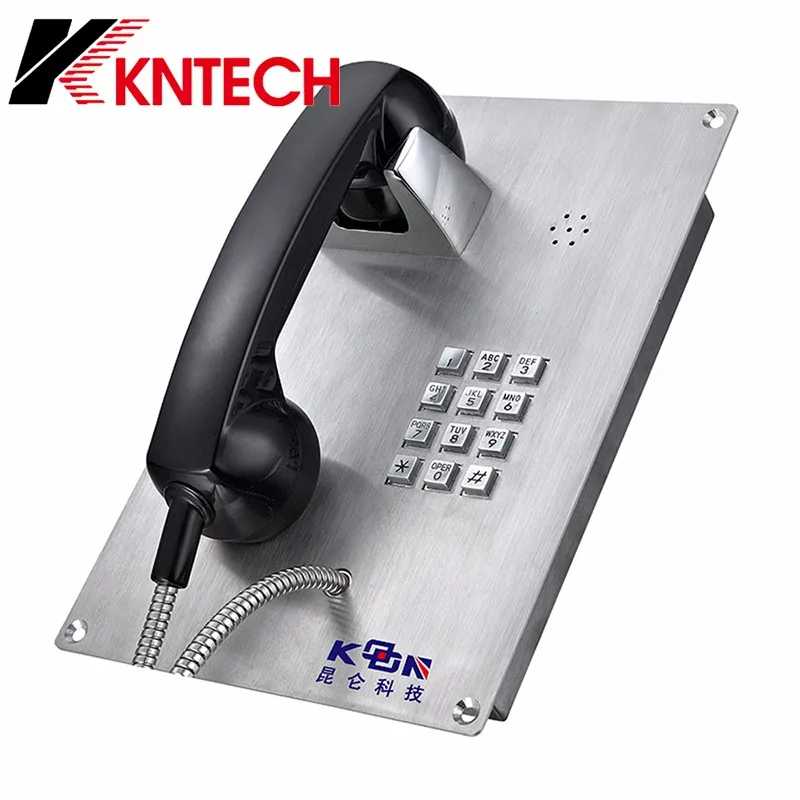

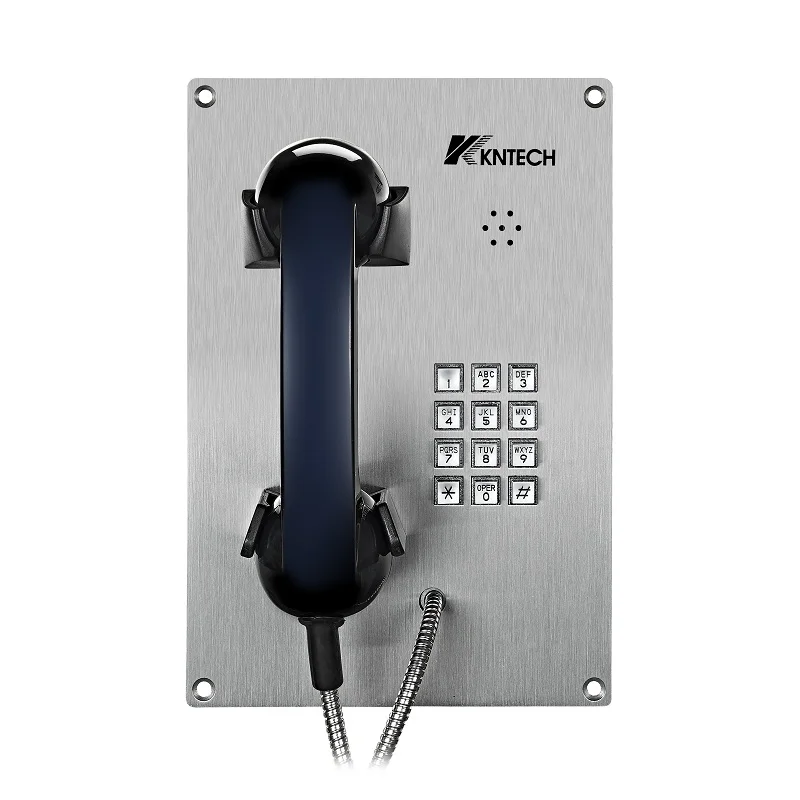

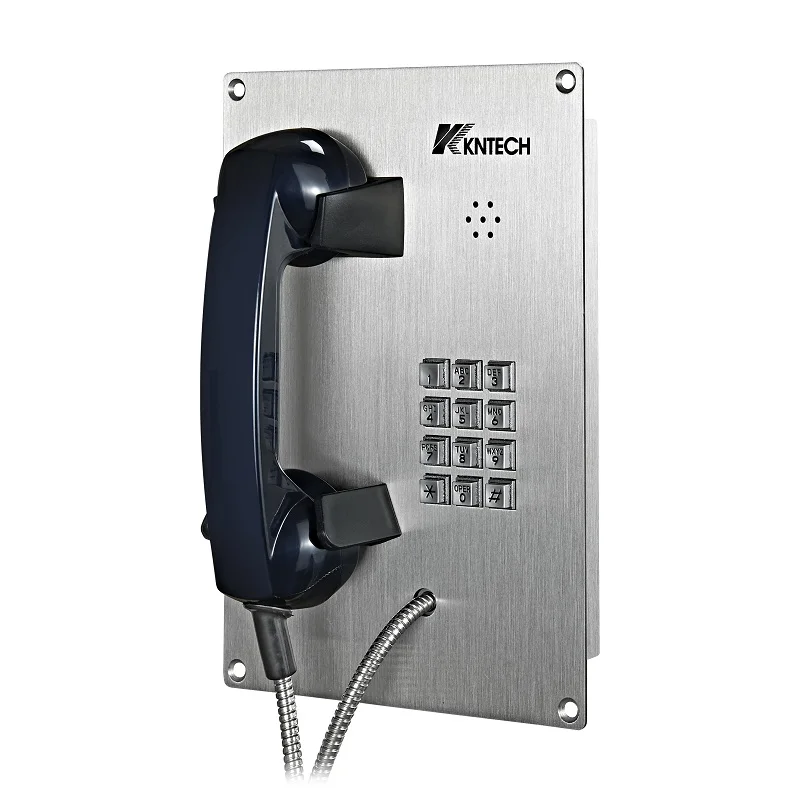

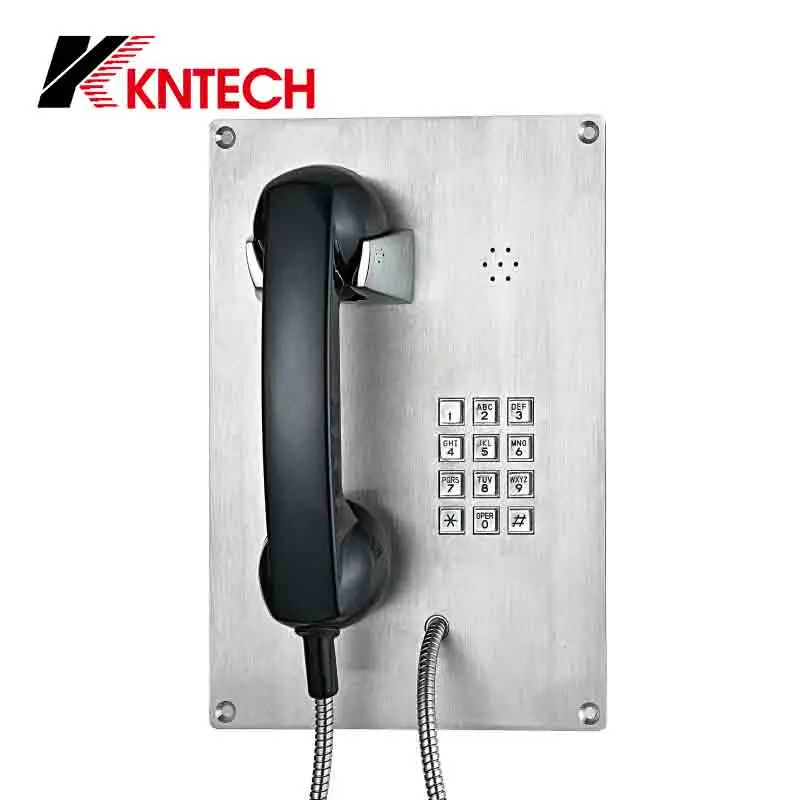

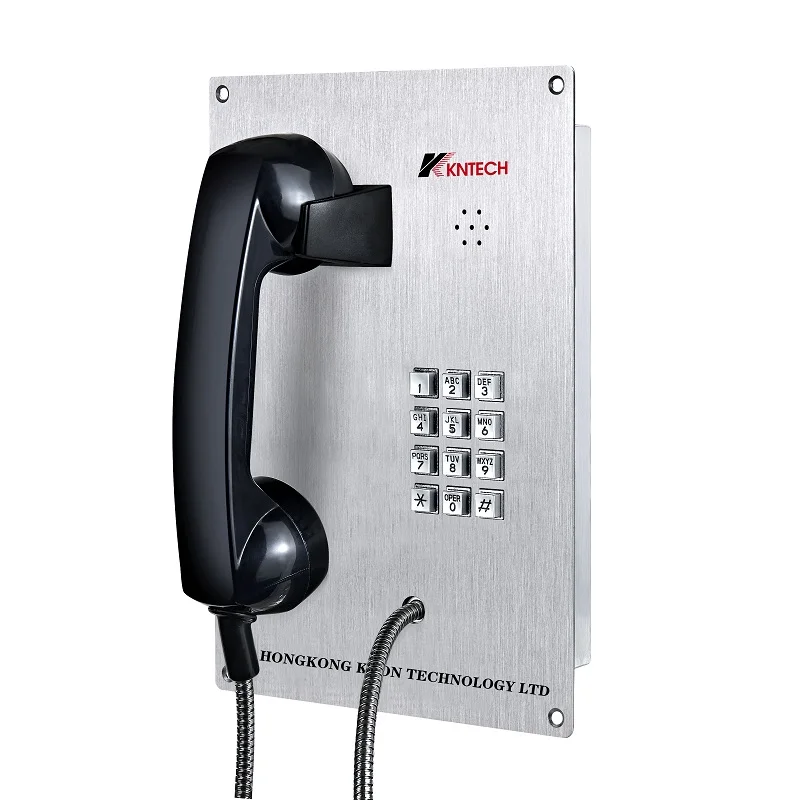

Stainless Steel Wide High Impact Strength Public Emergency Ip66 VoIP Waterproof Telephone
- Category: Telephones & Accessories >>>
- Supplier: Koon Technology (shenzhen) Ltd.
Share on (1600790597152):
Product Overview
Description
Product Description
.KNZD-07A public telephone
Public emergency telephone is in the place where the accident that easy to install for sos emergency telephone for help.We can provide elevator parts Telephone Emergency Phone SOS device security telephone with speed dial buttons optional for the ship cockpit.
As in the highway of highway roadside emergency telephones, waterproof telephone for the coal mine explosion-proof telephone used in coal mines, oil Wells, used in tourism scenic tourists such as telephones are belongs to the category of the public emergency telephone. The main function of the Public analogue telephone is that, when the accident occurs, the telephone which can be used and must be able to be used for emergency call for help has completely different requirements for its work according to different use environment.
Public emergency telephone is in the place where the accident that easy to install for sos emergency telephone for help.We can provide elevator parts Telephone Emergency Phone SOS device security telephone with speed dial buttons optional for the ship cockpit.
As in the highway of highway roadside emergency telephones, waterproof telephone for the coal mine explosion-proof telephone used in coal mines, oil Wells, used in tourism scenic tourists such as telephones are belongs to the category of the public emergency telephone. The main function of the Public analogue telephone is that, when the accident occurs, the telephone which can be used and must be able to be used for emergency call for help has completely different requirements for its work according to different use environment.

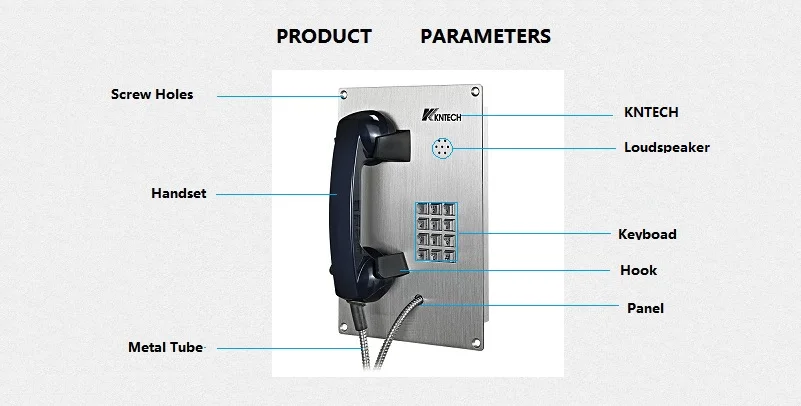

DESCRIPTION ITEM
1. Shell: stainless steel material with high strength and elasticity, wide high impact strength, wide service temperature.
2. Hook: stainless steel, using magnetic induction hang up, don't need hook switch, no contact gaps.
3. Buttons: metal buttons, abrasion-proof and anti aging. (Can be customized back lit keyboard)
4. Display: This model is IP version supports Caller ID or IP address of the display. (Can be customized according to standard GSM CDMA, etc.)
5. Handset: special ABS, / PC synthesis, integrated structure, good sealing, resistance to knock ,twisted pull no deformation,
doesn’t burst at -35 centigrade.
6. Wire: using Teflon wire, acid and alkali resistance, high temperature, anti-aging, do not catch fire.
7. Waterproof glue : imported waterproof glue, high viscosity, high temperature resistance, high pressure, waterproof life more than 10 years.
8. Transmitter and receiver of handset ,keyboard, buzzer,circuit board ,shell , all accessories use multi-layer waterproof and
dust-proof structure. It has three-level waterproof, dust proof functions, the whole rating reach to IP66.
9. Telephone is very stability, strong anti-jamming capability, In line with the national standard GB / T 15279-94.
1. Shell: stainless steel material with high strength and elasticity, wide high impact strength, wide service temperature.
2. Hook: stainless steel, using magnetic induction hang up, don't need hook switch, no contact gaps.
3. Buttons: metal buttons, abrasion-proof and anti aging. (Can be customized back lit keyboard)
4. Display: This model is IP version supports Caller ID or IP address of the display. (Can be customized according to standard GSM CDMA, etc.)
5. Handset: special ABS, / PC synthesis, integrated structure, good sealing, resistance to knock ,twisted pull no deformation,
doesn’t burst at -35 centigrade.
6. Wire: using Teflon wire, acid and alkali resistance, high temperature, anti-aging, do not catch fire.
7. Waterproof glue : imported waterproof glue, high viscosity, high temperature resistance, high pressure, waterproof life more than 10 years.
8. Transmitter and receiver of handset ,keyboard, buzzer,circuit board ,shell , all accessories use multi-layer waterproof and
dust-proof structure. It has three-level waterproof, dust proof functions, the whole rating reach to IP66.
9. Telephone is very stability, strong anti-jamming capability, In line with the national standard GB / T 15279-94.

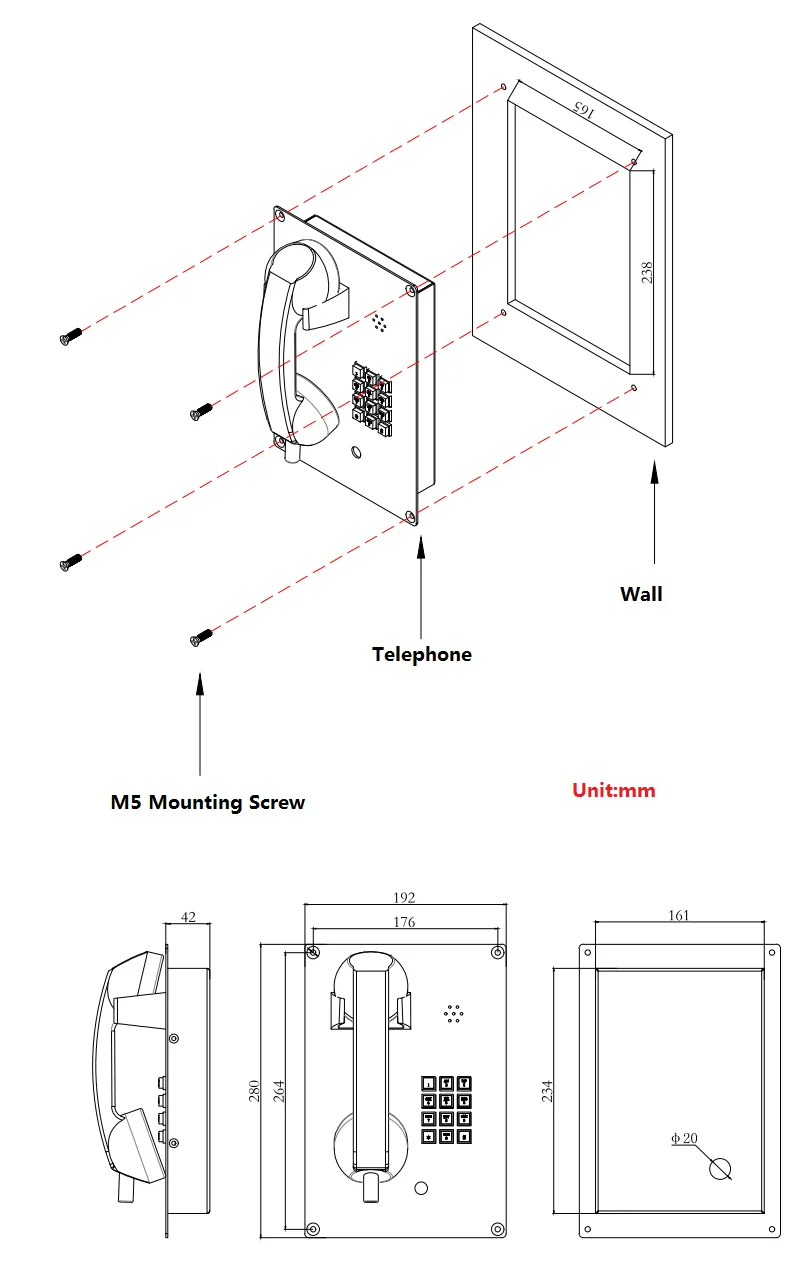

Installation
==>>>> Product Specification
SPECIFICATION - Analogue(Model NO.ZD07A0012)
1. PSTN analogue telephone
SPECIFICATION - Analogue(Model NO.ZD07A0012)
1. PSTN analogue telephone
2. DTMF dialing
3. MTBF:100000hours
3. MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable
5. Connection: RJ11 screw terminal pair cable
6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
SPECIFICATION - VoIP(Model NO.ZD07A0022)
1. VoIP SIP2.0 telephone
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5% ~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)
SPECIFICATION - VoIP(Model NO.ZD07A0022)
1. VoIP SIP2.0 telephone
2. DTMF dialing
3. MTBF100000hours
3. MTBF100000hours
4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact
5. Auxiliary Contacts:1 Aux Output, dry contact
6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load
7. Contact Ratings. Load: Resistive load
8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A
9. Rated carry current:1A
10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC
11. Max.switching voltage:125 VAC,60VDC
12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),RSTP(IEEE 802.1d-2004)
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),RSTP(IEEE 802.1d-2004)
==>>>>Telephone System

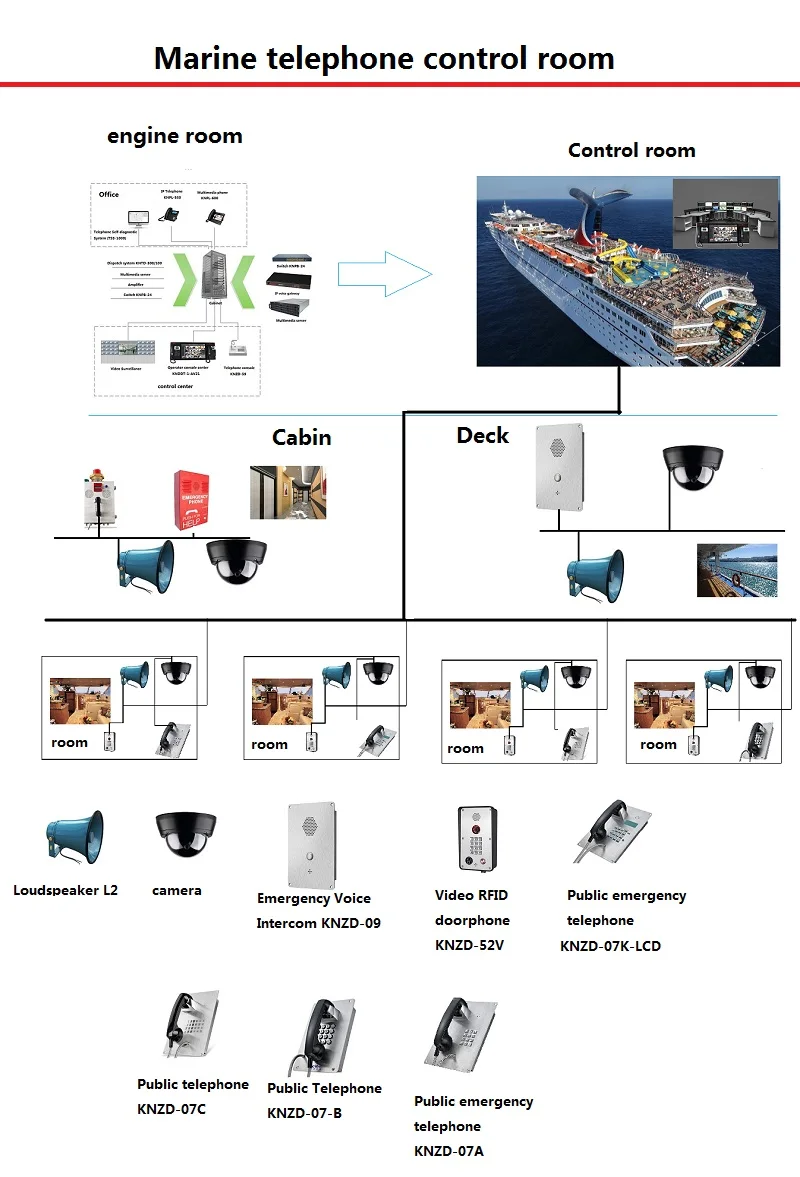

Product Application
Our Company
HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.
Strong R&D team, offer you professional technical support and further customization.
High productivity factory, short lead time and fast delivery for you.
We KNTECH team are always here at your prompt and best service.
Strict Tests to control high quality.
IP66 waterproof test, Salt spray test, Drop test, Dust test, Lightning protection test, High & low temperature test, IK10 test, etc.
System & Solution
KNTECH is not only manufacturer, but also professional telecom integrator.
Except terminal, we also provide customer complete system and solution.
Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customization function, etc.
Certifications
KNTECH Industrial Telephones pass lots of certificates, such as IOS, CE, FCC, EMC, TUV, ETL, LVD, AU LVD, SASO, Norway DNV, etc.
Project Reference
KNTECH goods sell to over 100 countries all over the world, very popular for government projects because of high quality and complete solution. Below share some projects.
China Hong Kong |
Hong Kong-Zhuhai-Macau Briage The world's longest sea-crossing bridge |
HongKong Airport |
Express Rail Link XRL Contract 851 |
Shing Mun/ Lion Rock/ Kai Tak Tunnels |
Hong Kong Eastern Harbour Crossing |
Central–Wan Chai Bypass |
Thailand Metros |
Purple line |
Red line |
Green line |
Blue line |
Pink & Yellow line |
Some projects for your reference. | ||||
Australia Sydney Metro North West Line | Israel Metro | Singapore Marine Project | ||
Brazil Sao Paulo Metro | Malaysia Kuala Lumpur Railway | Russia St. Pittsburgh Metro | ||
Germany Berlin Metro | Norway OLSO Metro | Turkey High-speed Railway | ||
Greek Athens Metro | Philippines Manila Railway | Turkey Highway | ||
India New Delhi Metro | Saudi Arabia Riyadh Metro | Slovenia Metro | ||
India Bangalore Metro | Saudi Arabia Mecca Railway | Mexico Metro | ||
India Hyderabad Metro | Saudi Arabia Shoaiba Power Plant | Vietnam Hochimin Railway | ||
India Mumbai Airport | Singapore Sentosa Tunnel | South Russian Railways | ||
India Kochi Metro | Singapore SMT Green Line | Netherlands Bonaire Jail | ||
India Lucknow Metro | Singapore Airport Project | Curacao Jail | ||
India Mumbai Metro | Singapore Thomson Line | Peru Jail | ||
Thailand KMUTT Project | Pakistan CPEC Project | Romanian Prison | ||
