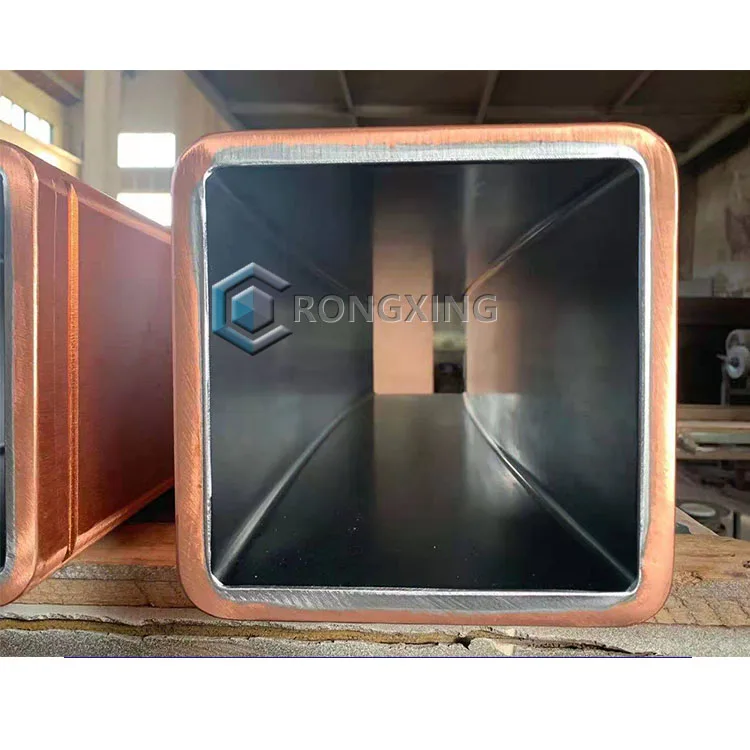

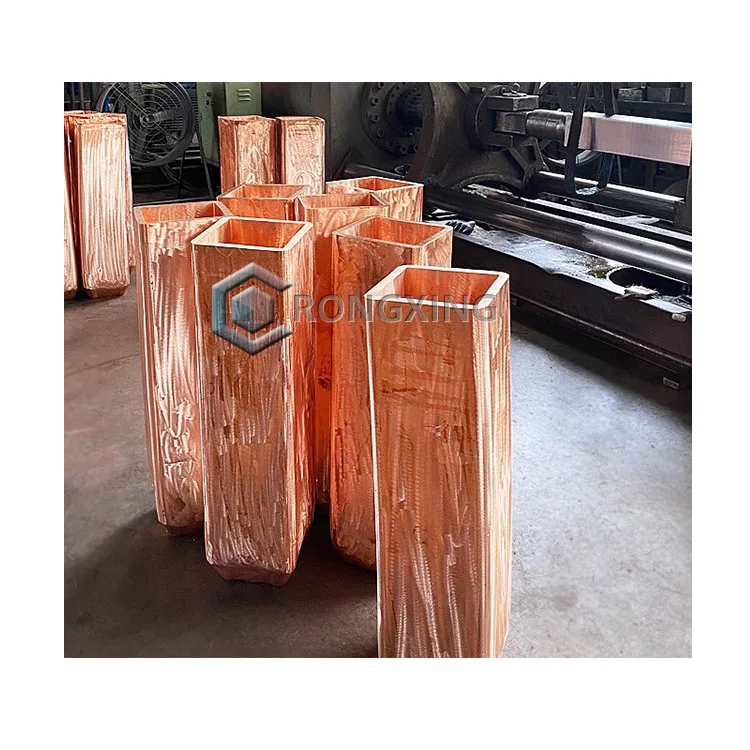

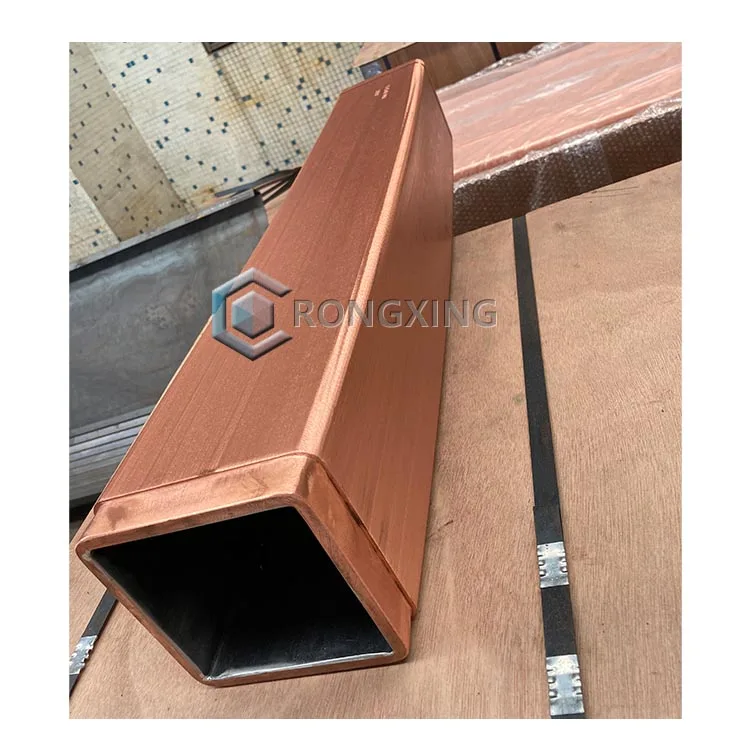

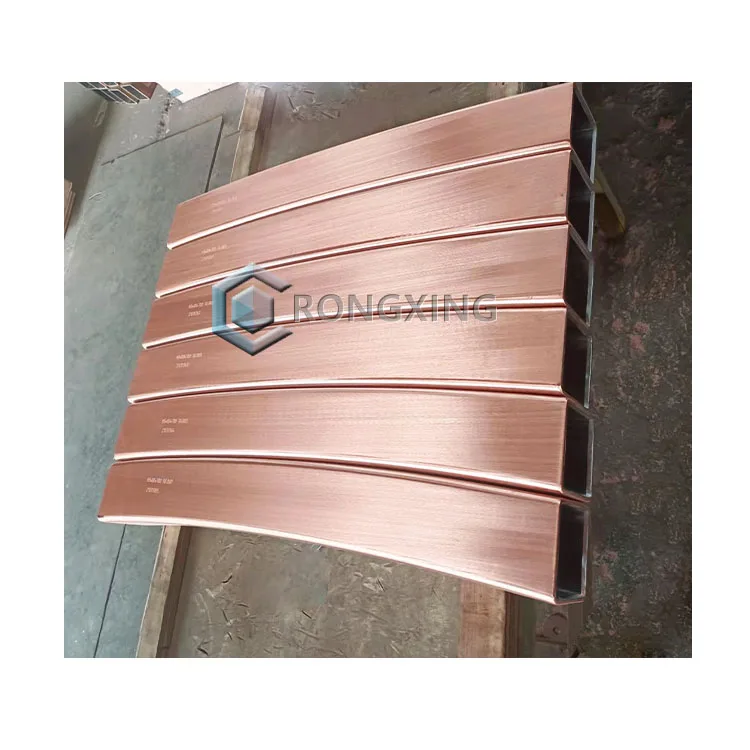

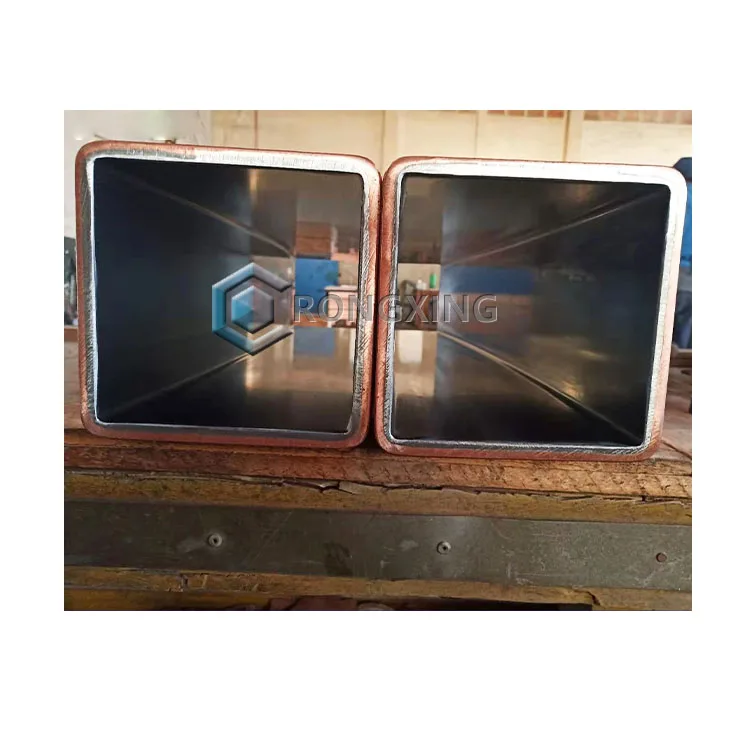

Copper Mould Tube Curved 130X130mm Mild Steel Billet Vertical Casting Copper Mould Tube for Forged Ingot

To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied of the following materials:
Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm
Cu-Cr-Zr: Normally used for beam blank mould tubes
These materials have different levels of hardness and thermal conductivities. We are highly experienced in choosing proper materials to meet the specific demands in heat resistance and thermal conductivities of customers' applications.

Production Process:
Melting & Casting --- Hot Extrusion/Forging --- Cold Drawing --- Tapering --- Machining --- Electroplating --- Machining after Electroplating --- Final Inspection --- Packing


Advantages of Rongxing Copper Mould Tubes:
• Uniform shell growth,Optimum billet quality
• Reliable quality
Created copper mould tube with good raw materials, produce copper mould tube products based on industry norms and high standards.
• Special coatings. Increase erosion resistance and service life
We always dedicated to research special coatings. The mould tubes can be coated with our different types of internal surface coating: Cr, Ni-Co, Ni-Fe, Ni-Co-Cr. The coating thickness has been controlled in the best range.
• Customized and low cost.
You might order copper mould tube according to your industrial needs. We help you to produce these products on your limited budget to access on your field.


Other Parts of CCM (Send inquiry for quotation)
Crystallizer Assembly for Billet (Square Billet,Rectangle Billet,Round Billet)
Water Cooled Jacket For CCM

Founded in 1992, posessing a professional technical team of experienced staff having huge exposure in steel smelting, we supply all sizes and specifications of copper moulds,crystallizer assembly and other smelting consumables. As a professional manufacturer cetrified by ISO 9001:2015, we have strict requirements on products quality. For raw materials produced by casting, rolling and forging processes, we will have 100% flaw detection. For products with high requirements on dimensional accuracy and surface roughness, it will be machined by CNC machine tools and CNC grinding machines. For products with heat treatment, each batch of products will be subjected to a tensile test using a sample bar to confirm the heat treatment effect.

Thus we assure all our customers of superior output through our copper moulds.Being approved by international well-known inspection institutions such as SGS, OMIC, IKA, ISQI, COTECNA, our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.
