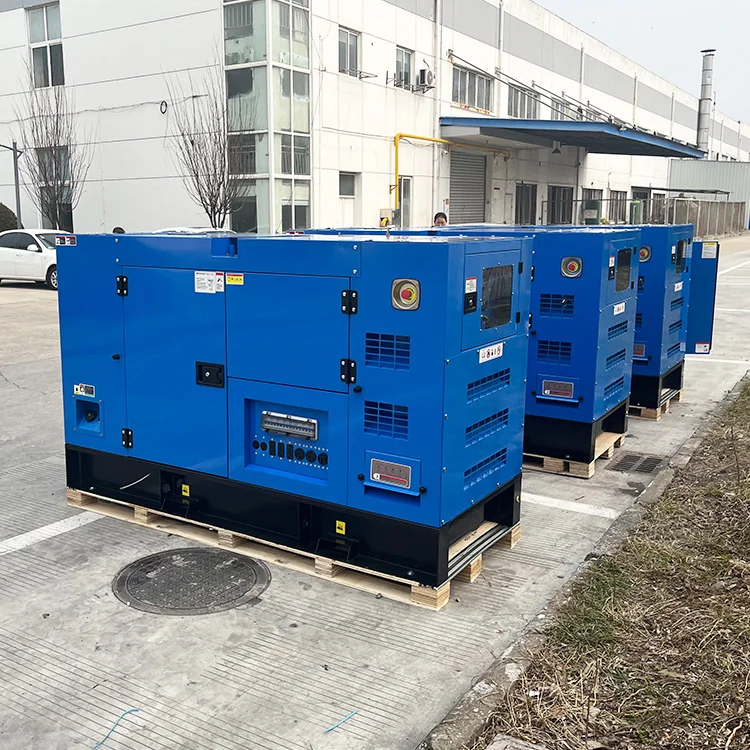

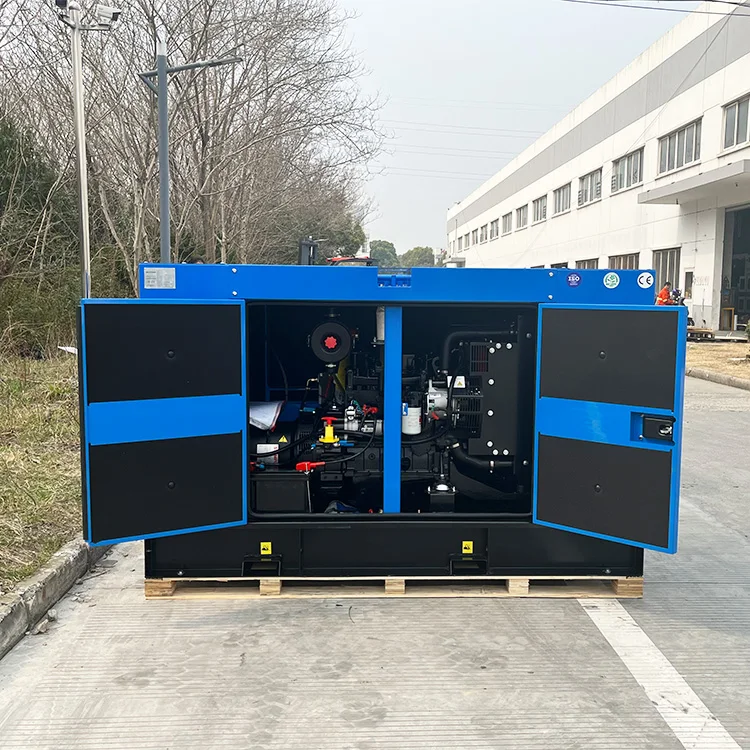

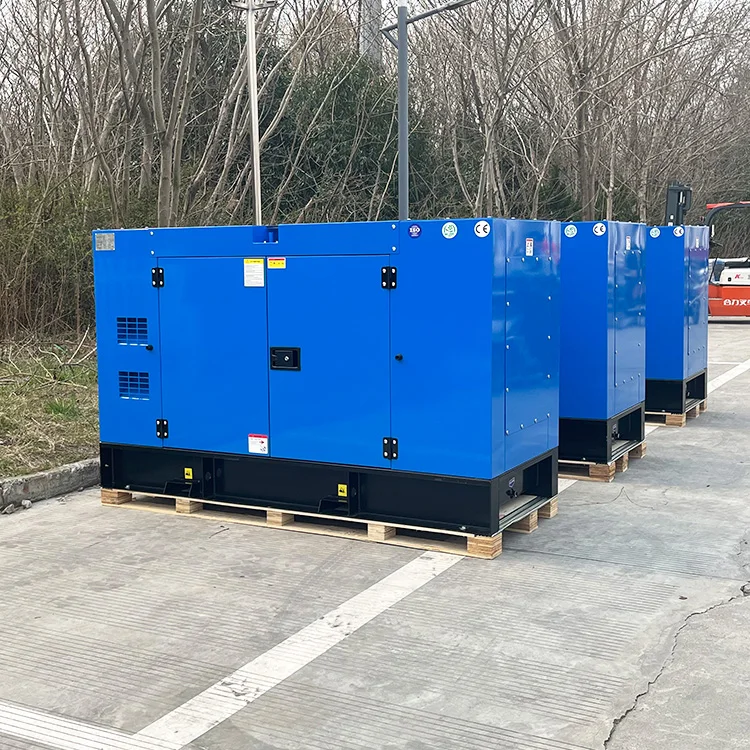

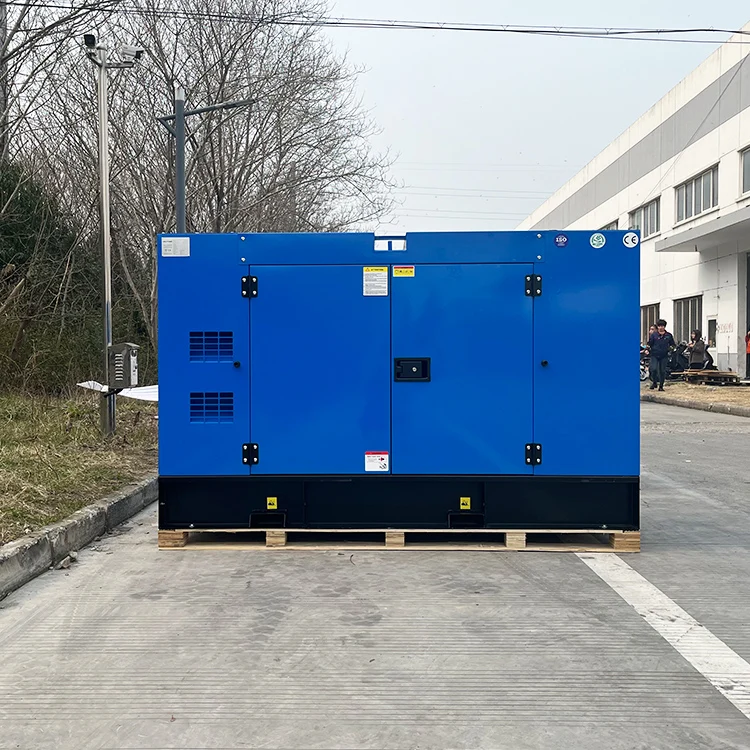

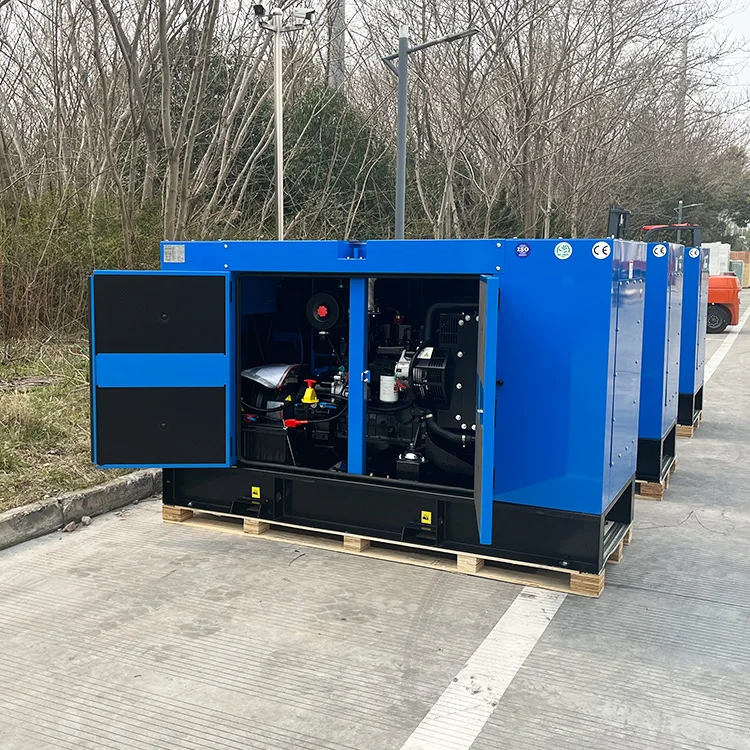

460V Powered By Cummins Stamford Silent Canopy 30 Kva Generador Diesel Generator 25 Kw
- Category: >>>
- Supplier: Jiangsu WellPower Generator Co. Ltd.
Share on (1600790619075):
Product Overview
Description
Products Description
Prime power
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
General features:
■ Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
■ 24V DC start motor;
■ Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
■ Equipped with industrial silencer and flexible exhaust hose;
■ Designed to Comply with ISO8528/GB2820;
■ Powered by Cummins engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
General features:
■ Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
■ 24V DC start motor;
■ Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
■ Equipped with industrial silencer and flexible exhaust hose;
■ Designed to Comply with ISO8528/GB2820;
■ Powered by Cummins engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel
Engine Spec | ||
Engine Model | 4B3.9-G1/2 | |
Number of Cylinders | 4 cylinders inline | |
Cycle | 4 stroke | |
Aspiration | Turbocharged | |
Bore×Stroke | 102mm x120mm | |
Displacement | 3.9L | |
Compression ratio | 18:1 | |
Prime Power/Speed | 24KW / 1500rpm | |
Standby Power/Speed | 27KW / 1500rpm | |
Speed Governor | Mech | |
Cooling System | Forced water cooling cycle | |
Steady speed droop | ≤1% | |
Total lubrication system capacity | 10.9L | |
Coolant capacity (engine only) | 7.2L | |
Fuel Consumption at 75% Load | 5.7L/h | |
Starter Motor | DC24V | |
Alternator | DC24V | |
Alternator Spec | ||
Alternator Model | Stamford/Leroy Somer/Marathon/Mecc-Alte | |
Standby power | 30KVA/24KW | |
Frequency/speed | 50HZ/1500rpm | |
Exciter type | Single bearing, Brushless, Self-excited | |
Power factor | 0.8 | |
Voltage adjust range | ≥5% | |
Voltage regulation NL-FL | ≤±1% | |
Insulation Grade | H | |
Protection Grade | IP23 | |
Phase | Three phases or Single phase | |
Diesel Generator Set(optional engine brands, alternator brands and Control panel)
Rated power | Engine | Alternator | Control panel |
20kw~1300kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen |
8kw~1600kw | Perkins | ||
68kw~504kw | Volvo | ||
20kw~500kw | Deutz | ||
220kw-2400kw | MTU | ||
280kw-800kw | MAN | ||
600kw-1800kw | Mitsubishi | ||
50kw-650kw | Doosan | ||
2kw~2500kw | Chinese engine |
Control system
Control panel: DeepSea/ComAp/SmartGen
Relay brand: Siemens APT
Connect: Engine+Alternator-Terminal-Control panel
Key+Emergency stop+Light: Famous brand, perfect quality
Relay brand: Siemens APT
Connect: Engine+Alternator-Terminal-Control panel
Key+Emergency stop+Light: Famous brand, perfect quality
Engine oil discharge fuel pump
Engine oil discharge fuel pump, it is easy and convenient for engine oil maintenance
Hanging beam, forklift hole
Easy to lift and transport
Buyer feedback
Related Products
Company Profile
Jiangsu WellPower Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.
Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts,customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts,customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
FAQ
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
