Complete 3000w 4000w 5000w Solar System Kit Hybrid 5KVA Solar Panel Kit for Home Use
- Category: >>>
- Supplier: Huaian Yuanchan Solar Technology Co. ltd
Share on (1600790620059):
Product Overview
Description
Product Description
Benefits of off-grid solar systems
● Clean, No noise, bad small pollution, Minimize Carbon footprint.
● Save, reduce your electricity costs.
● Convenient, independent of Grid utility, especially for Rural Areas.
● Easy, very easy in installation and operation.
● Smart, can shift between solar and other power resourses freely.
● Convenient, independent of Grid utility, especially for Rural Areas.
● Easy, very easy in installation and operation.
● Smart, can shift between solar and other power resourses freely.
No. | Model | Quantity | Description |
1 | Solar panel | 14 pcs | Poly 410W solar panels,4 pcs each string,4 string. |
2 | PV Combiner | 1 pc | 4 inputs, 1 output, Max PV voltage 600V |
3 | Charge Controller | 1 pc | 96V/50A, 4 stages charge controller |
4 | IGBT Inverter | 1 pc | Pure Sine Wave IGBT Inverter, 5KW/96V DC, 110/220V AC |
5 | GEL Battery | 8 pcs | 12V 200AH GEL battery, total capacity 19.2KWH |
6 | Mounting racks | 1 set | Support 16 pcs of solar panels, afford wind load: 55m/s, Snow load: 1.5kn/m2 |
7 | Cables | 1 set | Battery cables: 16 pcs 16mm2*35cm, 4 pcs 16mm2*2m PV cables: 4mm2*100m, 10mm2*50m |
8 | MC4 | 6 pairs | MC4 sockets to connect PV panels and PV combiner |
9 | Tools Bag | 1 set | Tools to install the whole solar system |

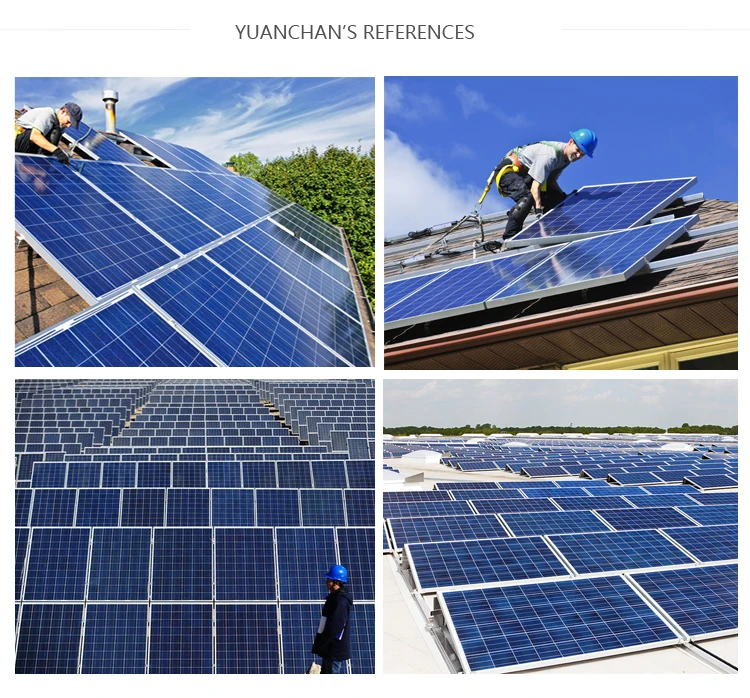

Application&Project
Solar Panel.
● CE, TUV certificated
● Voc: 44.6V, Vmp: 36.6V, Imp: 8.78A, Isc: 9.25A
● Max. System voltage: 1000V
● 10 years products warranty
● 25 years efficiency Warranty
● Highest conversion efficiency of 19%
● Max. System voltage: 1000V
● 10 years products warranty
● 25 years efficiency Warranty
● Highest conversion efficiency of 19%

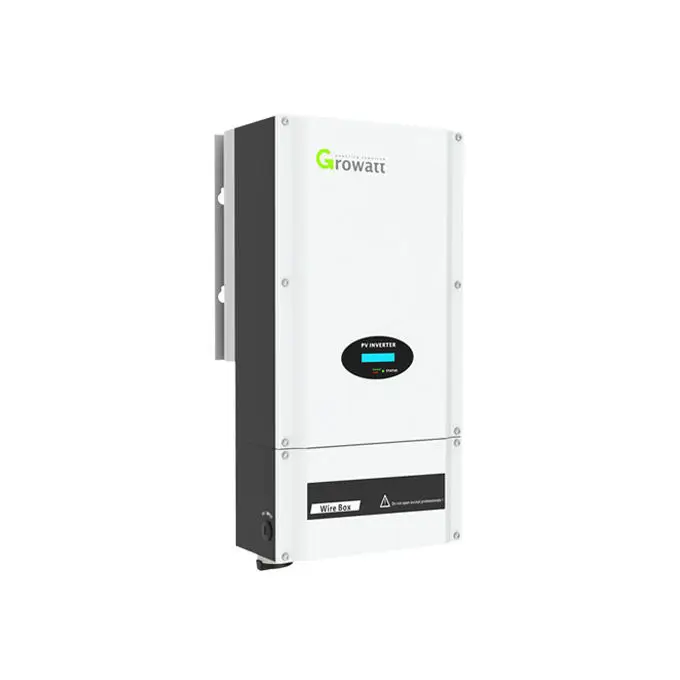

Off-Grid Inverter.
● 5 years warranty
● Micro Processor Control
● Adapt to City Grid(or generator)
● Auto Self-Diagnosis
● Touch screen Display and Control
● High system Efficiency
● Adapt to City Grid(or generator)
● Auto Self-Diagnosis
● Touch screen Display and Control
● High system Efficiency

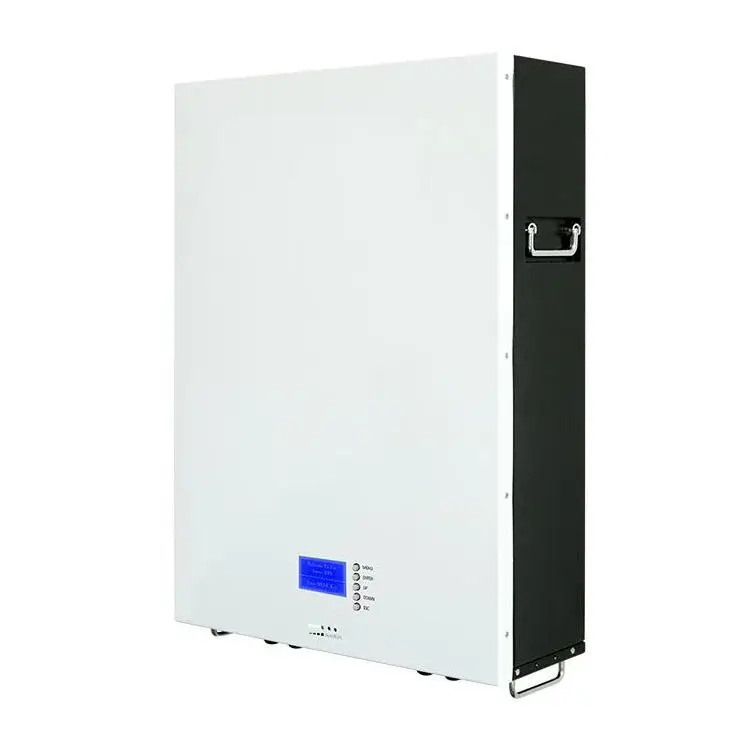

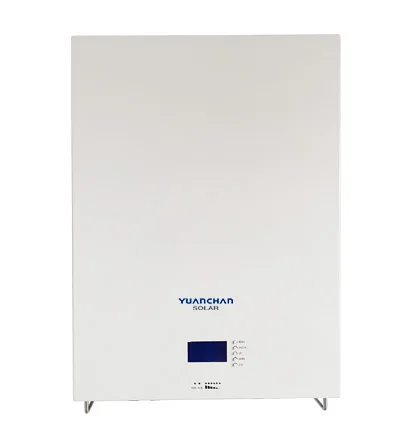

Lithium Battery
● 10 years warranty under proper application
● GEL Battery with longer service life
● GEL Battery with longer service life
● Robust to large-current discharge
● Easy recover from deep discharge
● Sufficient capacity to provide enough power
● Match our inverters perfectly
● Easy recover from deep discharge
● Sufficient capacity to provide enough power
● Match our inverters perfectly
Company Profile
Certificates
Exhibition
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above USD50000, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
