New Technique semi automatic tablet counting machine Suitable for counting tablets, tablets, capsules
- Category: >>>
- Supplier: Shanghai Aligned Machinery Manufacture & Trade Co. Ltd.
Share on (1600790624931):
Product Overview
Description

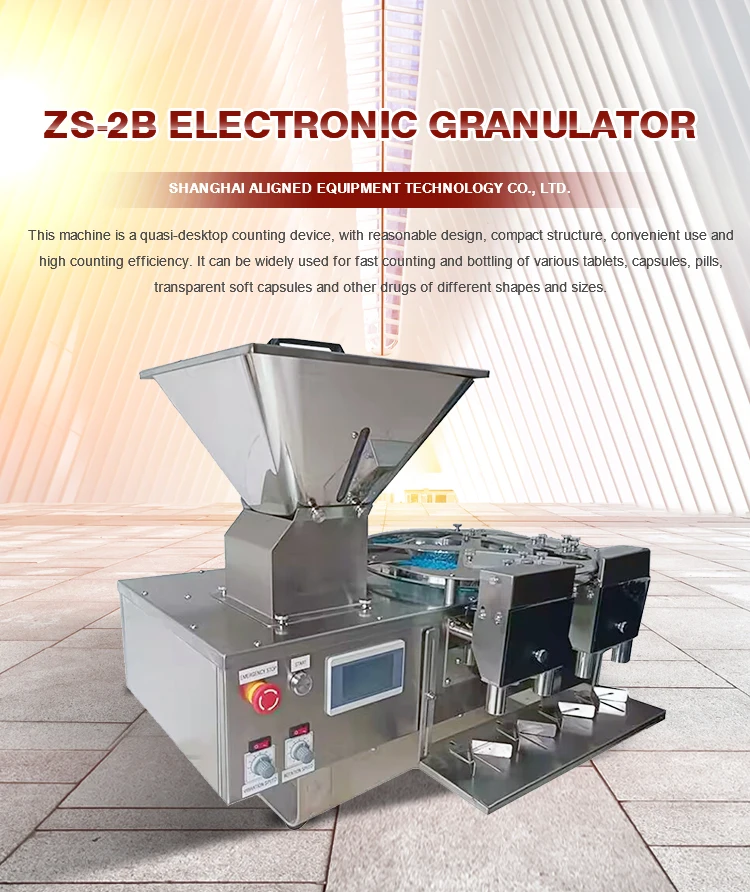

ZS-2B desktop electronic particle machine
This machine is a quasi desktop type counting device, with reasonable design, compact structure, convenient use, and high counting efficiency. It can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills, transparent soft capsules, and other drugs. The counting and bottling accuracy has reached the advanced level of similar products at home and abroad

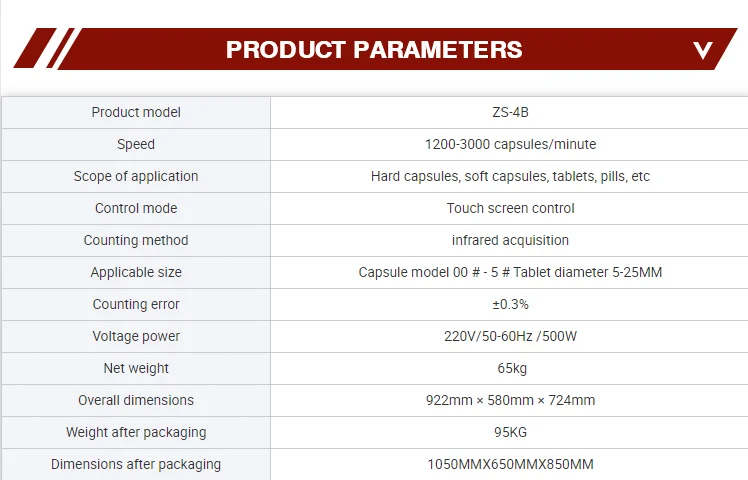

Product model | ZS-4B |
Speed | 1200-3000 capsules/minute |
Scope of application | Hard capsules, soft capsules, tablets, pills, etc |
Control mode | Touch screen control |
Counting method | infrared acquisition |
Applicable size | Capsule model 00 # - 5 # Tablet diameter 5-25MM |
Counting error | ±0.3% |
Voltage power | 220V/50-60Hz /500W |
Net weight | 65kg |
Overall dimensions | 922mm × 580mm × 724mm |
Weight after packaging | 95KG |
Dimensions after packaging | 1050MMX650MMX850MM |
ZS-4B Electronic Pellet Counting Machine Our company adopts the most advanced technology in the world, such as vibrating blanking, oscillator stepless speed regulation, touch screen PLC intelligent control, optical fiber sensing head counting, system self inspection, fault indication alarm, automatic shutdown, etc. The body is made of all stainless steel, designed according to GMP standards, and is a high-tech drug counting equipment integrated with light and motor.

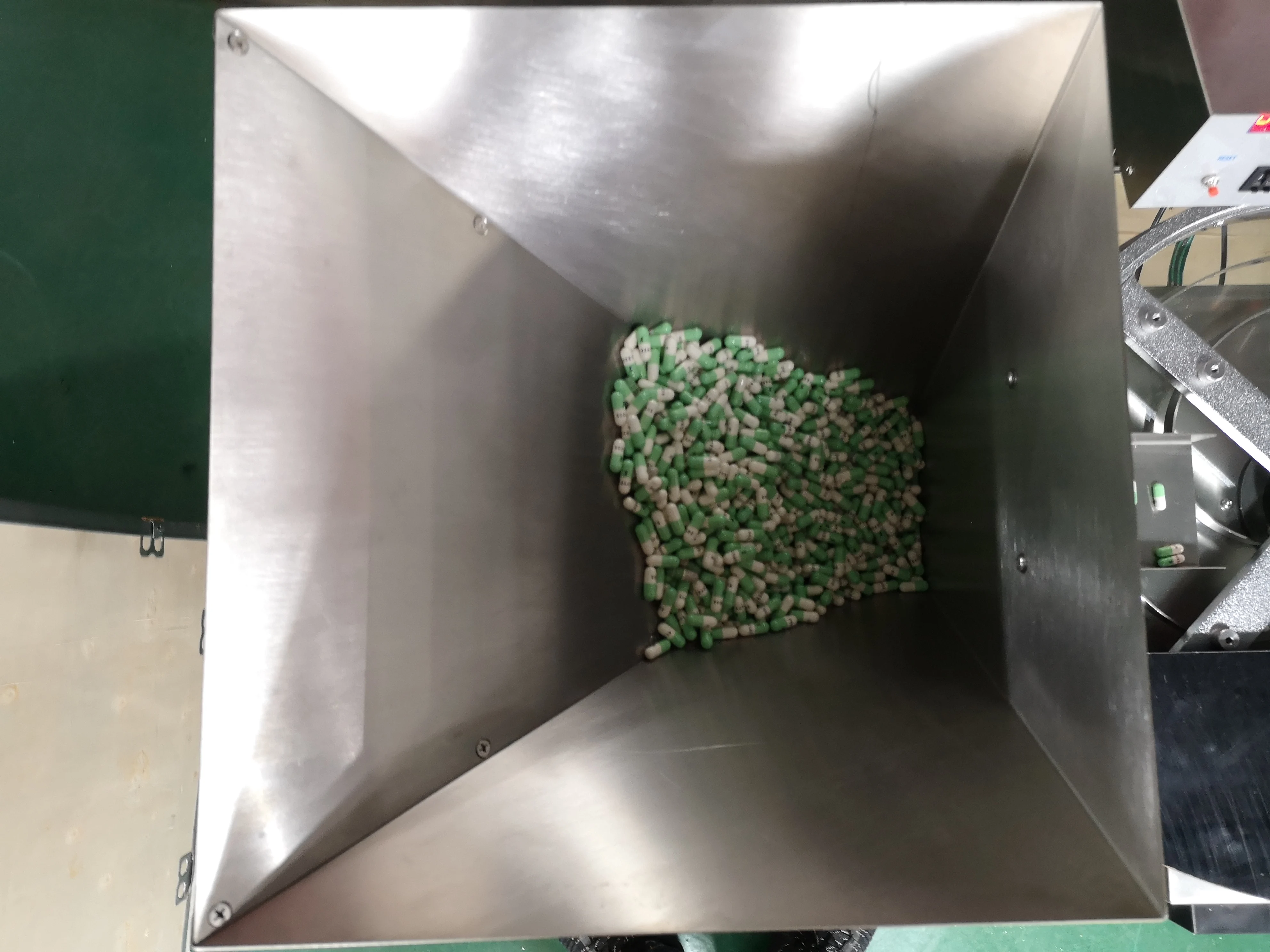

1.The discharge component is made of stainless steel 304 (0Cr18Ni9), sealed for conveying materials, with little dust pollution, cleanliness, and vibration for blanking. The blanking is controlled by the amplitude of the vibrator, meeting GMP standards.
2.The control panel of this machine consists of an emergency stop button, a start button, a motor speed control knob, a vibration speed control knob, and an intelligent touch screen. Intelligent control is easy to operate.

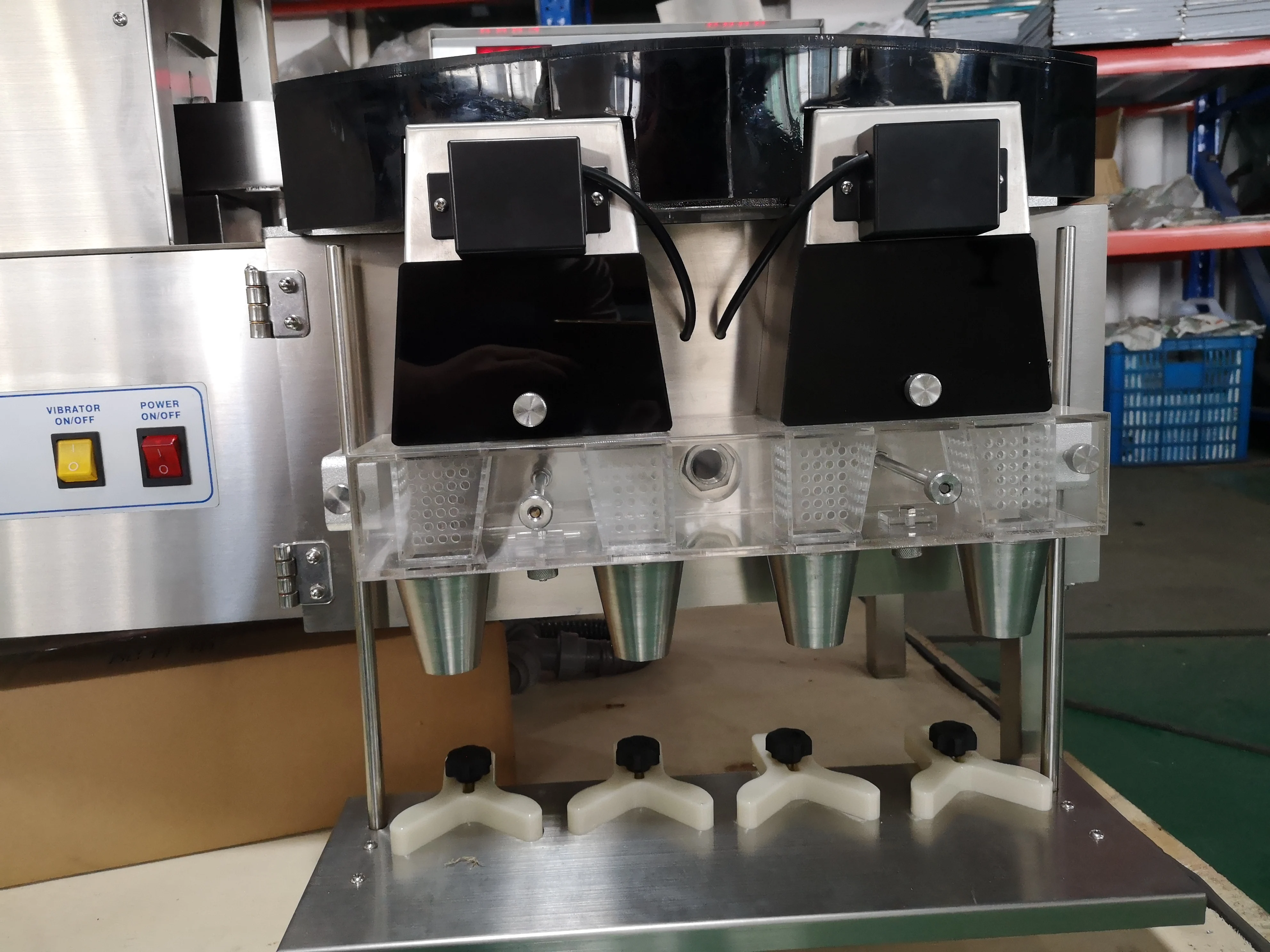

3.The infrared counter of this machine consists of a Japanese Keinz fiber optic sensor and a sensing head, which has the advantage of high counting accuracy and faster speed.

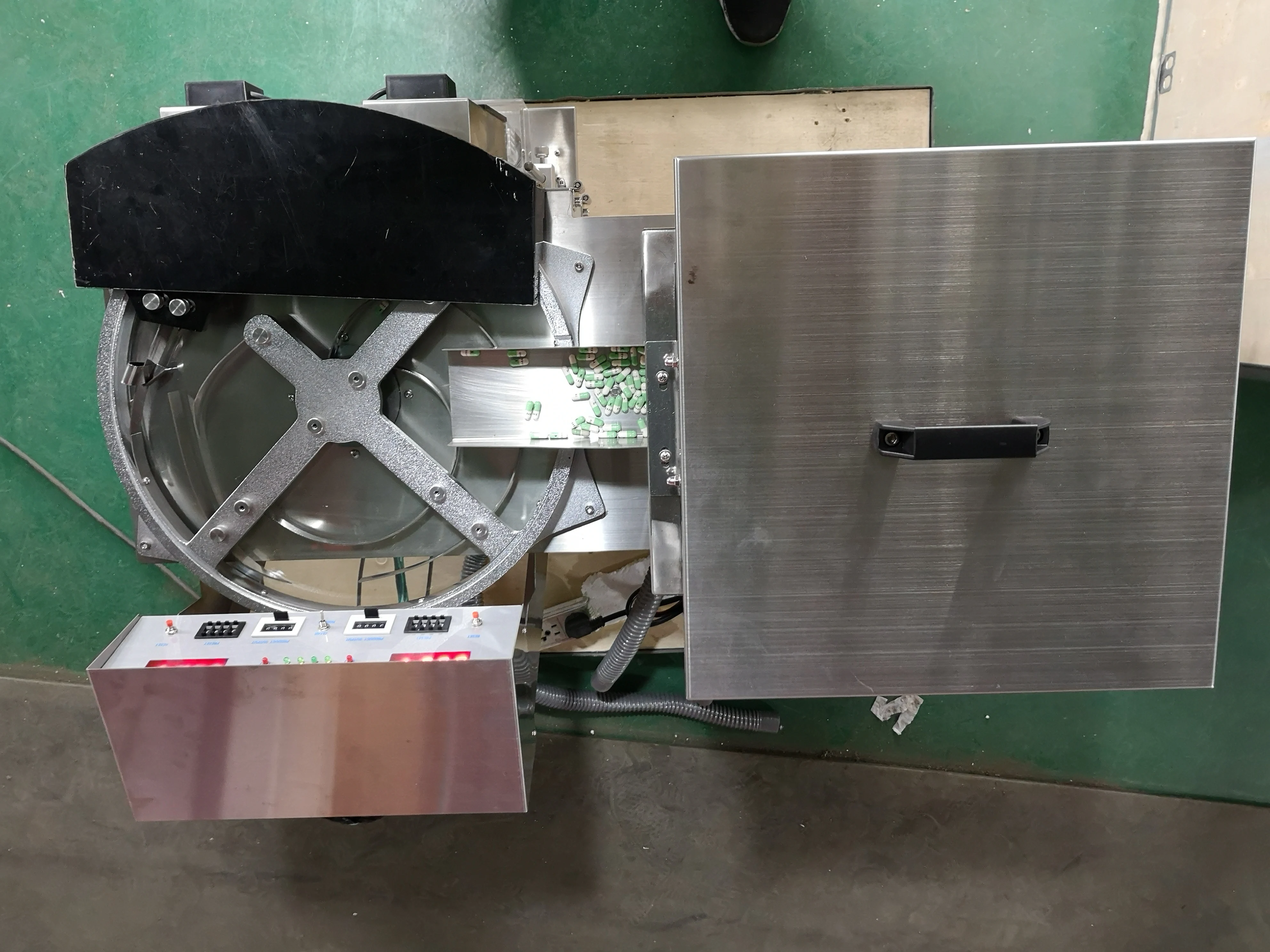

4.The turntable of this machine is composed of high-quality tempered glass and all stainless steel, with a rotation counting design, and its speed can be adjusted at will, making it convenient and quick to operate.
2.The control panel of this machine consists of an emergency stop button, a start button, a motor speed control knob, a vibration speed control knob, and an intelligent touch screen. Intelligent control is easy to operate.
3.The infrared counter of this machine consists of a Japanese Keinz fiber optic sensor and a sensing head, which has the advantage of high counting accuracy and faster speed.
4.The turntable of this machine is composed of high-quality tempered glass and all stainless steel, with a rotation counting design, and its speed can be adjusted at will, making it convenient and quick to operate.

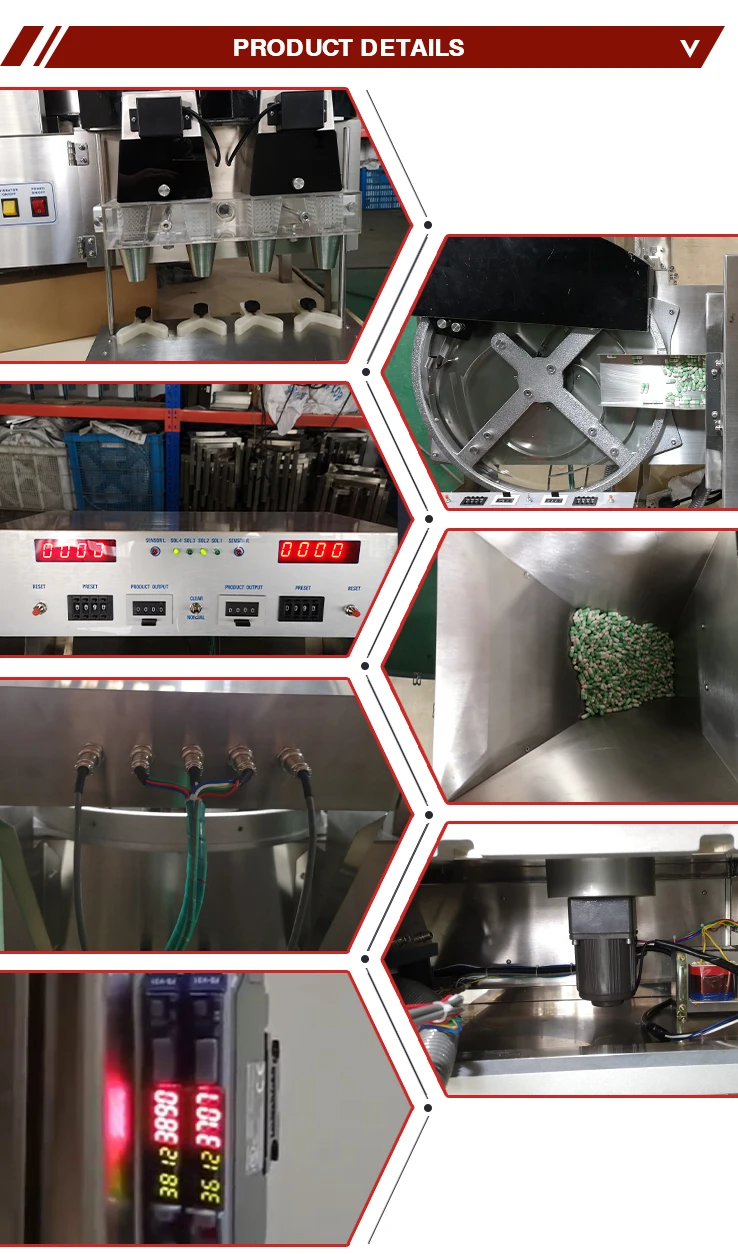

Product Display
