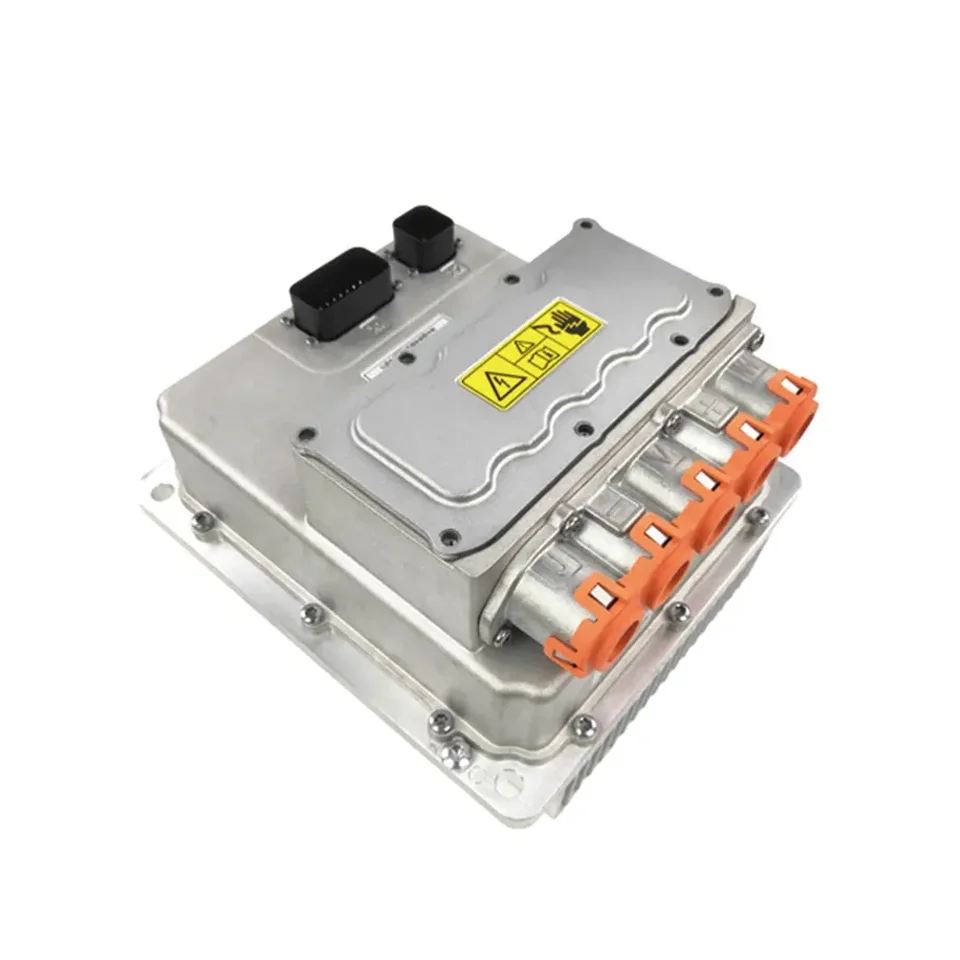

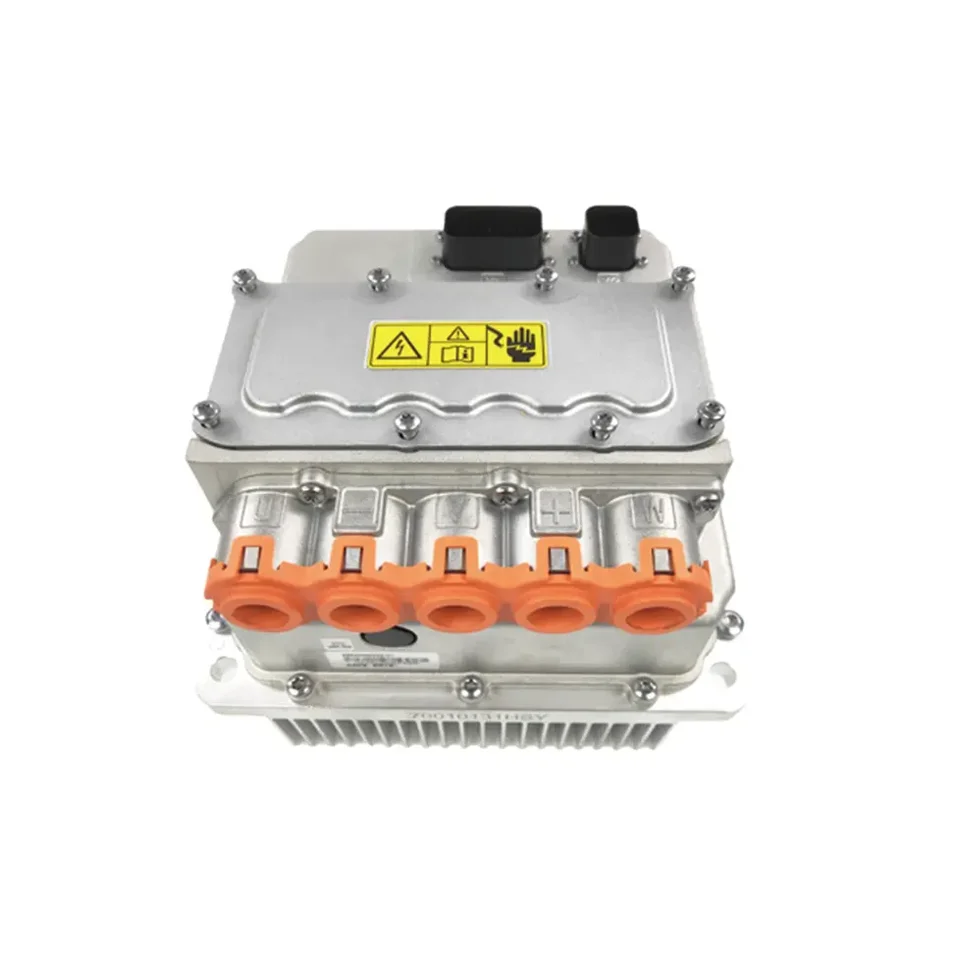

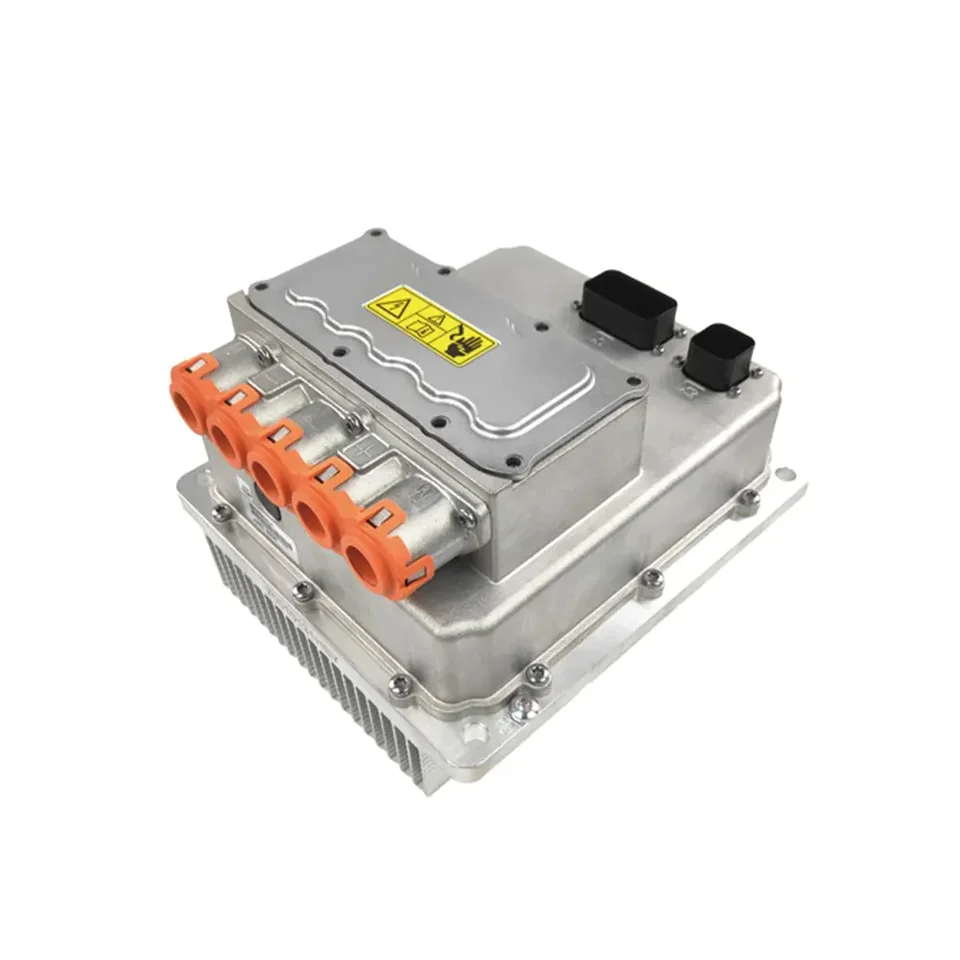

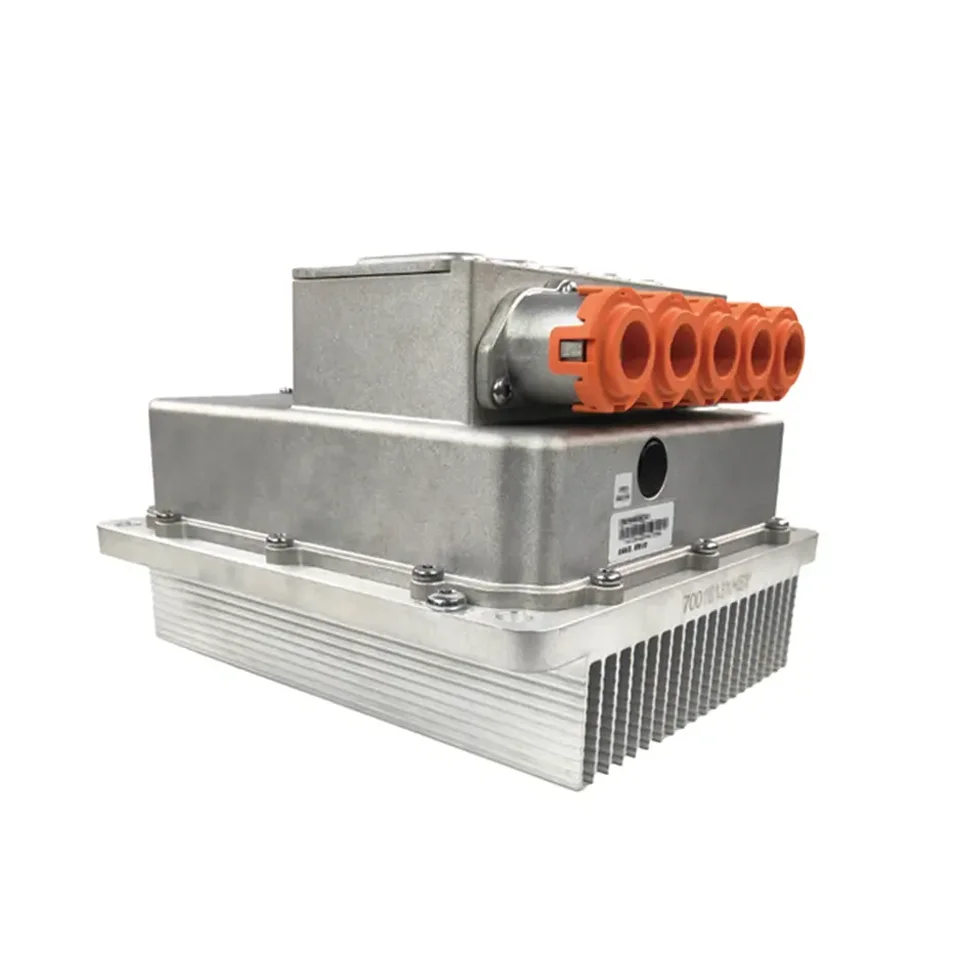

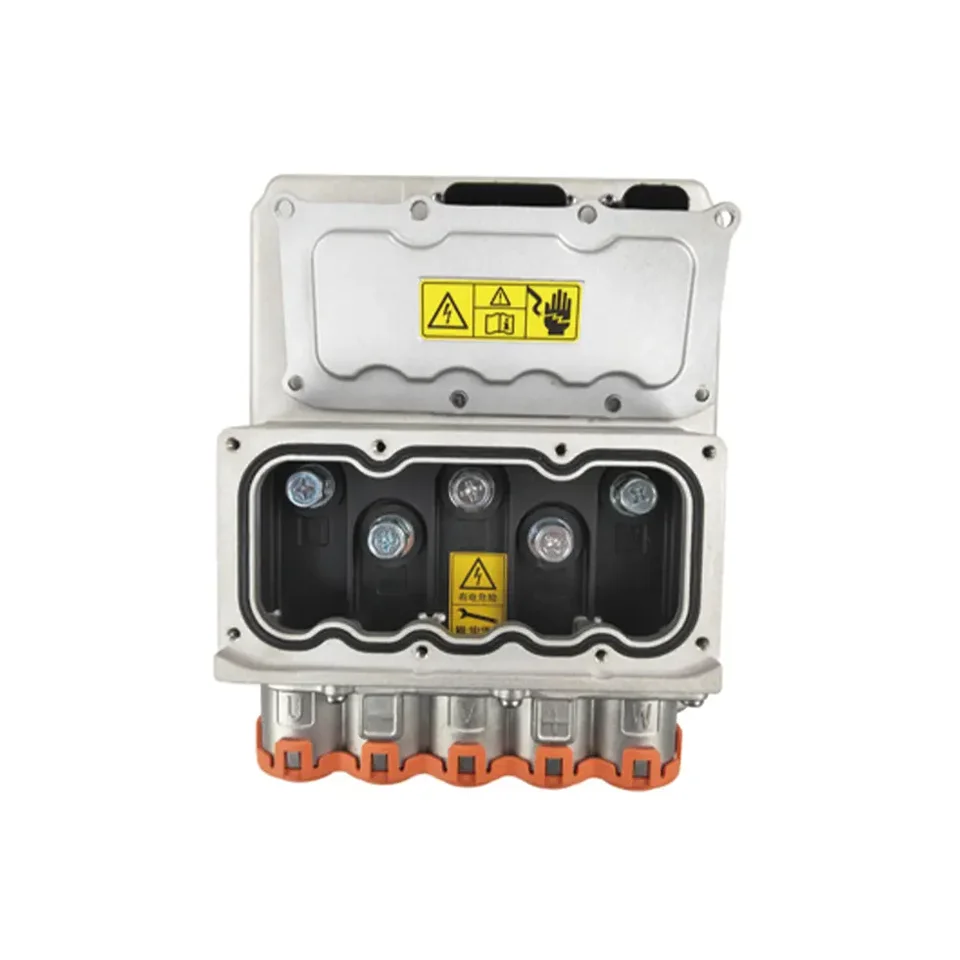

IP67 Peak Power 20KW/24KW/30KKW Temperature Protection DC Motor Speed Controller
- Category: >>>
- Supplier: Wuxi Aoqiang Electronic Technology Co. Ltd.
Share on (1600790628341):
Product Overview
Description
Modle | PED04 | ||||||
Product Name | Motor Comtroller | ||||||
Applications | For Both Assynchronous / Sychronous Motor/DC Brushless Motor | ||||||
Rated (V) | 72v/108v/144v | ||||||
Rated Out Put Current (A) | 130A/120A/110A | ||||||
Peak Out Put Current (A) | 450/450/450 | ||||||
Peak Power (KW) | 20KW/24KW/30KW | ||||||
Protection | IP67 | ||||||
Cooling Method | Natural Cooling/Fan Cooling/Water Cooling | ||||||
Highest Efficiency | ≥98% | ||||||
Output Frequency | 0.00-1000Hz | ||||||
Auxiliary Power Voltage | 6-16V DC | ||||||
Maximum Auxiliary Current | 3A | ||||||
Q: How is the delivery time after the order is placed?
A:15~45days.
Q: Can you provide the customization according to the different voltage and rpm of the motor?
A: Yes.
Q: How to set the parameters of the controllers we ordered?
A: We can provide the GUI software for clients.
Q: How to apply all the electronic parts to the driving system?
A: We can offer the one stop service which including CAN communications between all these electronic components.
Q: Do you have aftersales agent abroad?
A: Yes.
