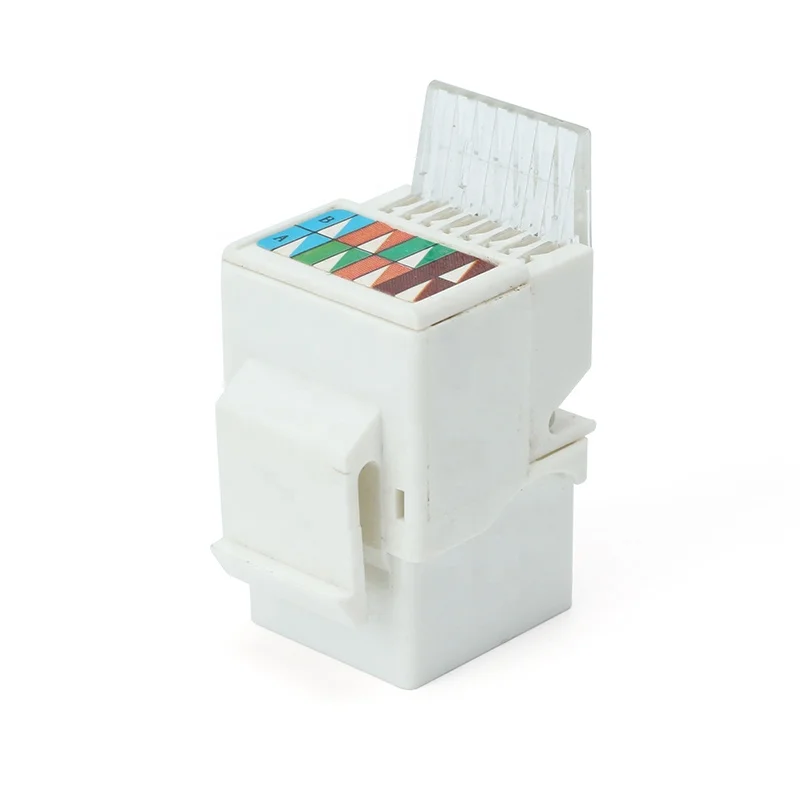

PC Material CAT6 RJ45 Toolless UTP Keystone Jack
- Category: >>>
- Supplier: Guangzhou Lulink Information Technology Co. Ltd.
Share on (1600790628358):
Product Overview
Description
Product Description
Basic Parameters | Multimedia aluminum panel socket | Style | Multimedia aluminum panel socket | |||
1.Category:CAT6. | ||||||
2.Shield Type:UTP. | ||||||
3.Gold Plating Thickness:3U/15U/30U/50U at option. | 10-13A | Material | aluminum alloy,cold rolled steel | |||
4.Shell Material:PC. | ||||||
5.Tooless. | ||||||
6.Not Pass F-luke Test or be passed can be done. | ||||||
7.Application:Integrated wiring.etc. | ||||||
8.Style&Color:As the pictures show. | ||||||
9.Voltage rating:125 vac rms. | ||||||
10.Current rating:1.5 AMP. | ||||||
11.Contact resistance:100 Miliohms max. | ||||||
12.Insulation resistance:1000 megonms min@0500vdc. | ||||||
13.Dielectric strength:750 vac rms 60hz,1min. | ||||||
14.Storage:-40°to+85°.Operation:-10°to +70°. | ||||||
15.Housing material:PC UL94V-2. | ||||||
16.Insert material:Flame Retardancy ABS UL94V-2. | ||||||
17.Contact material: Phosphor bronze stamp pin t=0.35mm. | ||||||
18.Pcb material:Fr-4 thickness:1.6mm. | ||||||
19.ldc contact material:Phosphor bronze t=0.50mm nickel plating. | ||||||
20.Wire AWG24-26. | ||||||
Packing | ||||||
Ordinary packing Or special packing are available. | ||||||
Feature | ||||||

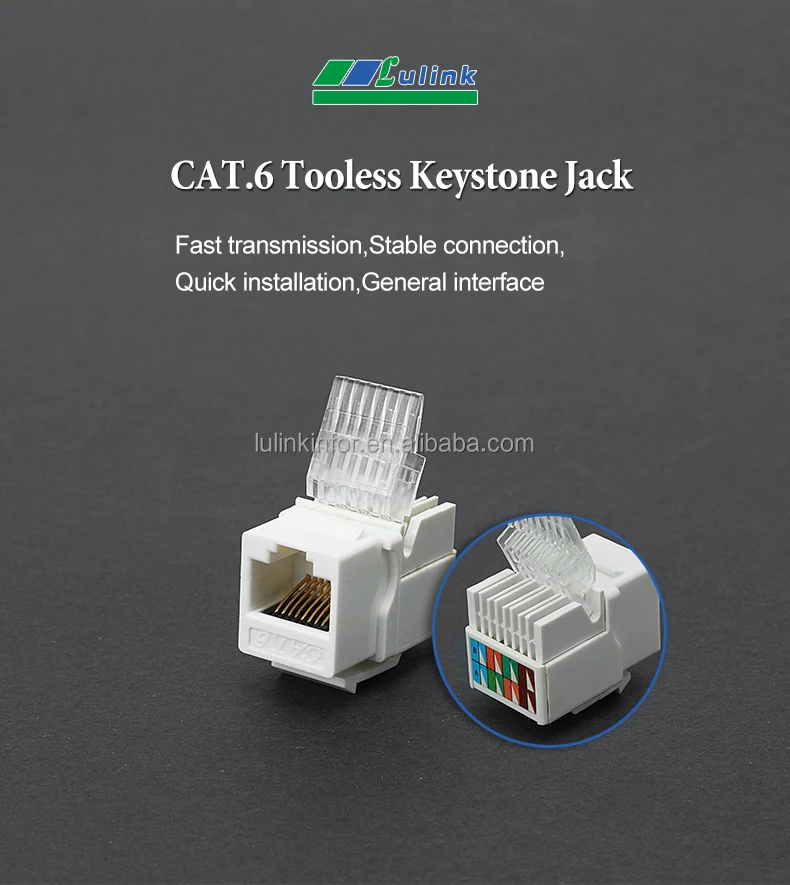

1.CAT6 Tooless Keystone Jack Fast transmission Stable connection Quick installation,General intertace. | ||||||

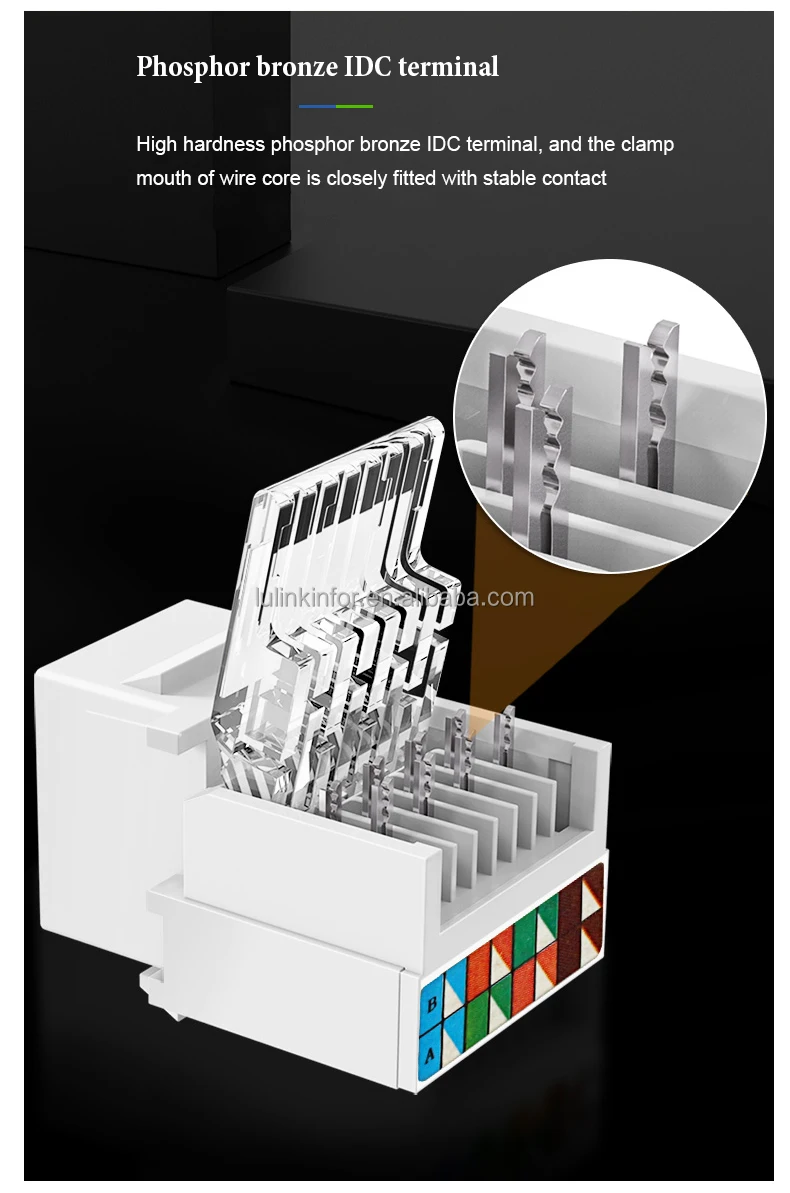

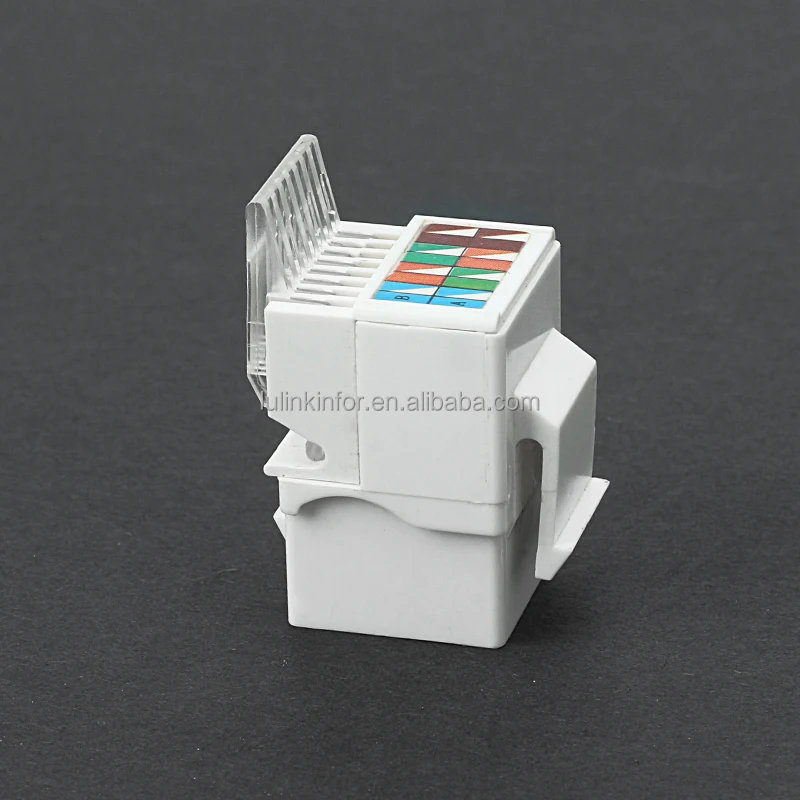

2.Phosphor bronze IDC terminal High hardness phosphor bronze IDC terminal, and the clamp mouth of wire core is closely fitted with stable contact. | ||||||

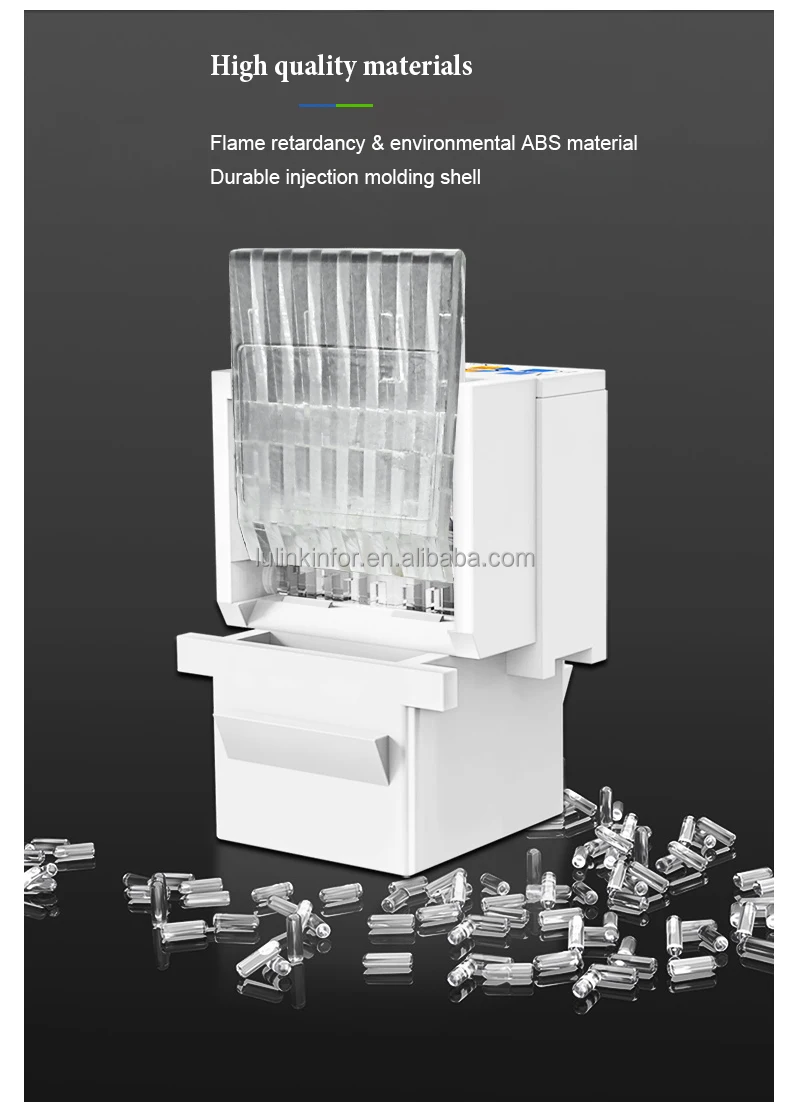

3.High quality materials Flame retardancy environmental ABS material Durable injection molding shell. | ||||||

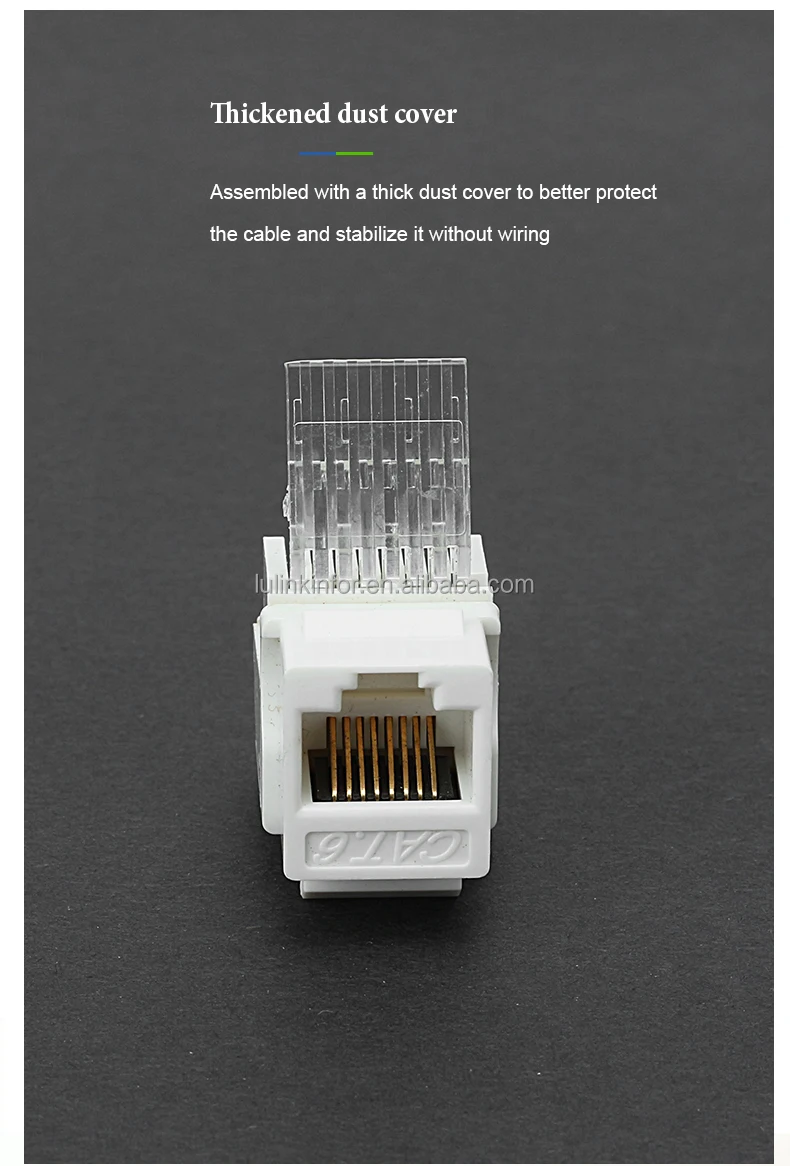

4.Thickened dust cover Assembled with a thick dust cover to better protect the cable and stabilize it without wiring. | ||||||

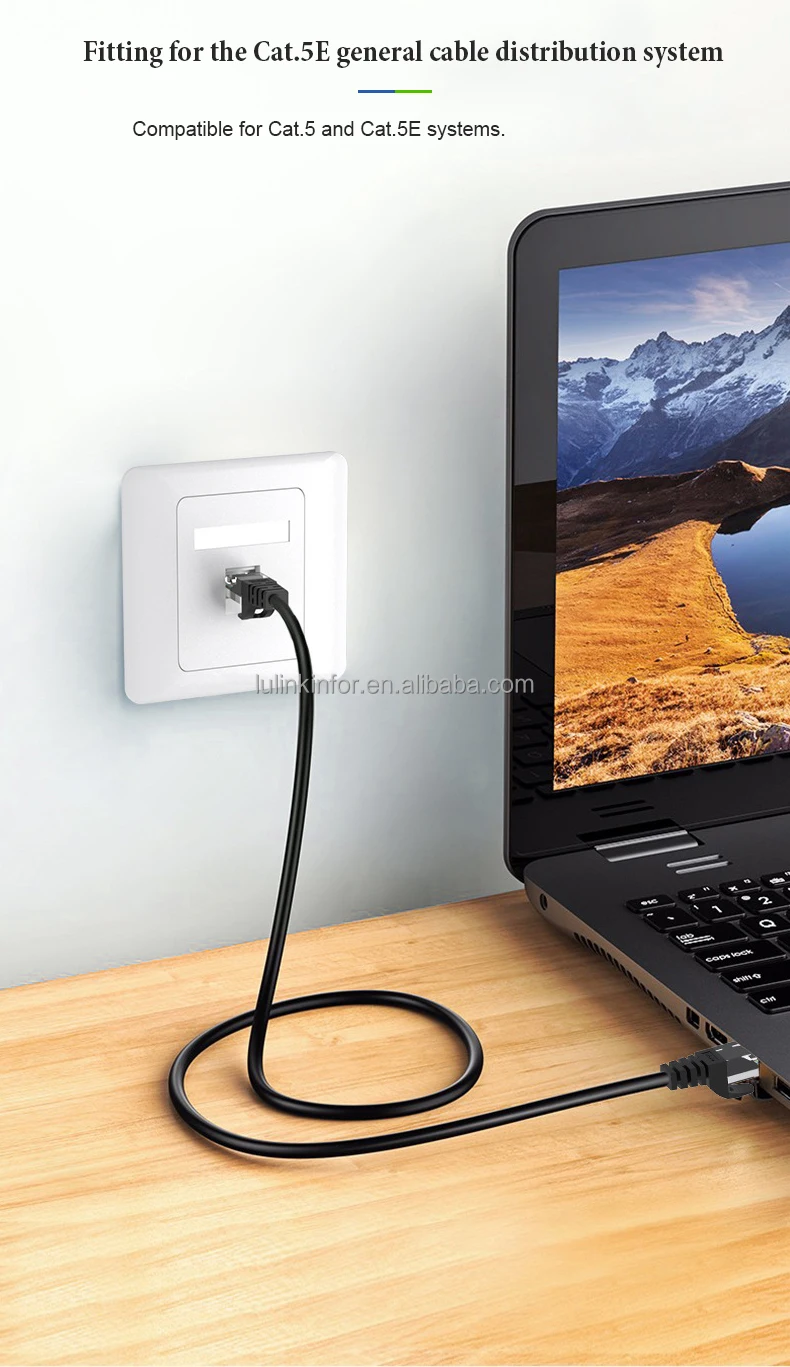

5.Fitting for the Cat.5E general cable distribution system Compatible for Cat.5 and Cat.5E systems. | ||||||

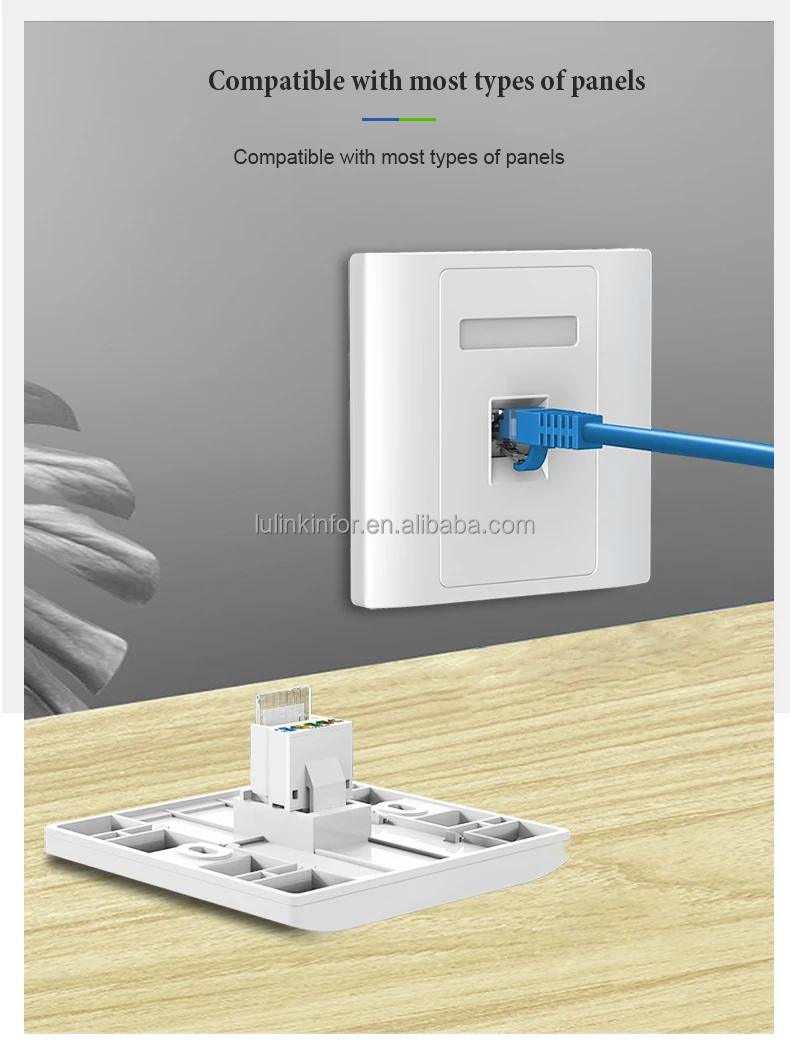

6.Compatible with most types of panels Compatible with most types of panels. | ||||||
7.Application scenario Suitable for home,company,monitoring,Teaching Network,Data Center,Telecom room. | ||||||

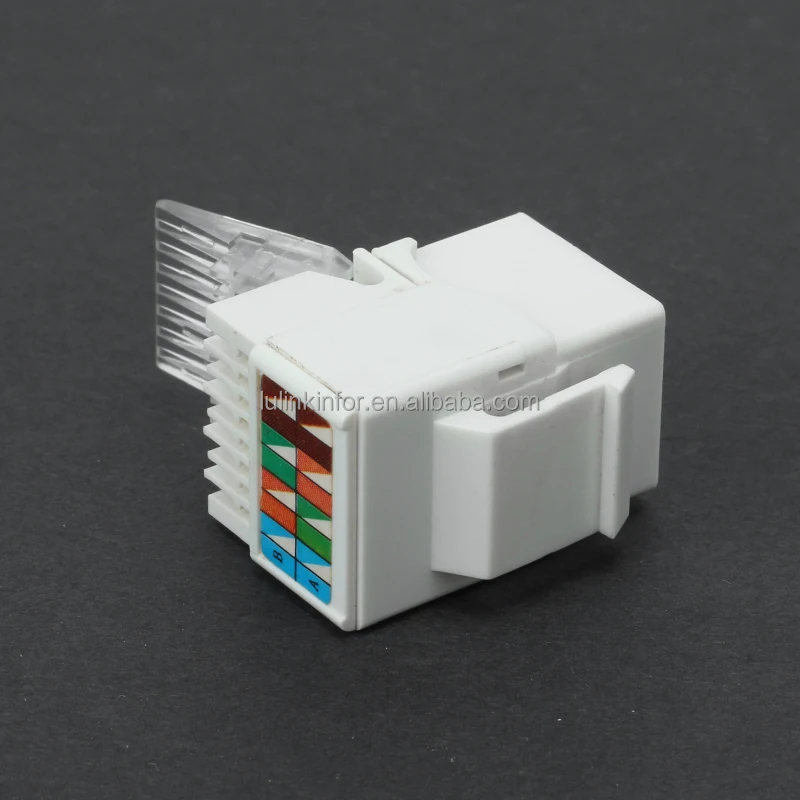

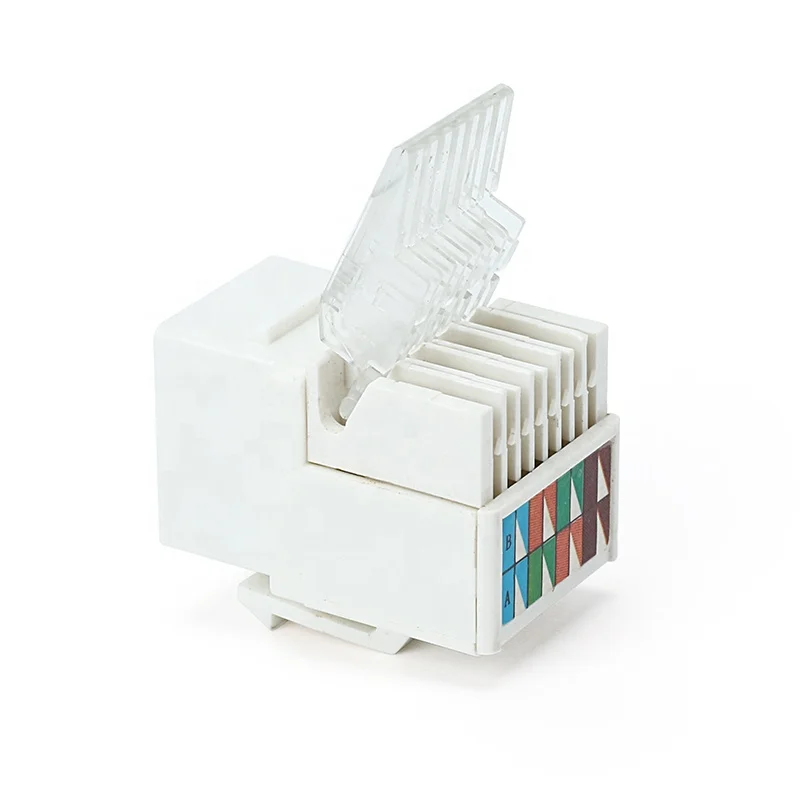

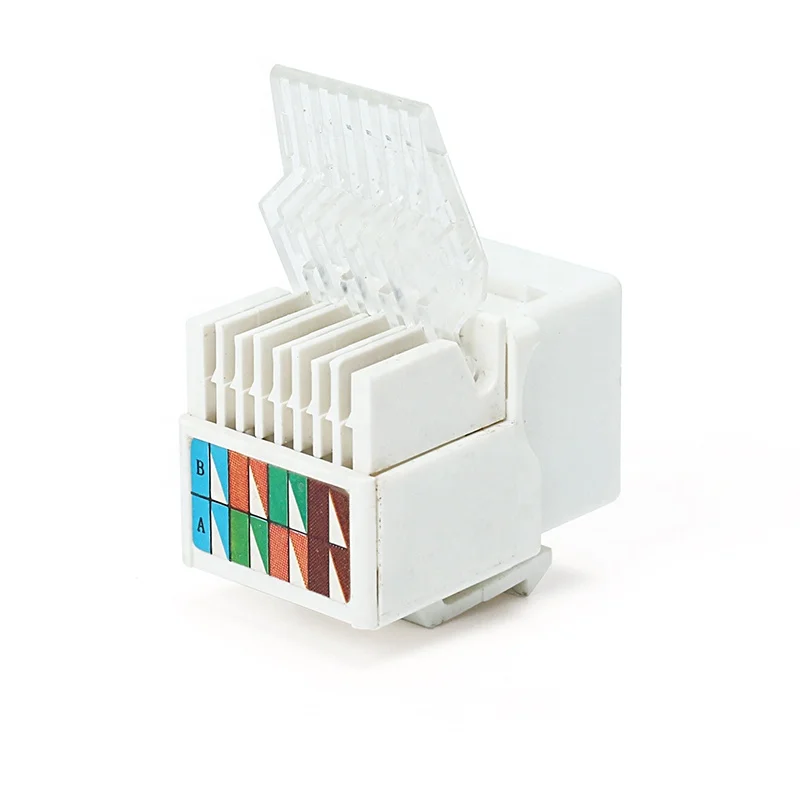

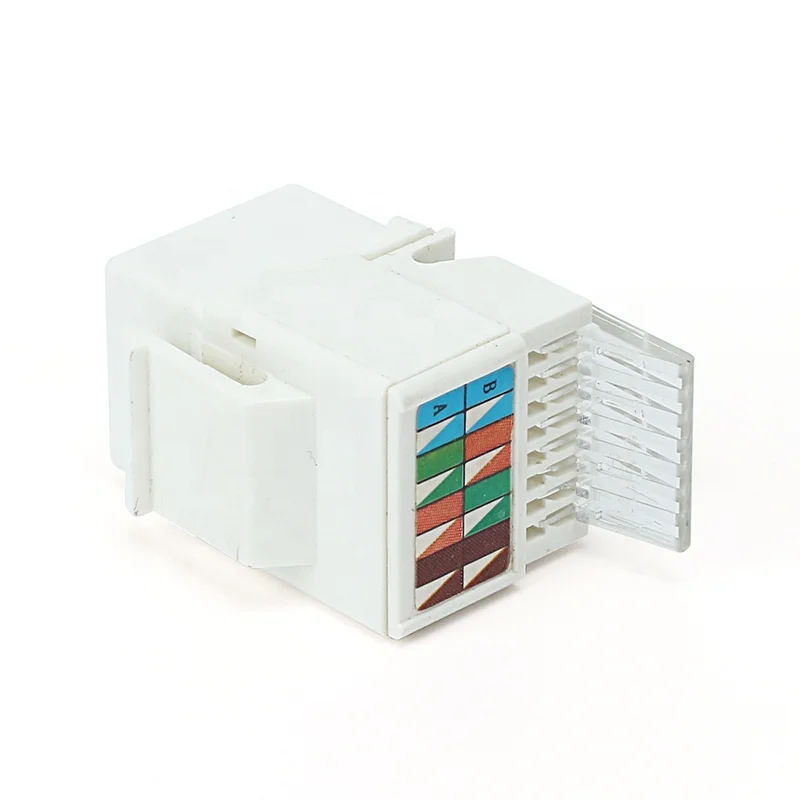

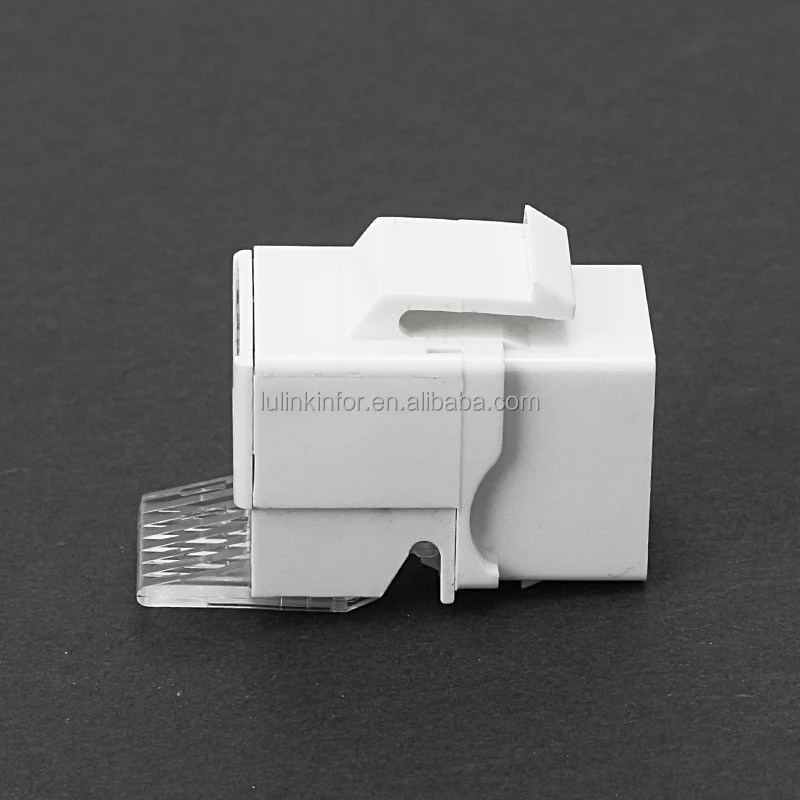

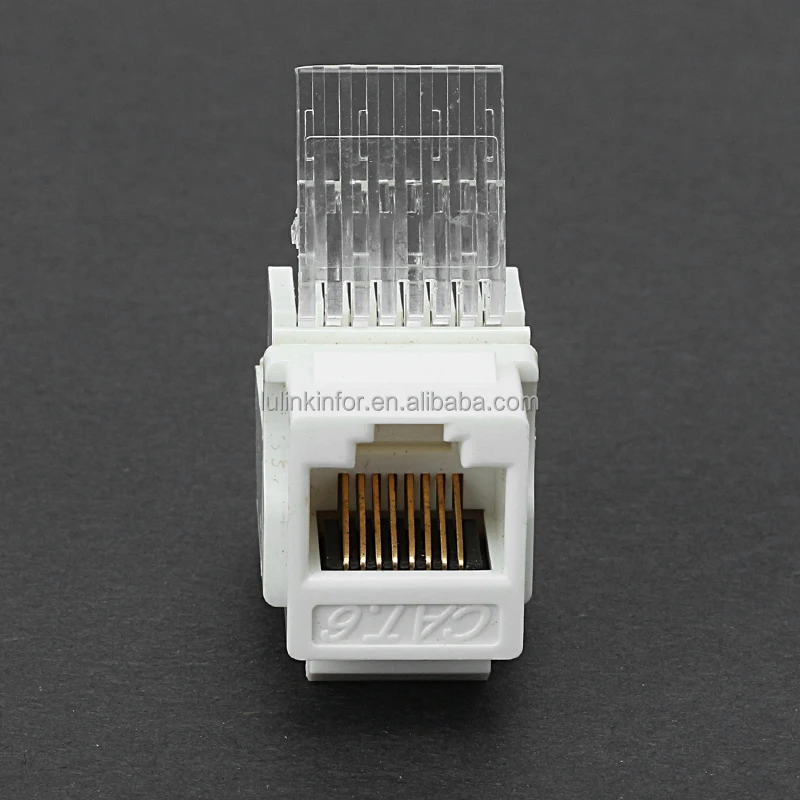

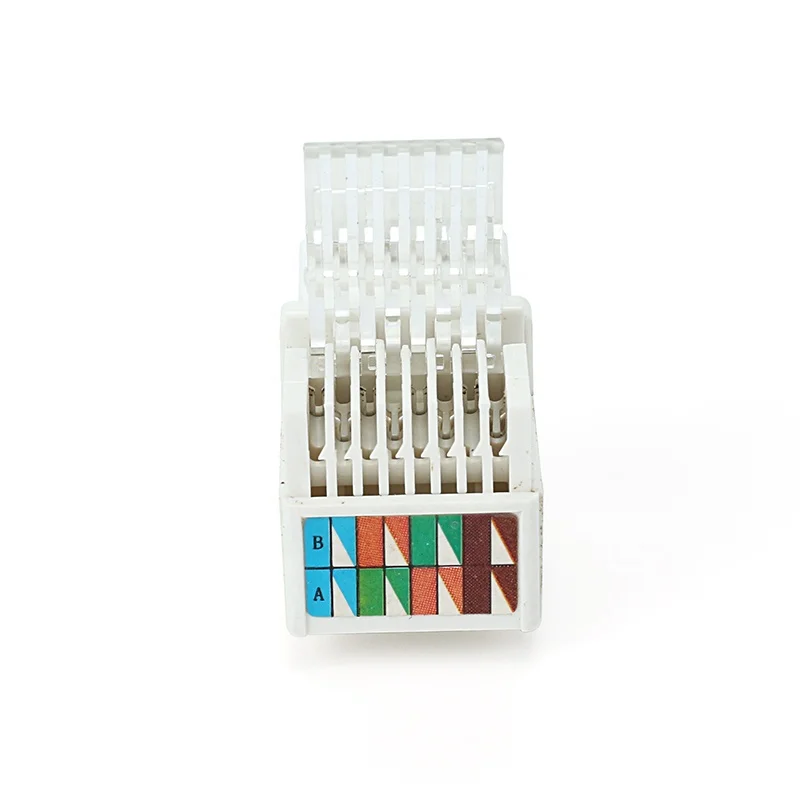

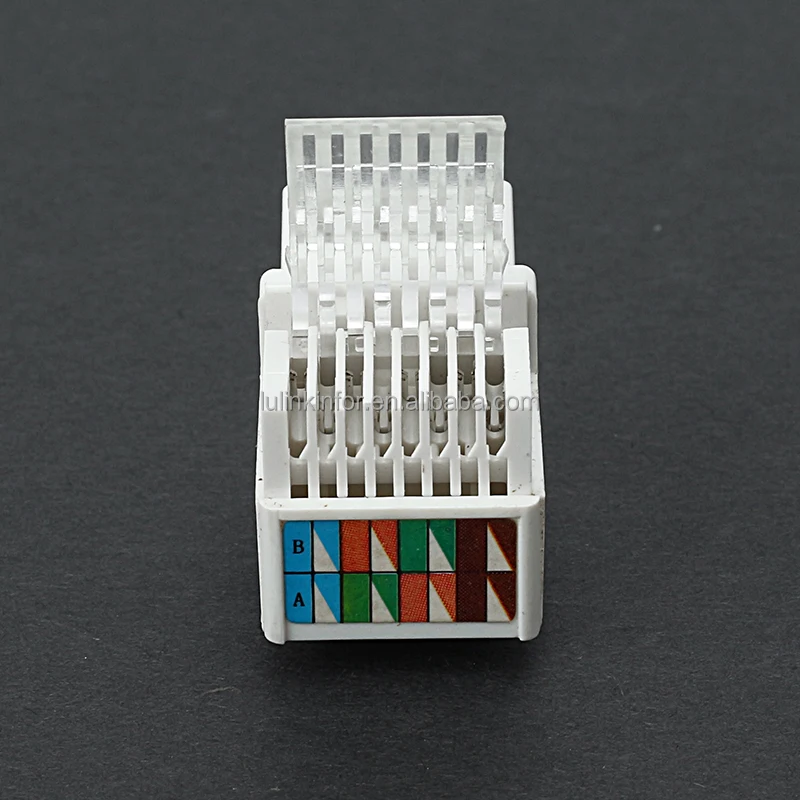

Product Pictures
Product Features
Product Recommendation
Payment&Packing&Shipping
Convenient Payment Mothods:
Packing:
1) Inner packing:Wooden reel,plastic reel,and paper reel available.
2) Outer packing:Carton box,pull out box,pallet available.
3) Other packing available according to client's request.
Professional Logistics Transportation:
We have professional logistics transportation with fast delievery.
By DHL,UPS,FedEx,TNT,EMS etc.
For mass order delivery,can be optional with terms of EXW,FOB,CNF,CIF by air or by sea and based on the buyer forwarder.
Terms of payment by Western Union,Paypal,T/T,Trade Assurance are available.
Packing:
1) Inner packing:Wooden reel,plastic reel,and paper reel available.
2) Outer packing:Carton box,pull out box,pallet available.
3) Other packing available according to client's request.
Professional Logistics Transportation:
We have professional logistics transportation with fast delievery.
By DHL,UPS,FedEx,TNT,EMS etc.
For mass order delivery,can be optional with terms of EXW,FOB,CNF,CIF by air or by sea and based on the buyer forwarder.

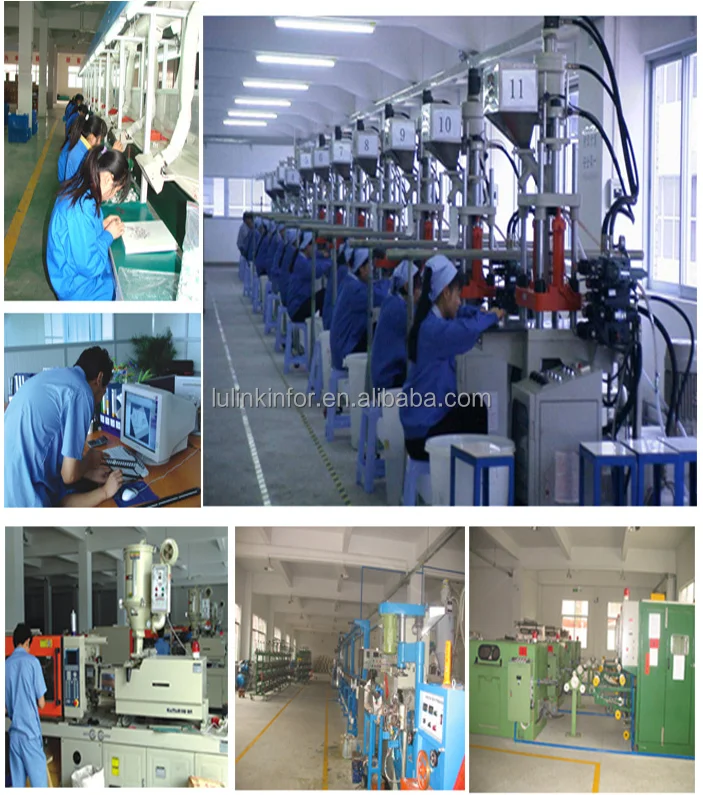

Company Introduction

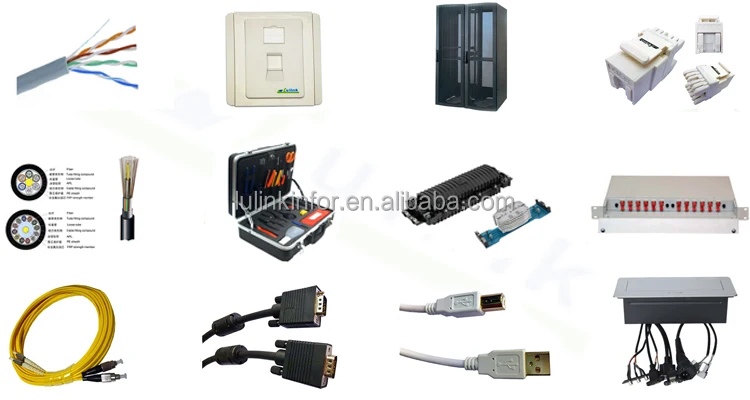

Our Main Products:
