Laiyuan 3kw 3mm 6mm custom assorted industrial heating cartridge heaters element electric 12 inch 1500w 380v 220v 300w for sale
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (1600790660906):
Product Overview
Description
All Cartridge Heaters
Products Description

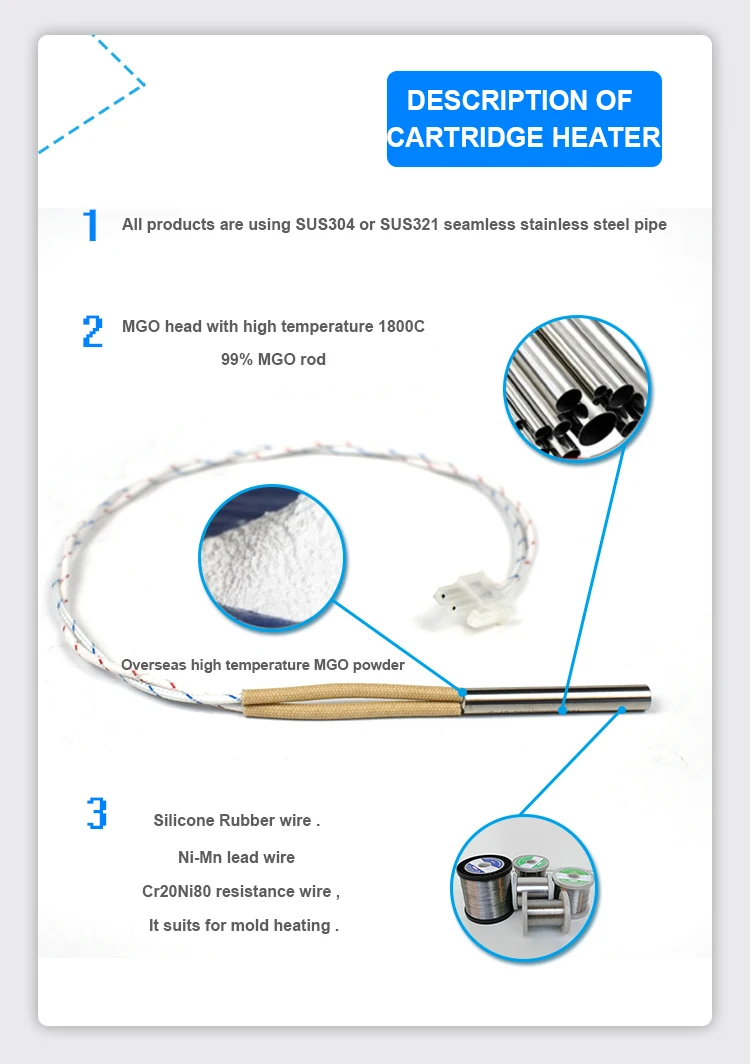

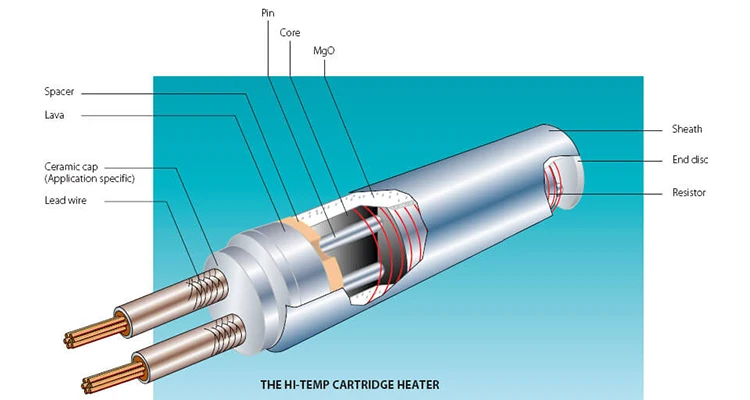

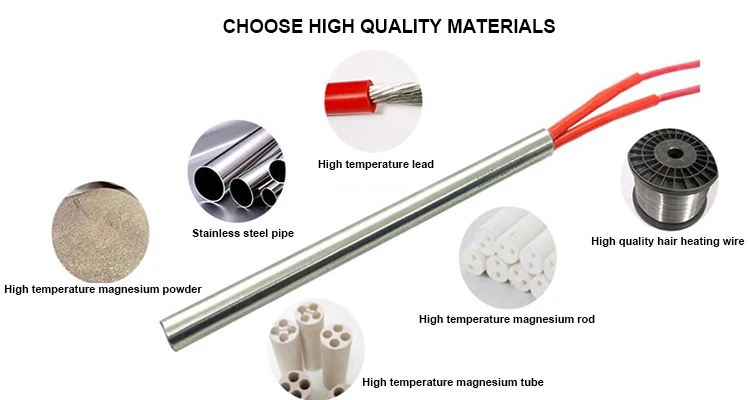

All products are using SUS304 or SUS321 seamless stainless steel pipe, MOG holder and MGO head with high temperature 1800C,99% MGO rod,overseas high temperature MGO powder, Cr20Ni80 resistance wire ,Ni-Mn lead wire and Silicone Rubber wire .It suits for mold heating . Large-scele production with competitive price,Good-look appearance of the product and excellent quality .
Diameter | 3.0mm to 85mm |
Diameter tolerance | 0mm~0.08mm |
Length tolerance | ±1mm |
Cold zone | 5~15mm from lead wire; 3~10mm at the bottom |
Max surface loading | 40w/cm^2 |
Voltage | 1.5V~480V |
Insulation resistance | 500ohm |
Temperature tolerance | ±3℃ |

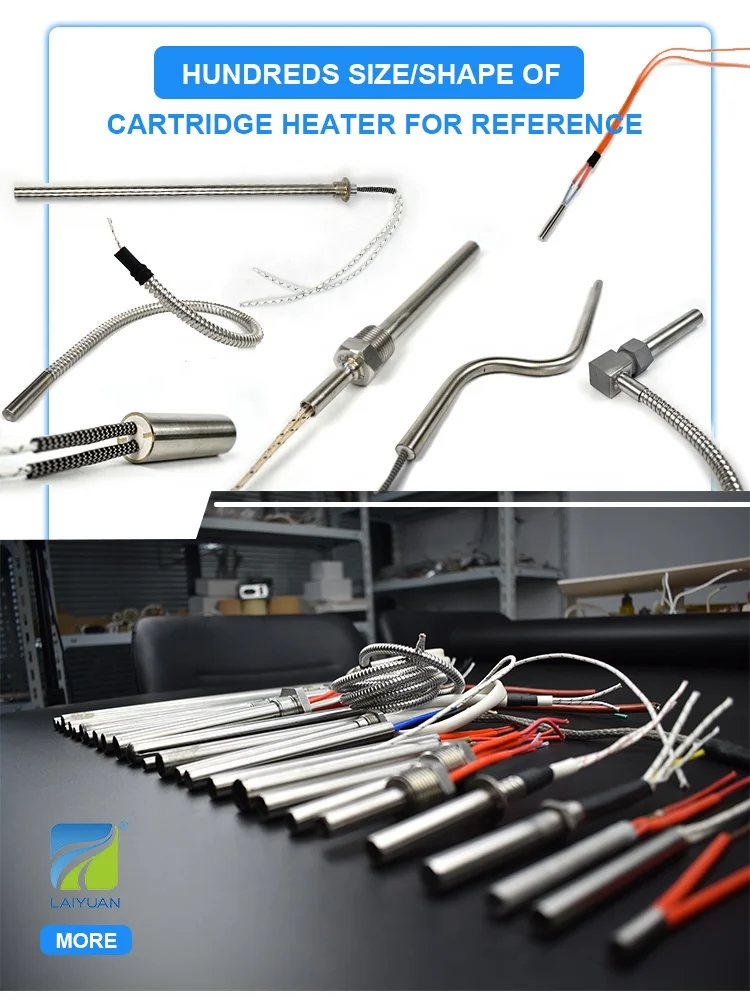

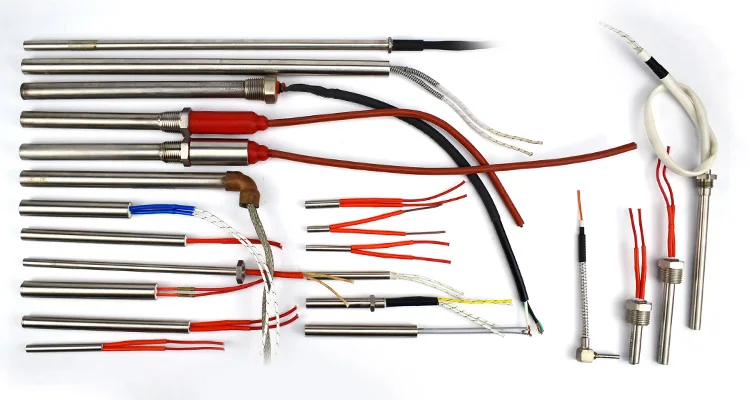

Shape | Straight/ L/ Square/ Screw/Split type/ Special-shaped |
Material of lead wire | Silicone rubber; PTFE; High Temperature Fiberglass; Metal hose protection; Metal braided |
Thermocouple wire | K type,J type,E type ,PT100,NTC |

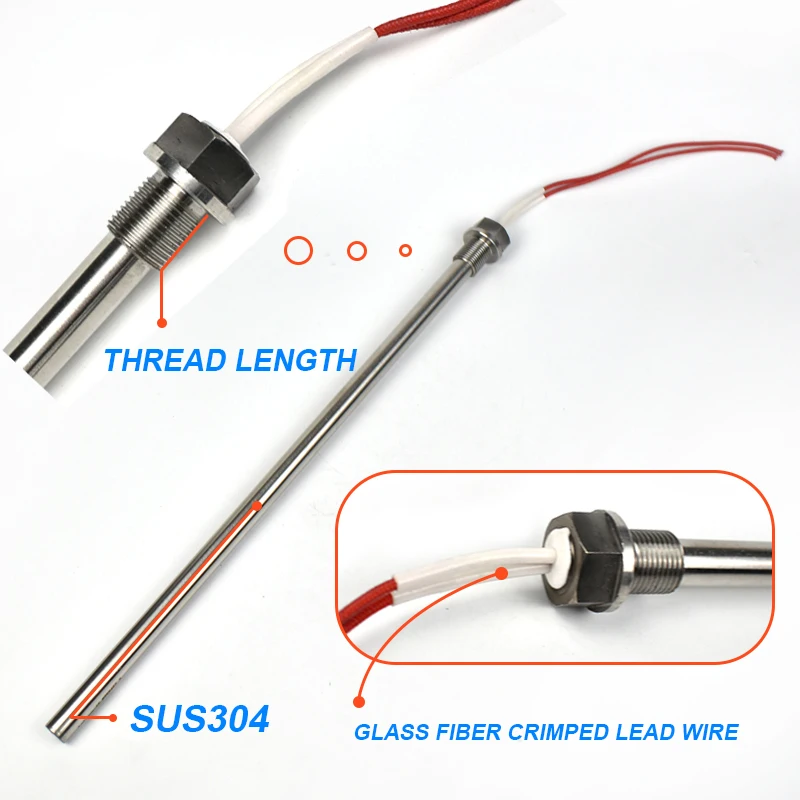

Method of lead wire | Internal wire(Swaged) and External wire (Cripmed) |
Features

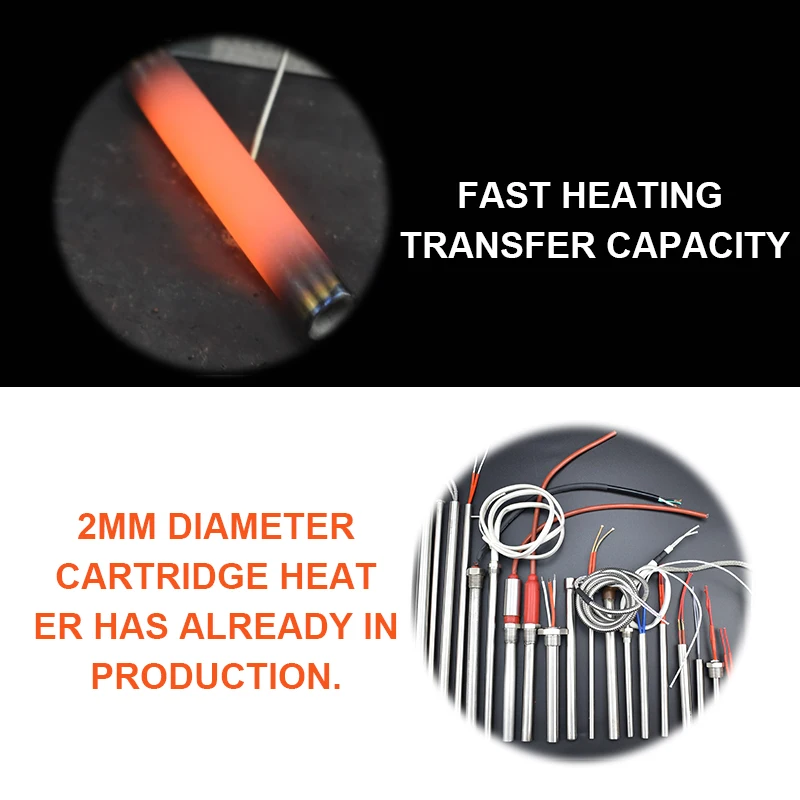

1.Fast heating and long service life
2.Power and voltage can be customized according to requirements.
3.Used in hot forming machinery，meachanical equipment，etc.
4.According to different use requirements，choose the grade of heating wiremagnesium rod and pipe..

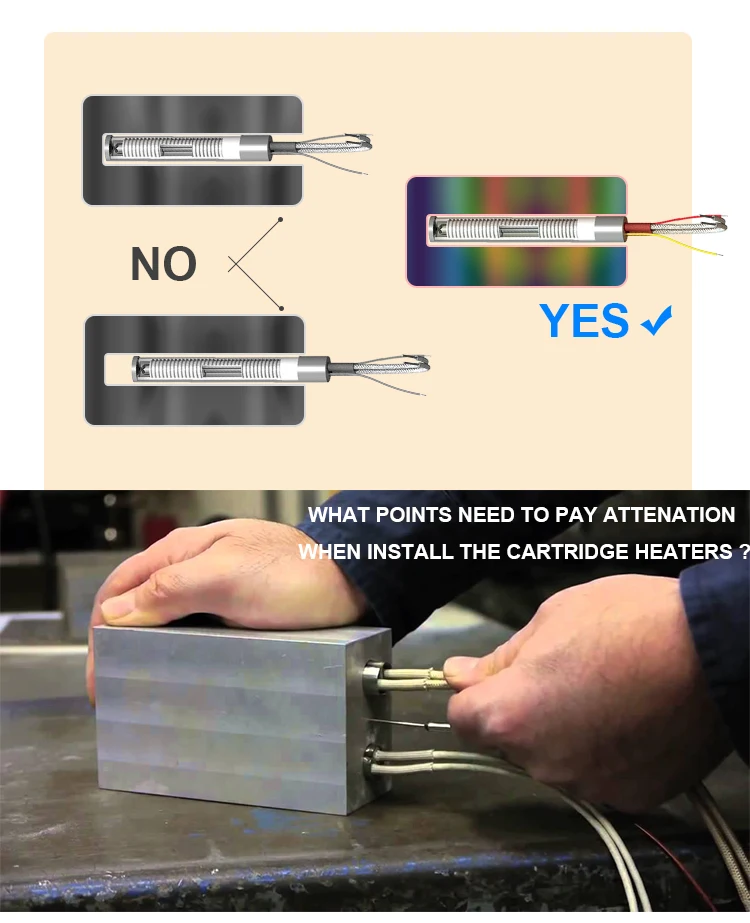

Install

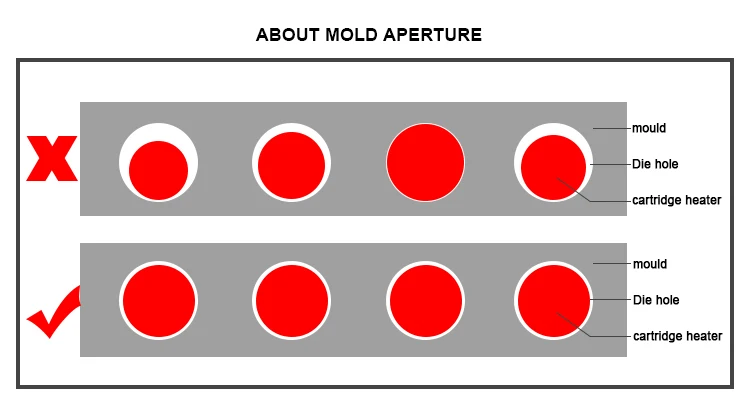

The actual diameter of the conventional heating tube is 0.1-0.2mm smaller than the inner diameter of the die hole. Proper size can make the mold more rapid and uniform temperature rise, more energy-saving, more convenient installation and maintenance, longer service life. Too much space in the mould will make the heating temperature of the electric heating tube too high, so it can't completely contact the heat transfer, only rely on the radiation heat transfer, resulting in the damage of the heat breakdown, the heat conduction effect is not obvious, and serious waste of electric energy.
Order Notification
1. Confirm whether the heating pipe is heated by mould or liquid?
2. Pipe diameter: the default diameter is negative tolerance, for example, the diameter of 10 mm is 9.8-10 mm.
3. Pipe length: ± 2mm
4. Voltage: 220V (other 12v-480v)
5. Power: + 5% to - 10%
6. Lead length: default length: 300 mm (customized)
2. Pipe diameter: the default diameter is negative tolerance, for example, the diameter of 10 mm is 9.8-10 mm.
3. Pipe length: ± 2mm
4. Voltage: 220V (other 12v-480v)
5. Power: + 5% to - 10%
6. Lead length: default length: 300 mm (customized)

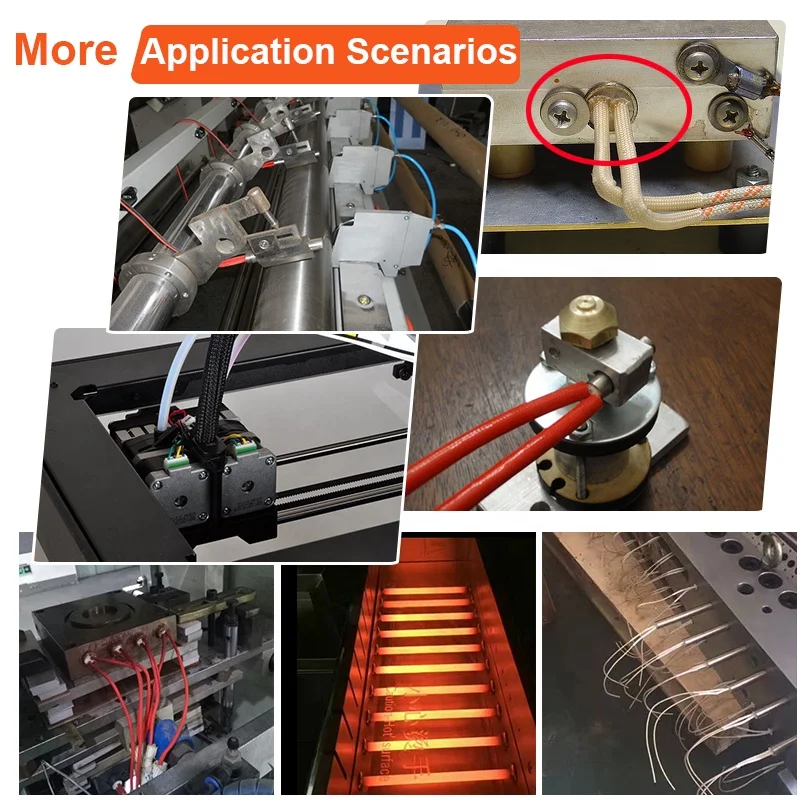

Applications
Injection Molding Manifolds
Food Production
Immersion Tank Heating
Plastic Welding
Injection Molding
Fluid heating, hot melt adhesives and etc.
Cartridge heater is widely used in plate vulcanizing machine, heat transfer printing machine, printing machine, hot scissors, bronzing machine, textile knife mold, submersible heating pipe, heating pipe of radiator, fireplace biological particle ignition rod, water heating blanket, fast sealing machine, footwear industry, semiconductor eutectic welding, crusher, pharmaceutical machine, die casting input channel, injection heating without sprue, etc.
Food Production
Immersion Tank Heating
Plastic Welding
Injection Molding
Fluid heating, hot melt adhesives and etc.
Cartridge heater is widely used in plate vulcanizing machine, heat transfer printing machine, printing machine, hot scissors, bronzing machine, textile knife mold, submersible heating pipe, heating pipe of radiator, fireplace biological particle ignition rod, water heating blanket, fast sealing machine, footwear industry, semiconductor eutectic welding, crusher, pharmaceutical machine, die casting input channel, injection heating without sprue, etc.

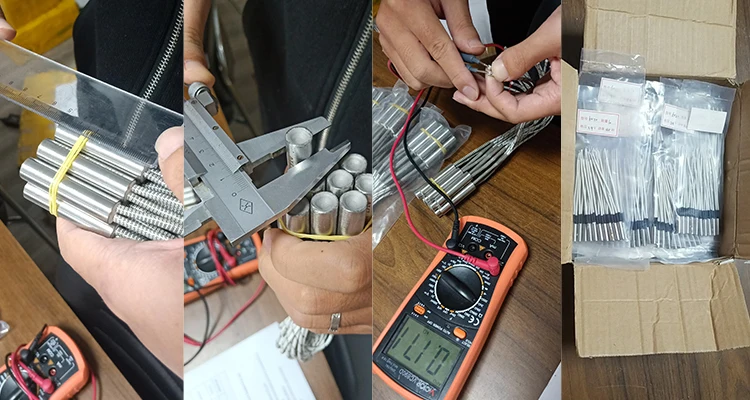

Production and Processing
All heating pipes are strictly tested before leaving the factory to ensure that customers can safely use our company's heating
pipes.
pipes.
Company Profile
LAIYUAN HEATER
Since its foundation,Yancheng Laiyuan Electric Equipment Co. Ltd, a company based on the actual needs of clients, has always been adhering to the purposes of quality-first,integrity-based and joint development. Laiyuan focuses on development,production,sales of customized products and serves the industry of electric heat and industrial automation instrumentation.The products are widely used in Plastic Machinery ,Vacuum Packaging, Petroleum Chemical Industry, Electric Power, Metallurgy, Medicine, Food, Industrial Furnaces, Industrial Automation and other industries.
Title goes here.
Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.
Our Partners
Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.
