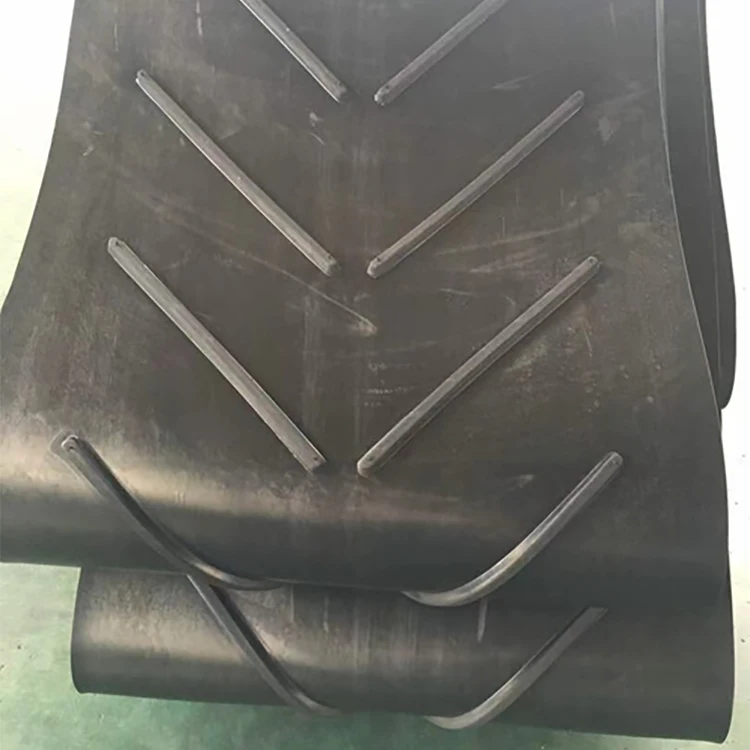

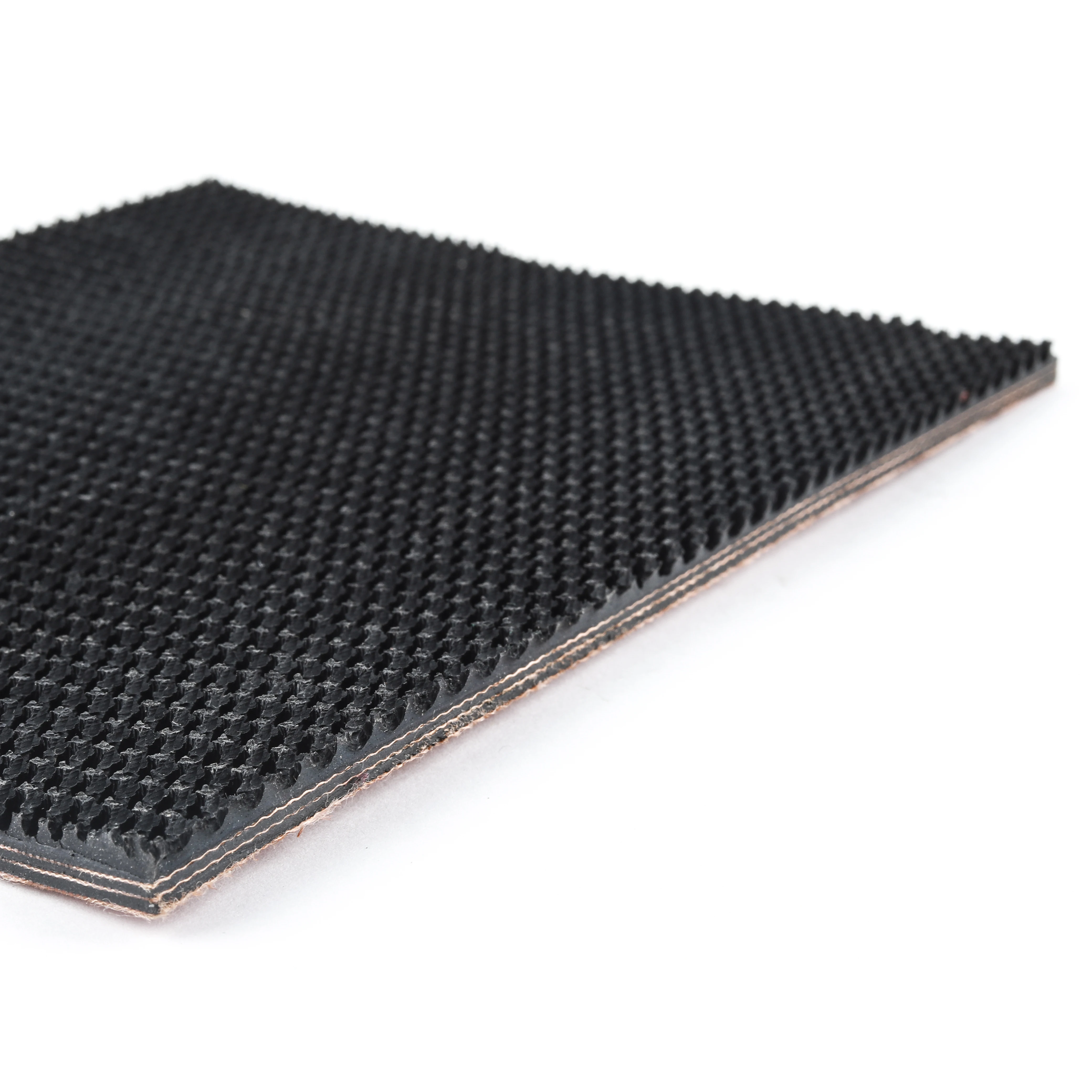

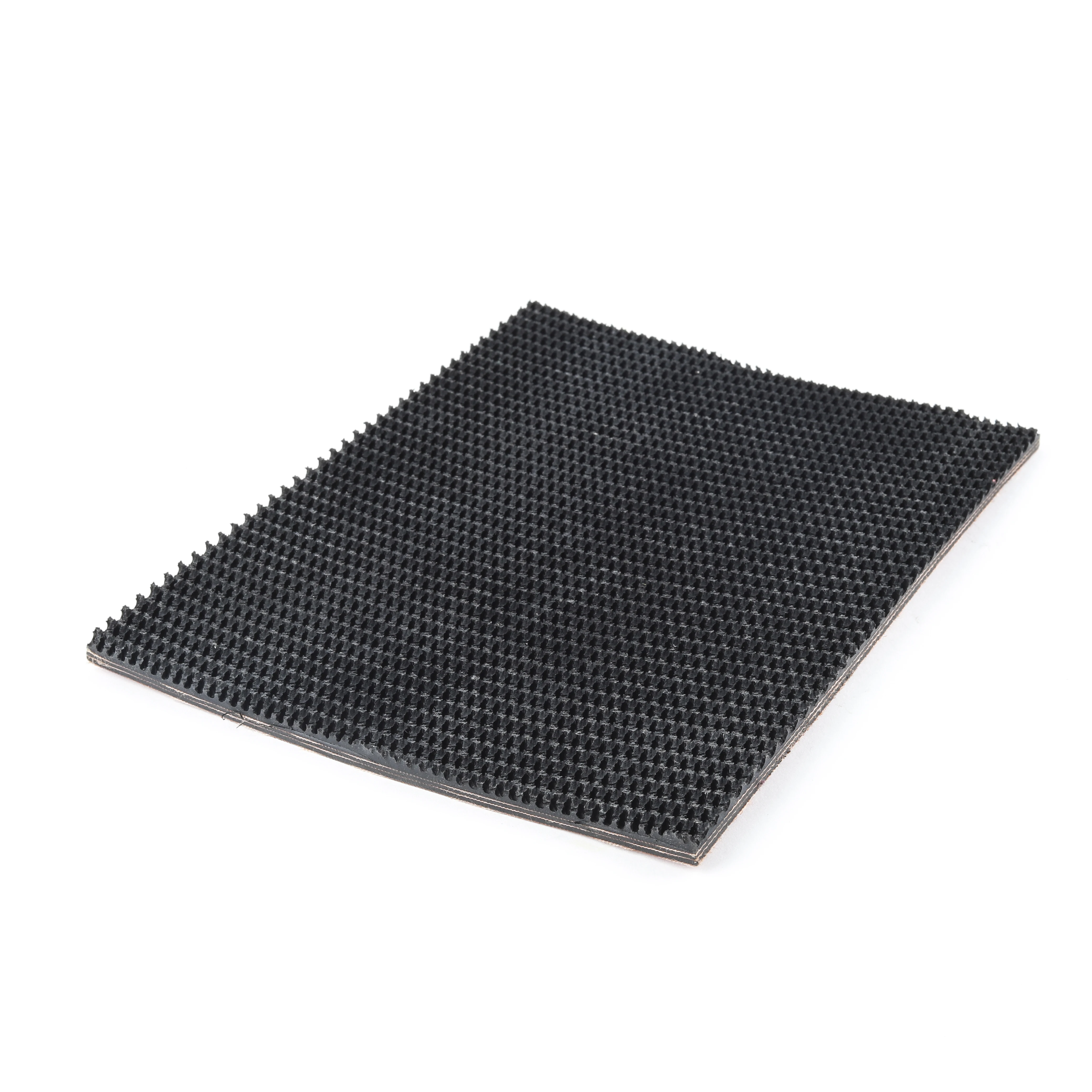

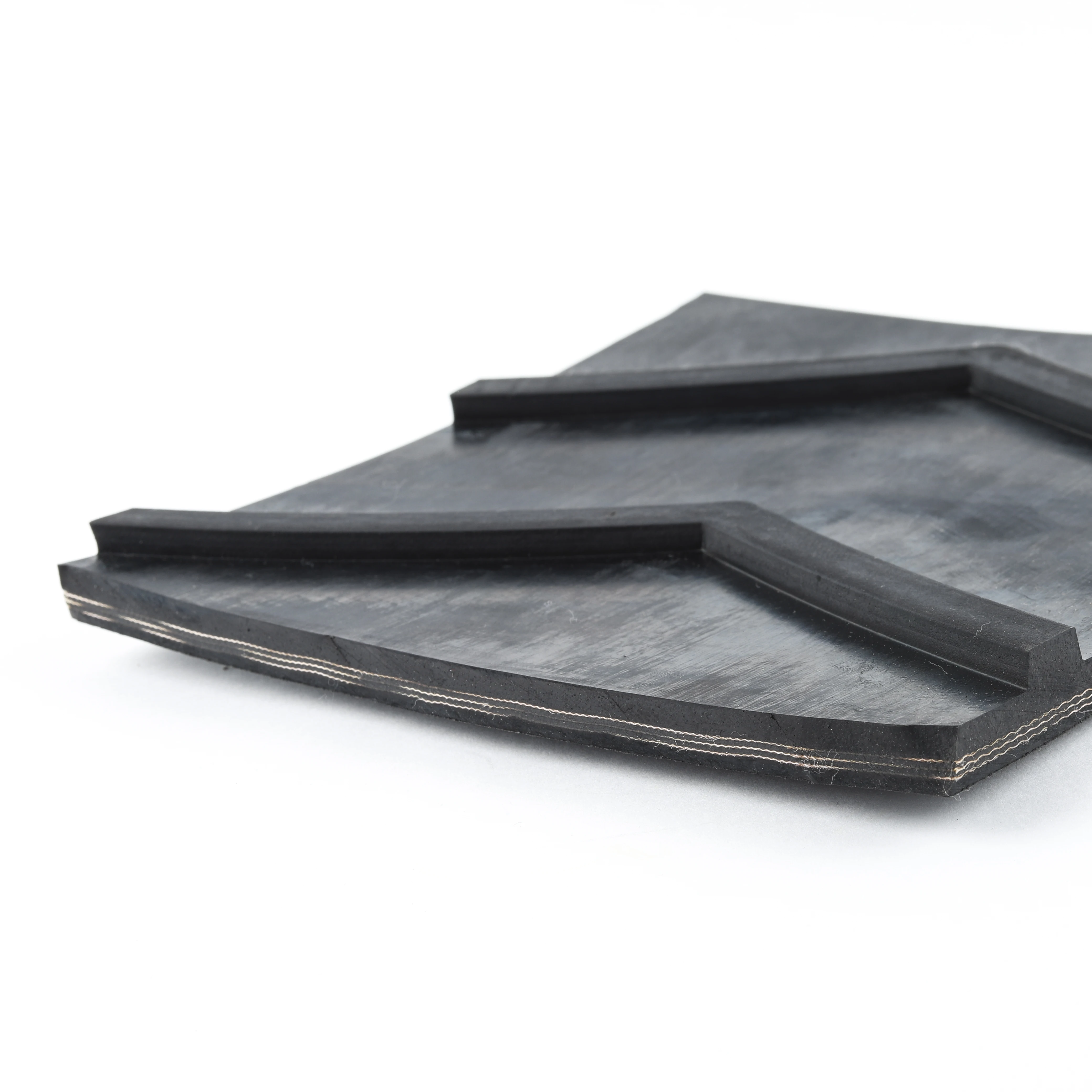

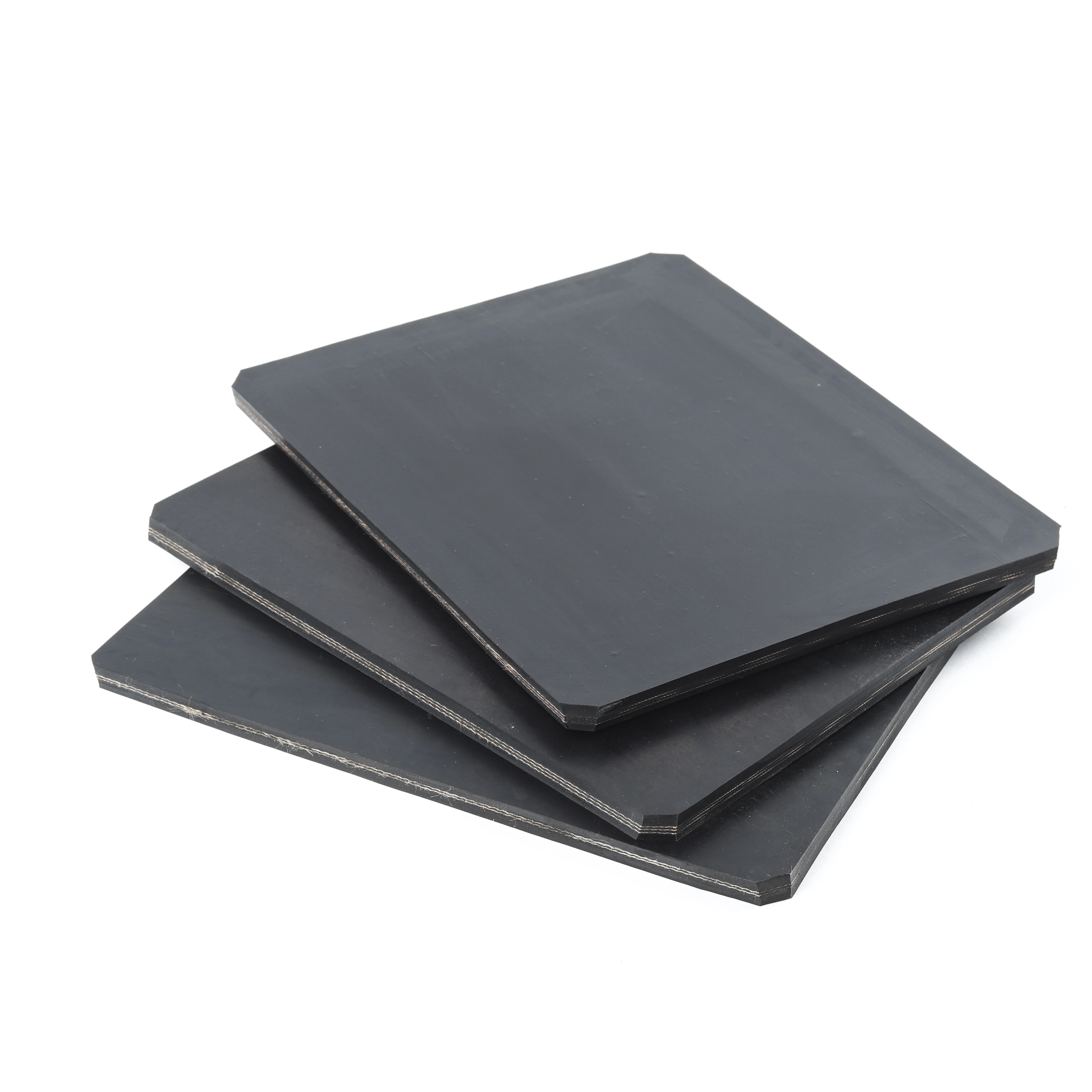

Custom 600mm width Rubber conveyor belt for truck loading unloading
- Category: Rubber & Plastics >>>
- Supplier: Zhejiang Sihai New Materials Co. Ltd.
Share on (1600790689357):
Product Overview
Description
Specification
Product Details
Type | EP100-EP500/NN100-500 |
Material | NR SBR Rubber |
Width | 300-2300mm |
Tensile Strength | 6mpa-25mpa |
Ply | 2-6ply |
Thickness | 6mm-30mm |
Physical Properties of Rubber Cover (before aging)
Grade | Tensile Strength/Mpa ≥ | Breaking Elongation/% ≥ | Abrasion Loss/mm3 ≤ |
H | 24 | 450 | 120 |
D | 18 | 400 | 100 |
L | 15 | 350 | 200 |
Specification of Multi-ply Polyester Conveyor Belt
Fabric Type | Fabric Structure | Fabric Specs | Fabric Ply No. | Belt Width (mm) | Legnth (mm) | Cover Thickness(mm) | ||||
Wrap | Weft | Top | Bottom | |||||||
Polyester (EP) | Polyester (E) | Polyamide (P) | EP100 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | ||
EP125 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP150 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP200 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP250 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP300 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP400 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||
EP500 | 2-6 | 400-2200 | 5-500 | 2-12 | 1.5-6 | |||||

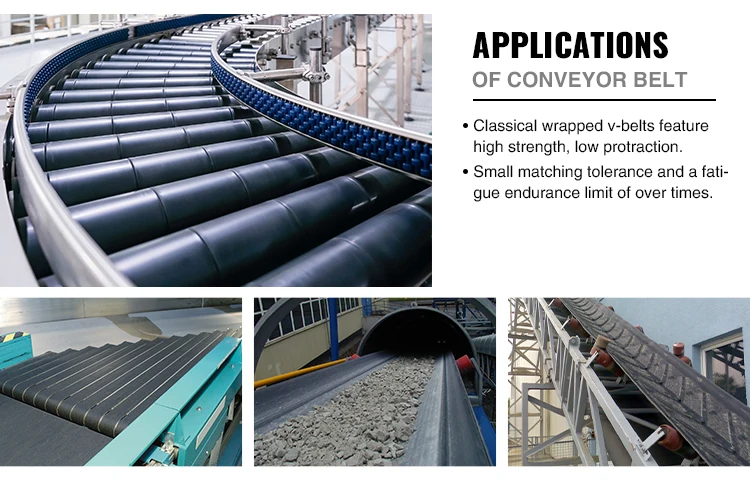

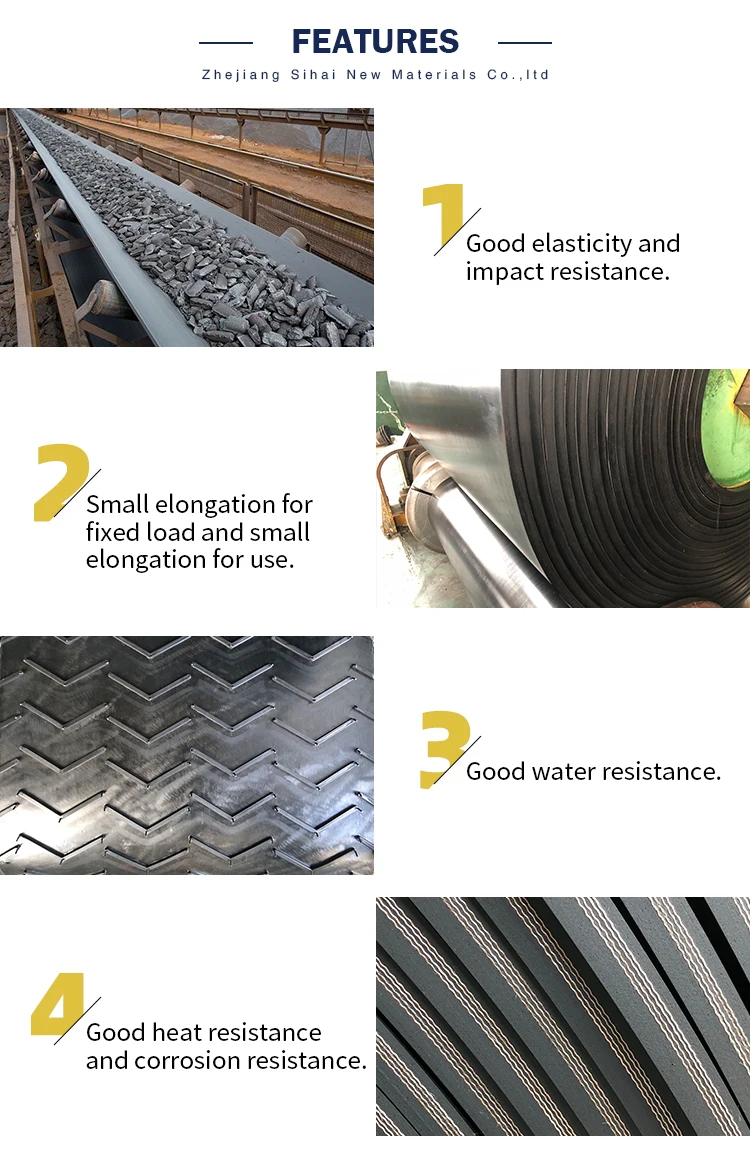

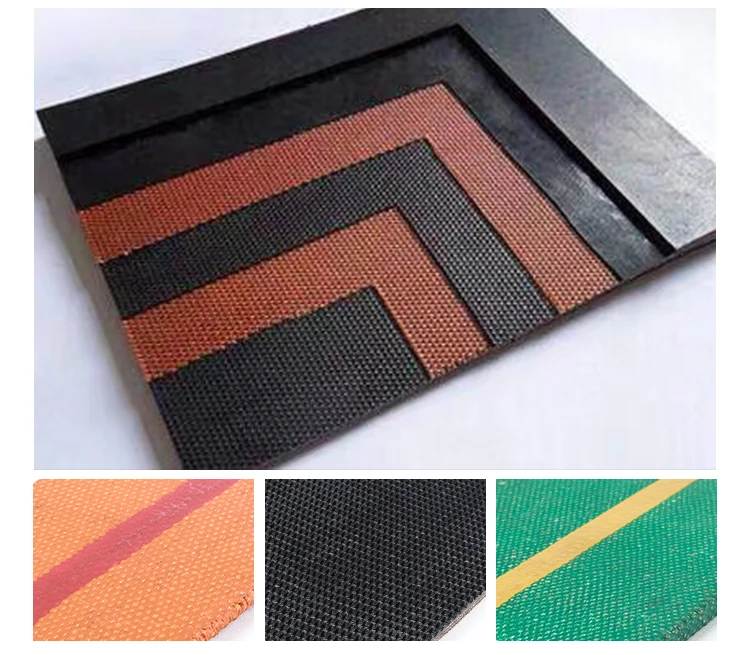

Polyester canveyor belts,also called EP conveyor belts.which tension resistant body is canvas wowen by polyster in warp and polyamine in welt.The belts have the characteristics of low elongation in warp and good troughability in welf.good water resistance.good wet strength.no mould,it is suitable for medium,long distance and heavy-load transportation of materials.Because of the high initial modulus of polyester,the belts can choose a reative low safety factor
Product Category
Company Profile

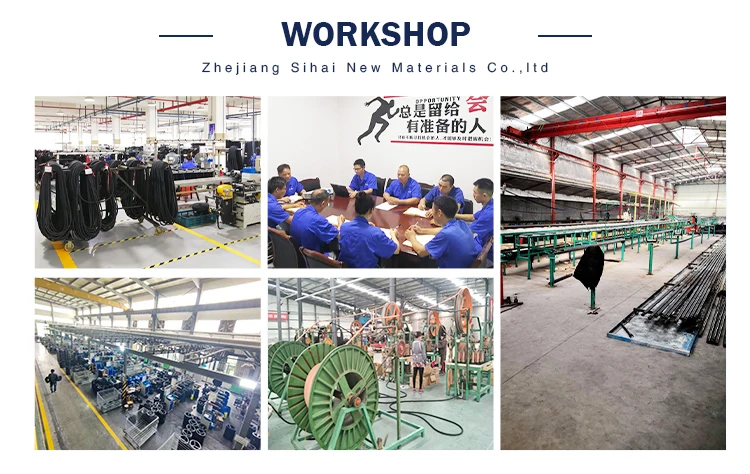

ZHEJIANG SIHAI NEW MATERIALS CO.,LTD Located in CHINA (TIANTAI )hongsan Industrial district,there is four kilometers away from the Shangshan High way,we owns superior geographical position and good transport facilities,our company was founded in 1997,covers 20000 square meters.we import advanced equipment from west Germany and Taiwan.Our company mainly produce wrapped belt,agricultural belt , mower belt,conveyor belt ，cogged belt ,pulley belt ,industrial rubber hose and washer .we operate under the national standard,with stable function and good quality,our products sell well in domestic market,also sell all over the world.
Persuing the “SIHAI “spirit of “creation,challenge and progress”,we are extending the production and raising theeconocmic benefit day by day ,also our company has been chosen as an enterprise valuing contracts and keeping promise for ten years in succession,and as an AAA creditworthy enterprise for four years in succession,in 2002,we get”zhejiang famous brand”,”National High-tech enterprise”,”zhejiang Manufacturing v belt draft company “,the company pass the (ISO 9001:2008) systerm of quality administration.
We’ll further cooperate with both the old and new consumers and make joint efforts for better development.
Persuing the “SIHAI “spirit of “creation,challenge and progress”,we are extending the production and raising theeconocmic benefit day by day ,also our company has been chosen as an enterprise valuing contracts and keeping promise for ten years in succession,and as an AAA creditworthy enterprise for four years in succession,in 2002,we get”zhejiang famous brand”,”National High-tech enterprise”,”zhejiang Manufacturing v belt draft company “,the company pass the (ISO 9001:2008) systerm of quality administration.
We’ll further cooperate with both the old and new consumers and make joint efforts for better development.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as bel ow.
Q: HOw to guarantee your after-sales service?
A: Strict inspection during production
Strictly check the products before shipment to ensure our packaging in good condition
Track and receive feedback from customer regularly
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as bel ow.
Q: HOw to guarantee your after-sales service?
A: Strict inspection during production
Strictly check the products before shipment to ensure our packaging in good condition
Track and receive feedback from customer regularly
