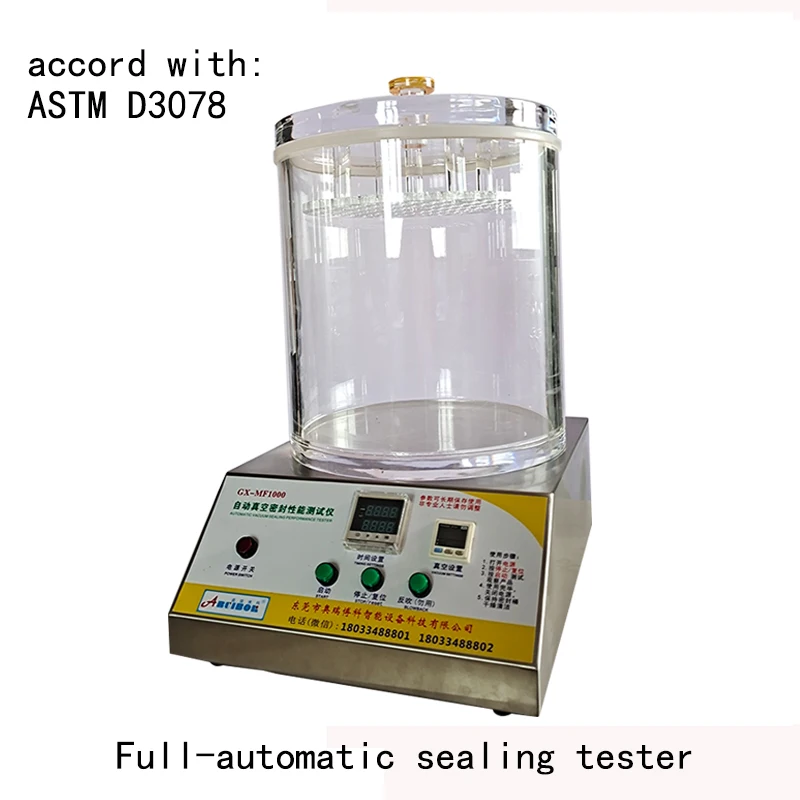

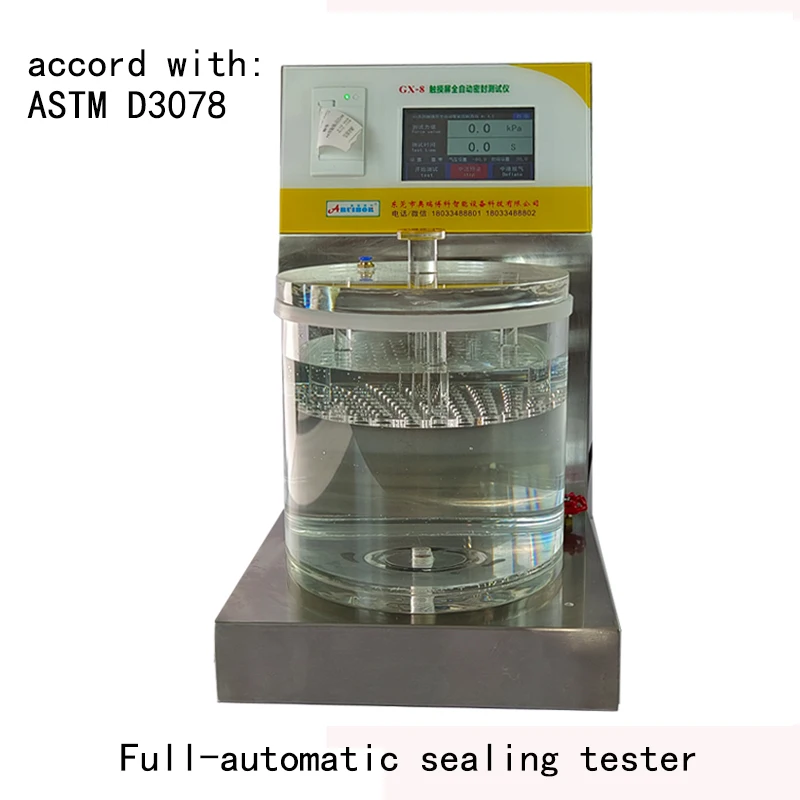

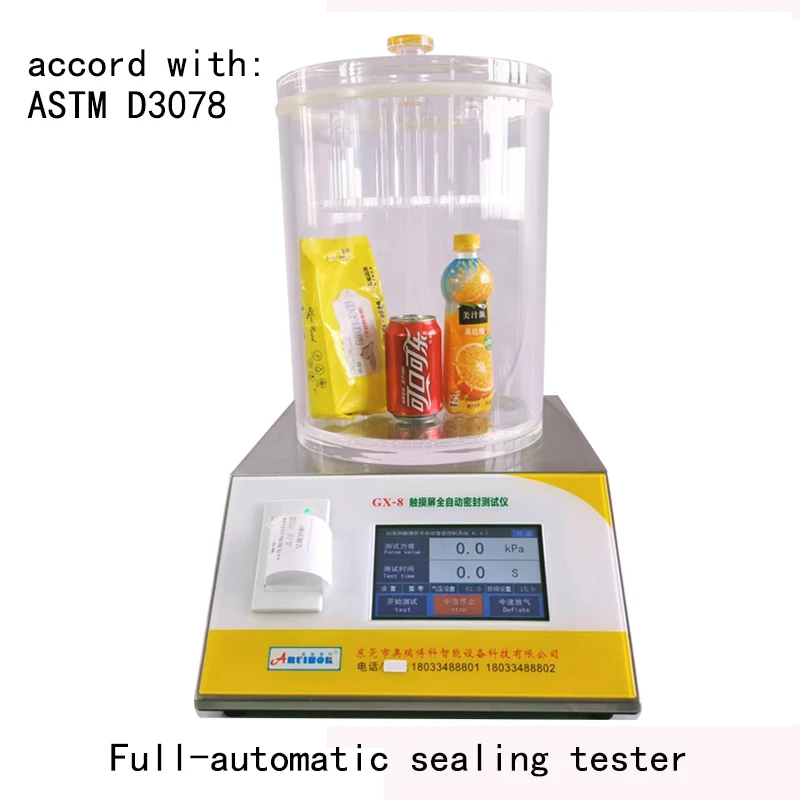

Vacuum sealing performance tester Aluminum plastic pharmaceutical blister sealing tester Sealing leak detector Sealing tester

Product Overview

Description

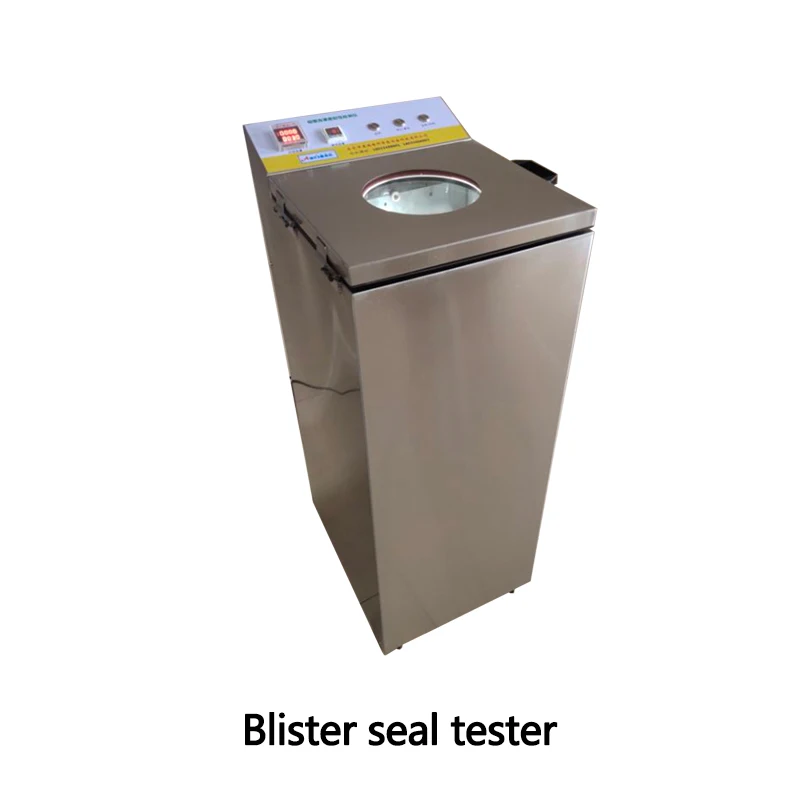

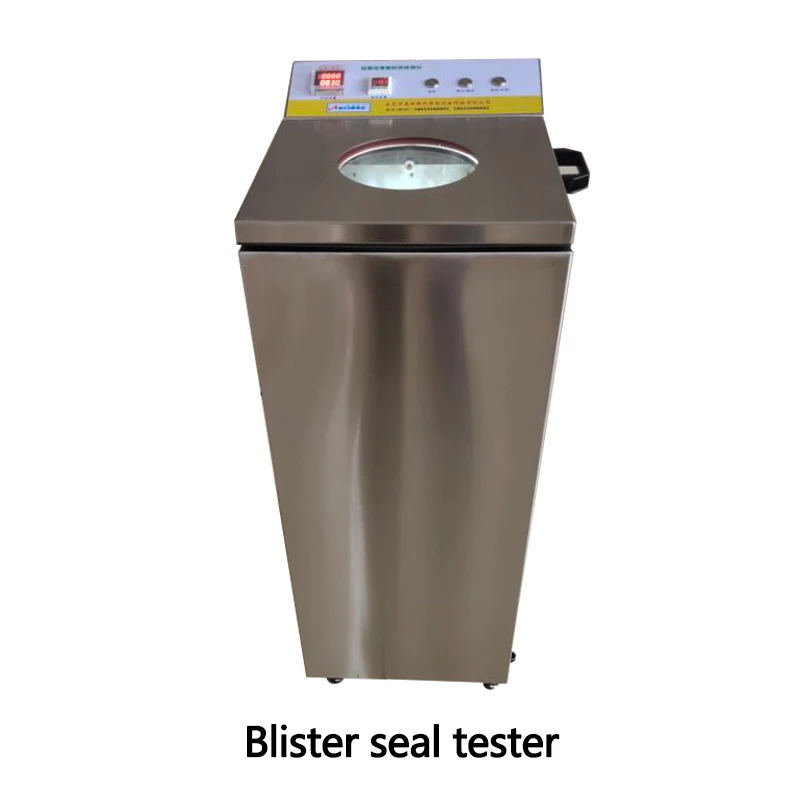

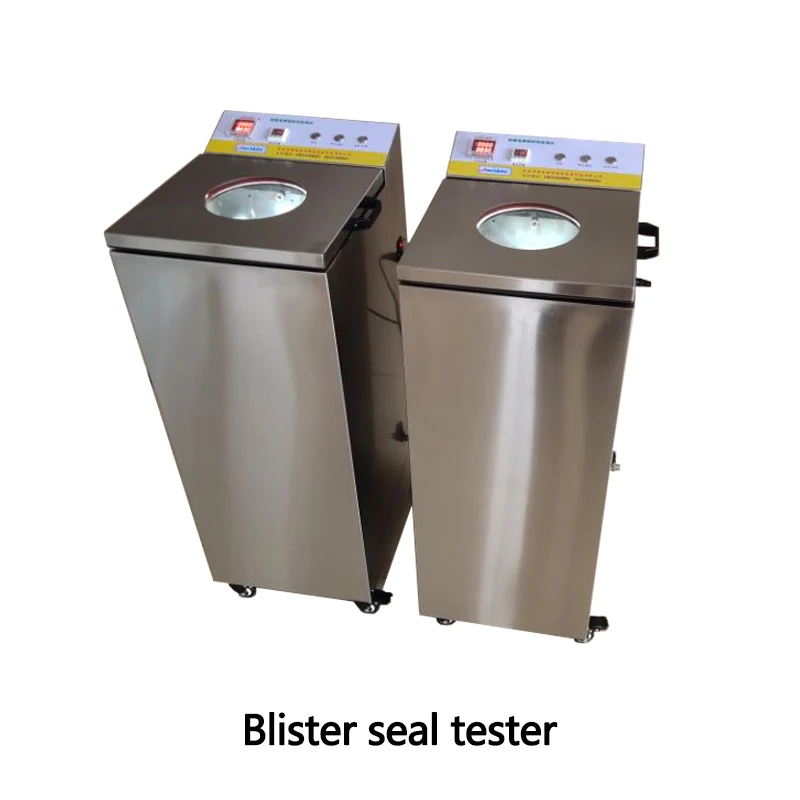

GX-PZ-6 aluminum foil blister seal detector

Features of this machine:

Professional high-end model, designed and manufactured for clean laminar flow production/packaging/R&D in pharmaceutical/biotechnology/nano packaging

With all the functions of other ordinary models

Except for the power cord interface, this machine does not have any external devices and does not need to be connected to any air source

Fully automatic model, avoiding manual operation errors

Made of all stainless steel/specially designed for clean rooms

With drainage system/easy to use

Self illumination system/more careful observation

Applicable to multiple test schemes

Test judgment: Check the sealing quality of the aluminum foil blister packaging by observing the water ingress into the aluminum foil blister.

System parameters:

This machine can bear pressure - 98 kpa

Vacuum indication range: 0-100 kPa (0-99.0 kPa), display resolution: 0.1 kPa.

Timing control range: 0~9999 seconds, display resolution: 1 second. The unit is set to leave the factory for 30 seconds.

Power supply: 220V/50Hz

Exhaust pipe: Φ 8mm high-quality polyester TPU pipe imported from Taiwan

Power supply safety protection: equipped with power supply safety protection measures.
