South N6 Total Station reflectorless 1000m types of total station 30x Magnification Total Station for land survey
- Category: >>>
- Supplier: Shanghai Hexin Survey Instrument Company Ltd.
Share on (1600790742400):
Product Overview
Description
Products Description
South N6+ Total Station reflectorless 1000m types of Total Station 30x Magnification Total Station for land survey
Non-Prism 1000m South N6⁺ Total Station
Product feature of South N6⁺ Total Station
* 2" Accuracy
* Long-Range Prism (5000m) and Non-Prism (1000m) EDM
* Trigger Key, Hot key for faster operation
* Cable-Free Connection by Wireless Blue tooth or USB Stick
* Bigger internal memory, Save 96000 data block
* Longer operation Time up to 10 hours per battery
* Long-Range Prism (5000m) and Non-Prism (1000m) EDM
* Trigger Key, Hot key for faster operation
* Cable-Free Connection by Wireless Blue tooth or USB Stick
* Bigger internal memory, Save 96000 data block
* Longer operation Time up to 10 hours per battery
New Function for South N6⁺ Total Station
——Outstanding Performance and Versatile Functions

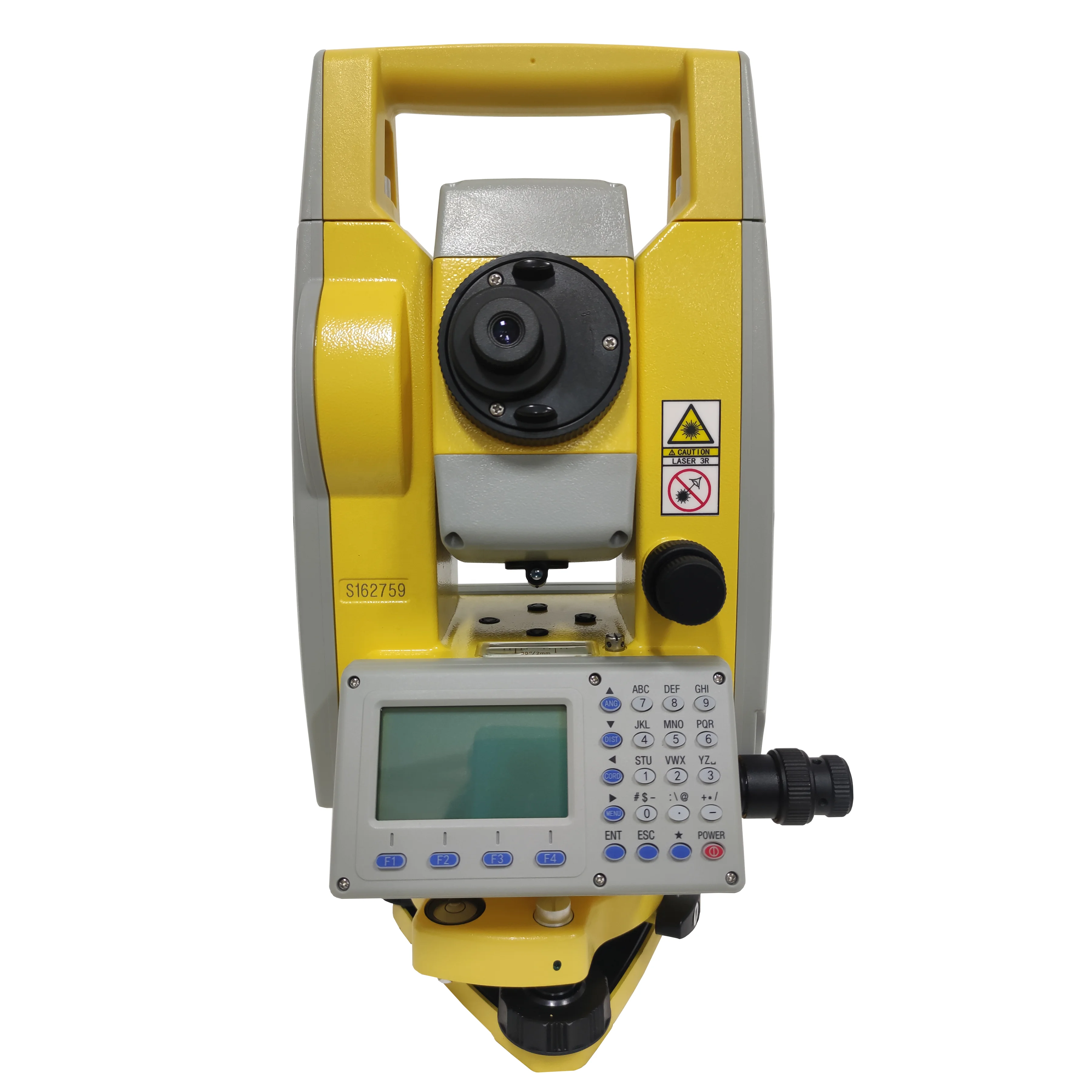

Easy Viewing Display
-6-line with backlight on both faces.
-Easy-to-use 24-key pads with alphabet entry.
-Easy-to-use 24-key pads with alphabet entry.
Trigger Key
-Faster operation.
-Trigger in all measurement surface.
-Trigger in all measurement surface.
USB Flash Disk
-USB disk for data import & export,
more convenient and keep it safe.
more convenient and keep it safe.
New Battery Housing
-Easy to lock and release.
-One hand operation.
-One hand operation.
Relocated Tangent Screw
-Lock and fine adjustment tangent screw.
New Mainboard
-Processor upgrade to M7. More powerful process ability.
-Lower consumption. Longer operation time up to 10 hrs by 1 battery.
-Lower consumption. Longer operation time up to 10 hrs by 1 battery.
Bigger Memory
-Up to save 96000 data blocks.
Easy-to-use Onboard System
New tool-bar design on the side of screen, which helps you check the status of your N6⁺ Total Station in real-time.
Choose N6⁺ to meet your topographic needs as a superior mates. It offers a clear-to-view onboard system by it's easy-to-use but powerful programs.
Such as:
▶ Offset: angle, distance, column offset
▶ Point to Line: to calculate the coordinate of occupied point based on a known point and line
▶ COGO: calculation of coordinate geometry
New tool-bar design on the side of screen, which helps you check the status of your N6⁺ Total Station in real-time.
Choose N6⁺ to meet your topographic needs as a superior mates. It offers a clear-to-view onboard system by it's easy-to-use but powerful programs.
Such as:
▶ Offset: angle, distance, column offset
▶ Point to Line: to calculate the coordinate of occupied point based on a known point and line
▶ COGO: calculation of coordinate geometry
New Hot Key Functions and BT Data Transfer
12 number key, 12 short path directly enter the application, less operation steps and higher efficiency.
Cable free data transfer work with transfer software, one key export to USB stick, generate TXT, CSV, DXF files.
12 number key, 12 short path directly enter the application, less operation steps and higher efficiency.
Cable free data transfer work with transfer software, one key export to USB stick, generate TXT, CSV, DXF files.
Optimized Road Program
The optimized road program offers a smart solution for road designing, editing and laying out. The new road program will calculate the horizontal and vertical curve in arbitrary geometric curved algorithm.
Work on Data Collector
After added the Blue tooth module on N6⁺, you will have more possibilities to extend the applications on Total Station. With open source commands, you are easy to establish the communications between the N6⁺ and other software you wish to use.
The optimized road program offers a smart solution for road designing, editing and laying out. The new road program will calculate the horizontal and vertical curve in arbitrary geometric curved algorithm.
Work on Data Collector
After added the Blue tooth module on N6⁺, you will have more possibilities to extend the applications on Total Station. With open source commands, you are easy to establish the communications between the N6⁺ and other software you wish to use.
Specification
Distance Measurement | Range | R10 | |
Reflector | 5000m | ||
Reflectorless | 1000m | ||
Accuracy | |||
Reflector | ±(2+2ppm x D)mm | ||
Reflectorless | ±(3+2ppm x D)mm | ||
Measuring Interval | |||
With Reflector | Fine < 0.3s, Tracking <0.1s | ||
Without Reflector | 0.3s-3s | ||
Others | |||
EDM Type | Coaxial | ||
Minimum Reading | 0.1mm | ||
Unit | Meter/ US.Feet/ Int.Feet/ Feet-inch | ||
Angle Measurement | Accuracy | 2” | |
Reading System | Absolute Encoding | ||
Circle Diameter | 79mm | ||
Minimum Increment | 1”/5” | ||
Detection Method | Horizontal: Dual, Vertical: Dual | ||
Telescope | Image | Erect | |
Tube Length | 154mm | ||
Effective Aperture | 45mm (EDM:50MM) | ||
Magnification | 30x | ||
Field of View | 1°30’ | ||
Minimum Focus Distance | 1.2m | ||
Resolving Power | 3” | ||
Tilt Sensor | System | Dual Axis Liquid-Electric | |
Working Range | ±4’ | ||
Accuracy | 1” | ||
Communications | Communication Ports | USB Port | |
Data Interface | USB Stick, Blue tooth | ||
Effective Range of Blue tooth | 10m | ||
Plummet | Laser Plummet | ±1.5mm at 1.5m | |
Optical Plummet (Optional) | Erect Image | ||
Magnification | 3x | ||
Focusing Range | 0.5m~∞ | ||
Field of View | 5° | ||

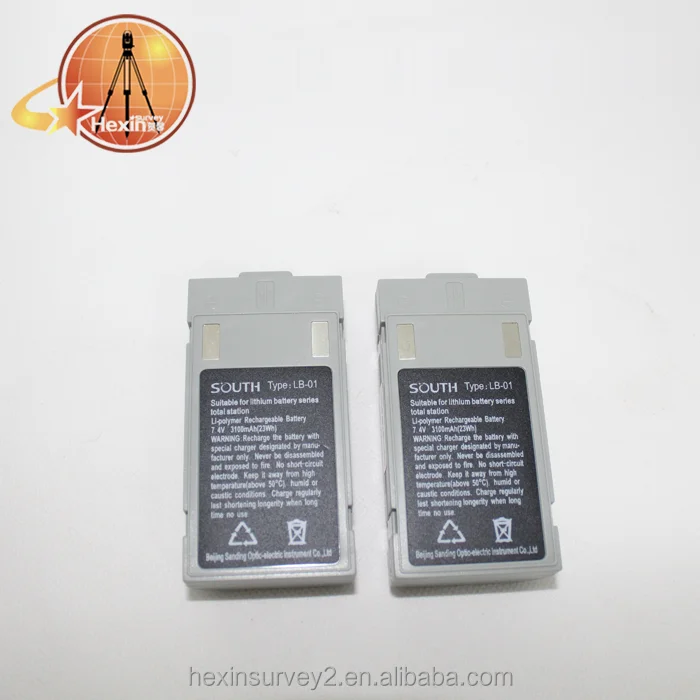

Power | Type | Rechargeable Lithium battery | |
Voltage | 7.4V DC, 3100mAH | ||
Operating Time | 10 Hours | ||
Level Vials | Plate Vial | 30”/2mm | |
Circular Vial | 8’/2mm | ||
Others | Dust and Water Protection | IP55 | |
Display | Dual Side, LCD 6 Lines | ||
Keyboard | Alphanumeric 24 Keys | ||
Operating Temperature | -20°c ~ +50°c | ||
Atmosphere Correction | Manual Input, Auto Correction | ||
Earth Curvature Correction | Manual Input, Auto Correction | ||
Prism Constant | Manual Input, Auto Correction | ||
Dimension | 190mm x 195mm x 335mm | ||
Weight (approx..) | 5.5kg | ||

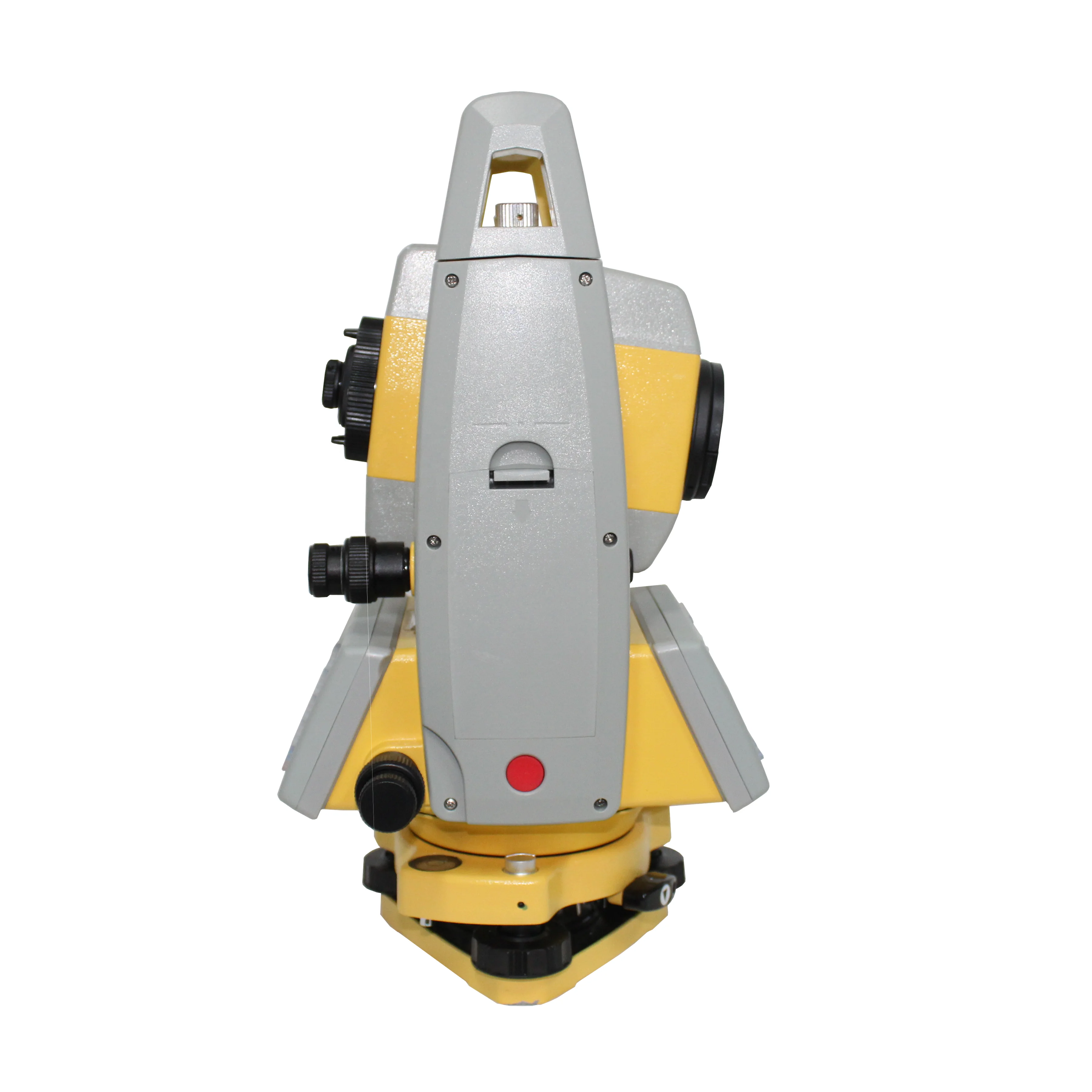

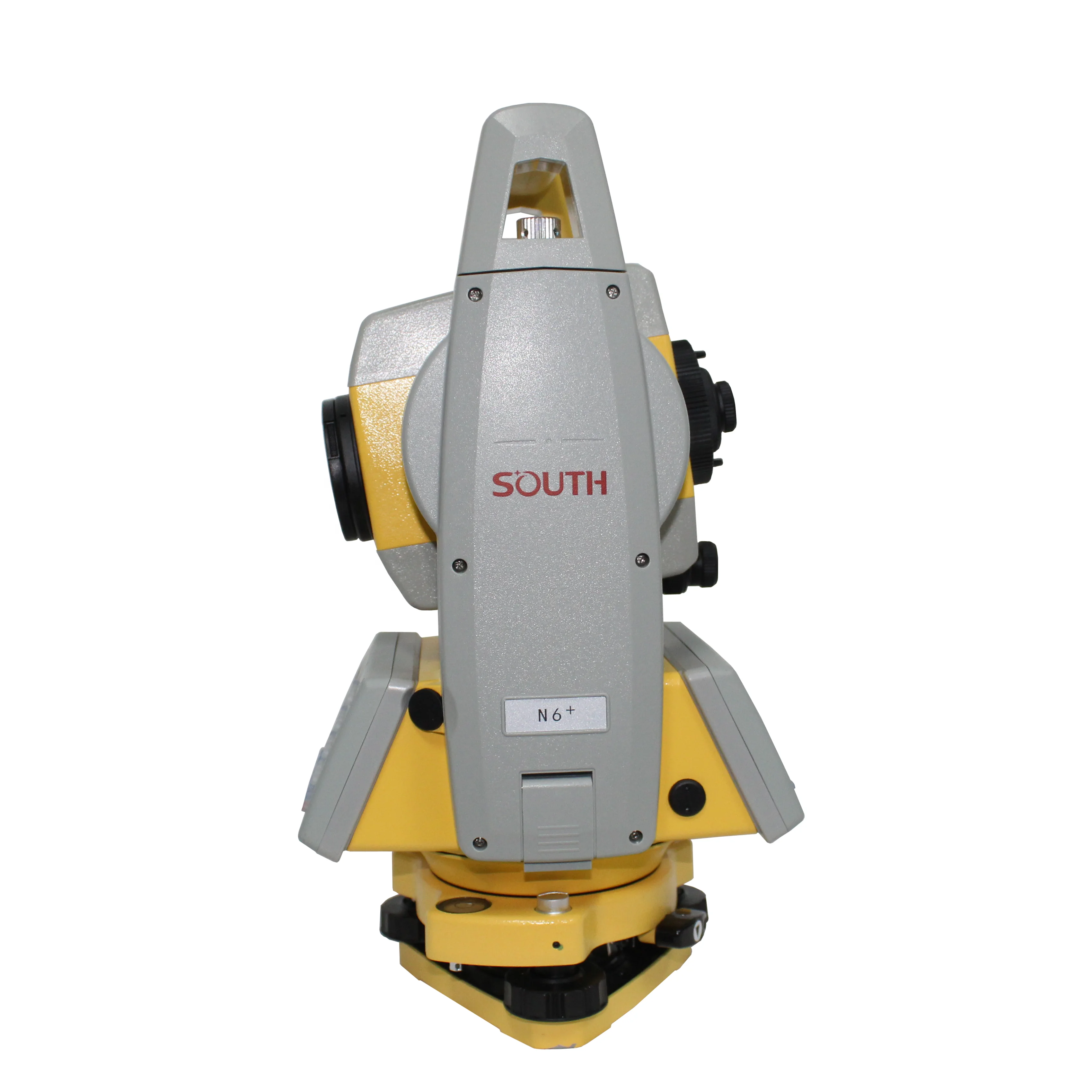

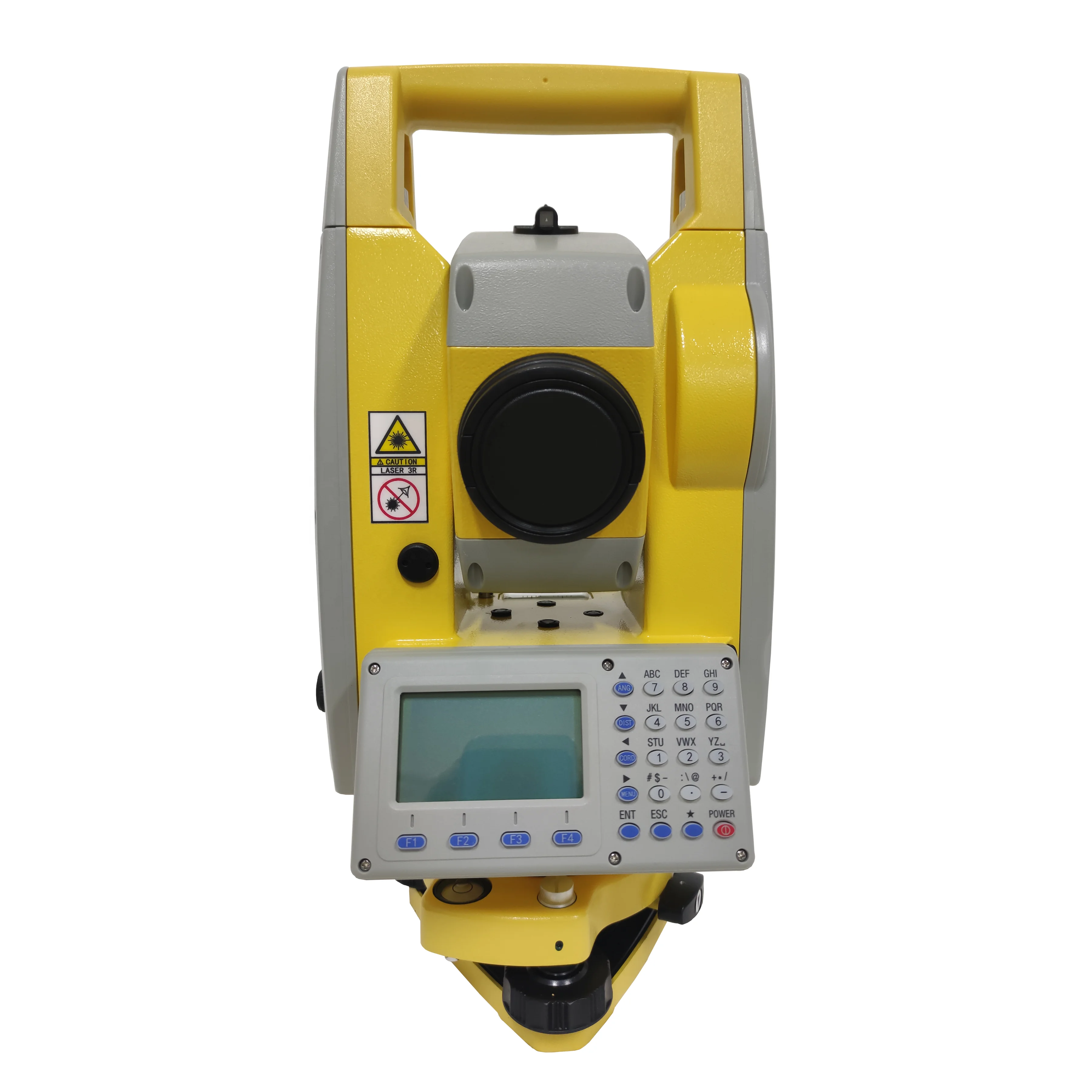

Product Display
Payment & Shipping
Payment:
Generally, we accept Advance T/T , PayPal and West union. If you prefer other payment terms, please let us know.
Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS. You can also choose your own shipping forwarder.

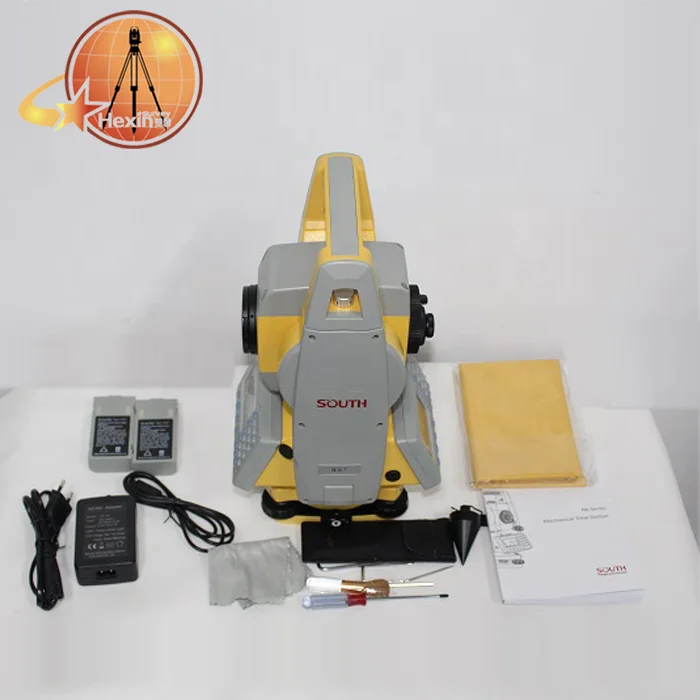

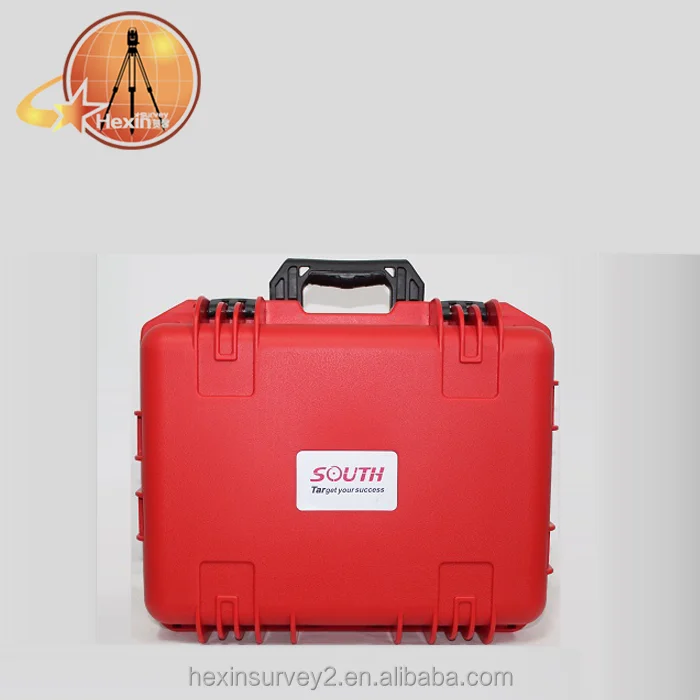

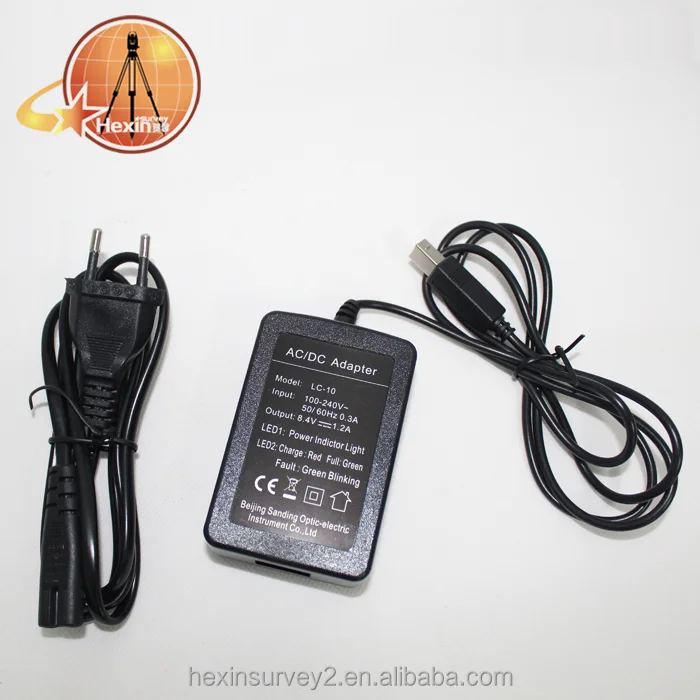

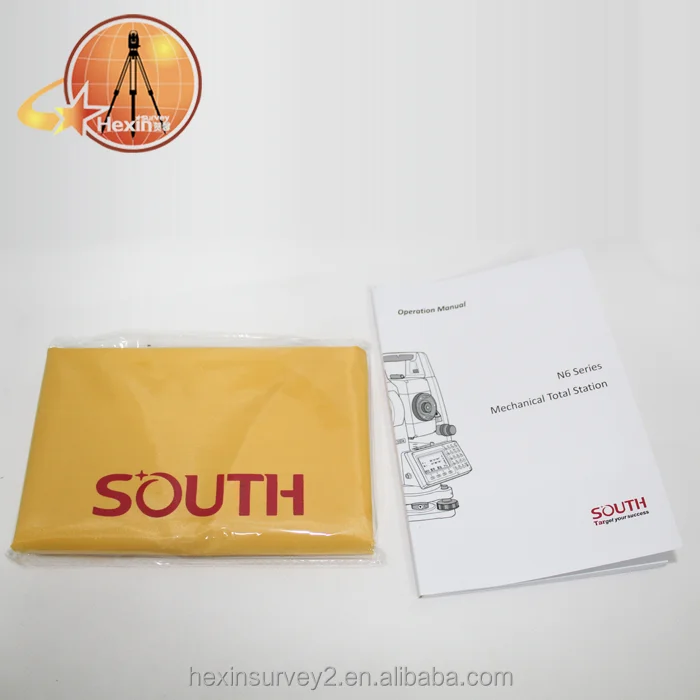

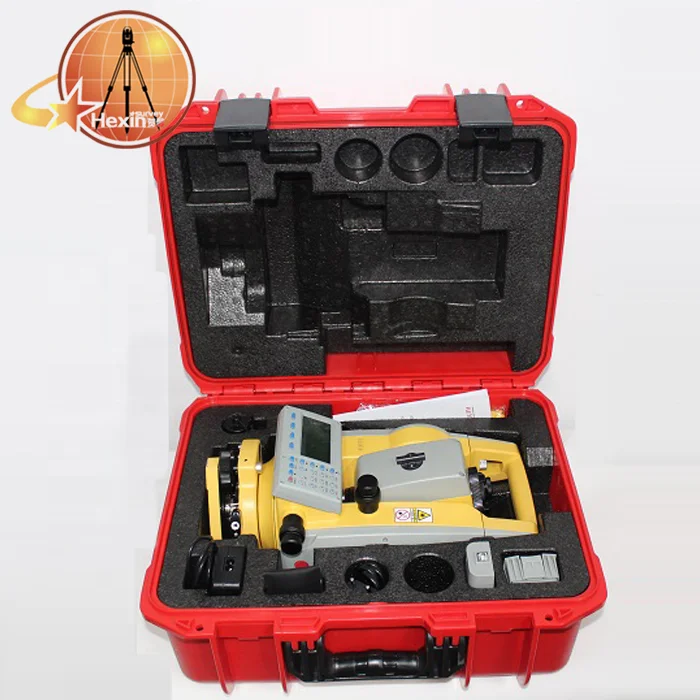

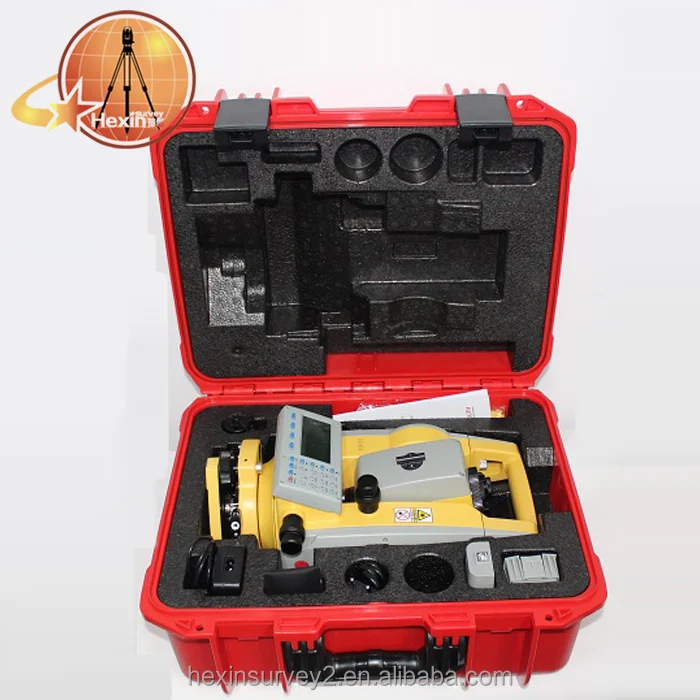

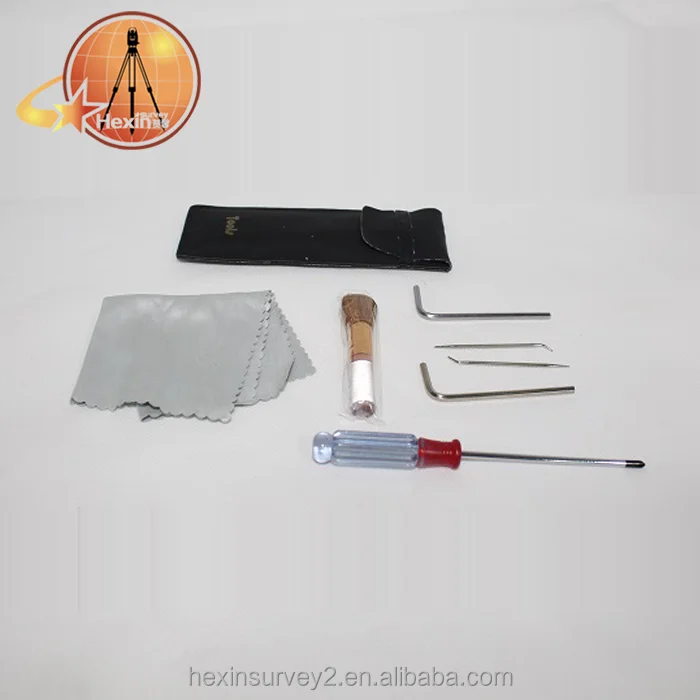

Product packaging
