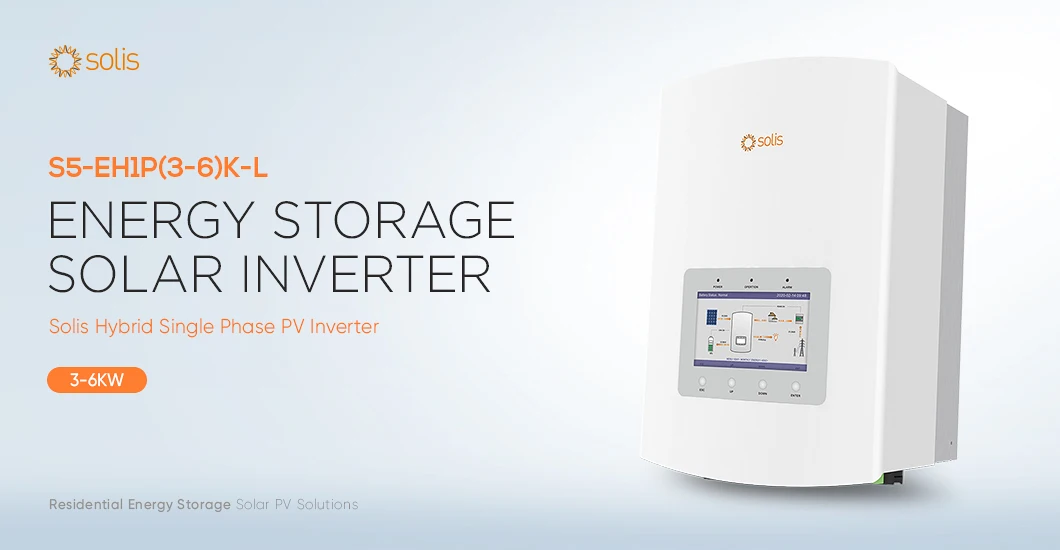

Hot Selling Solis Hybrid Inverter 3Kw 4Kw 5Kw 6Kw Electric Solar Frequency Inverters Single Phase 220V With CE And IEC
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1600790754742):
Product Overview
Description
Product Description
Model Name | RHI-3K-48ES-5G | RHI-3.6K-48ES-5G | RHI-4.6K-48ES-5G | RHI-5K-48ES-5G | RHI-6K-48ES-5G | |||||||||
Input DC (PV side) | ||||||||||||||
Recommended max. PV power | 7 kW | 7 kW | 8 kW | 8 kW | 8 kW | |||||||||
Max. input voltage | 600 V | |||||||||||||
Rated voltage | 330 V | |||||||||||||
Start-up voltage | 120 V | |||||||||||||
MPPT voltage range | 90-520 V | |||||||||||||
Max. input current | 11 A / 11 A | |||||||||||||
Max. short circuit current | 17.2 A / 17.2 A | |||||||||||||
MPPT number/Max. input strings number | 2/2 | |||||||||||||
Battery | ||||||||||||||
Battery type | Li-ion / Lead-acid | |||||||||||||
Battery voltage range | 42 - 58 V | |||||||||||||
Battery capacity | 50 - 2000 Ah | |||||||||||||
Max. charge / discharge power | 3 kW | 5 kW | ||||||||||||
Max. charge / discharge current | 62.5 A | 100 A | ||||||||||||
Communication | CAN | |||||||||||||
Output AC (Back-up) | ||||||||||||||
Rated output power | 3 kW | 5 kW | ||||||||||||
Max. apparent output power | 4 kVA | 6 kVA | ||||||||||||
Back-up switch time | <20 ms | |||||||||||||
Rated output voltage | 1/N/PE, 220 V / 230 V | |||||||||||||
Rated frequency | 50 Hz / 60 Hz | |||||||||||||
Rated output current | 13.6 A / 13 A | 22.7 A / 22 A | ||||||||||||
THDv (@linear load) | <2% | |||||||||||||
Input AC (Grid side) | ||||||||||||||
Input voltage range | 184-264 V | |||||||||||||
Max. input current | 26.1 A | |||||||||||||
Frequency range | 45-55 Hz / 55-65 Hz | |||||||||||||
Output AC (Grid side) | ||||||||||||||
Rated output power | 3 kW | 3.6 kW | 4.6 kW | 5 kW | 6 kW | |||||||||
Max. apparent output power | 3.3 kVA | 4 kVA | 4.6 kVA | 5.5 kVA | 6 kVA | |||||||||
Operation phase | 1/N/PE | |||||||||||||
Rated grid voltage | 220 V / 230 V | |||||||||||||
Rated grid frequency | 50 Hz / 60 Hz | |||||||||||||
Rated grid output current | 13.6 A / 13 A | 16.3 A / 15.7 A | 20.9 A / 20 A | 22.7 A / 21.7 A | 27.2 A / 26.1 A | |||||||||
Max. output current | 15.7 A | 17.3 A | 23 A | 23.9 A | 26.1 A | |||||||||
Power Factor | >0.99 (0.8 leading - 0.8 lagging) | |||||||||||||
THDi | <2% | |||||||||||||
Efficiency | ||||||||||||||
Max. efficiency | >97.5% | |||||||||||||
EU efficiency | >96.8% | |||||||||||||
Protection | ||||||||||||||
DC reverse-polarity protection | Yes | |||||||||||||
Short circuit protection | Yes | |||||||||||||
Output over current protection | Yes | |||||||||||||
Surge protection | DC Type II / AC Type II | |||||||||||||
Ground fault monitoring | Yes | |||||||||||||
Integrated AFCI (DC arc-fault circuit protection) | Yes (1) | |||||||||||||
Protection class/Over voltage category | I/II | |||||||||||||
General Data | ||||||||||||||
Dimensions (W*H*D) | 333*505*249 mm | |||||||||||||
Weight | 18.3 kg | |||||||||||||
Topology | High frequency isolation (for battery) | |||||||||||||
Operating ambient temperature range | -25 ~ +60°C | |||||||||||||
Ingress protection | IP65 | |||||||||||||
Cooling concept | Natural convection | |||||||||||||
Max. operation altitude | 2000 m | |||||||||||||
Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | |||||||||||||
Safety/EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | |||||||||||||

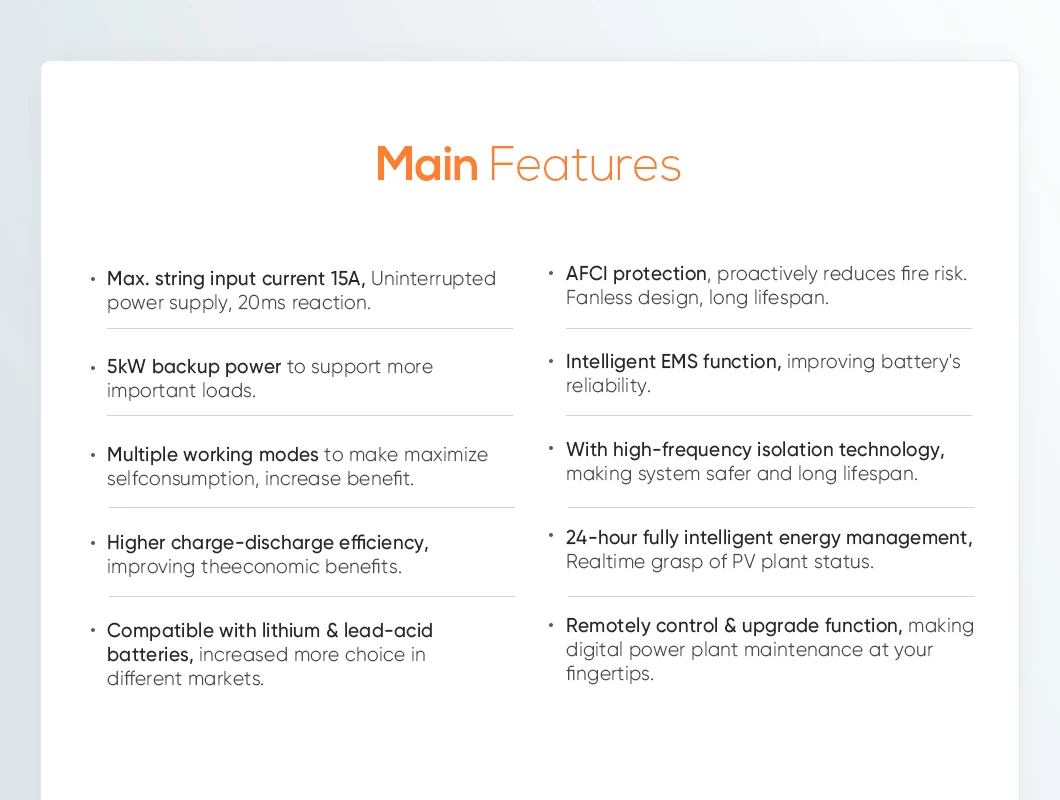

Features | ||||||||||||||
DC connection | MC4 connector | |||||||||||||
AC connection | Quick connection plug | |||||||||||||
Display | 7.0"LCD color screen display | |||||||||||||

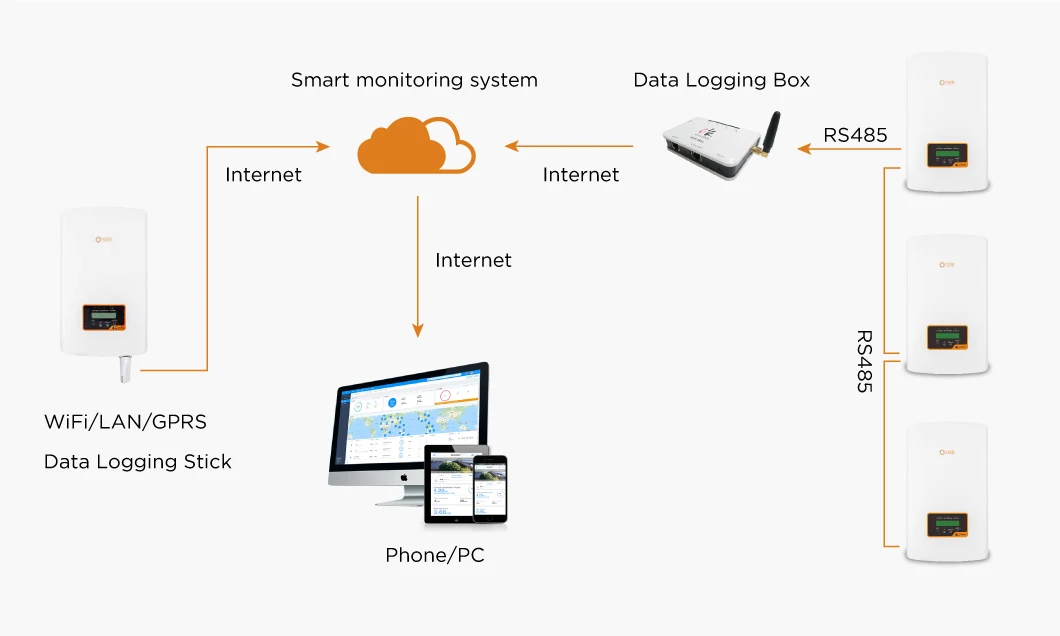

Communication | RS485, Optional: Wi-Fi, GPRS | |||||||||||||

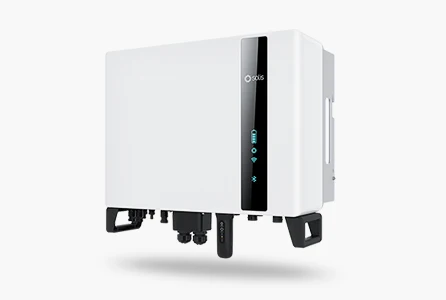

Product Series

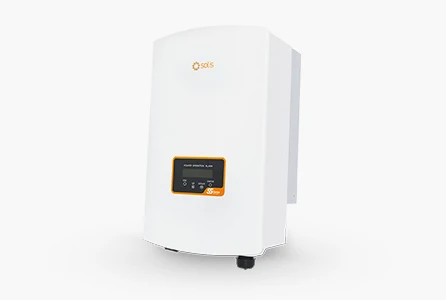

0.7-10KW1-3 MPPTs
Single Phase 220-240V 50/60Hz
Single Phase 220-240V 50/60Hz

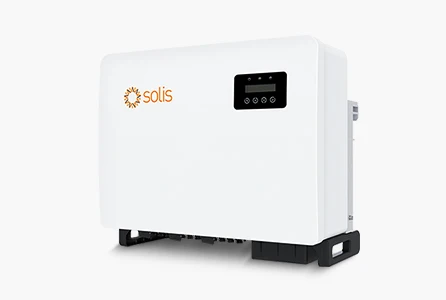

3-20KW2 MPPTs
Three Phase 380-415V 50/60Hz
Three Phase 380-415V 50/60Hz

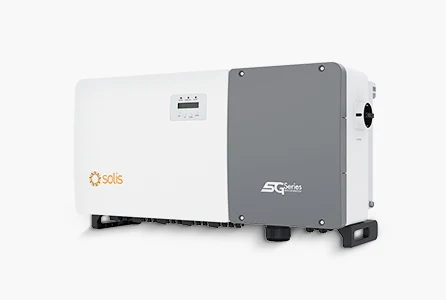

On Grid Commercial Inverter
25-70KW5/6 MPPTs
Three Phase 380-415V 50/6Hz
Three Phase 380-415V 50/6Hz

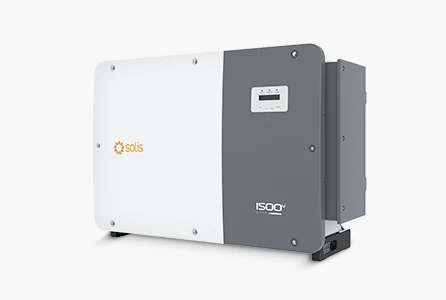

On Grid Commercial Inverter
50-125KW10 MPPTs
Three Phase 380-415V 50/60Hz
Three Phase 380-415V 50/60Hz
215-255KW9-14 MPPTs
Three Phase 800V 50/60Hz
Three Phase 800V 50/60Hz

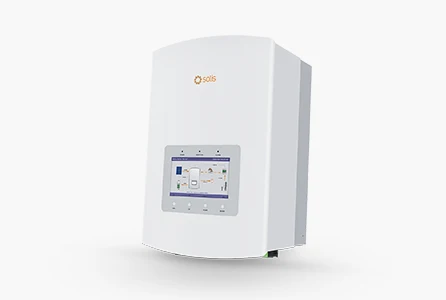

3-6KWBattery Voltage: 42-58V
Single Phase 220-240V 50/60Hz
Single Phase 220-240V 50/60Hz
5-10KWBattery Voltage: 120-600V
Three Phase 380-415V 50/60Hz
Three Phase 380-415V 50/60Hz

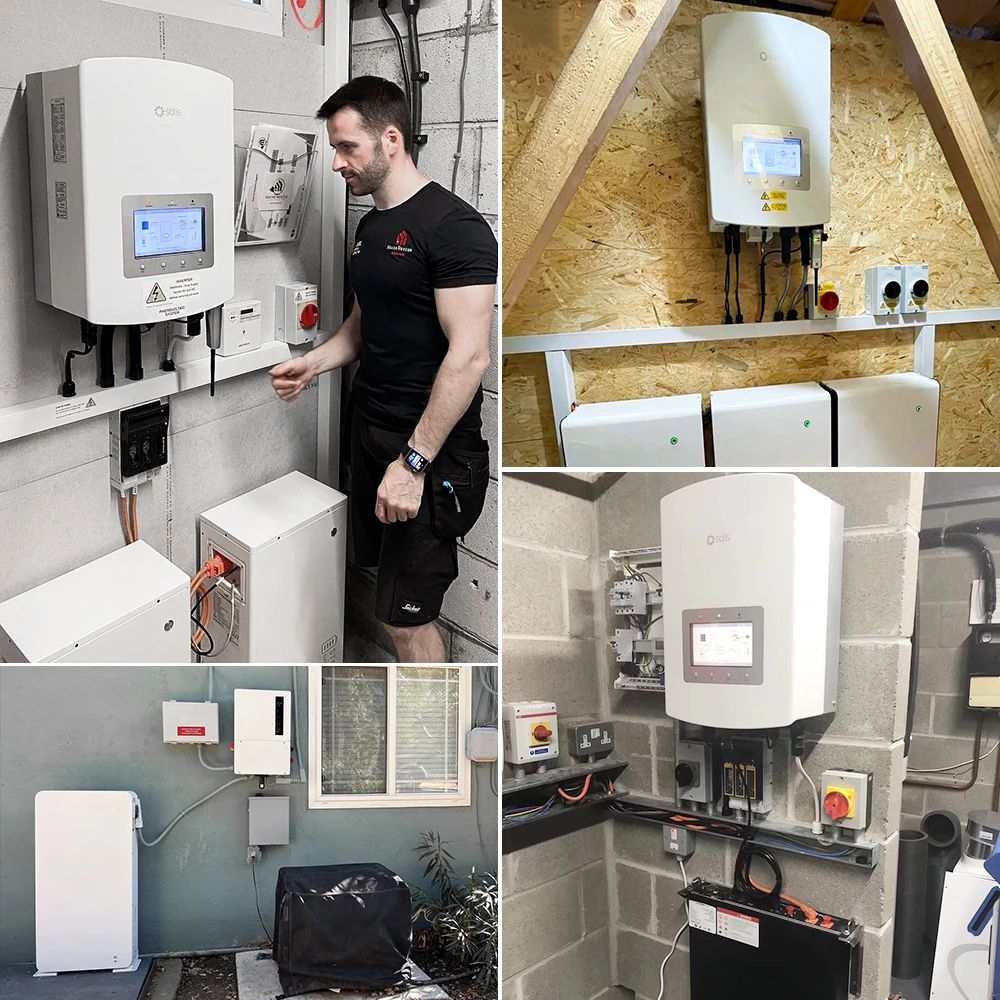

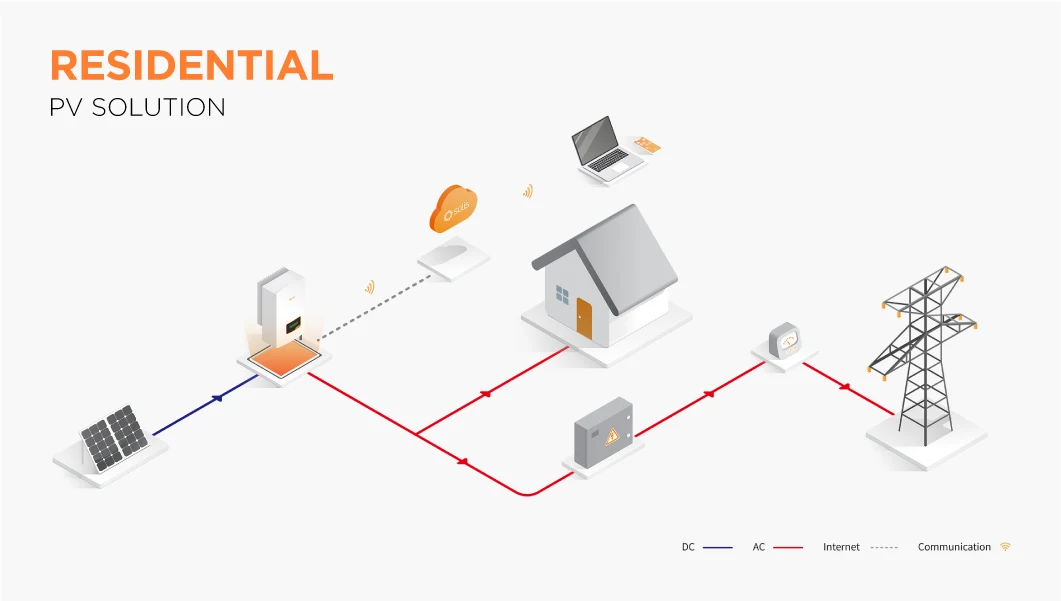

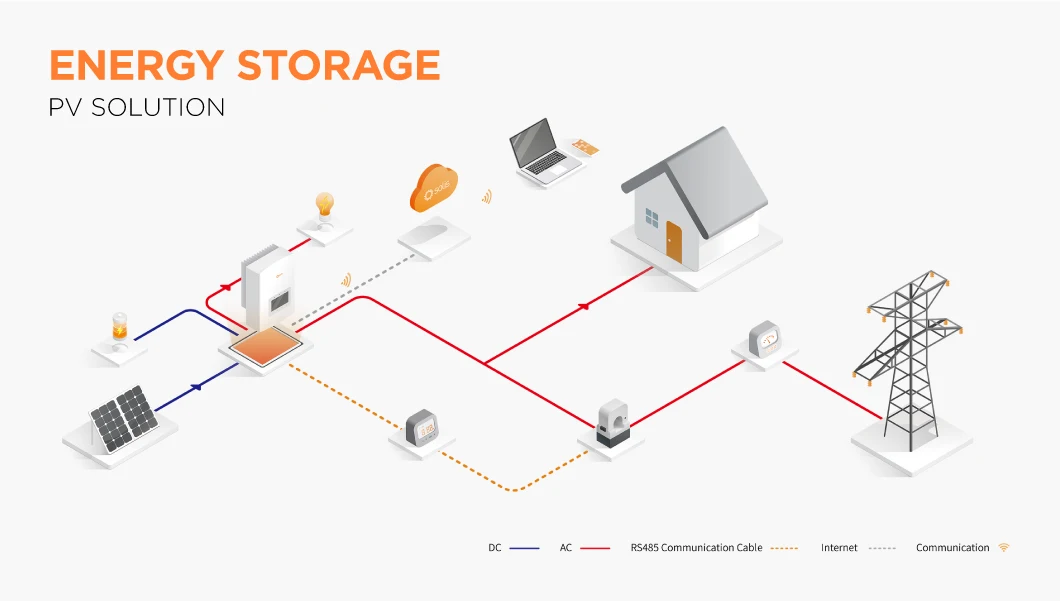

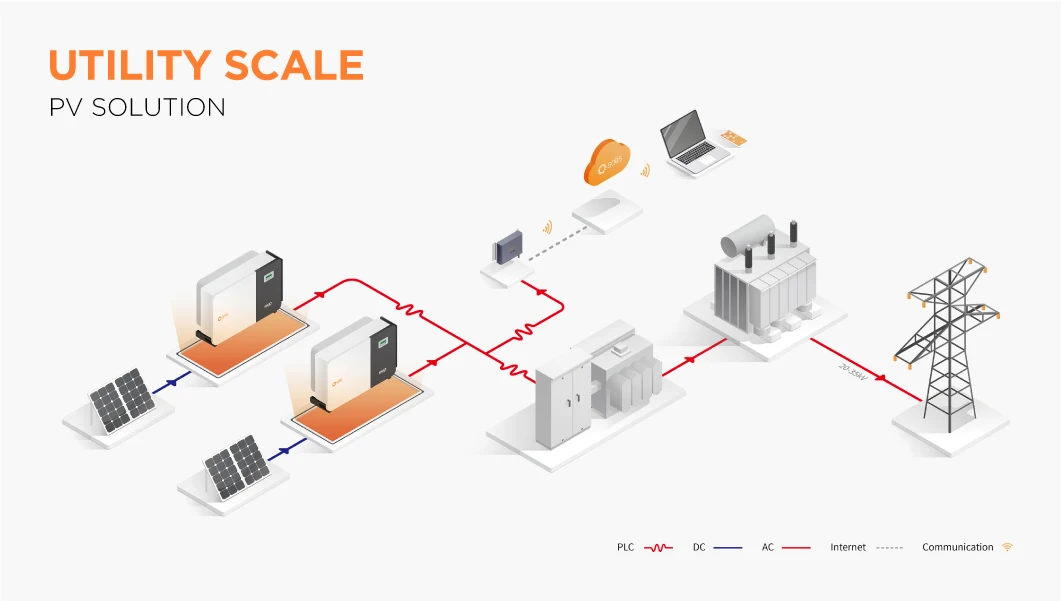

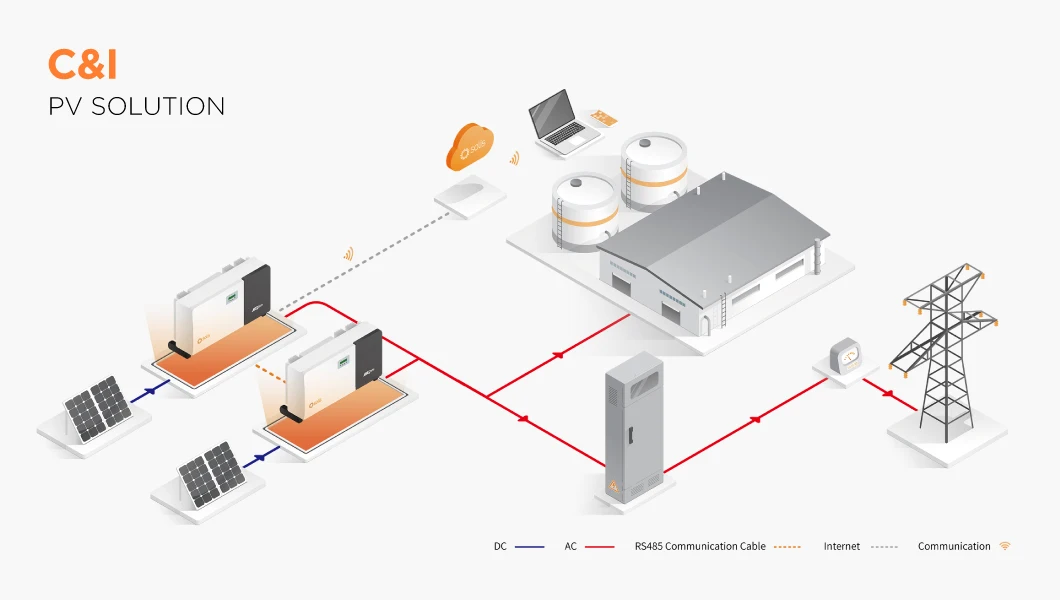

Applications

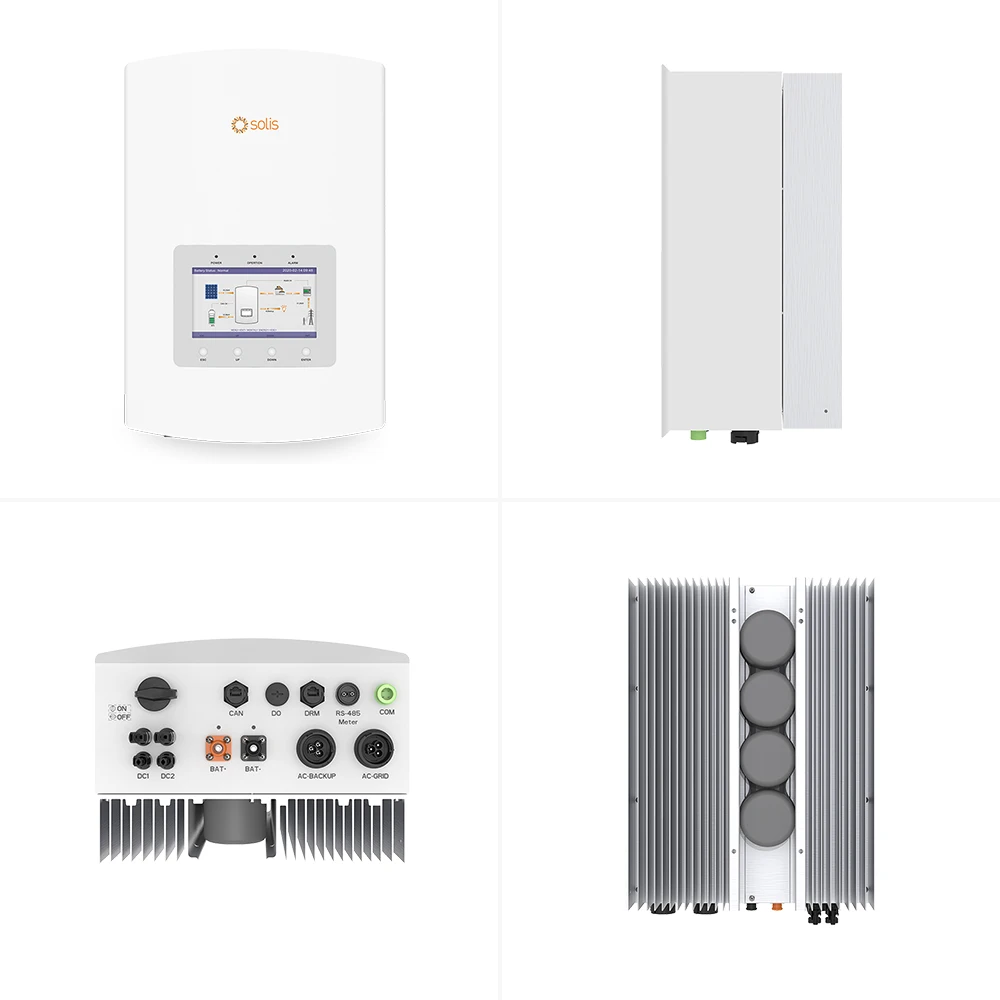

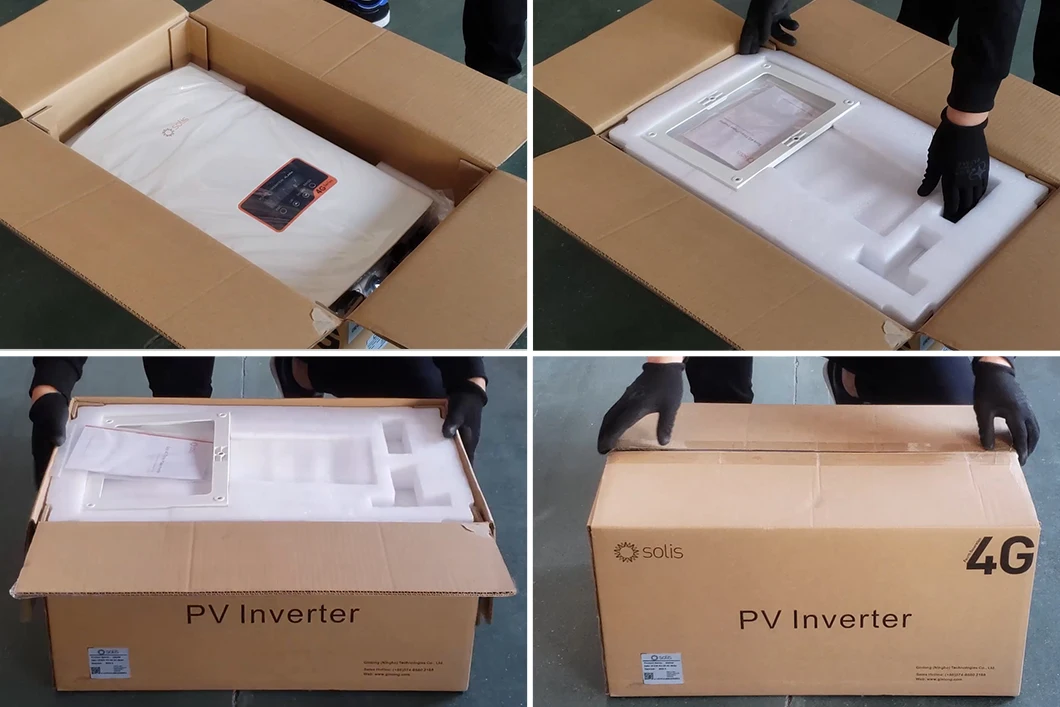

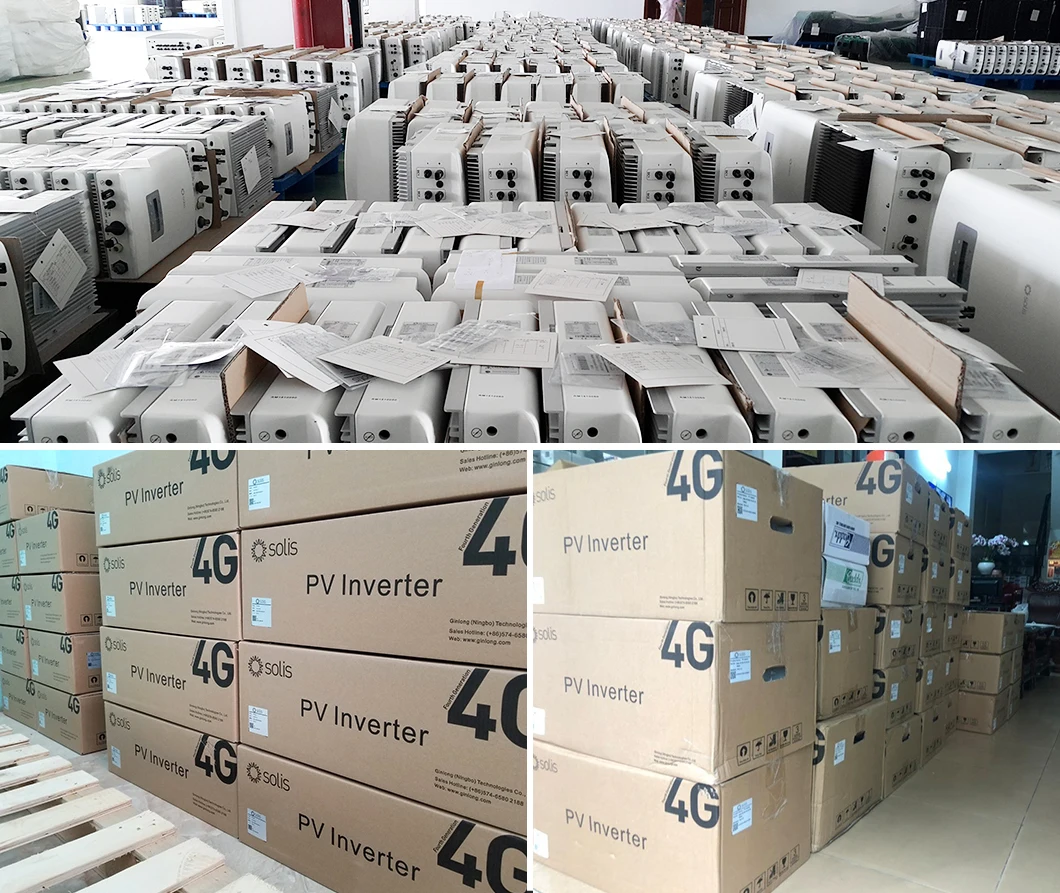

Pictures and Packages

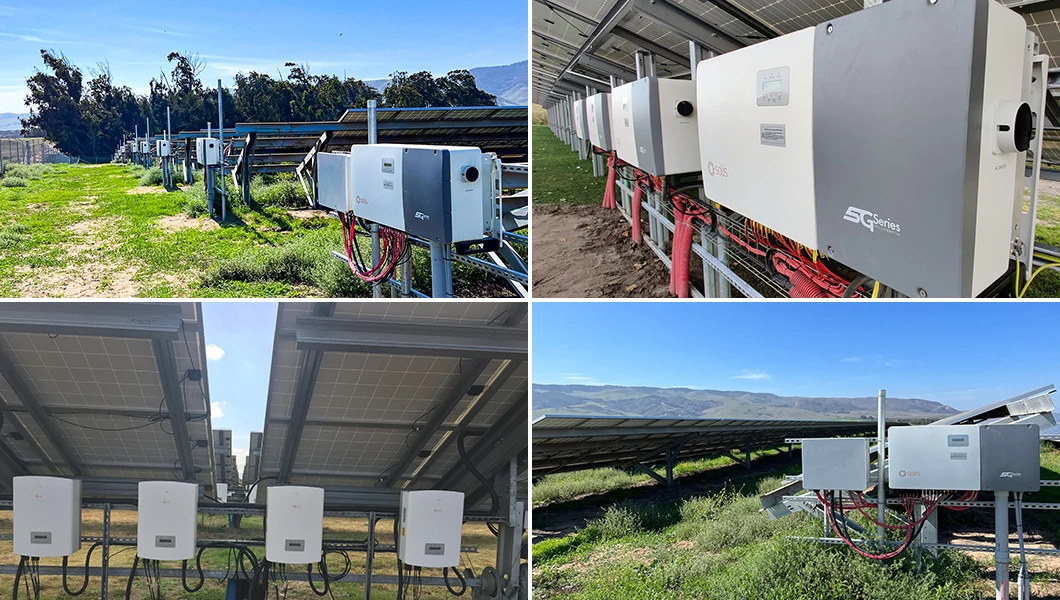

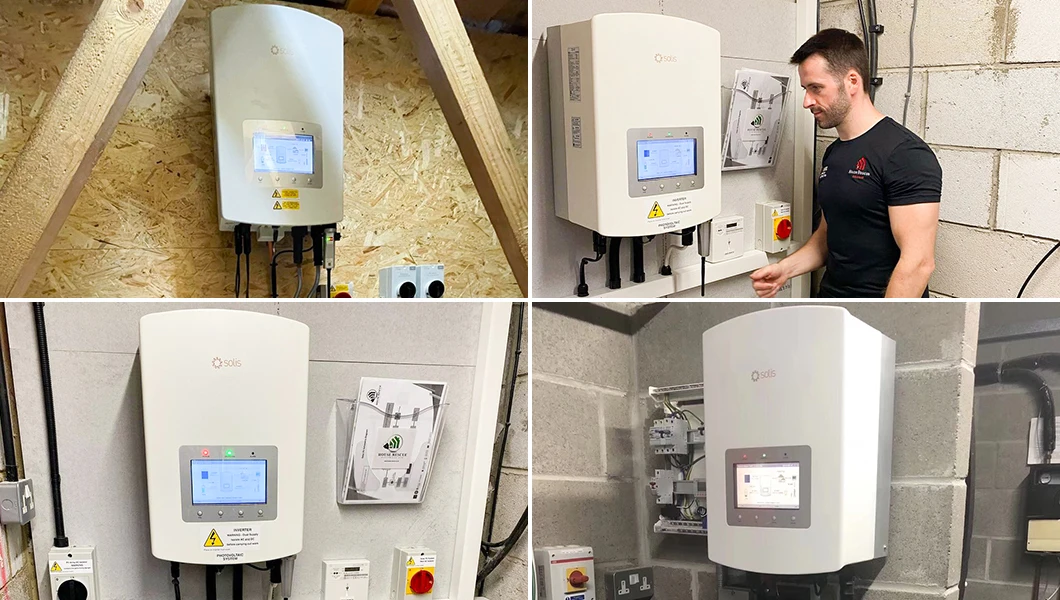

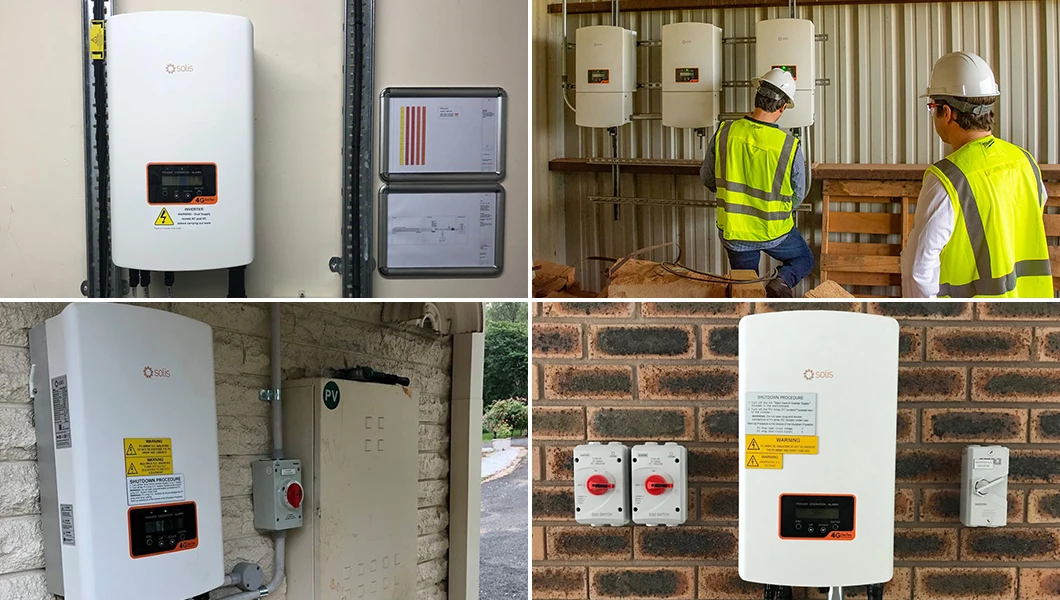

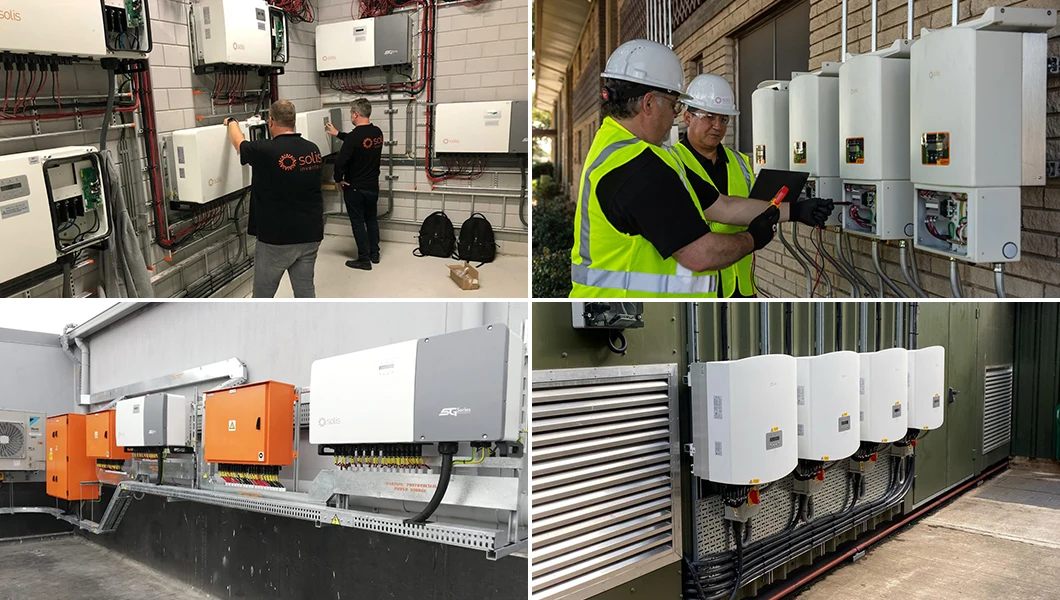

Sunpal Project Case
