Best Design Cattle Trailer Cargo Livestock 2 Axle 3Axl Cargo Transport Drop Side Sidewall Semi Trailer Cargo Trucks Trailers
- Category: Truck Trailers >>>
- Supplier: Shandong,Hstar,Auto,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

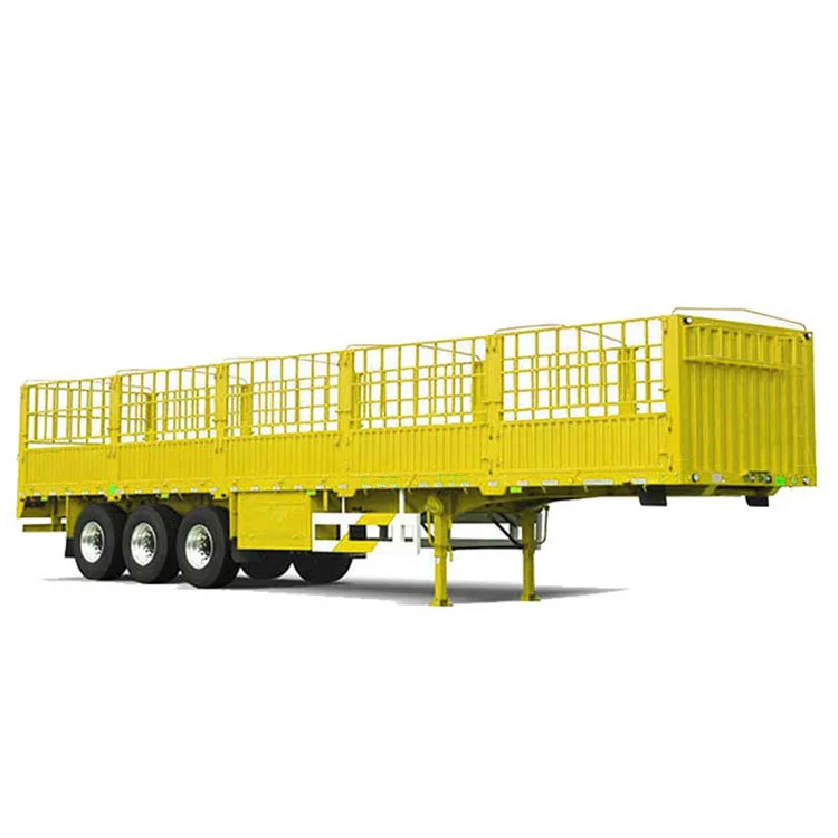

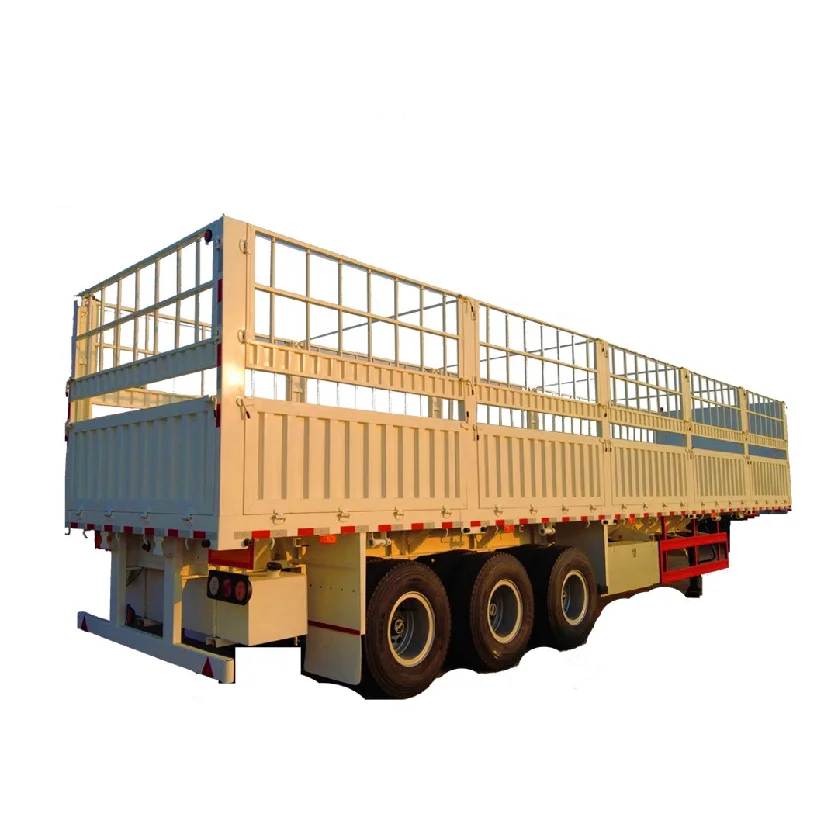

Fence semi-trailer is a semi-trailer with the structure of breast board. It is widely used for medium and long distance transportation of medium and heavy goods and bulk goods. It has strong applicability and has become the first choice of medium and long distance freight vehicles.
1.Chassis
China Best Q345B support Stronger Trailer Skeleton,Gooseneck strengthened for heavy load. Trailer Durable and High Truck Attendance Rate
2.Axles
Famous Brand Axle Support BPW/FUWA brand 12/13/14/15/16 ton axles available;
3.Suspension
Heavy duty air/spring suspension optional;
4.Twist locks
With twist locks for container transport;
5.Tire
Good Quality Tire support Trailer Running Safety&Smoothly;
6.King Pin
JOST Detachable Type support Durable and Fast&Easy Replace;
7.Emergency Valve
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use.
China Best Q345B support Stronger Trailer Skeleton,Gooseneck strengthened for heavy load. Trailer Durable and High Truck Attendance Rate
2.Axles
Famous Brand Axle Support BPW/FUWA brand 12/13/14/15/16 ton axles available;
3.Suspension
Heavy duty air/spring suspension optional;
4.Twist locks
With twist locks for container transport;
5.Tire
Good Quality Tire support Trailer Running Safety&Smoothly;
6.King Pin
JOST Detachable Type support Durable and Fast&Easy Replace;
7.Emergency Valve
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use.
1.The vehicle body is made of high-quality steel, advanced technology and strict production. The structure of the vehicle is reasonable, the performance is reliable, the operation is simple and the appearance is beautiful.
2.The frame of series semi-trailer is of through beam structure, and the longitudinal beam is of flat type or gooseneck type. The web height shall be welded from 400mm to 550mm manganese plate, the longitudinal beam shall be automatically embedded welded, the frame shall be shot peened, and the transverse beam shall be penetrated into the longitudinal beam and welded as a whole.
3.The suspension adopts the non independent steel plate stamping type rigid suspension, which is made of series steel plate spring and suspension support; the structure is reasonable and has strong rigidity and strength, which is used to support the load and reduce the impact.

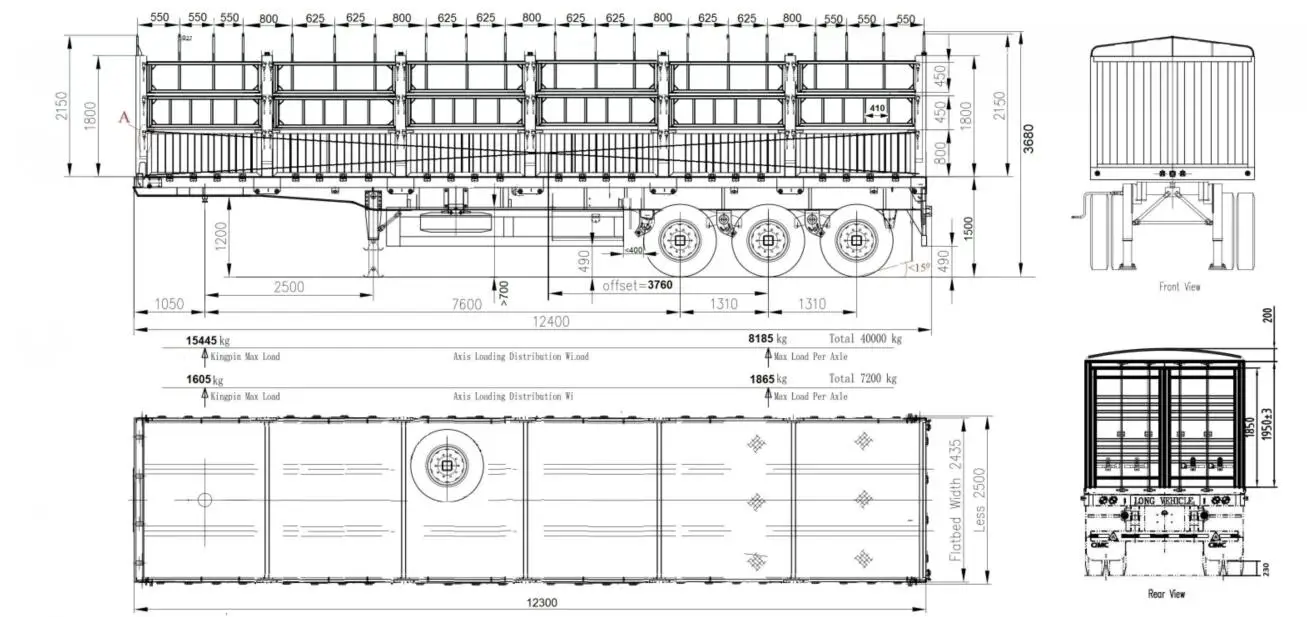

DIMENSIONS | ||||
Tare Weight | 7500kg | |||
Payload | 42500 kg | |||
Overall Length | 12400mm | |||
Overall Width | 2500mm | |||
Overall Height | 3650mm | |||
SPECIFICATION | ||||
Chassis | Top flange 12mm, width140mm; Middle Flange 8mm; bottom flange14mm, width 140mm, height 480mm. | |||
Axle | Fuwa 13T | |||
Suspension | Mechanical suspension | |||
Leaf Spring | 10pcs Leaf spring 90mm*11mm*10pcs | |||
Wheelbase | 7900+1310+1310 | |||
Floor | 3mm | |||
Tire | 11.00R20 18PR triangle brand | |||
Wheel Rim | 8.0-20 Better brand | |||
Kingpin | 3.5’’ bolt-in king pin | |||
Landing Gear | SAF brand two-speed, manual operating ,heavy duty landing gear 28t | |||
Abs | 4S/2M | |||
Braking System | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | |||
Spare Tire Carrier | 1pcs | |||
Tool Box | 1pcs | |||
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | |||
Accessories | One rocker handle one Shaft wrench | |||
