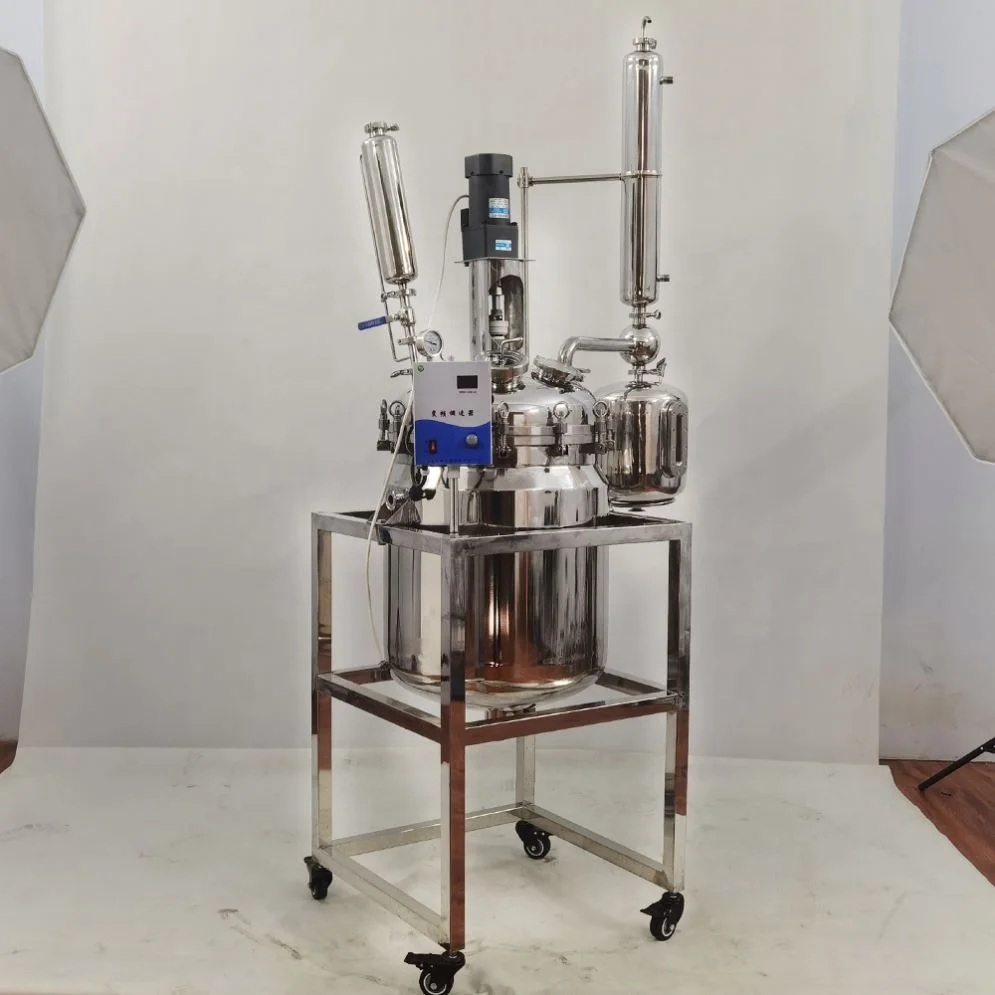

Cladding Stainless Steel Pressure Vessel Reactor

Product Overview

Description

Cladding Stainless Steel Pressure Vessel Reactor

Some of the specific uses of stainless steel jacketed reactors include:
Chemical synthesis: The reactor can be used to carry out chemical reactions that require precise temperature control, such as hydrogenation, oxidation, and esterification.
Fermentation: The jacketed design of the reactor is ideal for the growth and maintenance of microorganisms, making it useful for fermentation processes in the production of various products such as antibiotics, enzymes, and biofuels.
Polymerization: Stainless steel jacketed reactors are commonly used in the production of polymers and plastics, as they can maintain the precise temperature required for the reaction to occur.
Crystallization: The jacketed design of the reactor can be used to control the cooling and crystallization process of certain compounds.
Overall, stainless steel jacketed reactors are versatile vessels used in various industrial processes that require precise temperature control and high-quality materials to ensure product purity and safety.

1L~5L Jacketed Stainless Steel Reactor
Model	BSF-1L	BSF-2L	BSF-3L	BSF-5L
Reaction Flask	1L	2L	3L	5L
Jacket Volume	0.6L
Motor Power	120W
Port Number on The Lid	6 or Customized
Constant Pressure Drop Funnel	500ml
Rotating Speed	0-600rmp
Reachable Vacuum	-0.098MPA
Power Supply	220V / 50Hz or Customized
Material	Stainless Steel 316/304



10L~100L Jacketed Stainless Steel Reactor
Model	BSF-10L	BSF-20L	BSF-30L	BSF-50L	BSF-100L
Reaction Flask	10L	20L	30L	50L	100L
Overall Dimension	480mm*480mm *1560mm	500mm*500mm *1850mm	530mm*530mm *1900mm	580mm*580mm *2100mm	1050mm*690mm *2350mm
Motor Power	200W(1:3)
Port Number on The Lid	8 or Customized
Temperature Range	-120°C~260°C
Constant Pressure Drop Funnel	1000ml			2000ml
Charging Port	φ35
Power Supply	220V / 50Hz or Customized
Material	Stainless Steel 316/304
Thickness of Stainless Steel	φ3				φ4
