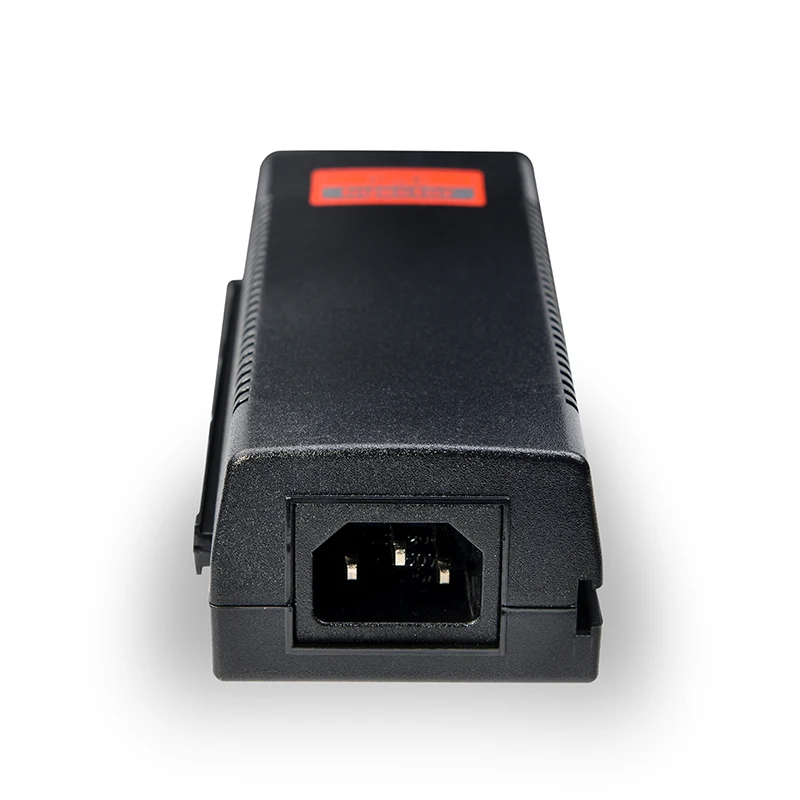

Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector
Factory directly sell poe injector 30w poe injector oem poe injector

Factory directly sell poe injector 30w poe injector oem poe injector

Share on (1600790893403):


Price:$11.40 - $12.30

Quantity:


Product Overview

Description





Products Description










Advanced PoE Solution

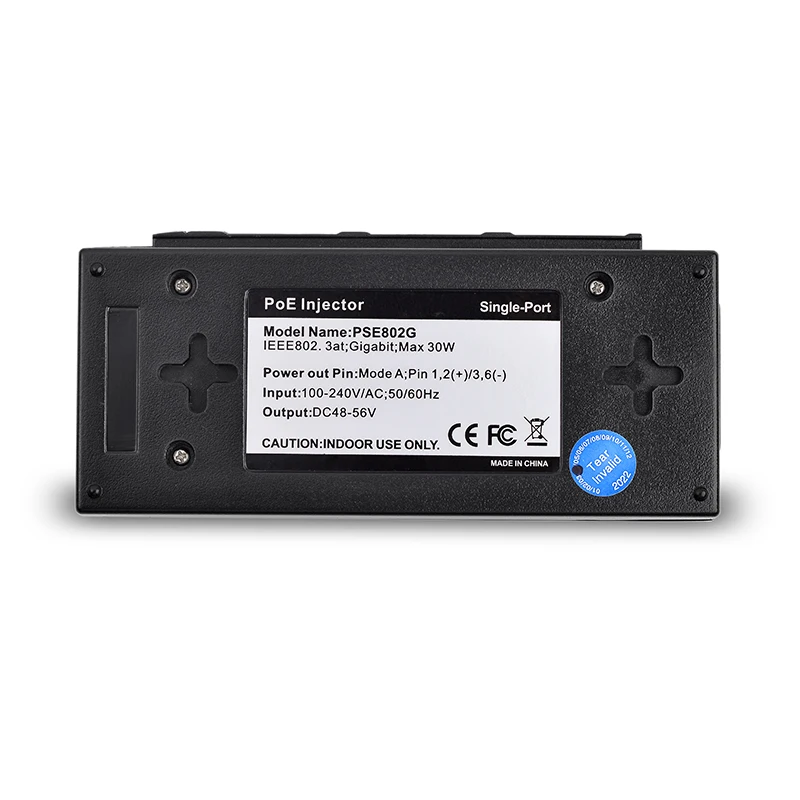

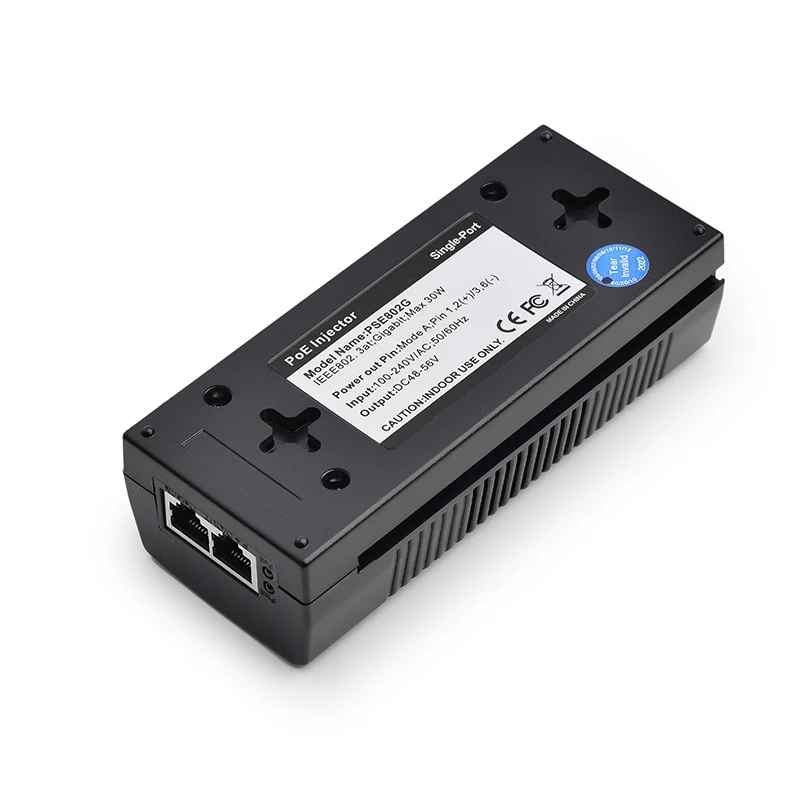

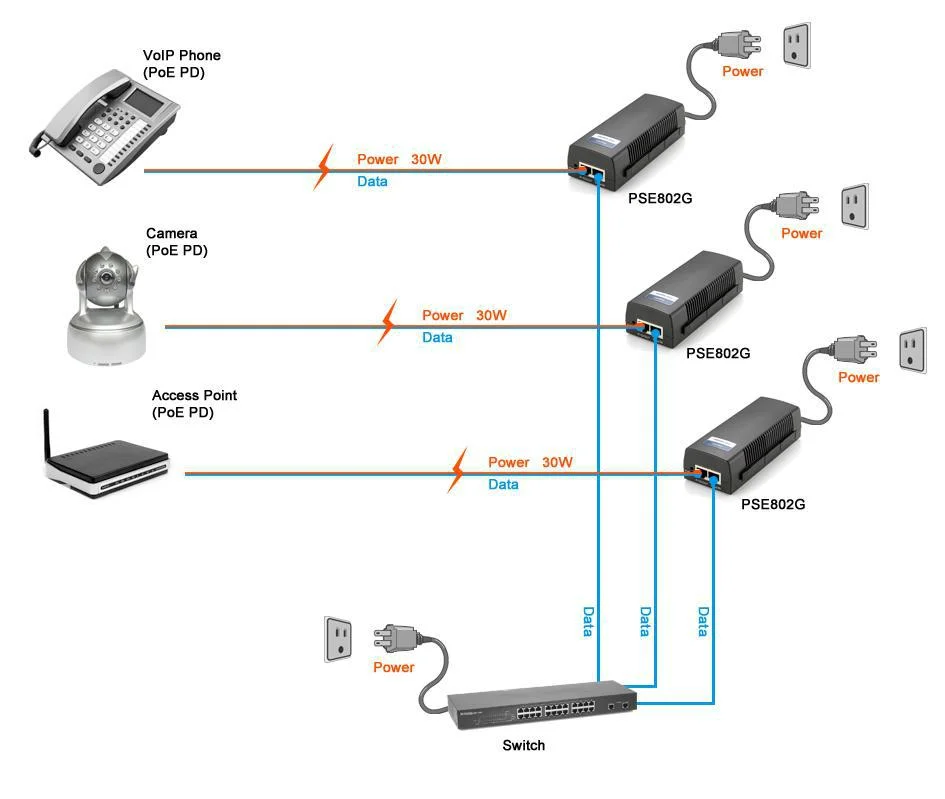

The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices.Generating up to 30W ,PSE802G supplies remotepower for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
































Key Features
* Up to 30W of PoE Power* IEEE 802.3at Compliant
* Compatible with IEEE 802.3af or Legacy PoE applications
* Safe on Low Power Devices Receive Only the Power They Need
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard Ethernet Terminals
* Supports 10/100/1000Base-T LAN environnent
* Unique interlocking feature for easy installation
Works Well With:
PS5712P
PS5712AT








































































echnical Specifications


Dimensions (L x W x H) / Weight


Standards Compliance


144mm x 57mm x 40mm (5.62in x 2.24in x 1.57in)


IEEE 802.3 10Base-T Ethernet


350g (0.77lbs)


IEEE 802.3u 100Base-Tx Fast Ethernet


Indicators


IEEE 802.3af Power over Ethernet


AC Power (Orange) / PoE (Green)


IEEE 802.3at Power over Ethernet


Environmental Conditions


Connector: RJ-45 10/100/1000 Mbps


Operating Temperature: -10~50°C


PoE Power Output


Storage Humidity:


Pin Assignment and Polarity: 1/2(+), 3/6 (-)


Maximum 95%, Non-condensing


Output Power Voltage: 54 Vdc Maximal


Regulatory


Power: 30 Watts Maximal


RoHS Compliant, CE/FCC


Input Power AC Input Voltage: 100~240 VAC


Safety Approvals


Requirements AC Input Current: 0.8A@ 100-240 VAC



AC Frequency: 50~60 Hz

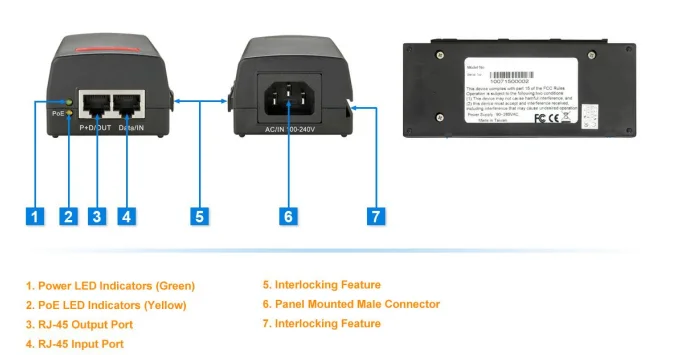

Product Diagram
