FRP Rectangular Fiberglass Tubing durable glass fiber Pultruded Fiberglass Channel
- Category: >>>
- Supplier: Qinhuangdao Shengze New Material Technology Co. Ltd.
Share on (1600791147873):
Product Overview
Description
Product Description

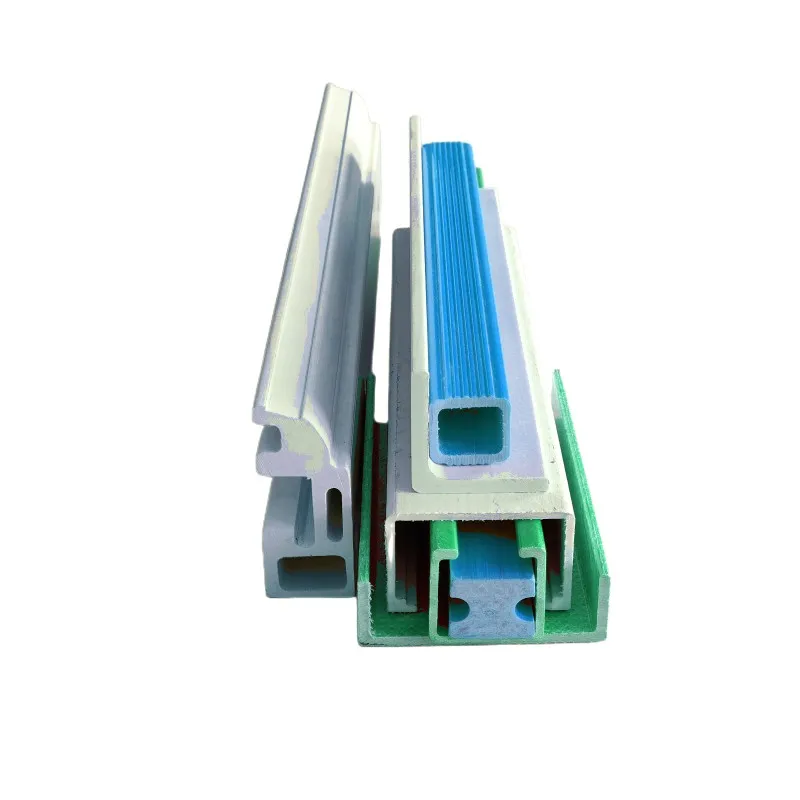

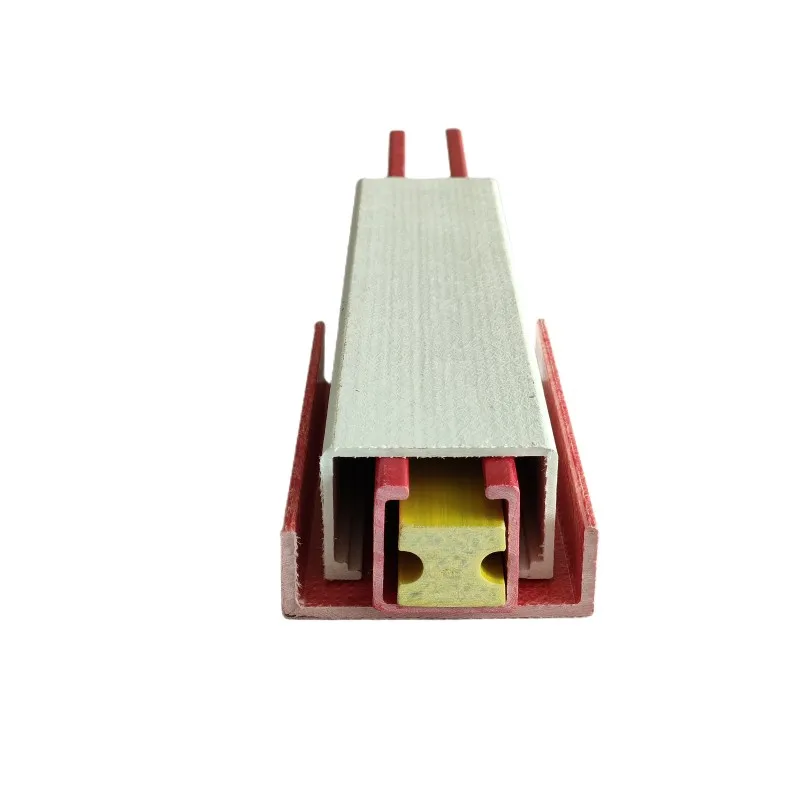

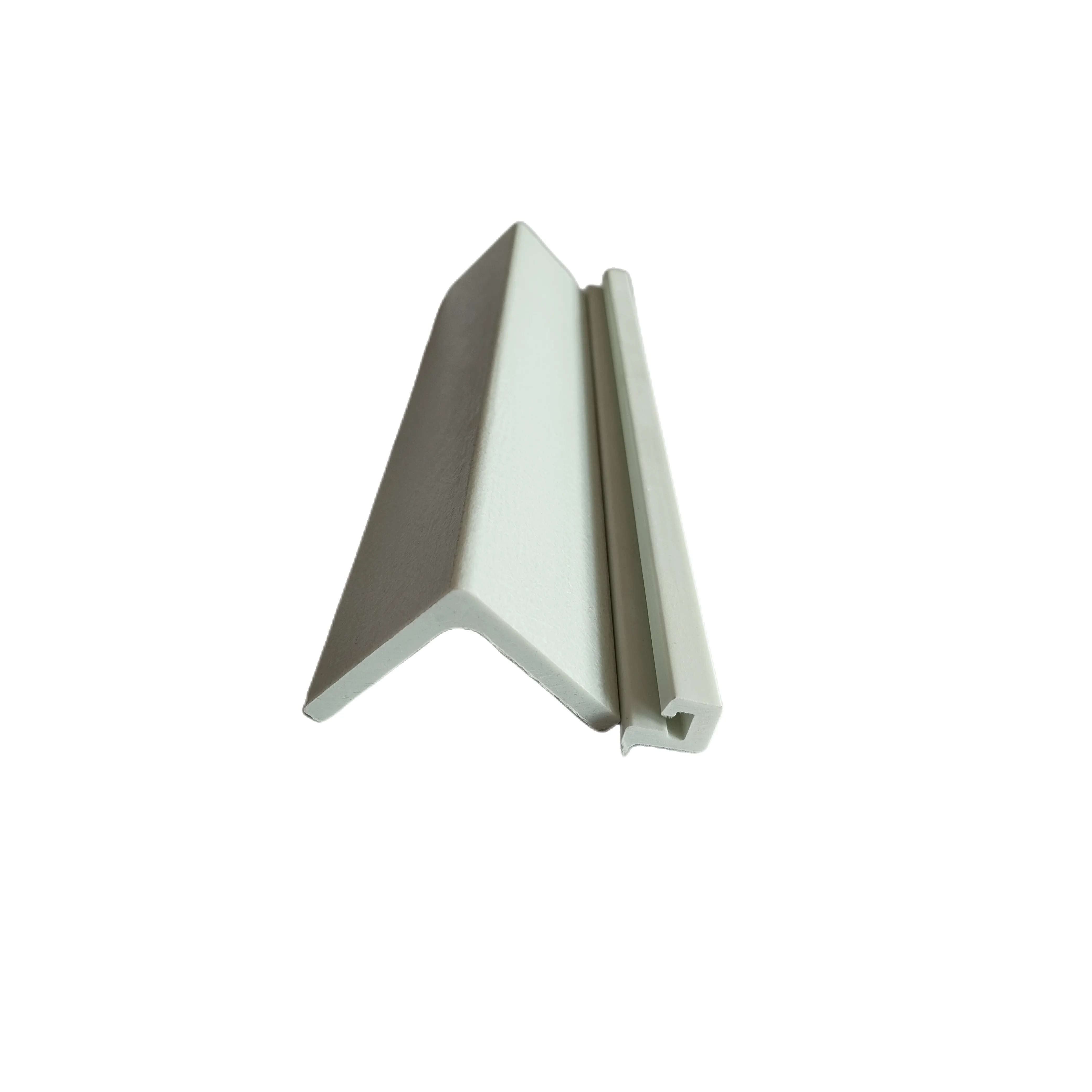

Fiberglass I/T/U profiles are made of reinforced fiberglass and resin materials. They are widely used in various industries such as construction, transportation, chemicals, electronics and more. The following are the key features of fiberglass I/T/U profiles.
1.High Strength:
Fiberglass L profiles have high strength-to-weight ratio, which is higher than traditional materials such as steel or aluminum.
They can withstand high loads and impact without deformation.
They can withstand high loads and impact without deformation.
2.Corrosion Resistance:
Fiberglass U profiles are highly resistant to corrosion, chemicals, UV rays, and other harsh environmental factors. They are ideal for use in marine and harsh chemical environments.
4.Dimensional Stability:
Fiberglass I profiles have excellent dimensional stability, meaning they will not warp, buckle, twist or otherwise deform under load.
5.Electrical Insulation:
Fiberglass T profiles have excellent electrical insulation properties, making them ideal for use in electrically sensitive applications.
6.Fire Retardant:

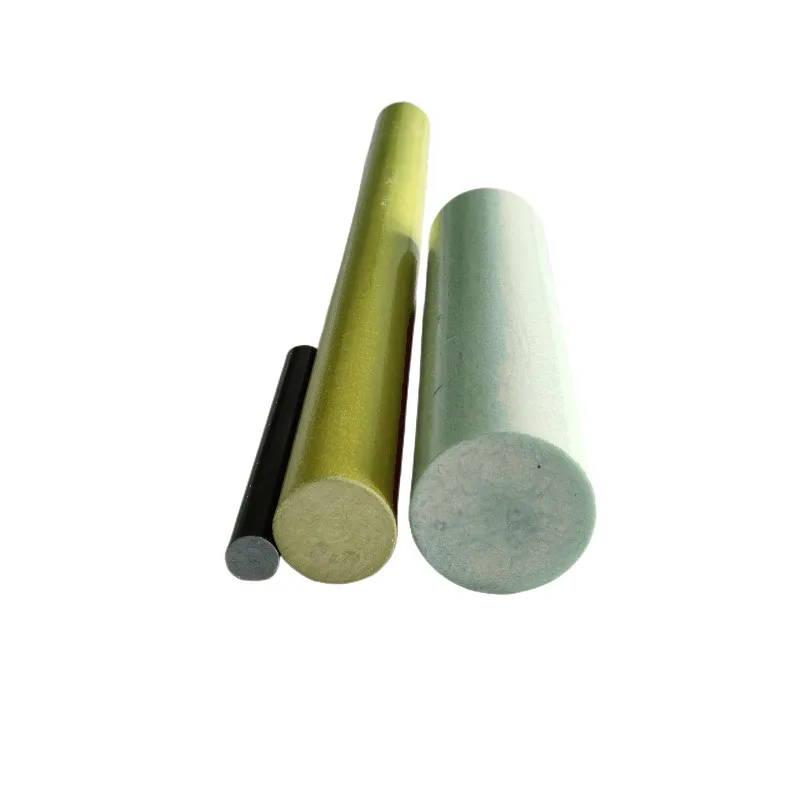

Fiberglass Round rod profiles are fire retardant and can be designed to meet different fire rating standards.
7.Easy to Install:
Fiberglass C profiles are easy to cut, drill, and install. They require no heavy equipment, welding or painting.
8.Low Maintenance:
Fiberglass square tube profiles require low maintenance over their service life as they do not rust, corrode or degrade under UV rays.
9.Cost-effective:
Fiberglass Rectangular tube profiles are cost-effective in terms of initial cost, installation cost, and maintenance cost. They can provide long-term cost savings compared to traditional materials.
I/H beam | ||
Width/Height/Thickness mm | Weight g/m | |
6×6 | 61 | |
8.5×Φ13 | 175 | |
11×Φ15 | 243 | |
12×15 | 220 | |
12×19 | 270 | |
15×25.4 | 400 | |
15×38 | 626 | |
25×50.8 | 655 | |
30*50 | 620 | |
150×150×10 | 8800 | |
150×150×12 | 11200 | |
200×200×15 | 18500 | |
T beam | ||
Spec mm | Weight g/m | |
16×25 | 395 | |
16×30 | 415 | |
66×34×5 | 844 | |
Raw Material
Resin System | ||||||||||
Part No | Resin Base | Application | Temperature resistance | Corrossion resistance | Flame resistance | |||||
VE | Vinyl Ester | Superior Corrosion Resistance and fire retardant | very Good | Excellent | very Good | |||||
ISO | Isophthalic Polyester | Industrial grade corrosion resistance and fire retardant | Good | Good | Good | |||||
ORTHO | Orthophthalic resin | Moderate corrosion resistance and fire retardant | Common | Common | Common | |||||
Unsaturated polyester resin | ||||||||||
E Glass Fiber: All direct roving from JUSHI GROUP | ||||||
FRP Stitched glass fiber mat (E Glass)
FRP Multiaxial fiber (E Glass)
Frp surfacing glass fiber mat (E Glass)
Main Product
Application
Fiberglass Reinforced Plastic (FRP) I/T/U profiles have a wide range of applications in various industries. FRP profiles are known for their durability, lightweight, and resistance to corrosion, which makes them an ideal choice for many applications. Some of the common uses of FRP I/T/U profiles include:
1.Construction industry: FRP profiles are widely used in the construction industry for the production of structural shapes,grating, and handrail systems. They offer high strength, are lightweight, and require minimal maintenance, making them acost-effective option for builders and contractors. | ||||||||
2. Electrical industry: FRP profiles are used extensively in the electrical industry for the production of high-temperature insulators, conductor support systems, and cable trays. FRP profiles are also non-conductive and offer a high resistance to heat and chemicals, making them an ideal choice for electrical applications. | ||||||||
3. Marine industry: FRP profiles are commonly used in the marine industry for the production of hulls, decks, and other structural components.this is because they are resistant to corrosion, lightweight, and offer high strength-to-weight ratios. | ||||||||
4. Transportation industry: FRP profiles are used in the transportation industry for the production of trailer floors, truck bodies, and other structural components.they are known for their ease of maintenance and repair and ability to withstand extreme temperatures. | ||||||||
Packing & Delivery
Packing Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
2.Export wooden box 2.air transport
Company Instruction
Main Processing Technic
1. Protruded Profile
2. SMC Moulding Products
3. Hand layup Products
4. Vacuum sorption
Products Advantage
1.High Voltage Protruded profile and Hand Layup Shell
2. Professional engineer with Design support with 24 years experience
3. Customize Large size Products.
4. One-stop service (Purchase/ Order / Tranportation )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we could offer Certain sample for free charge but do not pay the cost of freight. Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance before shippment
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we could offer Certain sample for free charge but do not pay the cost of freight. Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance before shippment
If you have another question, pls feel free to contact us as below:
