Best Quality Manual Feeder Creasing And Die Cutting Machine Semi Automatic Paper Die Cutting Machine Box Making Machine
- Category: >>>
- Supplier: Cangzhou Lighten Import & Export Trading Co. Ltd.
Share on (1600791154652):
Product Overview
Description
Product Description
Semi-Automatic die-cutting & creasing machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

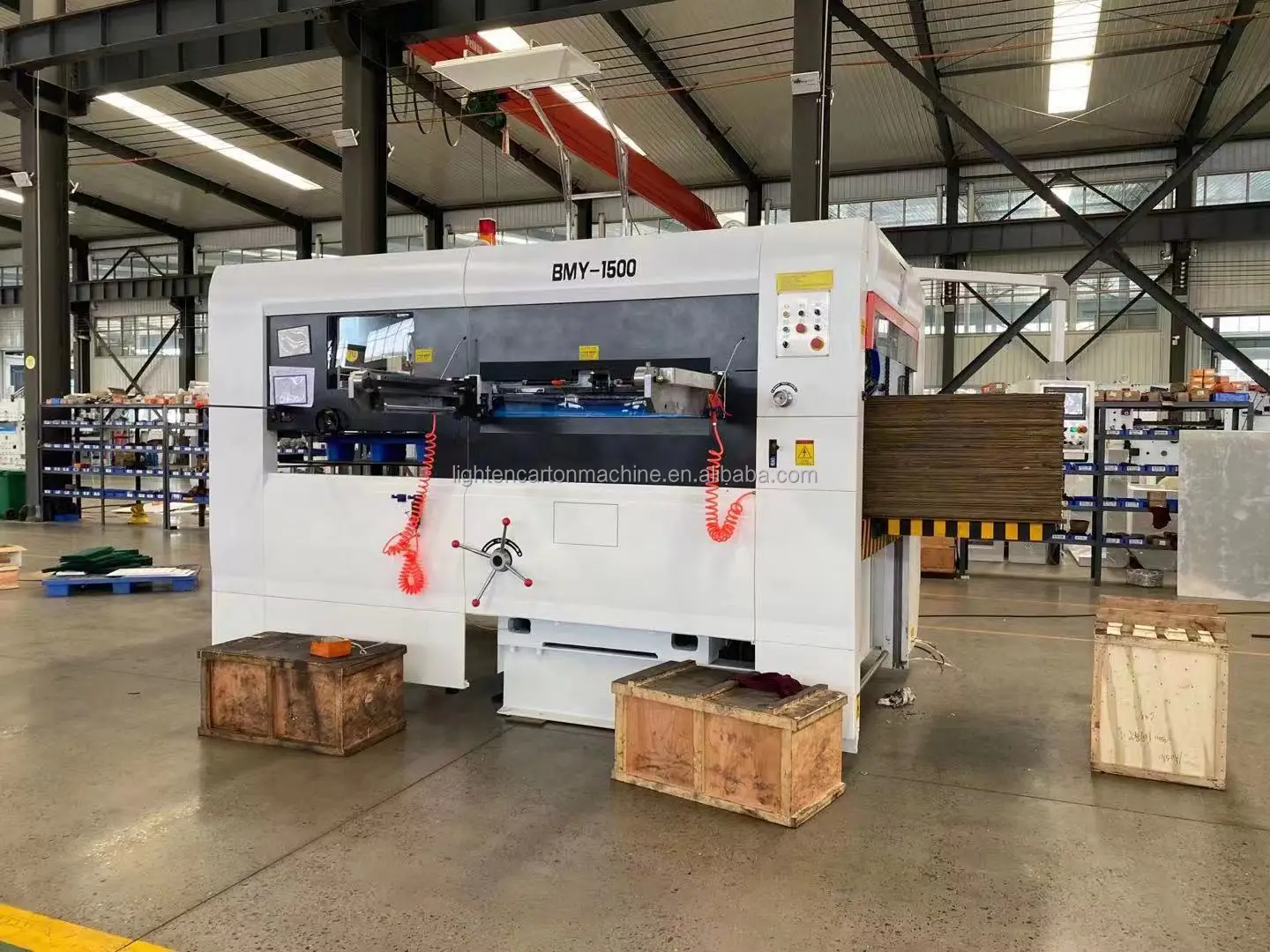

Model | BMY-1500 | ||
Die cutting way | Platen press | ||
Max paper transmitting size | 1510*1120mm | ||
Min paper transmitting size | 450*550mm | ||
Max die cutting size | 1490*1100mm | ||
Min gripper size | 8mm | ||
Max die cutting pressure | 320N/cm² | ||
Paper processed | Ivory board | 200-2000g/ m² | |
Corrugated board | 8mm(max thickness) | ||
Die cutting precision | ±0.1mm | ||
Max die cutting speed | 4500 sheets/h | ||
Max feeding pile height | 1400mm(above the level) | ||
Min feeding pile height | 1250mm(above the level) | ||
Total power | 13.5kw | ||
Total weight | 17.5T | ||
Overall size | 4200*2300*2250mm(Not Including Pedal) | ||
Specification
Feeding and Collecting Part
Whole machine is risen making the maximum front pile height up to 1400mm and the back pile height up to 1250mm
At the middle of head install the monitor ,worker can easily see the back
Pre-paper pile design and special pneumatic bench can save much time
The non-stop sampling system can check the board accurate without stop the machine
The non-stop sampling system can check the board accurate without stop the machine
Diecutting part and Delivery system
Diecutting chase fixed accurately by pneumatic lock system
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Diecutting chase fixed accurately by pneumatic lock system
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Main chain and assist chain is lubricated periodically controlled by PLC
Protection window of diecutting can hold the main body clean
Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate
Protection window of diecutting can hold the main body clean
Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate

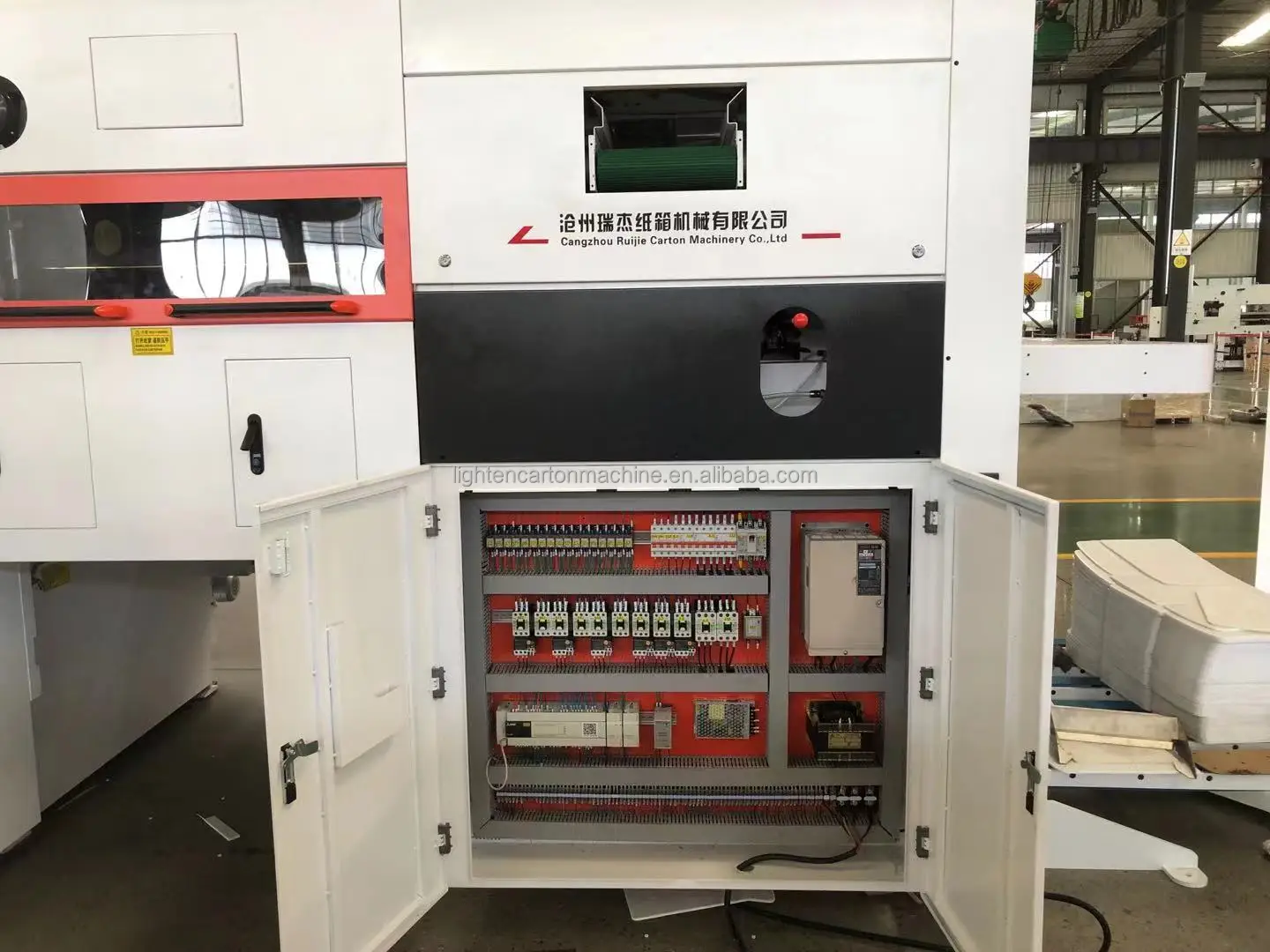

Electric Part
PLC adopts electronic control system.There are various safe guarding devices that when accident occurs,it will give an alarm by sound and light and shut down automatically to protect sfety of man and machine.
PLC adopts electronic control system.There are various safe guarding devices that when accident occurs,it will give an alarm by sound and light and shut down automatically to protect sfety of man and machine.

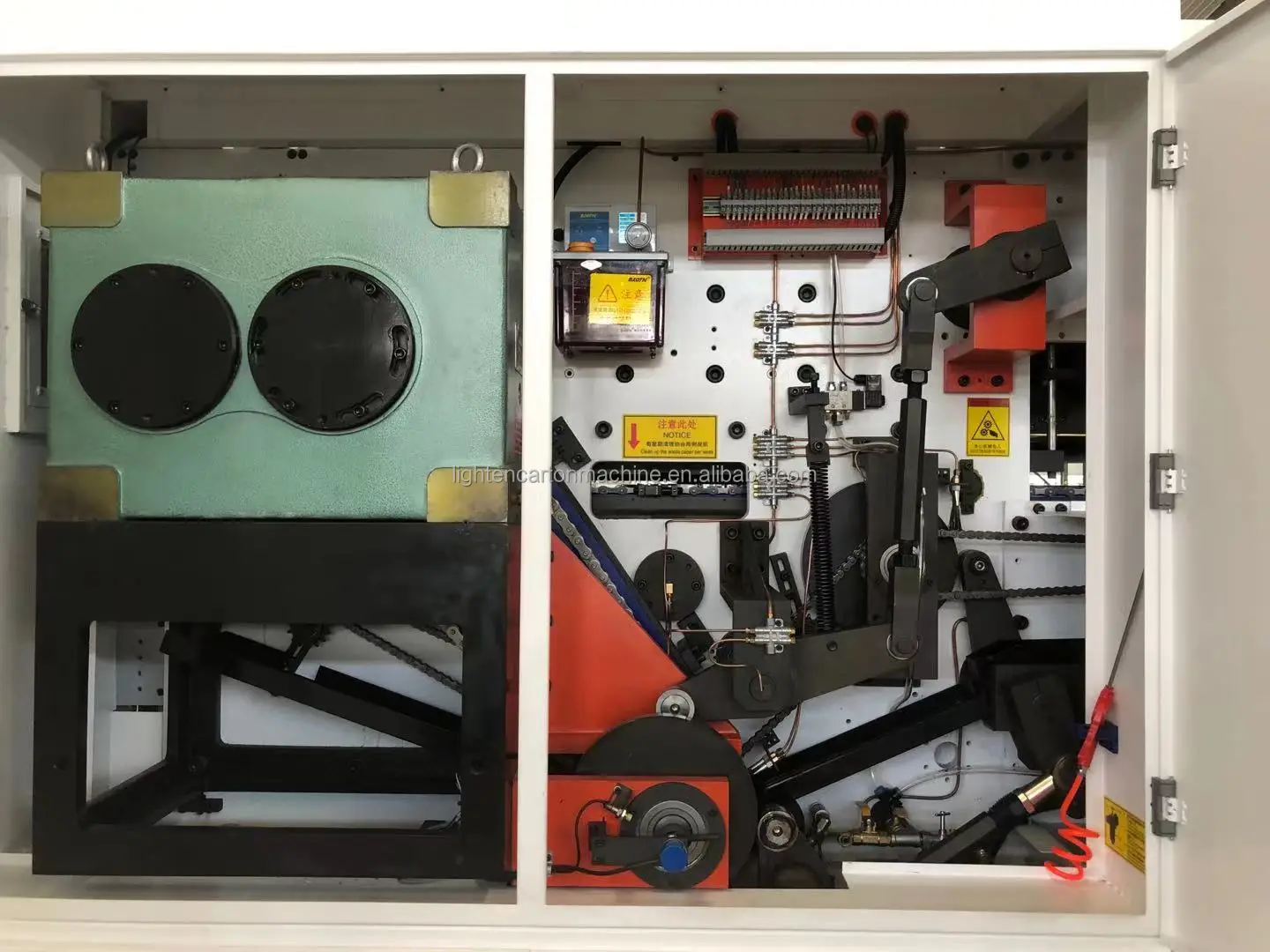

Taiwan Intermittence and Renold Chain
Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
Samples

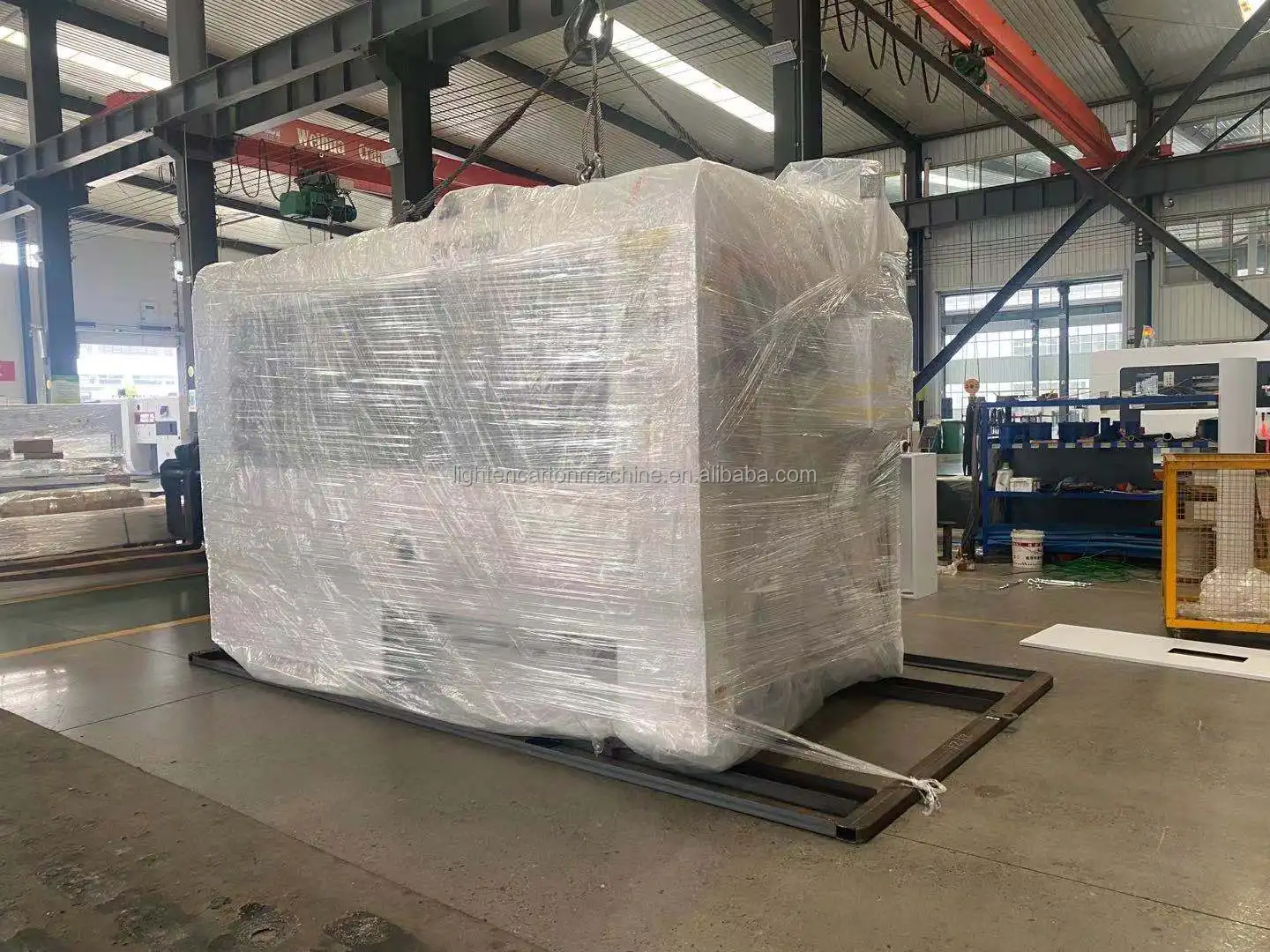

Packing & Delivery
Standard package with 40ft container
