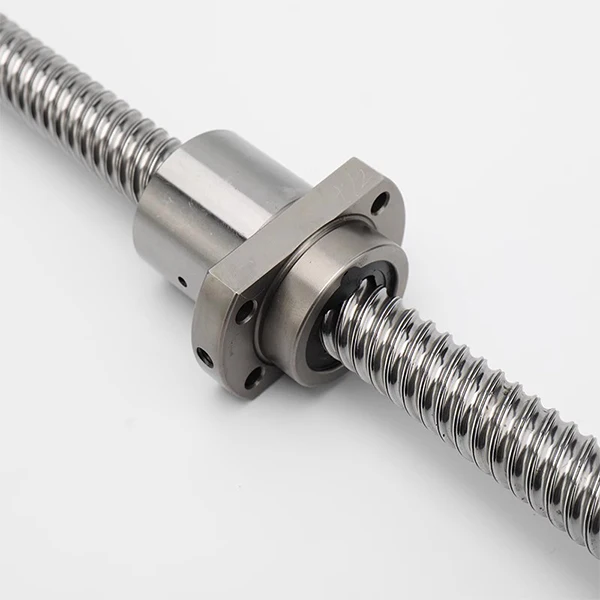

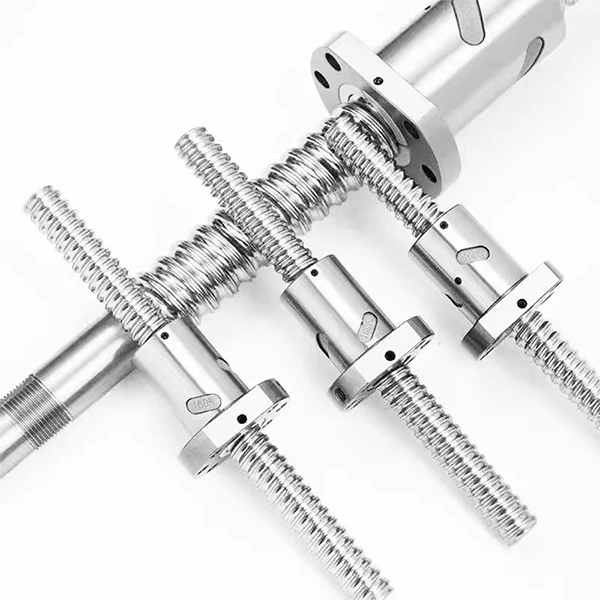

SFU1605 set: SFU1605 rolled ball screw C7 with end machined 1605 ball nut nut housing BK/BF12 end support coupler RM1605
- Category: >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (1600791161303):
Product Overview
Description
Product Description

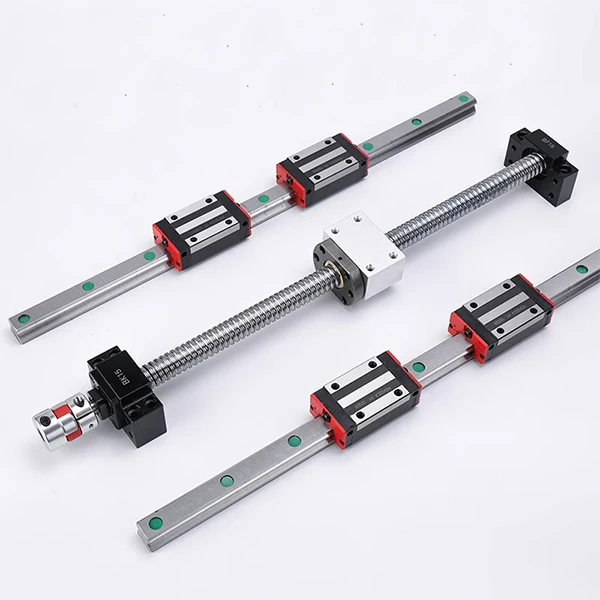

Package includes:

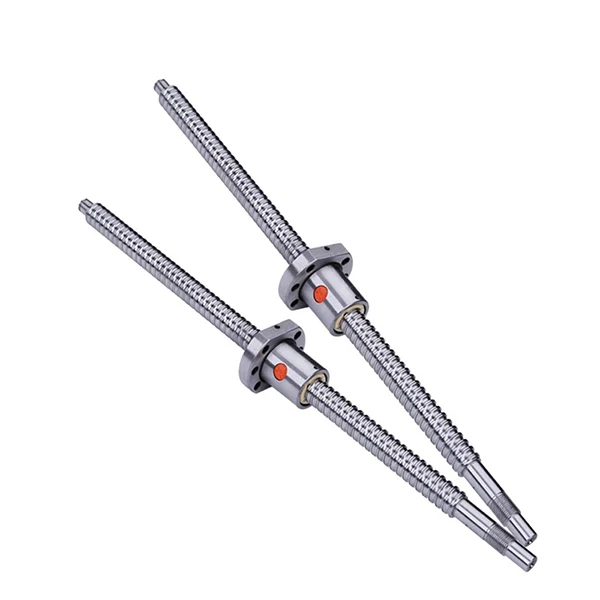

Ball screw 1605 with BKBF12 end machining L950 / 1000 / 1050 / 1100 / 1150mm, 1pc;
Ball screw nut SFU1605, 1 pc;
Ball screw supporter BK12BF12 with lock nut, 1 set;
Ball nut housing DSG16H, 1pc;
Coupling XB25-30-6.35*10mm ( inner hole can be as your needs )
Note: We can cut the length of ball screw as your request;
We can process end machining as your drawing too;
Below is the end machining for BK12BF12;
If you need other sizes or quantities, please contact us!
The more the quantity is, the lower the price will be.
Machine Drawing
Product Specificaiton
| Specification model | Nominal diameter | Nominal guide | Steel ball diameter | Flange type | Number of cycles | Nut mounting connection size | specified load | ||||||||
| D(g6) | D1 | D2 | D3 | L | B | G | H | Dynamic load Ca | Static load | ||||||
| SFU01204-3 | 12 | 4 | 2.38 | d<=32 | 3 | 22 | 42 | 32 | 4.8 | 35 | 8 | M6 | 30 | 4 | 6.7 |
| SFU01604-3 | 16 | 4 | 2.38 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 36 | 10 | M6 | 40 | 4.35 | 9.2 |
| SFU01605-3 | 16 | 5 | 3.18 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01605-4 (Waist type) | 16 | 5 | 3.18 | d<=32 | 4 | 28 | 48 | 38 | 5.5 | 50 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01610-4 | 16 | 10 | 2.78 | d<=32 | 2(Double head) | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.36 | 12.8 |
| SFU02005-3 | 20 | 5 | 3.18 | d<=32 | 3 | 36 | 58 | 47 | 6.7 | 42/44 | 10 | M6 | 40 | 8.6 | 17.1 |
| SFU02510-3 | 25 | 10 | 4.76 | d<=32 | 3 | 40 | 62 | 51 | 6.8 | 85 | 15 | M6 | 44 | 8.7 | 20.5 |
| SFU02510-4 (Waist type) | 25 | 10 | 4.76 | d<=32 | 4 | 40 | 62 | 51 | 6.8 | 85 | 15 | M6 | 48 | 8.7 | 20.5 |
| SFU03205-3 | 32 | 5 | 3.18 | d<=32 | 5 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03205-4 (Waist type) | 32 | 4 | 3.18 | d<=32 | 4 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03210-3 | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 74 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU03210-4 (Waist type) | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 90 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 9 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 63 | 110 | 93 | 11 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 9 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 75 | 110 | 93 | 11 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU06310-5 | 63 | 10 | 6.35 | d>=40 | 5 | 90 | 125 | 108 | 11 | 97 | 18 | M8 | 95 | 60.7 | 206 |
| SFU08010-5 | 80 | 10 | 6.35 | d>=40 | 6 | 105 | 145 | 125 | 13.5 | 101 | 20 | M8 | 110 | 66.6 | 265 |
