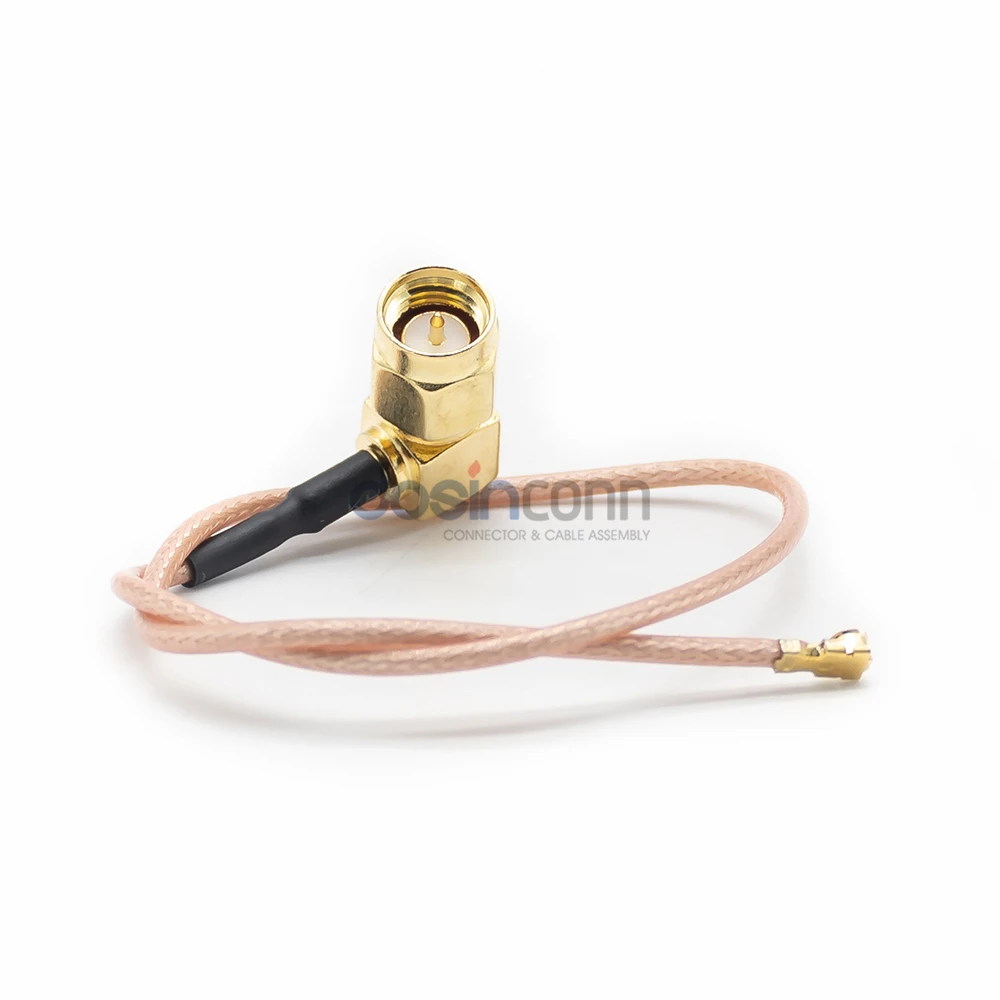

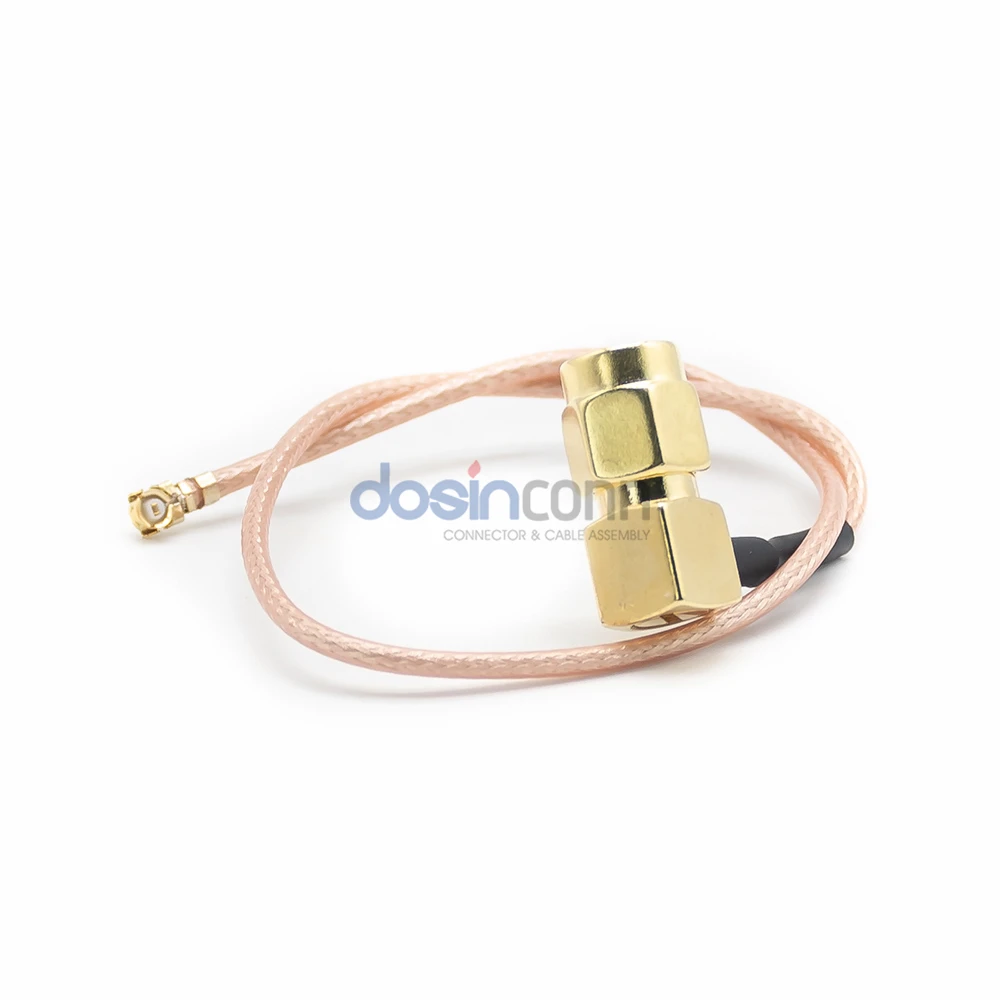

Right Angle SMA Male to IPEX Female RG178 Coaxial Cable
- Category: Communication Cables >>>
- Supplier: Dongguan,Dosin,Hardware,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Your RF Connector Supplier From China
RF Cable has the advantages of low loss, high frequency, low attenuation, high shielding performance, wide application frequencyband and stable performance.
The series includes flexible, semi-rigid, corrugated and manually formed cable assemblies, as well as RF cable and connector combinations optimized for each market or application.
Cable Color | Brown/Black/Grey/Purple/White/Blue |
Cable Type | 0.81/1.13/RG178/RG179/RG316/RG174/LMR200/etc., |
Length | Custom as require |
Gender | Female to Female;Female to TD;Male to TD;Male to Female;Male to Male,etc., |
Orientation | R/A;Straight;R/A to R/A;Straight to R/A;Straight to TD;Straight to Straight;R/A to TD |
Procurement Guide
FAQ Cases:
How to confirm RF cable assembly
S: Pls advise the connector and gender on both end?
B: SMA Female on one end and N Male on the other end
S: How about the cable, what is the length and guage?
B: RG58 cable, 1M
S: Ok, how many pcs will be needed?
B:1000pcs
Step 1:
Choose the connector Type
Step 2:

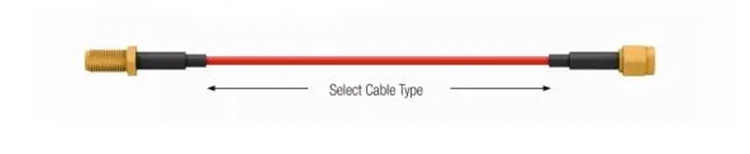

Choose Coaxial Cable Type
Step 3:
Decide your Cable Length

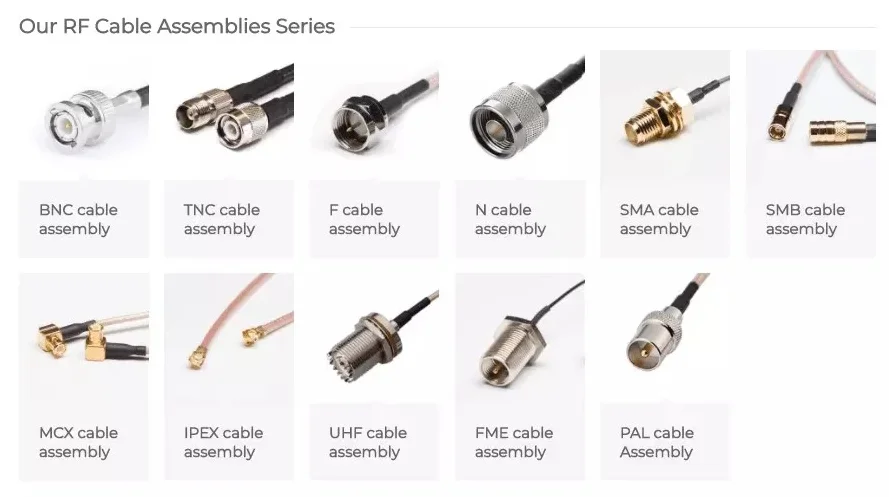

RF Cable Assemblies
50 ohm can be ordered using the following connector types such as 7/16 DIN , BNC , MCX , N , F ,MMCX ,SMA , SMB , TNC , UHF , U.FL
75 ohm cable assemblies can be made with the following 75 ohms connectors such as BNC , F , N, SMB , SMA , TNC and mini SMB .
75 ohm cable assemblies can be made with the following 75 ohms connectors such as BNC , F , N, SMB , SMA , TNC and mini SMB .
RF Cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications. If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Product Feature
• Broadband performance with low reflection
• Quick connect/disconnect snap-on mating reduces installation time;
• Quick connect/disconnect snap-on mating reduces installation time;
• Available in straight and right angle plugs and printedcircuitboard connectors;

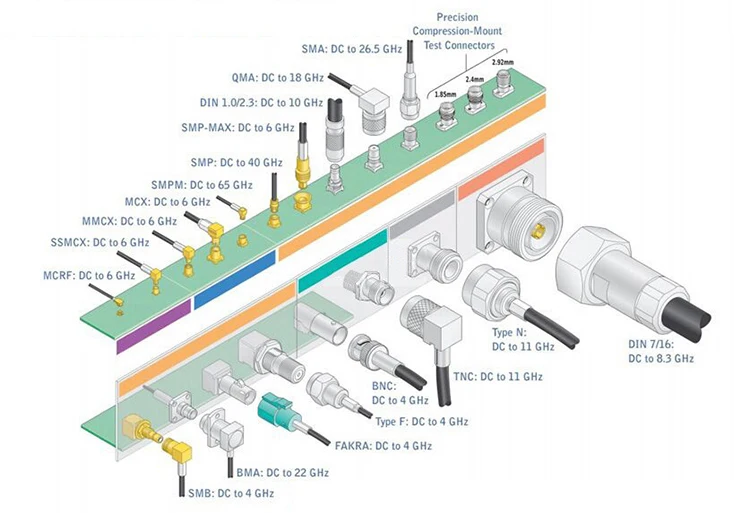

All Series of RF Conectors and Cables for Choice

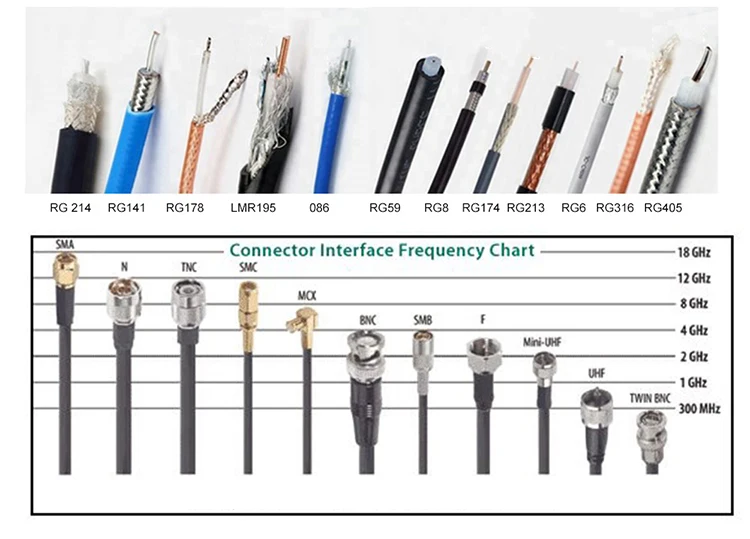

This Chart lilustrates the upper frequency limit of various interface types only.Actual frequency limits of cable assemblies are dependent on various other factors.
Related Products
Applications
Base Station
Satellite Communications
Antenna
Telecom
Medical Instrumentation
PC/LAN

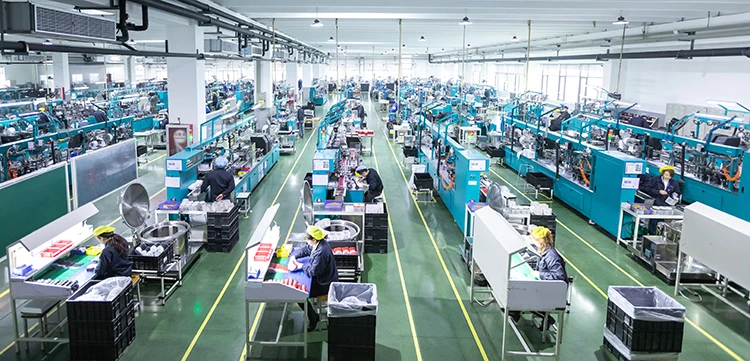

Our Factory
Dongguan Dosin Hardware Electronics Co., Ltd.
Was established in 2005, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series, Fiber optical cable assemblies and other custom made connectors.
Our company covers more than 20000 square meters, with well-equipped workshop, automatic production lines, andhundreds of employers. Since our establishment, our products and services have received a good reputation home and abroad. So far,we have built business relations in many countries, 70% products being sold to all over the world.
Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence" and values "trust, quality,service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are RoHS, REACH compliant. If you are interested in our company or our products, please contact us. We will be here to response youthe first around.
We promise you the top-quality and the most cost-effective products and services. Looking forward to cooperate with you!
Stamping Workshop
Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.
Die casting Workshop
Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.
Injection Moulding Workshop
Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.
Lathe Turning
Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
FAQ
1. Manufacturer or trader?
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. Renhotec always care what you care!
5. What's the warranty?
One year, 12 months.
