Product Overview
Description
Product Overview

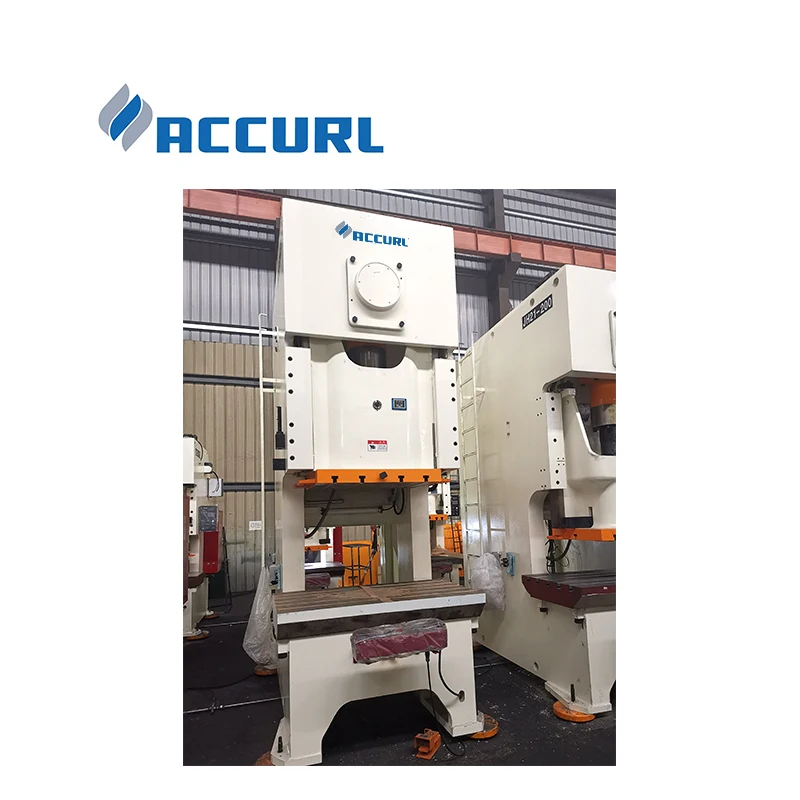

C Frame Crank Type Mechanical Stamping Press
JH21 series are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing,ect.
Product Features
1.The production efficiency can be increased by 30% or so compared with common crank punch press
2.High rigidity welded fuselage
3.Dry pneumatic friction clutch
4.Safety double solenoid valve
5.High sensitivity hydraulic overload protection
6.Multifunctional high affinity electronic control system
7.PLC centralized control, convenient operation
HIGH PRECISION FOR SHEET METAL PUNCHING AND STAMPING
The press body is milling and boring by PAMA machine center and all the surfaces and holes will be finished machining in on position

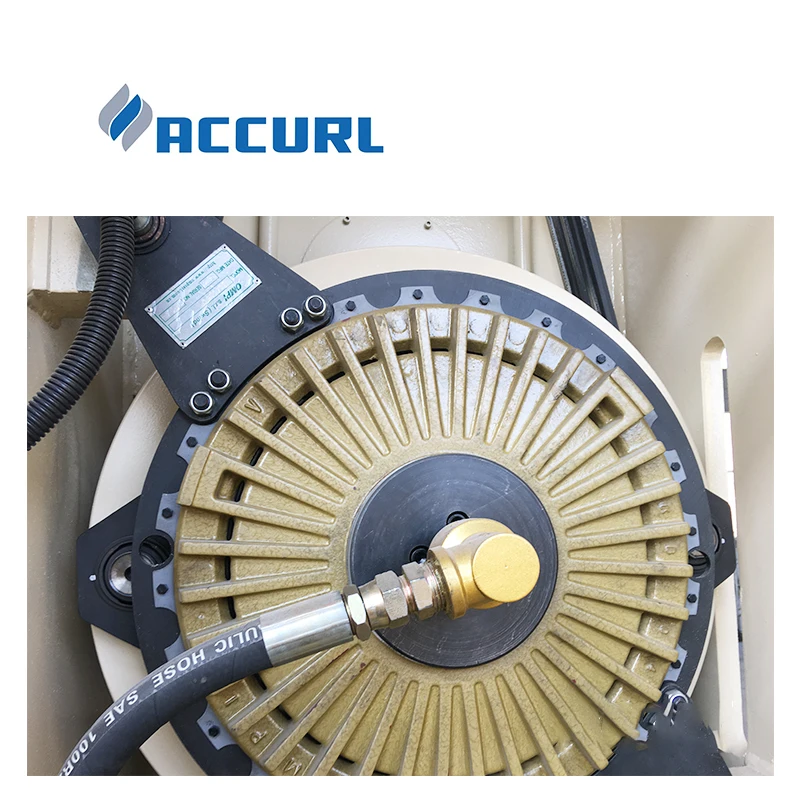

WET TYPE PNEUMATIC CLUTCH AND BRAKE
Wet type pneumatic clutch with impor ted clutch disc, NOK seals, lower noise and maintenance cost, longer service life.

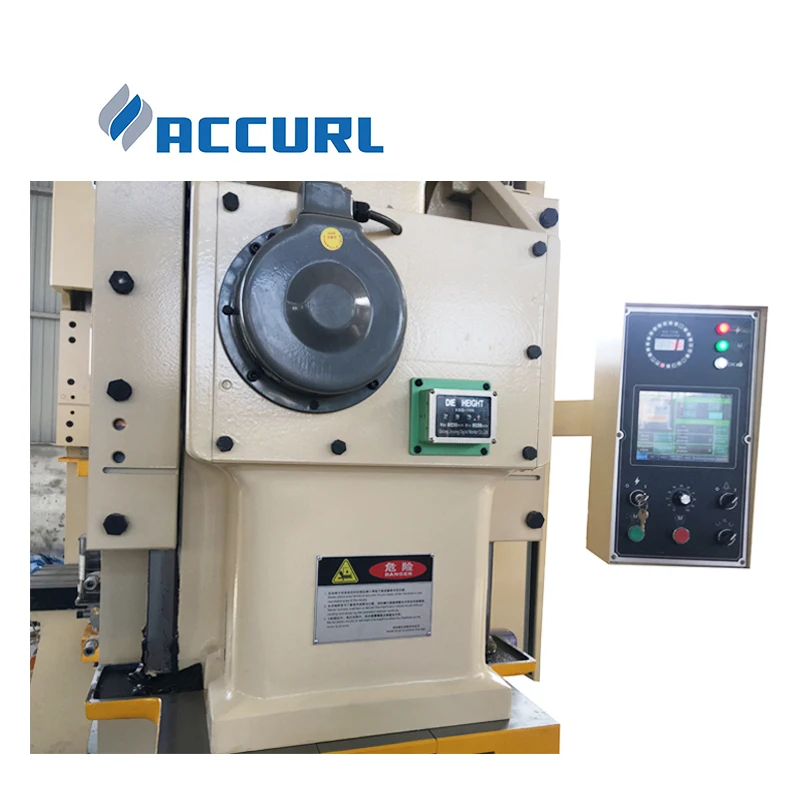

HMI FOR EASY OPERATION
HMI according to the working time or working stroke times. HMI with setting function, I/O monitor, counter and preset counter.
Product Paramenters
Type | Nominal | Nominal Stroke | Slide Stroke | Max Die Set Height | Throat Depth | Motor | Weight | Press Pressure | ||
KN | mm | mm | mm | mm | Kw | Kg | Mpa | |||
JH21-45 | H | 450 | 4 | 70 | 295 | 225 | 5.5 | 3550 | 0.5 | |
S | 4 | 120 | 270 | |||||||
JH21-60 | H | 600 | 4 | 80 | 330 | 270 | 5.5 | 5150 | ||
S | 4 | 140 | 300 | |||||||
JH21-80 | H | 800 | 5 | 100 | 350 | 310 | 7.5 | 6450 | ||
S | 5 | 160 | 320 | |||||||
JH21-100 | H | 1000 | 5 | 100 | 365 | 330 | 7.5 | 8650 | ||
S | 5 | 160 | 335 | |||||||
Advantage:
1. The main body is welded with high quality steel plate. It will be heat treated and ball blasting treated to release the stress and improve the rigidity.
2. The press adopts Panasonic or Omron PLC with high stability and longer service life.
3. The wet cultch produced by World is made up of the best seals, bearing and friction discs. It features lower noise and longer service life.

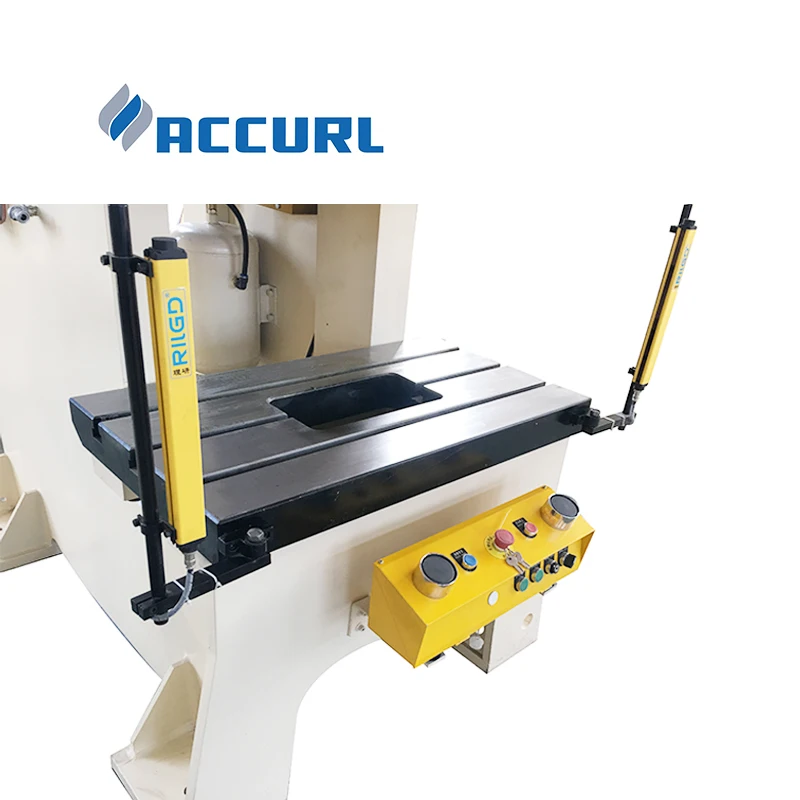

4. The control panel includes double hand buttons and emergency stop button and foot pedal control switch is optional.
6. The hydraulic overload protected pump is used to protect the press and the die from overloading.
7. The motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It offers stable positioning accuracy and quick adjustment.
