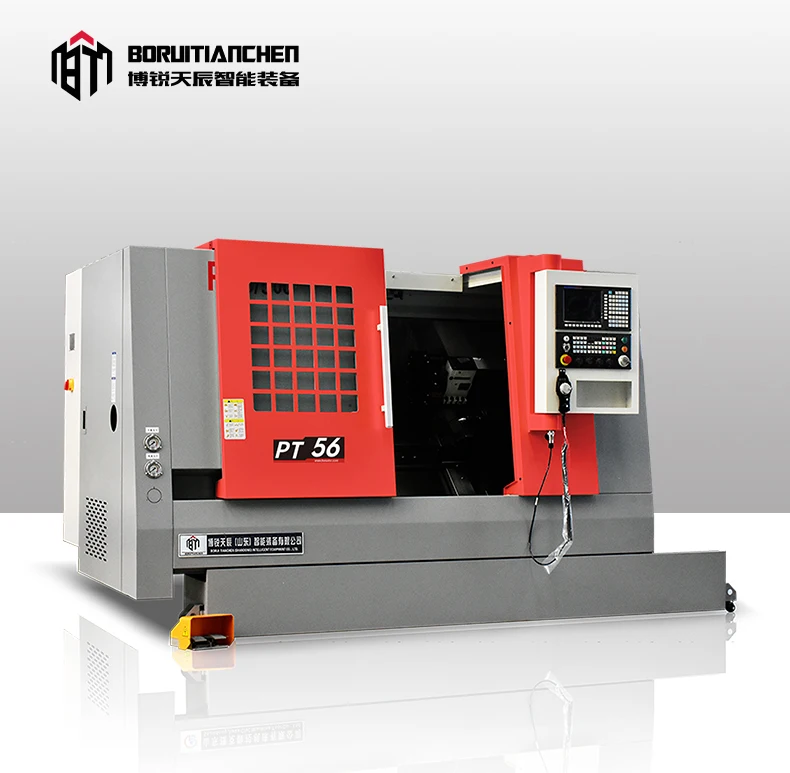

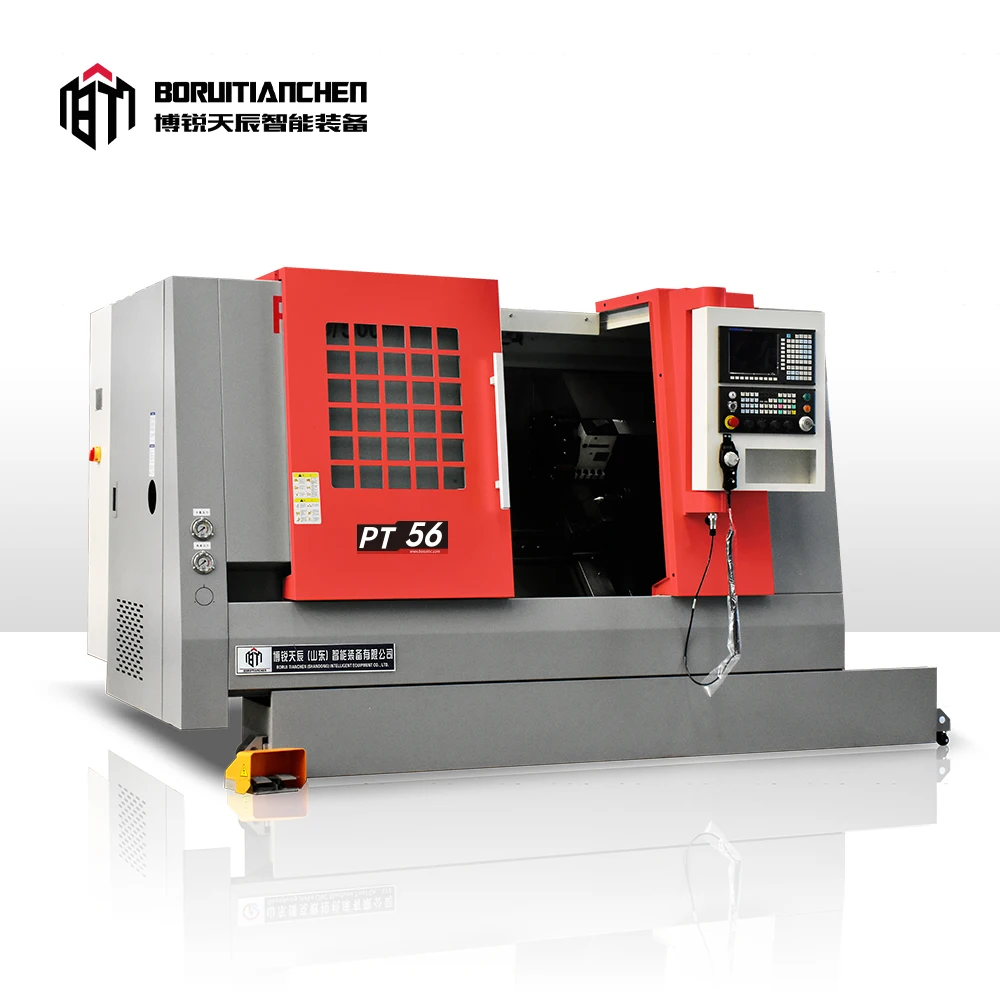

High Quality PT56 cnc slant bed lathe machine slant bed cnc lathe manufacture
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600791213622):
Product Overview
Description
High Quality PT56 cnc slant bed lathe machine slant bed cnc lathe manufacture
Products Description
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,cricle arc,cricular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile ,motorcyle,bearings and so on.Product Parameters
Specifications | Unit | PT56 |
Max.swing over bed | mm | 560 |
Max. processing length | mm | 500/1000 |
Standard cutting diameter | mm | 280（8 station tower） |
Max. processing diameter | mm | 350（8 station tower） |
Standard cutting diameter | mm | 280（12 station tower） |
Max. processing diameter | mm | 280（12 station tower） |
Max swing over carriage | mm | 350 |
Taper of spindle | A2-6 | |
Hole Through Spindle | mm | 65 |
Max. spindle speed | rpm/min | 50~4500 |
Max. spindle output torque | Nm | 235 |
Spindle speed steps | stepless | |
Motor power | kw | 15（15 minutes）/11(rated ） |
Chuck diameter | mm | 8” |
X-axis is moving fast | m/min | 30 |
Z-axis is moving fast | m/min | 30 |
X-axis travel | mm | 200 |
Z-axis travel | mm | 560/1050 |
Integral tail seat travel | 450/950 | |
Tail seat sleeve taper | MT | MT5 |
Turret type | horizontal 8 station | |
Cylindrical tool | mm | 25X25 |
Boring tool bar diameter | mm | 40/32/25/20 |
Max. load-bearing capacity of disk | kg | 200 |
Maxi. bearing capacity of shaft class | kg | 500 |
Center height | mm | 1050 |
Weight | kg | 4000/4500 |
Size | mm | 2790/3570X1900X1850 |
Recommend Products

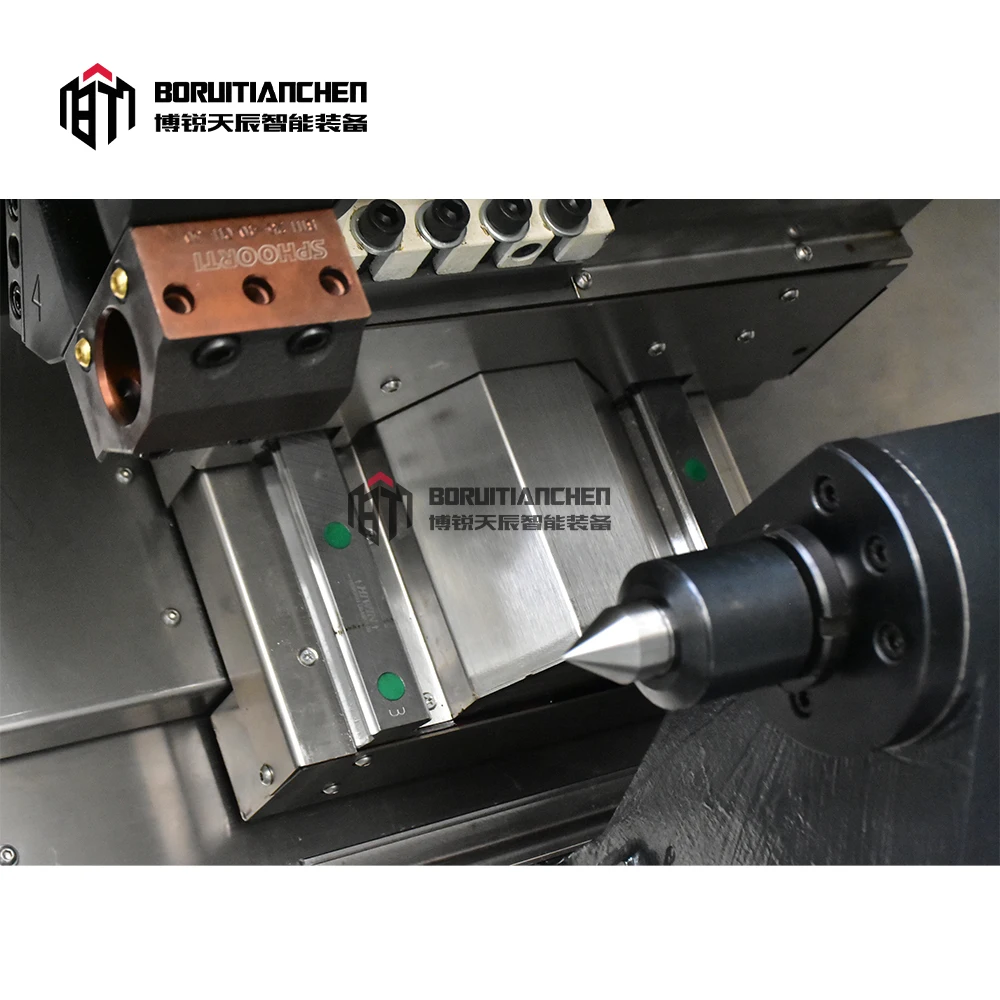

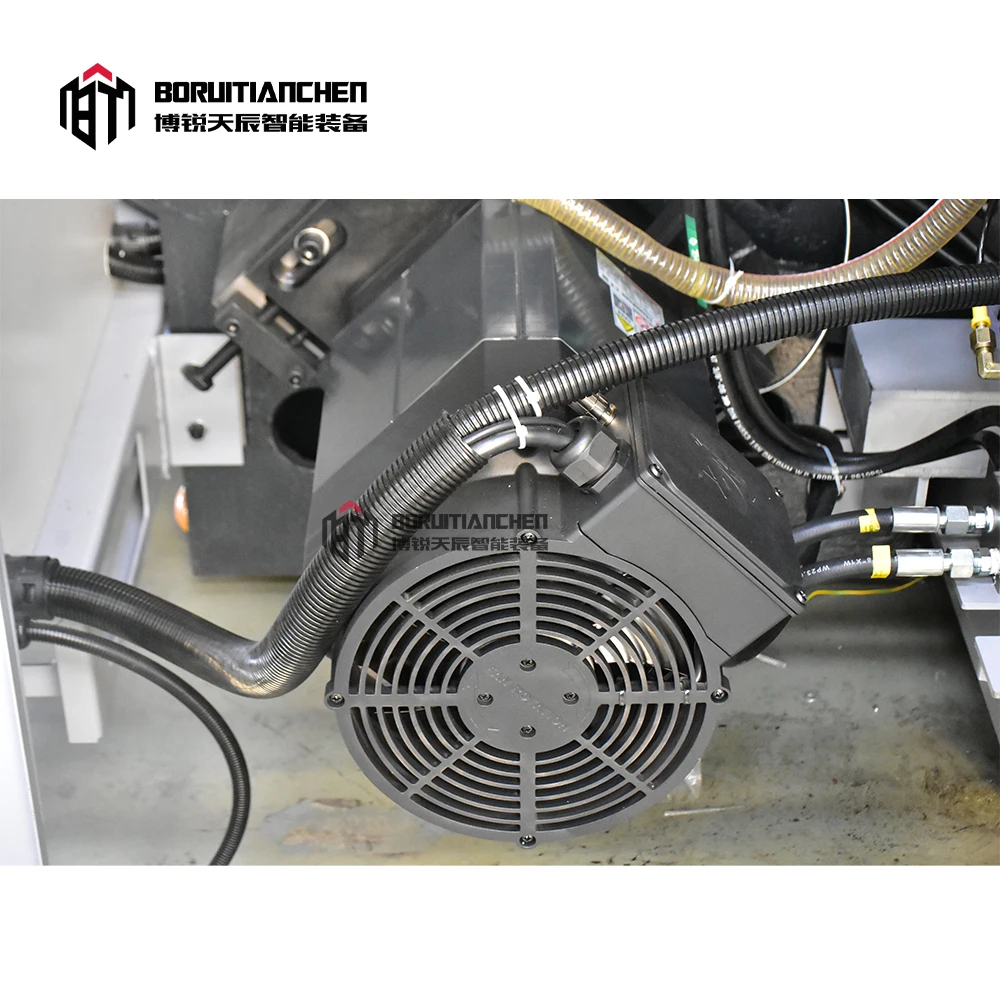

Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
