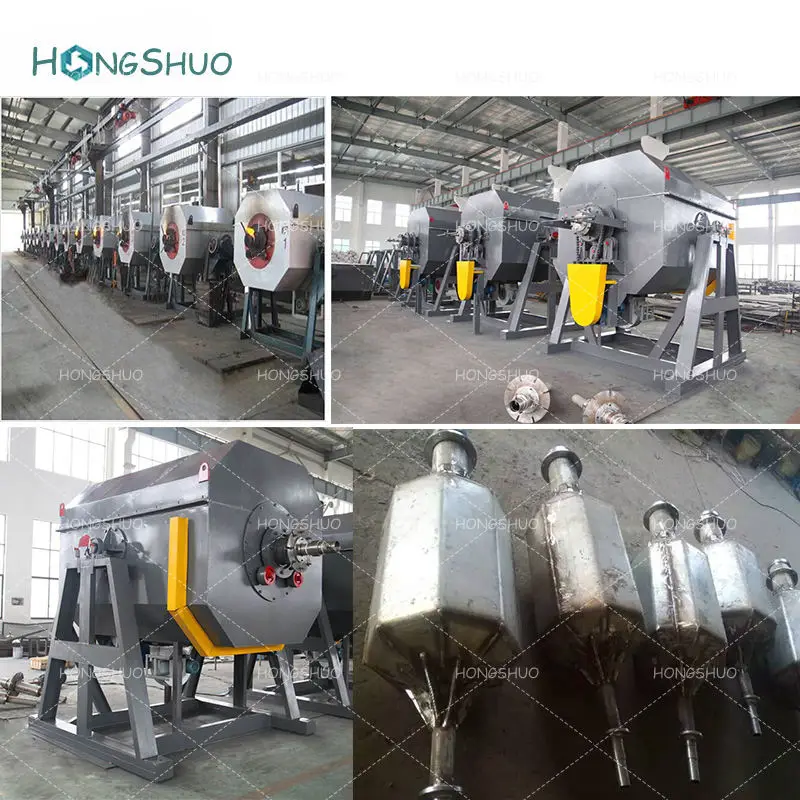

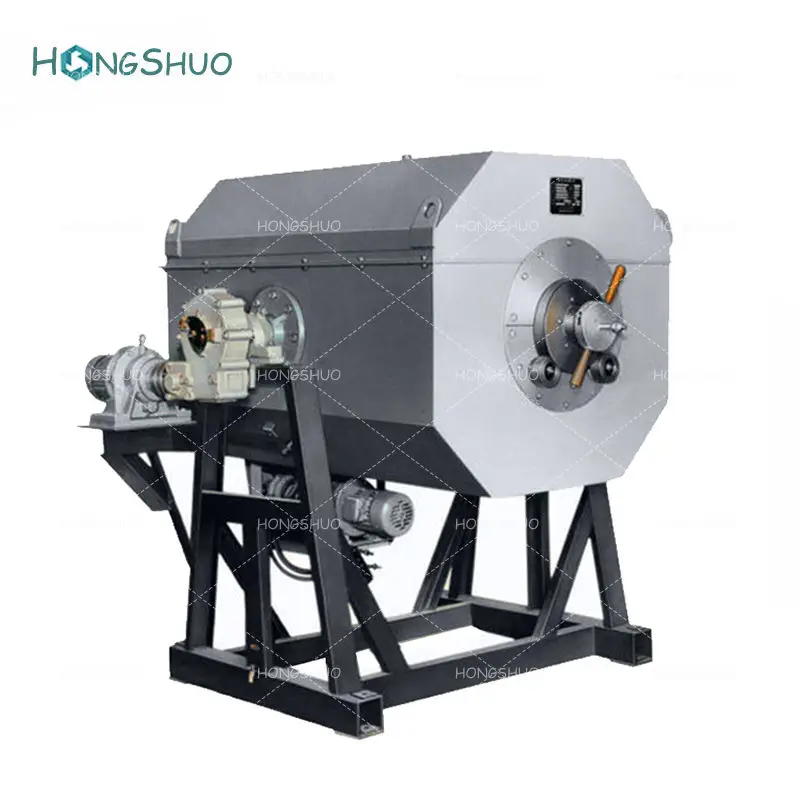

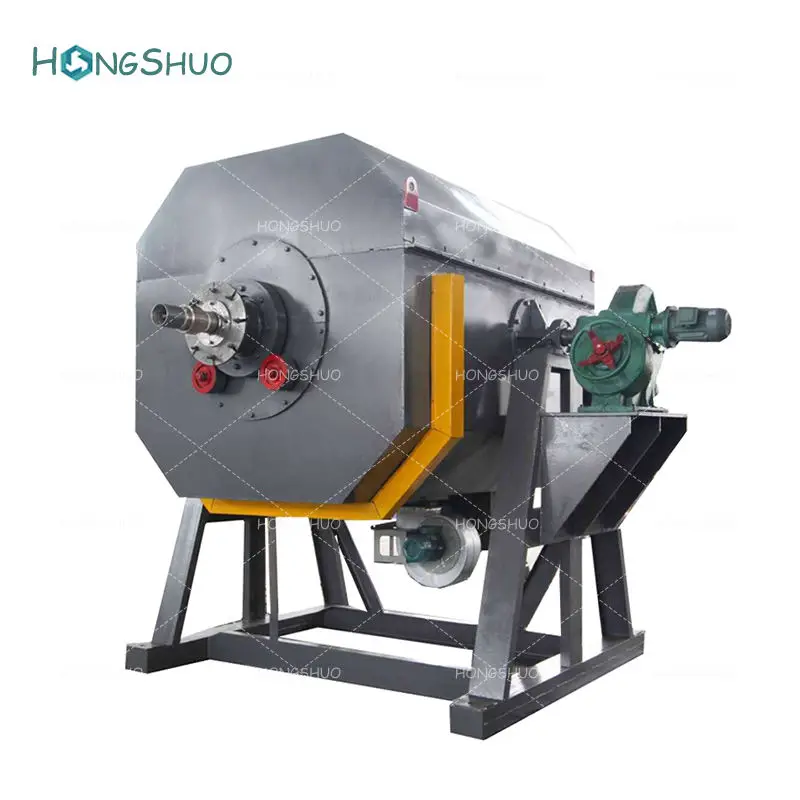

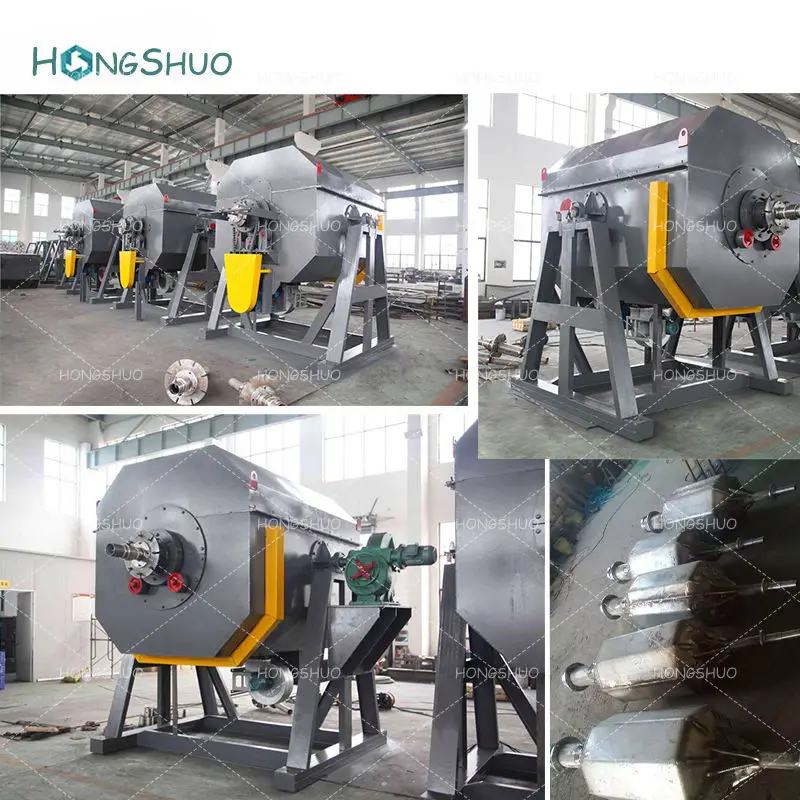

Industrial oven Hardening Furnace Tempering tilting rotary furnace
- Category: >>>
- Supplier: Xuchang Hongshuo Machinery Co. Ltd.
Share on (1600791229348):
Product Overview
Description
Product Description

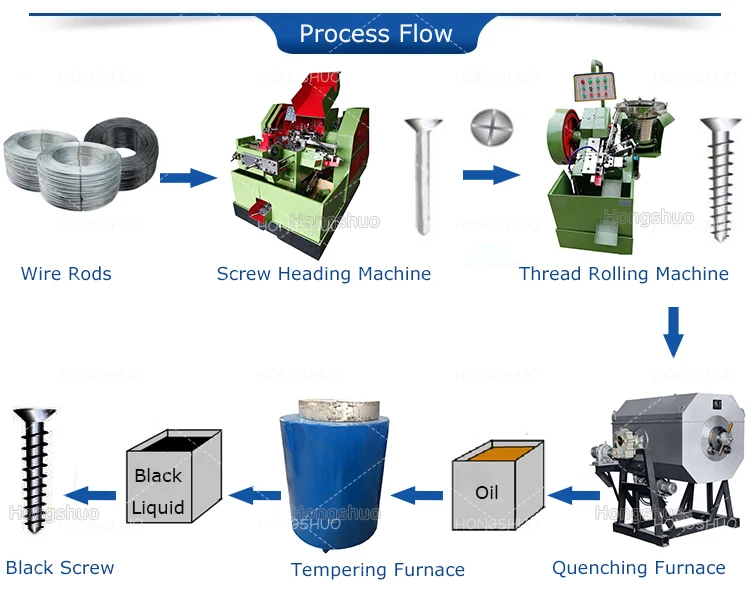

THE PROCESS FLOW
Specification
Model No. | RGR30-9 | RGR45-9 | RGR60-9 |
Rated power | 30KW | 45KW | 60KW |
Rated voltage | 380V/3phases | 380V/3phases | 380V/3phases |
Rated temperature | 950°C (controlled) | 950°C (controlled) | 950°C (controlled) |
Instrument temperature control accuracy | ±1℃ | ±1℃ | ±1℃ |
Temperature control partition | 1 | 1 | 1 |
control mode | Pid automatic mobilization, solid state relay | Pid automatic mobilization, solid state relay | Pid automatic mobilization, solid state relay |
heating element | Helical resistance wire ocr21A16Nb | Helical resistance wire ocr21A16Nb | Helical resistance wire ocr21A16Nb |

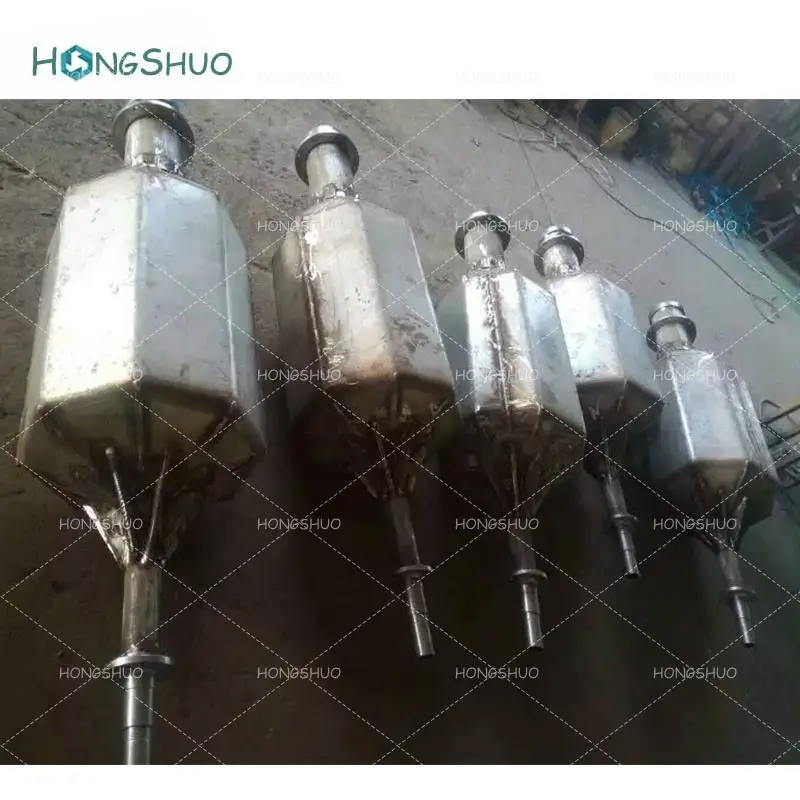

Furnace pipe material | 8mm 310S stainless steel（2520） | 10mm 310S stainless steel（2520） | 10mm 310S stainless steel（2520） |
Heating element connection | Y | Y | Y |
Furnace tank size | Φ300×620mm | Φ520×680mm | Φ600×750mm |
Heating area | 1 | 1 | 1 |
Discharging way | axial discharge | axial discharge | axial discharge |
Cooling mode | natural cooling | natural cooling | natural cooling |
furnace tank material | 310S heat-resistant stainless steel | 310S heat-resistant stainless steel | 310S heat-resistant stainless steel |
Overall dimensions | φ1850*2000 | φ1850*2000 | Φ2300*2400 |
Capacity | 80~90kg/furnace | 120~130kg/furnace | About 180kg/furnace |
Weight of the furnace | 1.8ton | 2.5ton | 3.0ton |

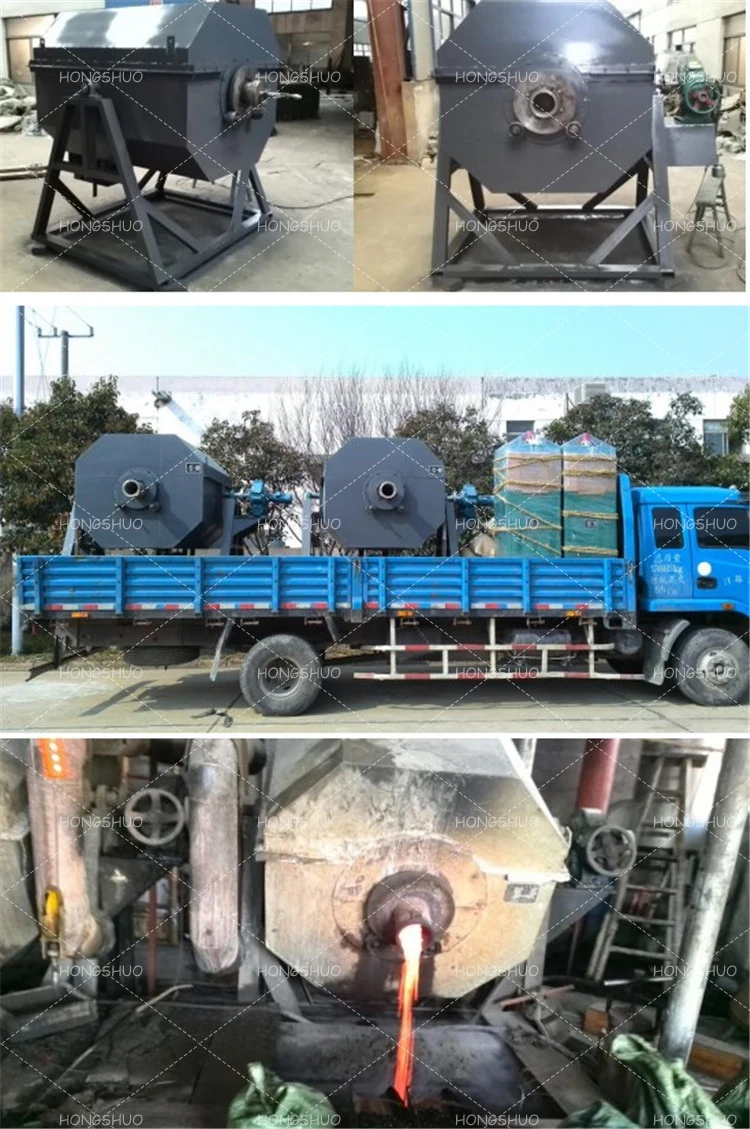

Packing & Delivery
sea worthy wooden case or as required

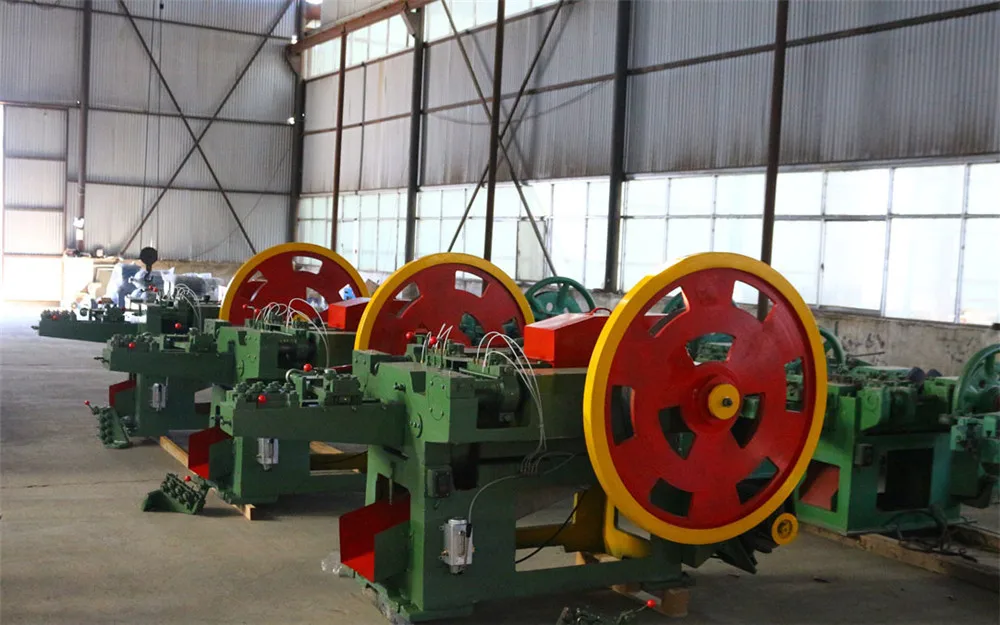

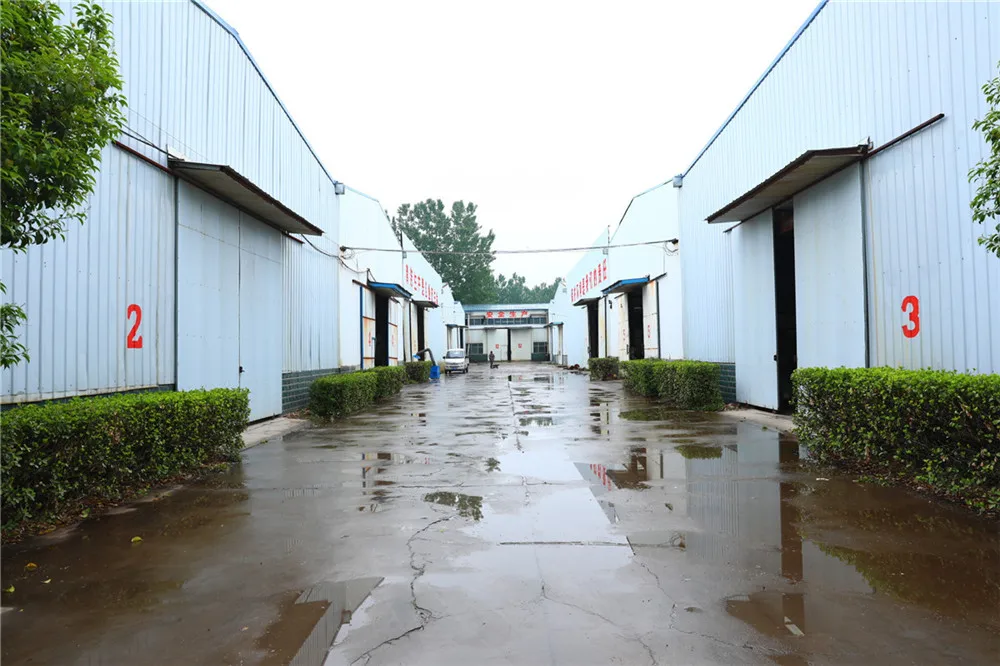

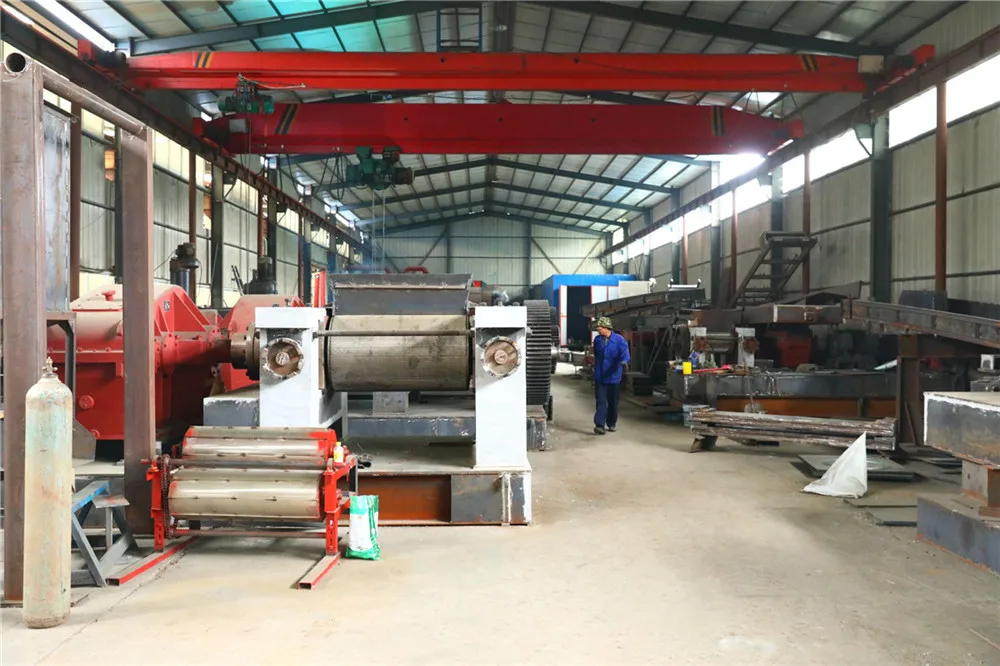

Company Profile
