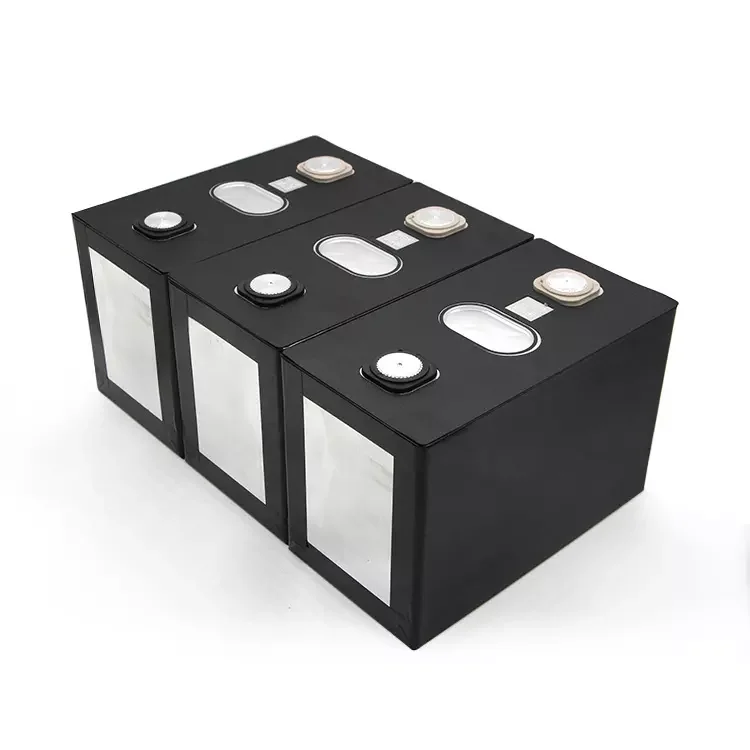

NMC 3.7v 94ah 100ah 117ah 150ah NCM Rechargeable 3.7v for RV Forklift Electric Vehicle Lithium ion battery
- Category: >>>
- Supplier: Shenzhen Jiayi Technology Co. Ltd.
Share on (1600791459321):
Product Overview
Description
Product Description
Product Description

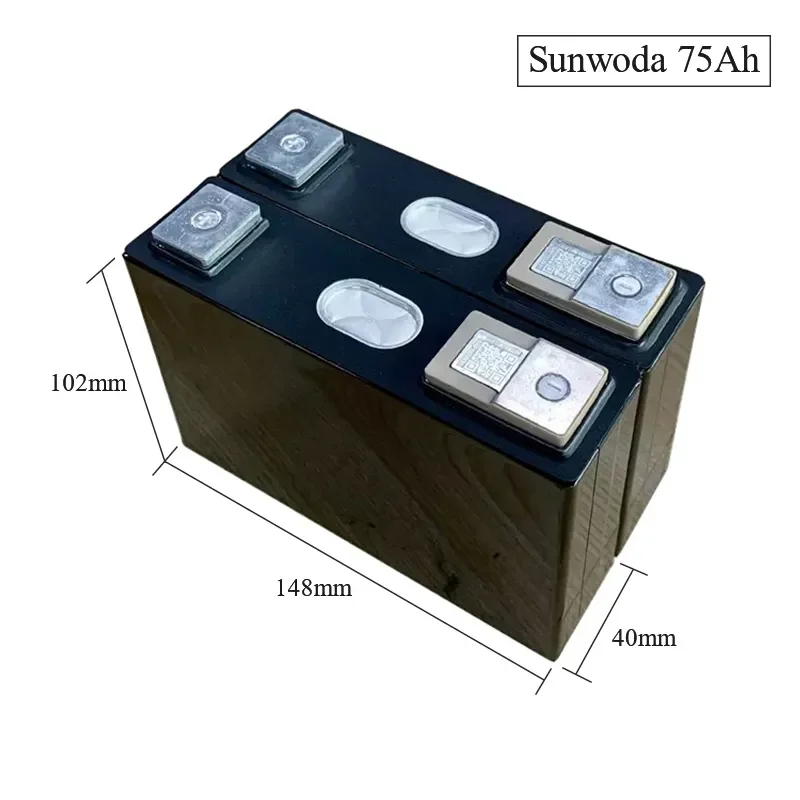

3.7V 75Ah
Nominal capacity:75Ah
Nominal voltage:3.7V
Material:NMC
Dimension:148*102*40mm
Cycle life: 2000 Times
Internal resistance:≤0.65mΩ
Max. charging current:75A(1C)
Max.cont.discharging :75A(1C)
Max. pulse discharge :225A(3C 10s)
Charge cut-off voltage:4.25V
Discharge cut-off voltage:2.5V
Operation Temperature:-30°C ~ 55°C
Weight:1.32kg
Nominal capacity:75Ah
Nominal voltage:3.7V
Material:NMC
Dimension:148*102*40mm
Cycle life: 2000 Times
Internal resistance:≤0.65mΩ
Max. charging current:75A(1C)
Max.cont.discharging :75A(1C)
Max. pulse discharge :225A(3C 10s)
Charge cut-off voltage:4.25V
Discharge cut-off voltage:2.5V
Operation Temperature:-30°C ~ 55°C
Weight:1.32kg

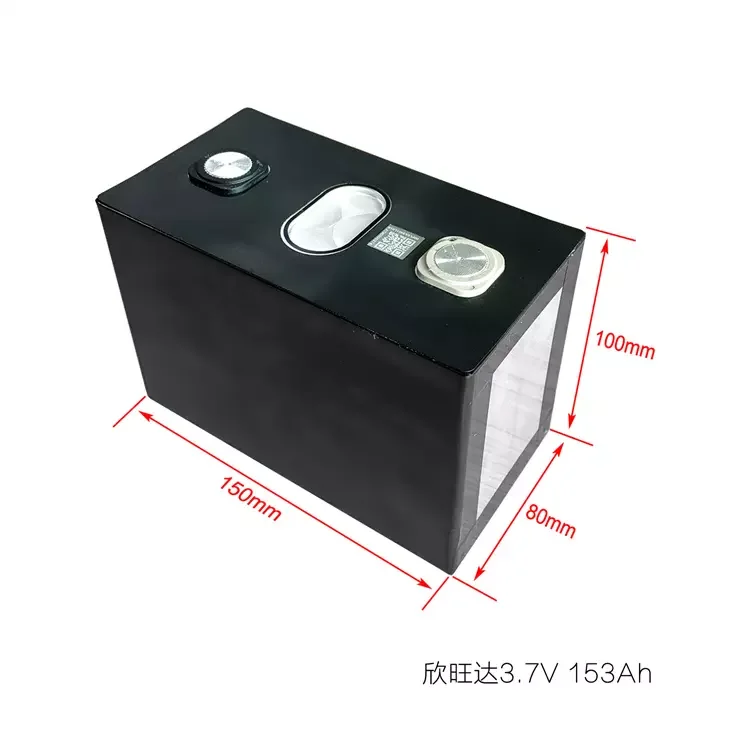

3.7v 153ah
Cell type: lithium ion battery
Cell capacity (1C):>150 Ah
Cell capacity (1/3C):>153 Ah
Discharge energy (1C):>547Wh
Discharge energy (1/3C):>566Wh
Nominal voltage (1C):3.65V
Nominal voltage (1/3C):3.7v
weight:2620±20g
Charging cut-off voltage (V):4.3 V
Discharge cut-off voltage (V):2.8 V (T>-10℃)
2.5V (-10℃＞T＞-20℃)
2.1V (-20℃＞T)
Standard charging current:1C(150A)
Standard discharge current:1C(150A)
Recommend to use SOC window:5%～95%
AC internal resistance (IkHz, 50% SOC):<0.45 mΩ
DC internal resistance (50%SOC, 200A, 10s):<0.70 mΩ
Optimal working temperature range:15℃-35℃
Charging temperature range: -20℃~55℃
Discharge temperature range:-30℃~55℃
storage temperature: -30℃~60℃
Cell capacity (1C):>150 Ah
Cell capacity (1/3C):>153 Ah
Discharge energy (1C):>547Wh
Discharge energy (1/3C):>566Wh
Nominal voltage (1C):3.65V
Nominal voltage (1/3C):3.7v
weight:2620±20g
Charging cut-off voltage (V):4.3 V
Discharge cut-off voltage (V):2.8 V (T>-10℃)
2.5V (-10℃＞T＞-20℃)
2.1V (-20℃＞T)
Standard charging current:1C(150A)
Standard discharge current:1C(150A)
Recommend to use SOC window:5%～95%
AC internal resistance (IkHz, 50% SOC):<0.45 mΩ
DC internal resistance (50%SOC, 200A, 10s):<0.70 mΩ
Optimal working temperature range:15℃-35℃
Charging temperature range: -20℃~55℃
Discharge temperature range:-30℃~55℃
storage temperature: -30℃~60℃

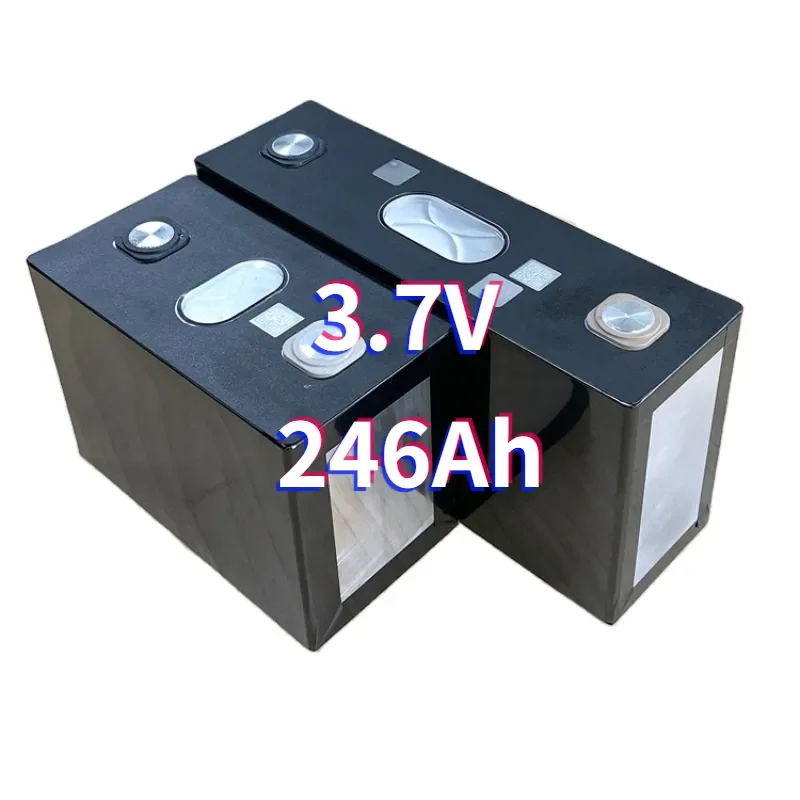

3.7v 246ah
Cell type: lithium ion battery
Cell capacity (1C):>240 Ah
Cell capacity (1/5C):>243 Ah
Nominal voltage (1C):3.65V
Nominal voltage (1/3C):3.7v
weight:3750±40g
Charging cut-off voltage (V):4.25 V
Discharge cut-off voltage (V):2.8 V (T>-10℃)
2.5V (-10℃＞T＞-20℃)
2.1V (-20℃＞T)
Standard charging current:0.2C(
Standard discharge current:1C
Recommend to use SOC window:5%～95%
AC internal resistance (IkHz, 50% SOC):<0.5 mΩ
DC internal resistance (50%SOC, 200A, 10s):<0.60 mΩ
Optimal working temperature range:15℃-35℃
Charging temperature range: -20℃~55℃
Discharge temperature range:-30℃~55℃
storage temperature: -30℃~60℃
Cell type: lithium ion battery
Cell capacity (1C):>240 Ah
Cell capacity (1/5C):>243 Ah
Nominal voltage (1C):3.65V
Nominal voltage (1/3C):3.7v
weight:3750±40g
Charging cut-off voltage (V):4.25 V
Discharge cut-off voltage (V):2.8 V (T>-10℃)
2.5V (-10℃＞T＞-20℃)
2.1V (-20℃＞T)
Standard charging current:0.2C(
Standard discharge current:1C
Recommend to use SOC window:5%～95%
AC internal resistance (IkHz, 50% SOC):<0.5 mΩ
DC internal resistance (50%SOC, 200A, 10s):<0.60 mΩ
Optimal working temperature range:15℃-35℃
Charging temperature range: -20℃~55℃
Discharge temperature range:-30℃~55℃
storage temperature: -30℃~60℃
Application
Certifications

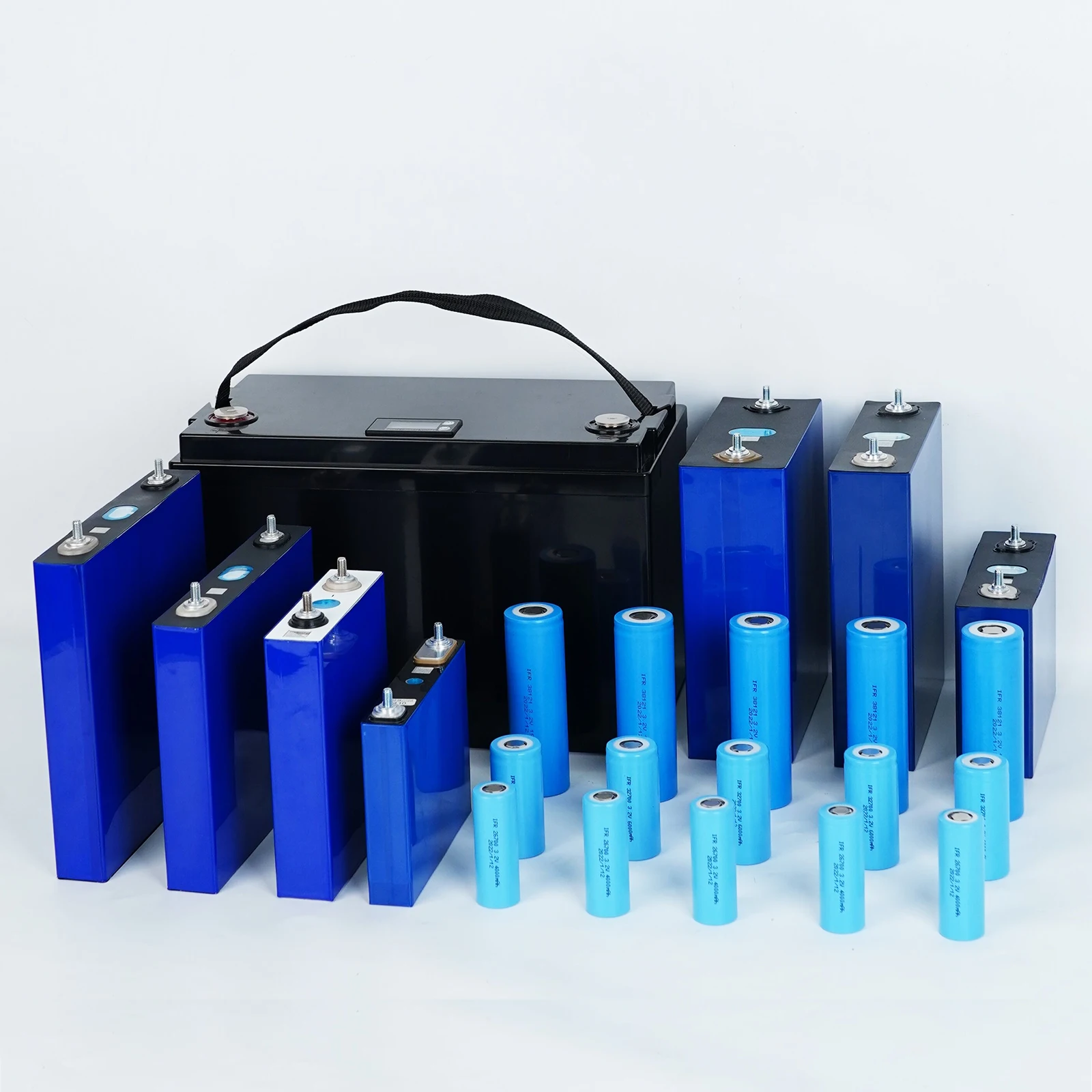

OUR PRODUCTS | ||||||||

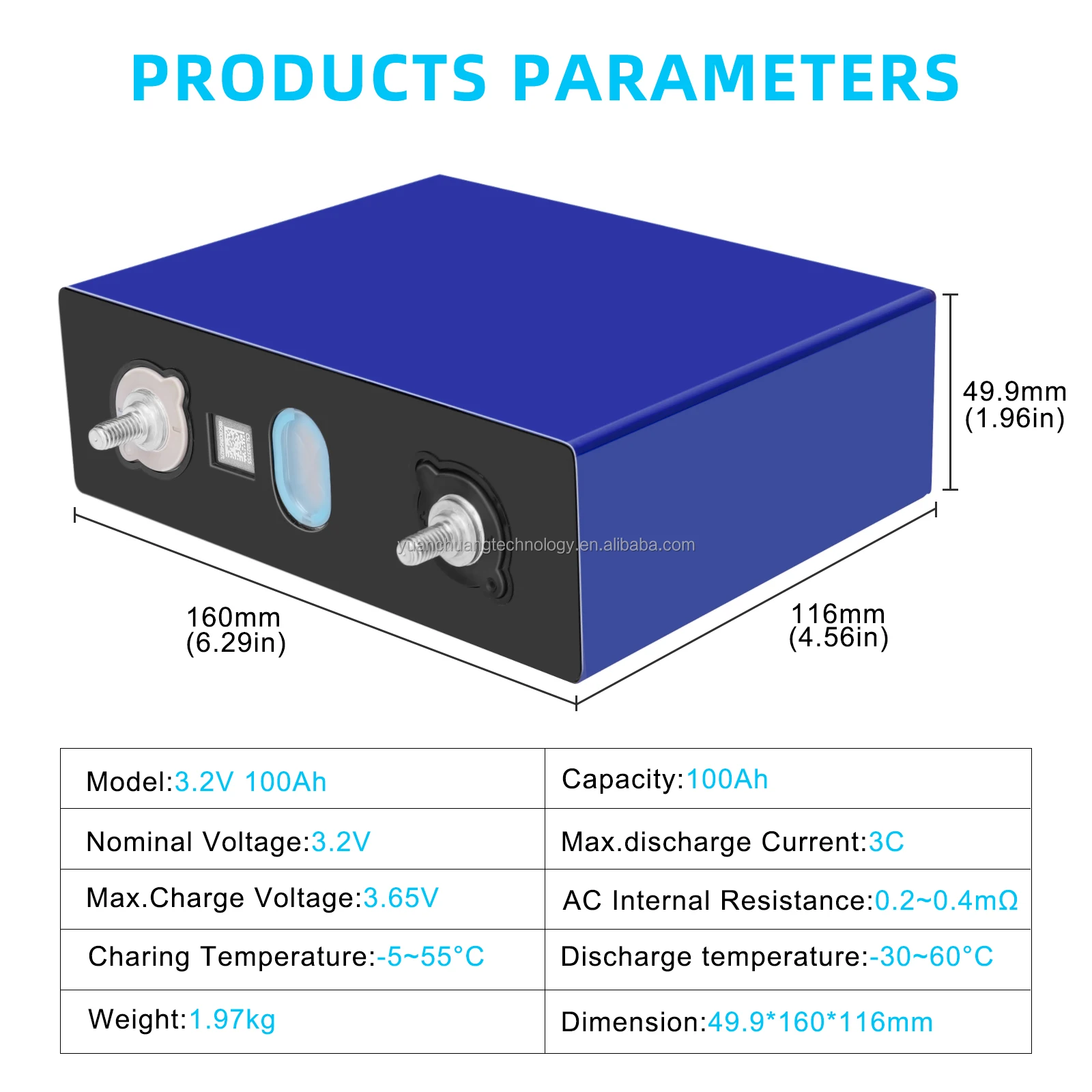

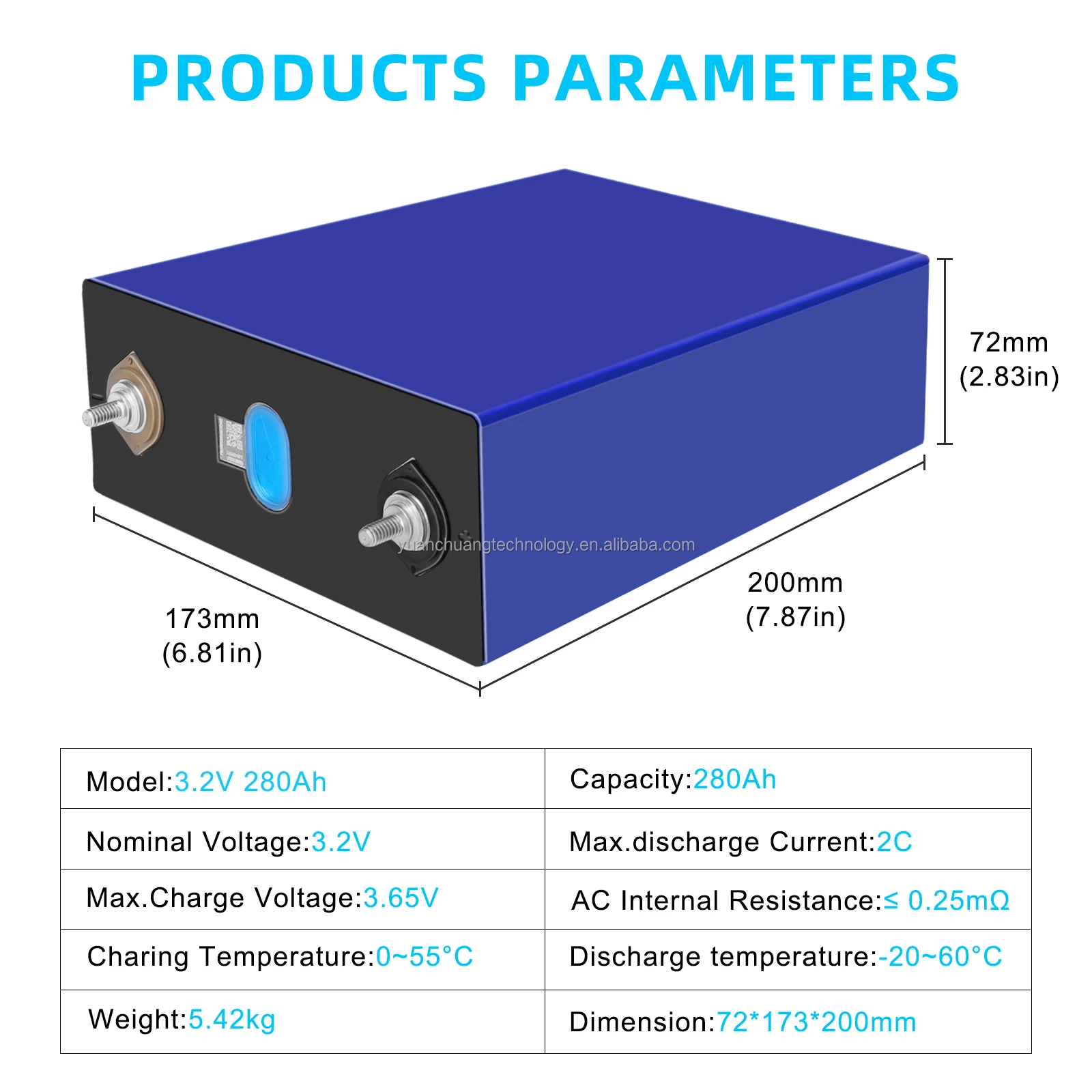

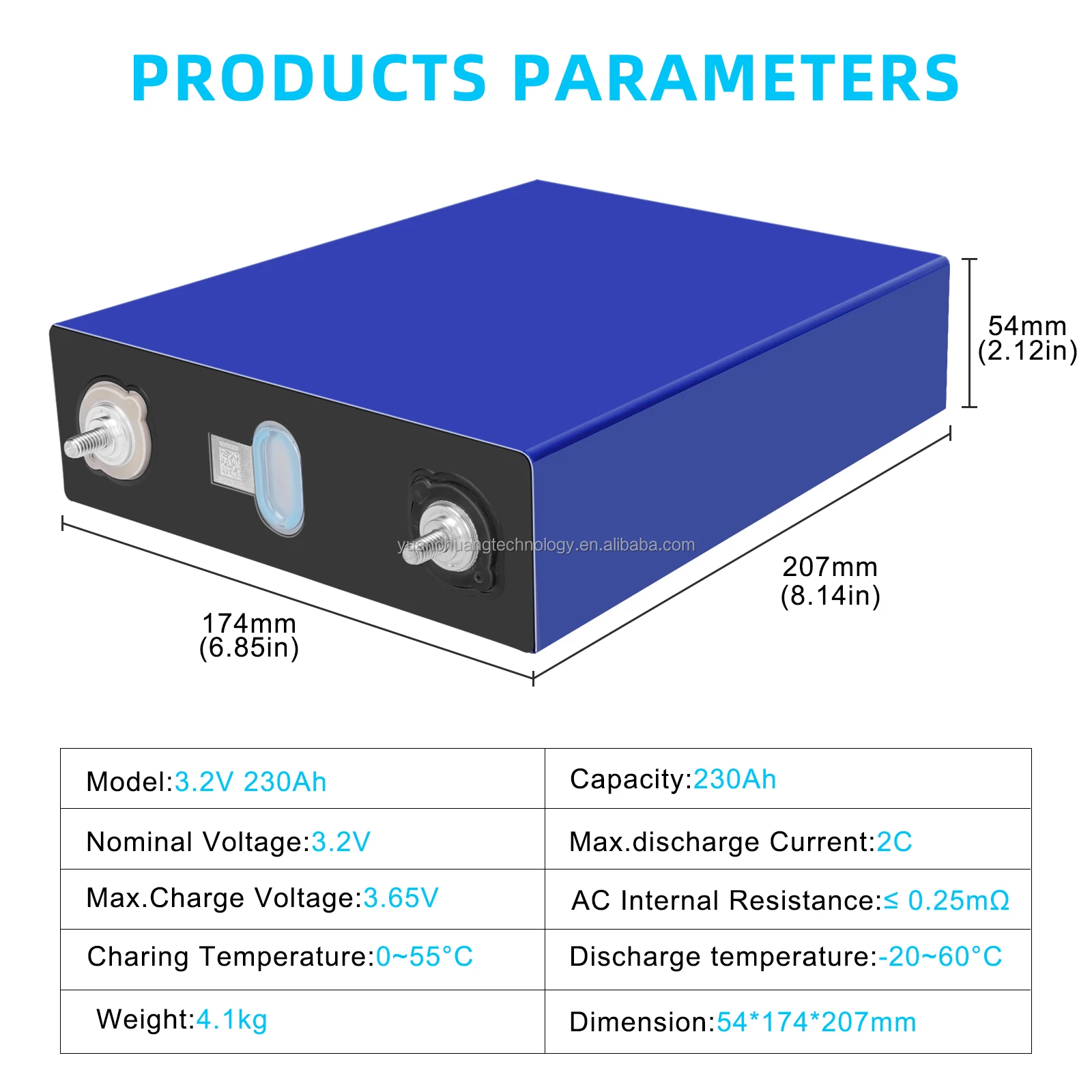

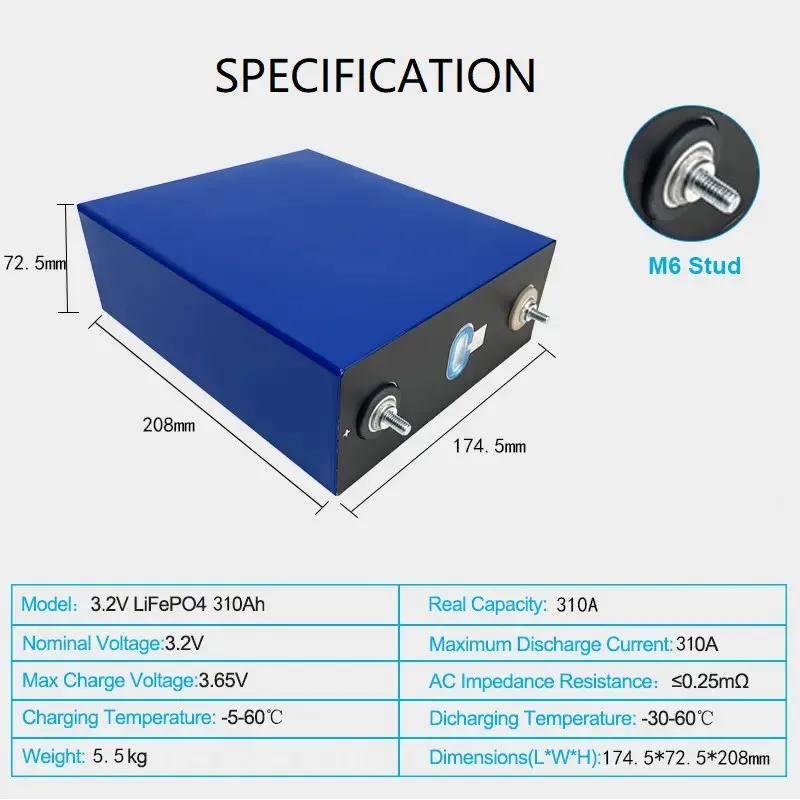

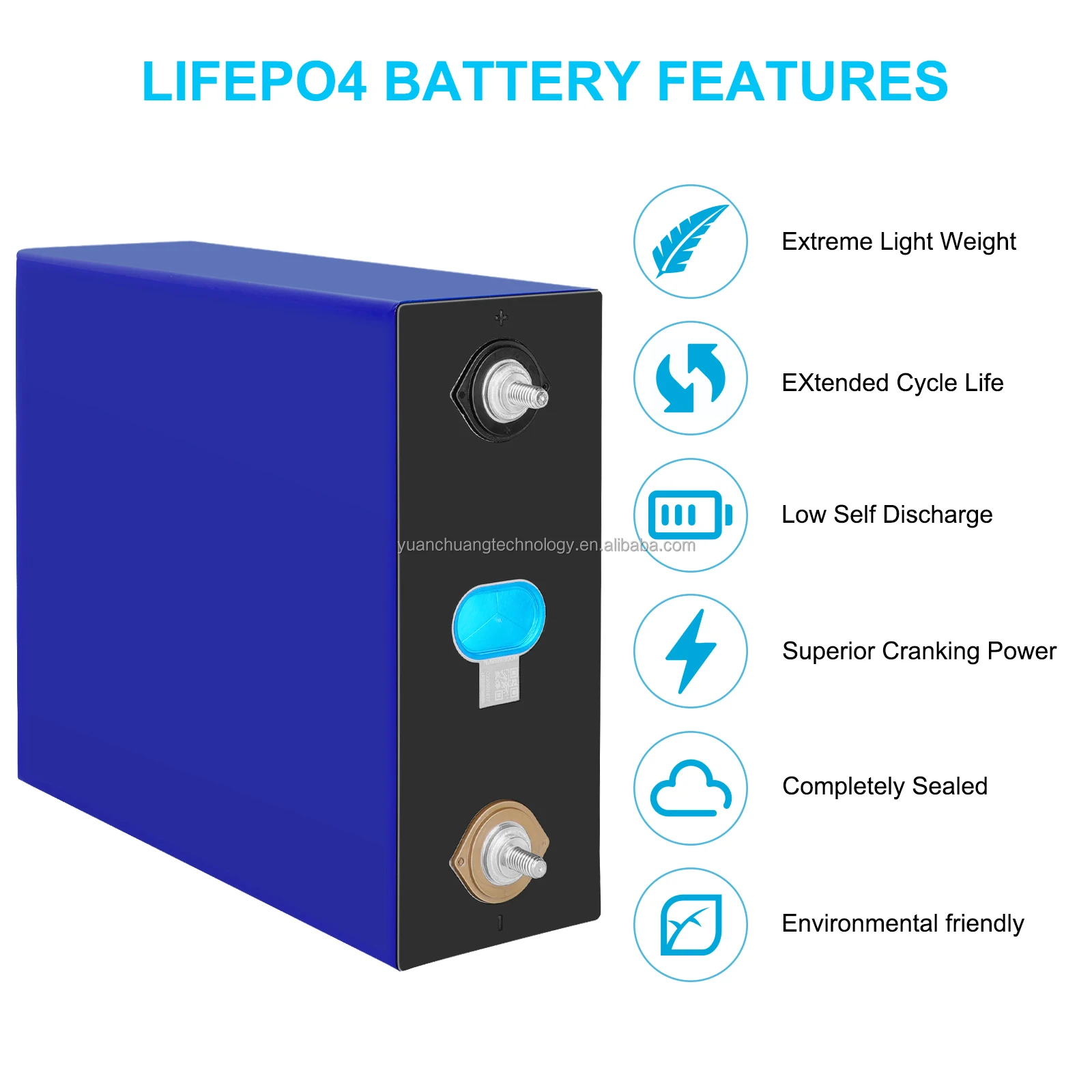

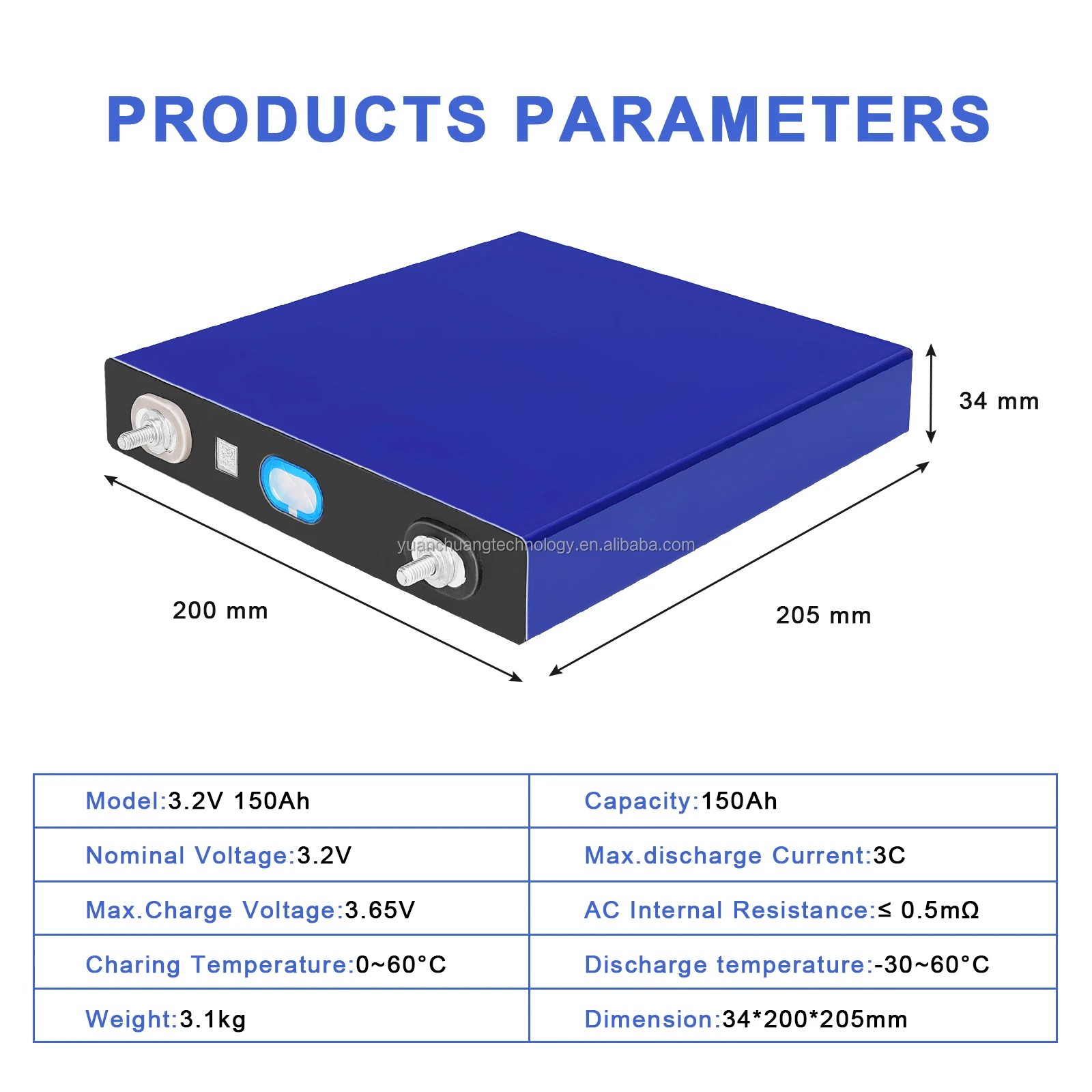

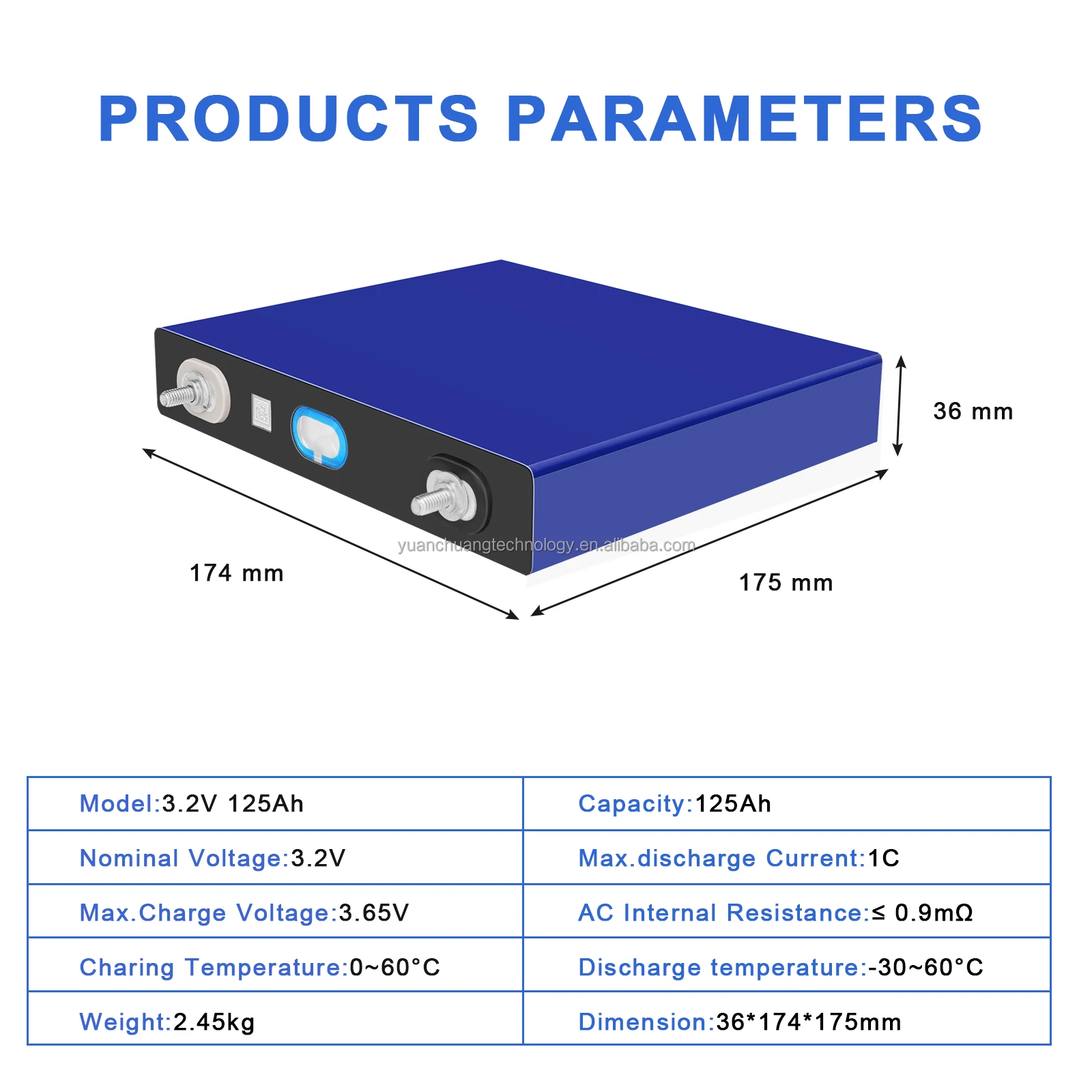

3.2v Lifepo4 Prismatic Cell | ||||||||
3.7v NMC Prismatic Cell | ||||||||

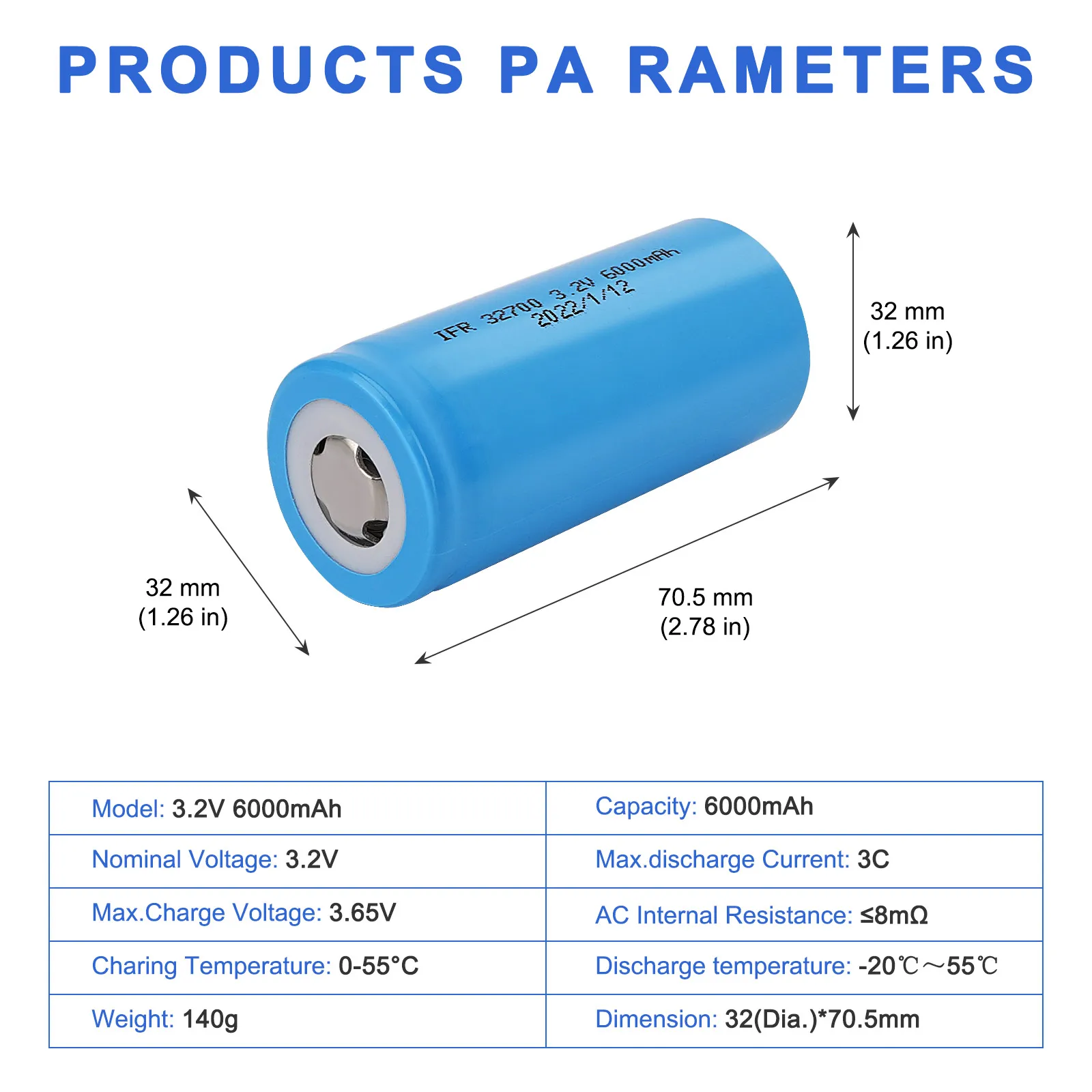

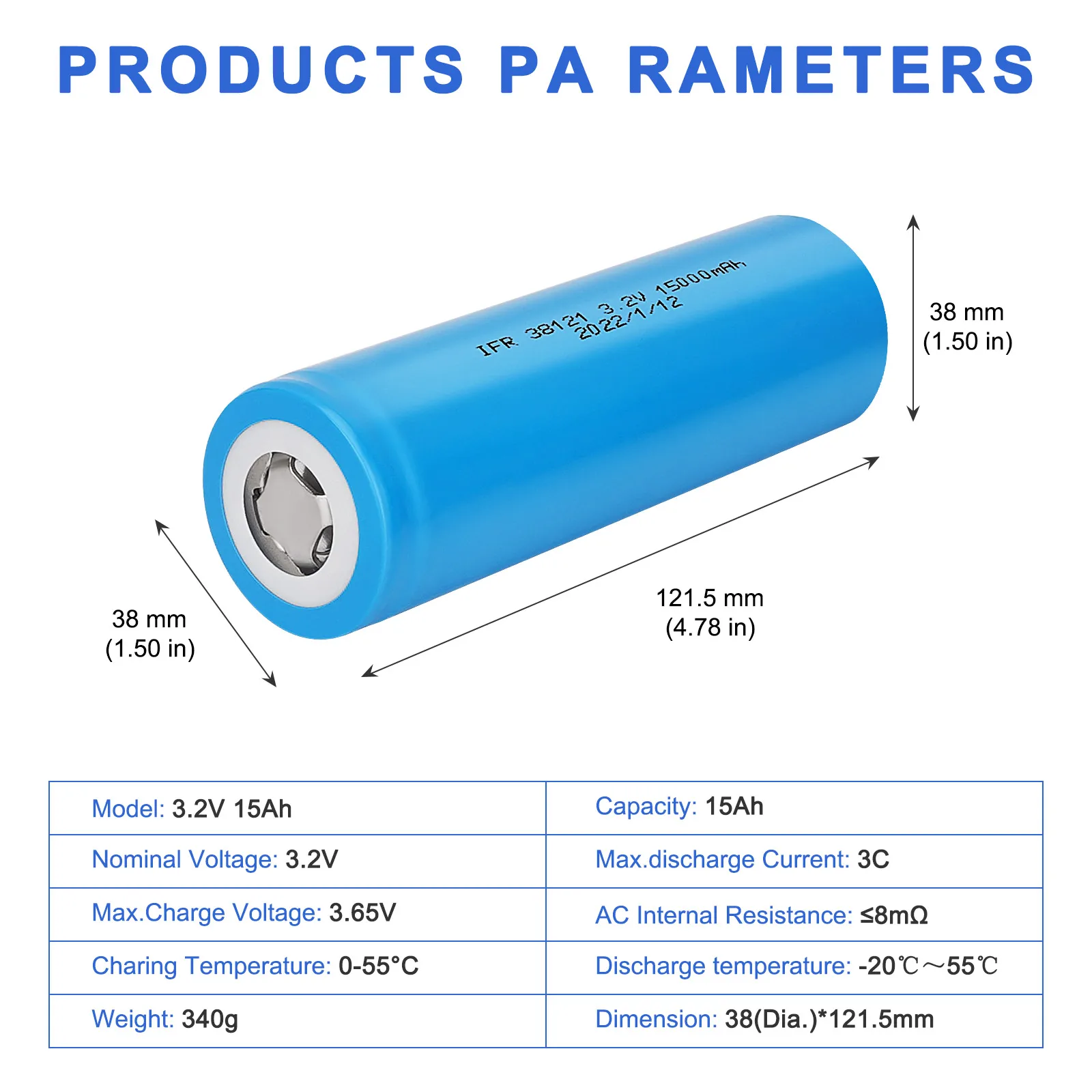

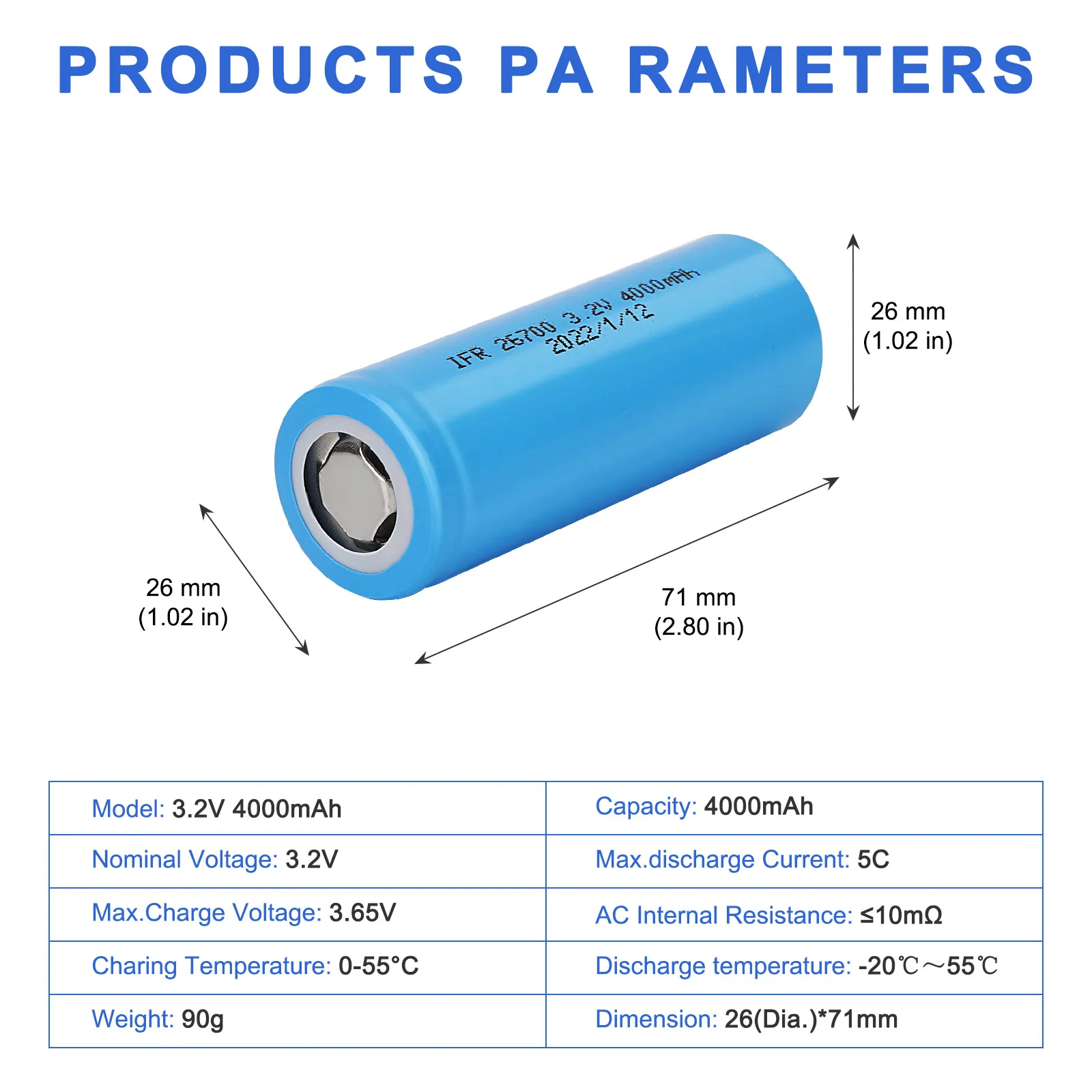

3.2v Lifepo4 Cylindrical Cell | ||||||||
