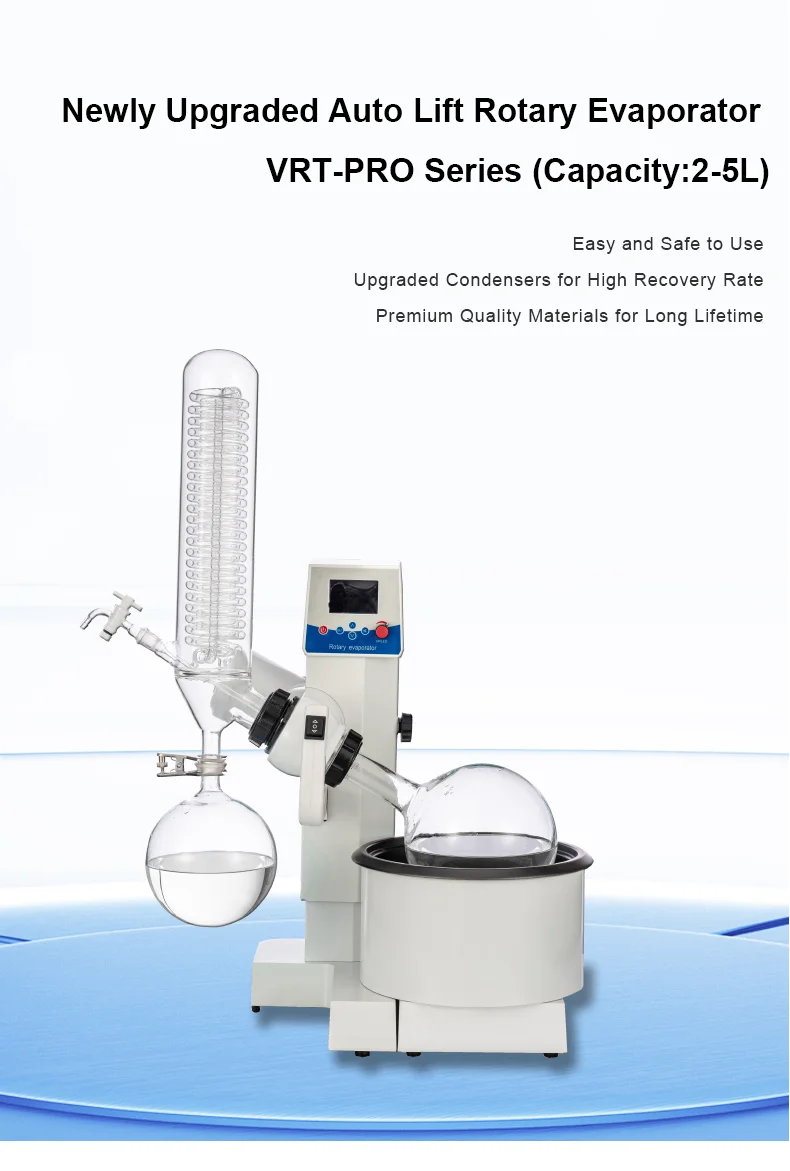

Newly Upgraded Auto Lift 2L-5L Rotary Evaporator/Rotovap (VRT-PRO Series)
Auto Lift 2L-5L Rotary Evaporator/Rotovap
Easy and Safe to Use
Upgraded Condensers for High Recovery Rate
Premium Quality Materials for Long Lifetime





Application cases:
Post-extraction solvent recovery for herbal medicine (like hemp oil concentration) Water Solution Evaporation/Concentration
Concentration of Milk, Juice and other Beverage

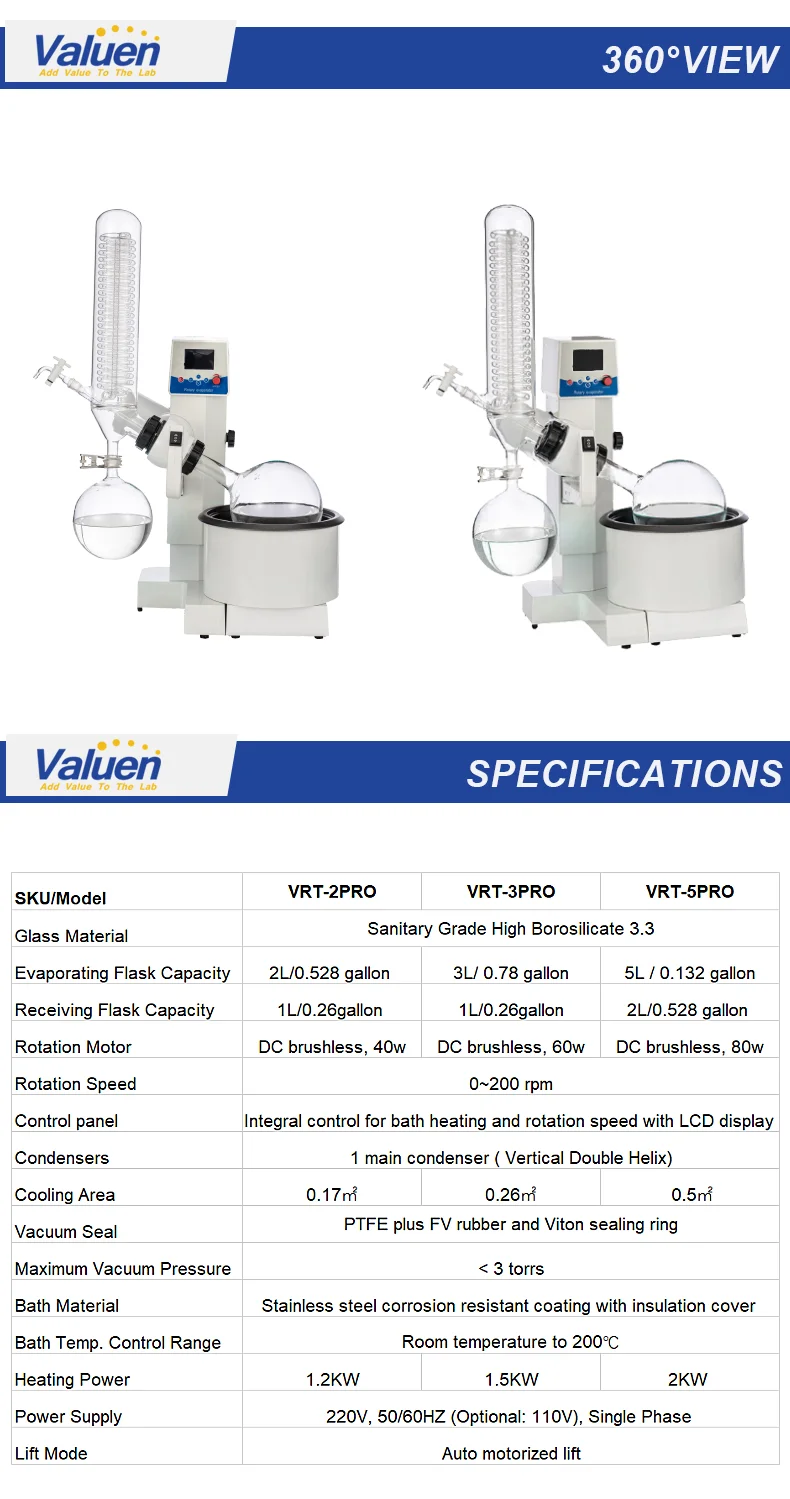

SPECIFICATIONS
SKU/Model
VRT-2PRO
VRT-3PRO
VRT-5PRO
Glass Material
Sanitary Grade High Borosilicate 3.3
Evaporating Flask Capacity
2L/0.528 gallon
3L/ 0.78 gallon
5L / 0.132 gallon
Receiving Flask Capacity
1L/0.26gallon
1L/0.26gallon
2L/0.528 gallon
Rotation Motor
DC brushless, 40w
DC brushless, 60w
DC brushless, 80w
Rotation Speed
0~200 rpm
Control panel
Integral control for bath heating and rotation speed with LCD display
Condensers
1 main condenser ( Vertical Double Helix)
Cooling Area
0.17㎡
0.26㎡
0.5㎡
Vacuum Seal
PTFE plus FV rubber and Viton sealing ring
Maximum Vacuum Pressure
< 3 torrs
Bath Material
Stainless steel corrosion resistant coating with insulation cover
Bath Temp. Control Range
Room temperature to 200℃
Heating Power
1.2KW
1.5KW
2KW
Power Supply
220V, 50/60HZ (Optional: 110V), Single Phase
Lift Mode
Auto motorized lift


Features
- Large condensing area with high recovery rate

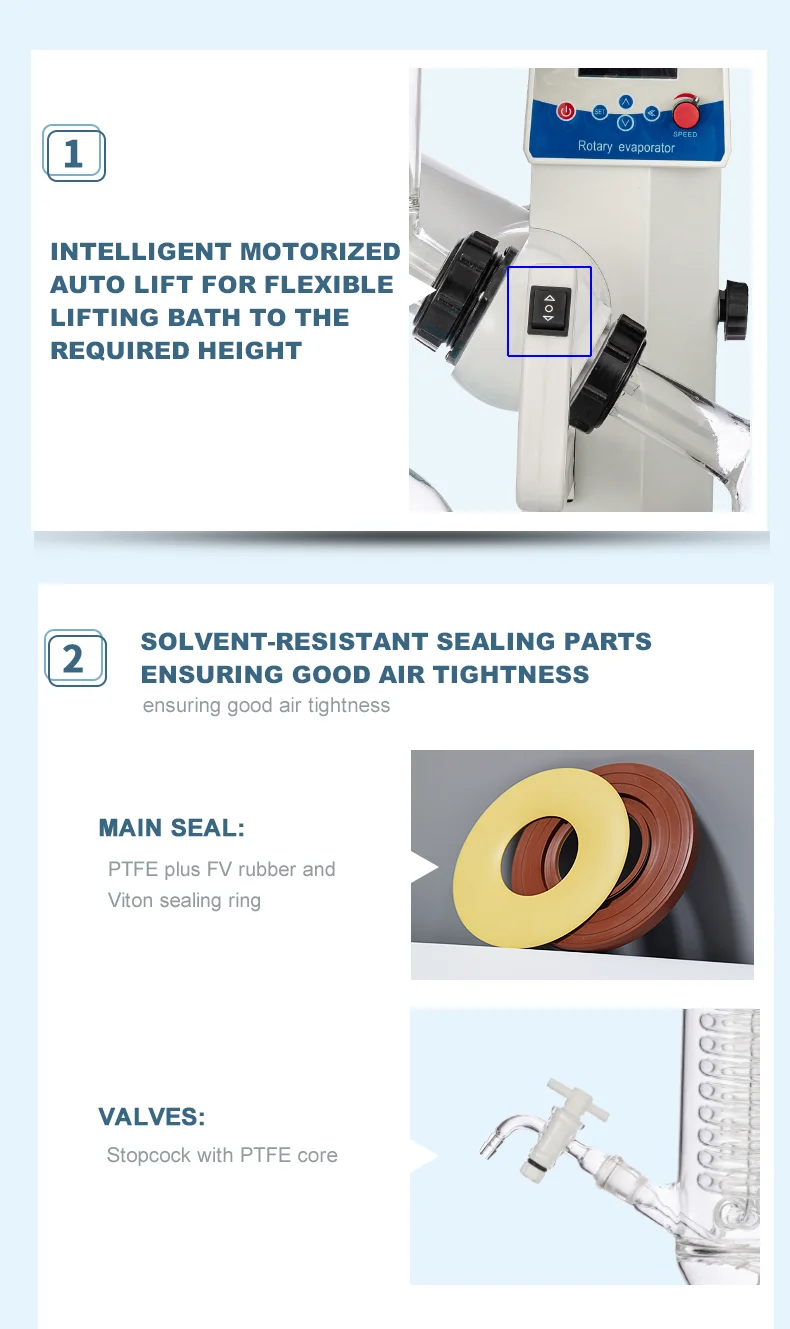

- Solvent-resistant sealing parts like PTFE plus FV rubber and Viton, ensuring good air tightness
- Specialized brushless DC motor with compact structure, powerful, quiet, and durable
- Intelligent motor lift for flexible lifting bath to the required height

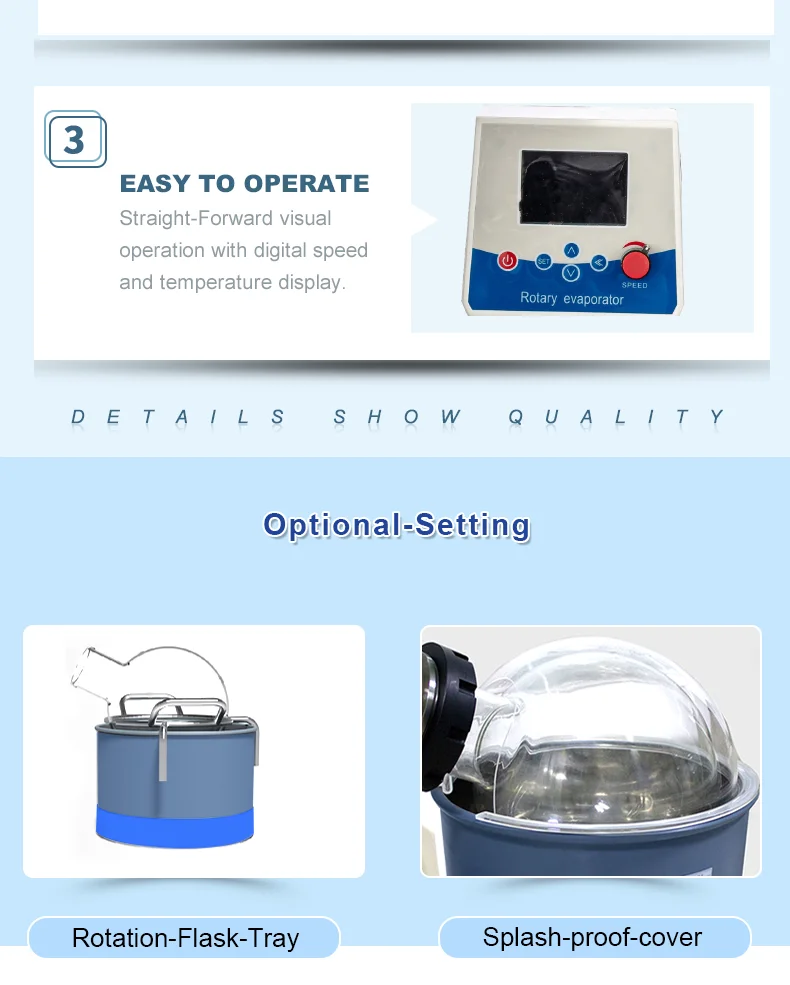

- Easy, straight-forward visual operation with digital speed and temperature display.
- Safety guarantee with overload, overheating, overcurrent protection
- Long lifetime made by using selected quality high borosilicate glass 3.3, sealing, mechanical and electrical parts

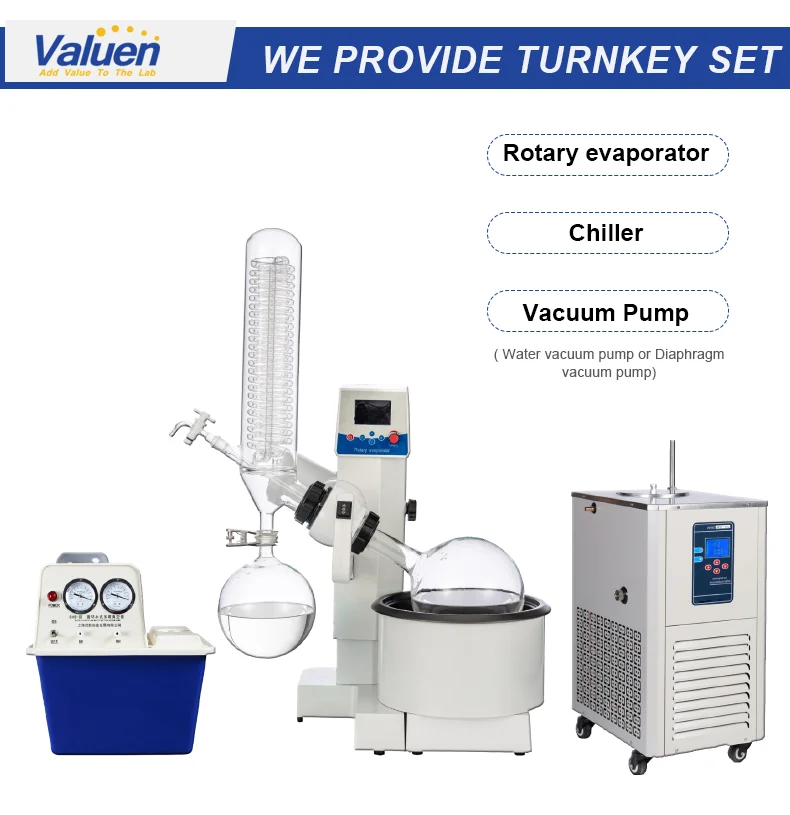

We Provide Turnkey Set.
Rotary evaporator
Chiller
Vacuum Pump
( Water vacuum pump or Diaphragm vacuum pump)
