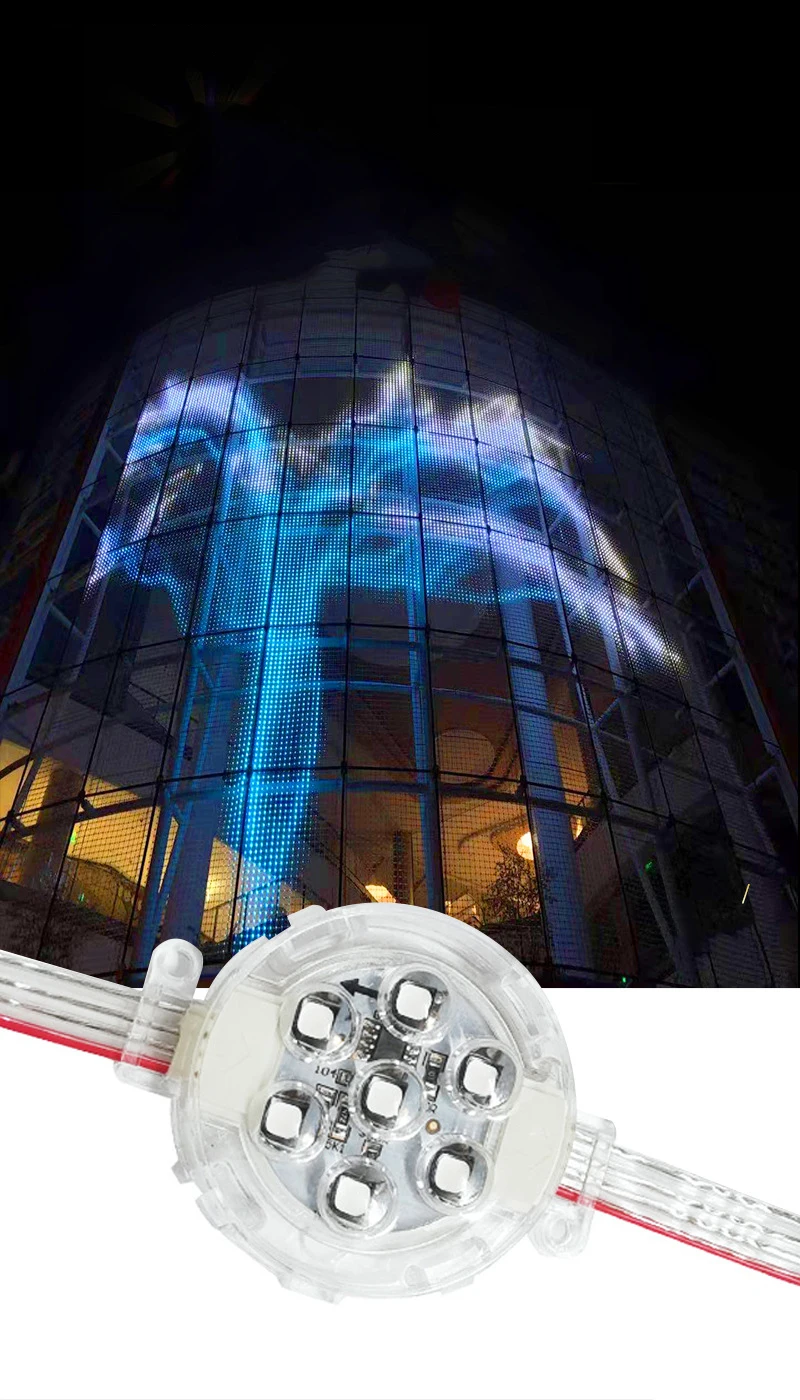

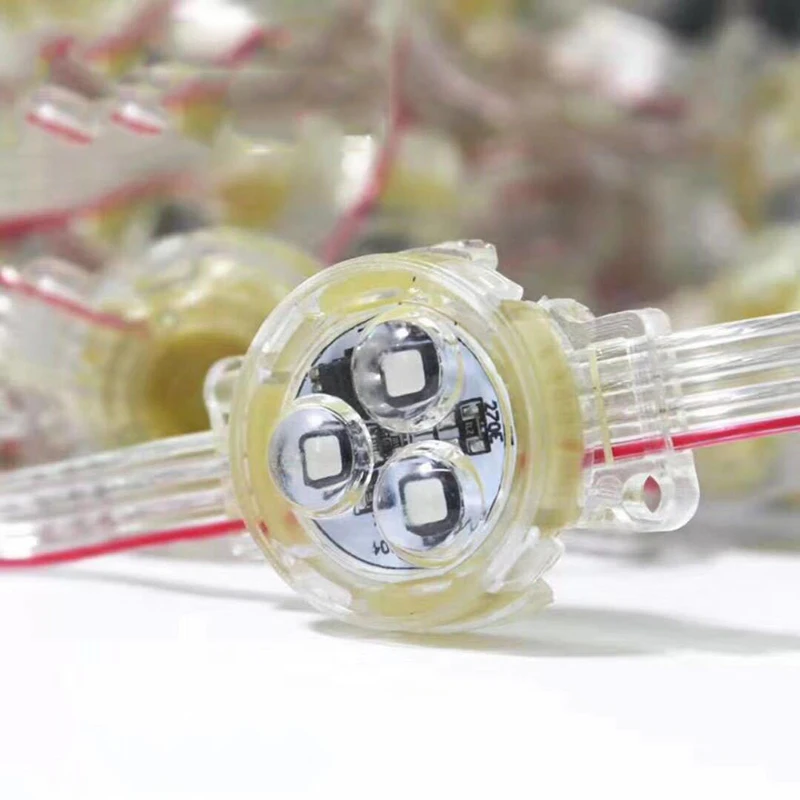

Project Led Dot Light Decoration 50mm smd5050 IP65 Waterproof Dc24v Point Pixel Light

Specification of Led Dot Light :

(1) Break-point continuous transmission led pixel string for outdoor application.

(2) Each pixel individually control with 10086IC / 8206IC , 1 led broken , not influence other led light .

(3) 30pcs per chain with 12 cm space (standard length), the cable also could customization.

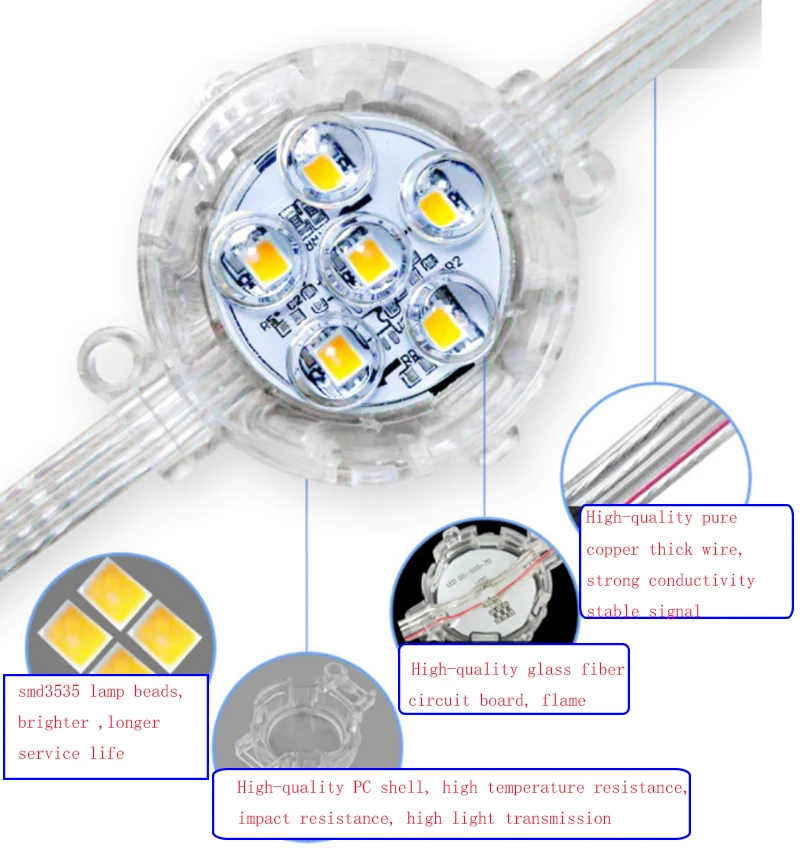

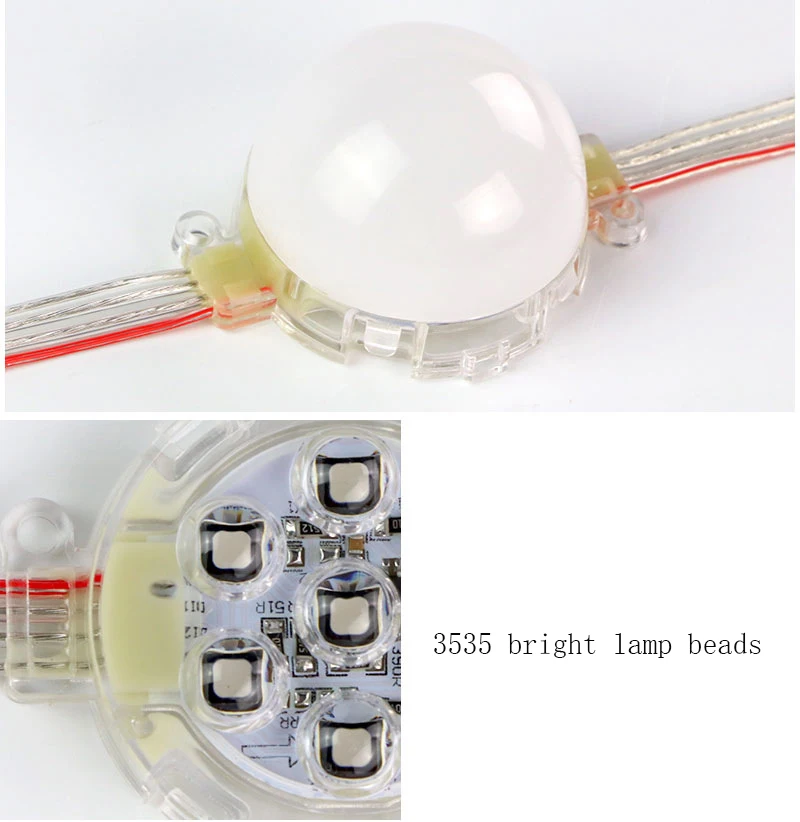

(4) There is 7 pcs super bright smd3535 RGB LED inside of each lamp.

(5) The connectors are waterproof, the Male with Pin is Input , input plug is male plug

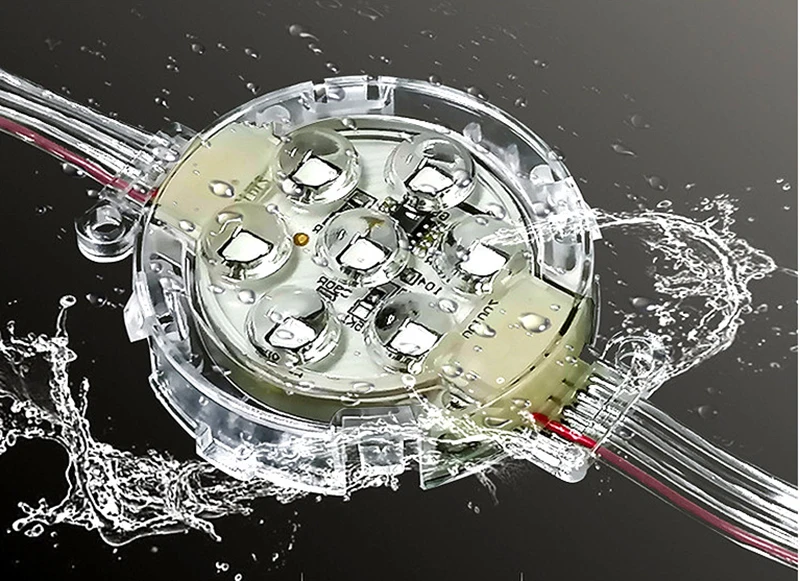

(6) The whole string light is waterproof IP67

(7) Controller System:SD controller , DMX controller , Artnet and so on.

	Model Name	CP-IC507T-8206
	IC Chip	1008ic / 8206IC
	Led Chip	Epister smd3535 led chip
	Led Qty	7PCS
	Voltage	DC24V
	Watt	1.5W
	Warranty	2 Years
	Certification	CE ROHS

Led Dot Light description :

	Led Dot Light detail

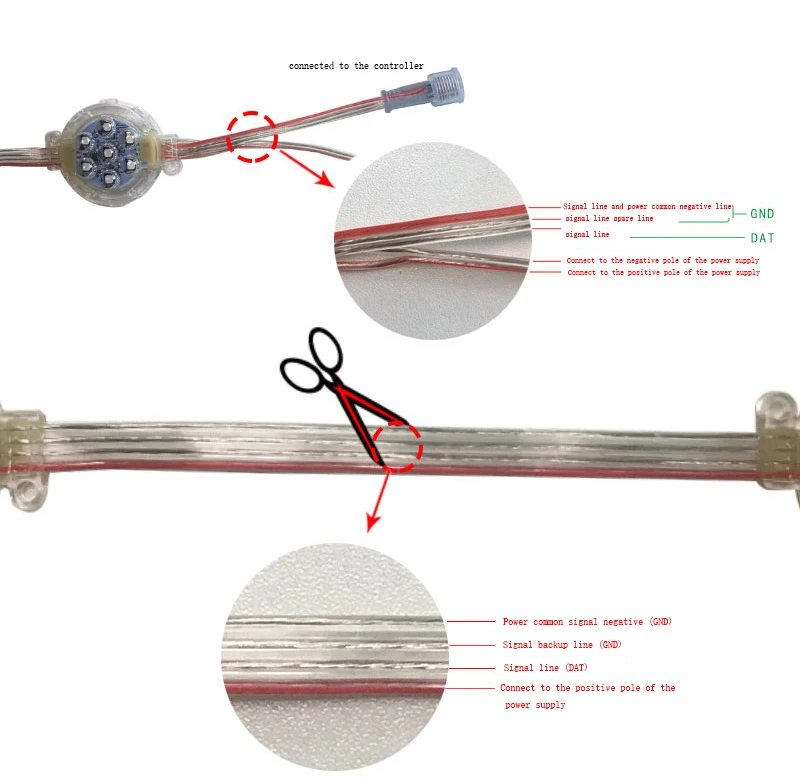

	Break-point continuous transmission, with 4 cable , 2 singal cable , 1 as Spare signal line , 1 led broken , not influence other led light

Led Dot Light detail

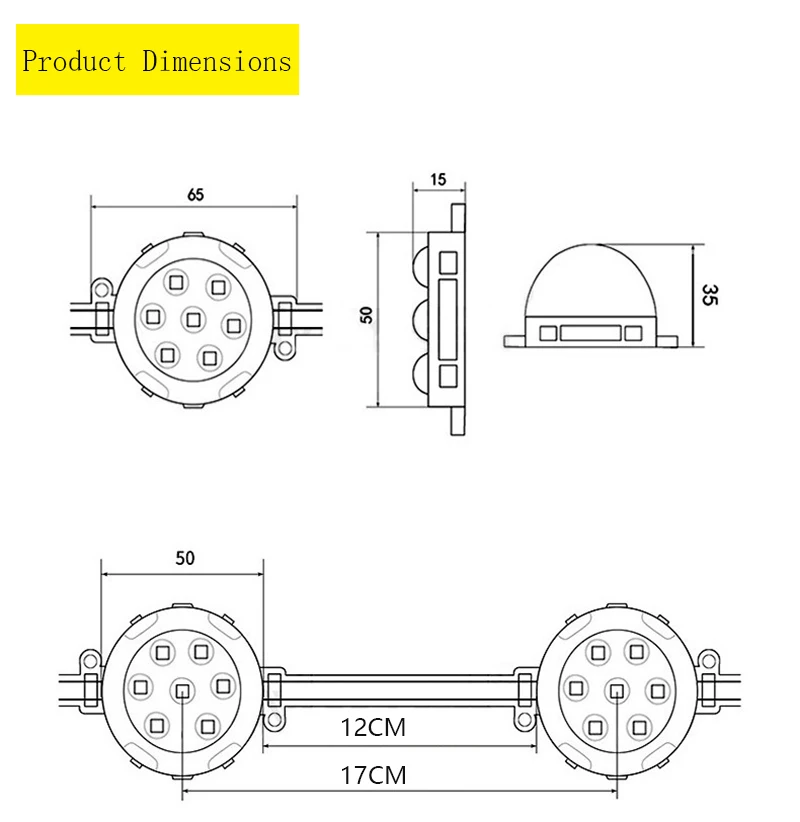

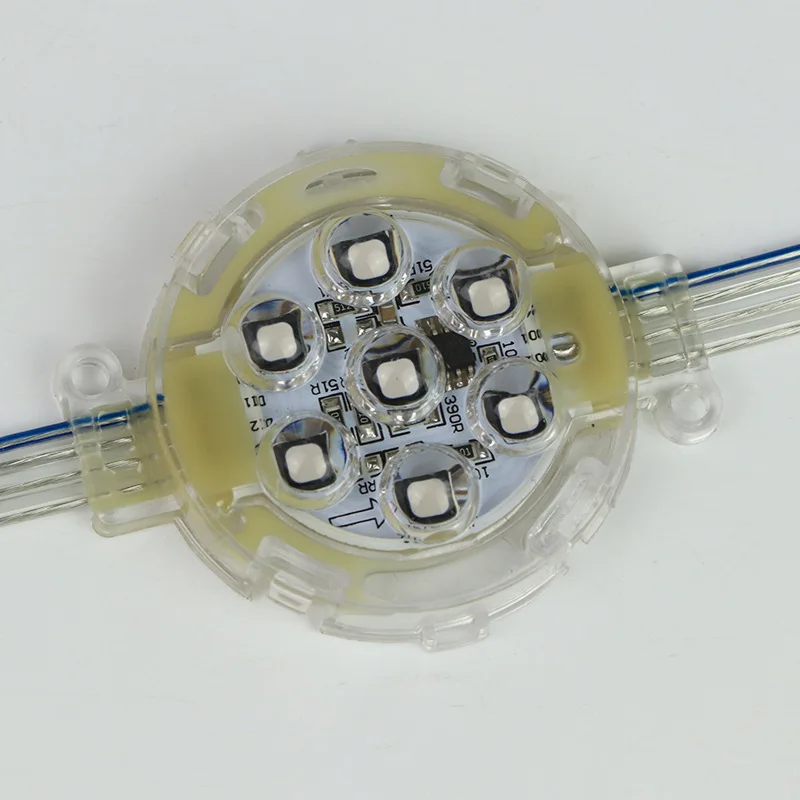

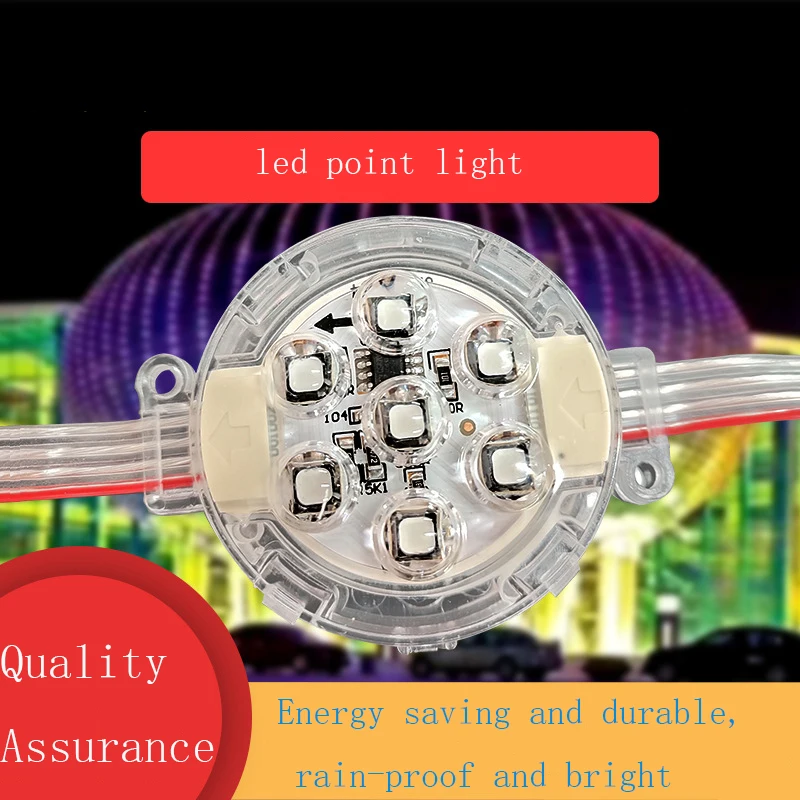

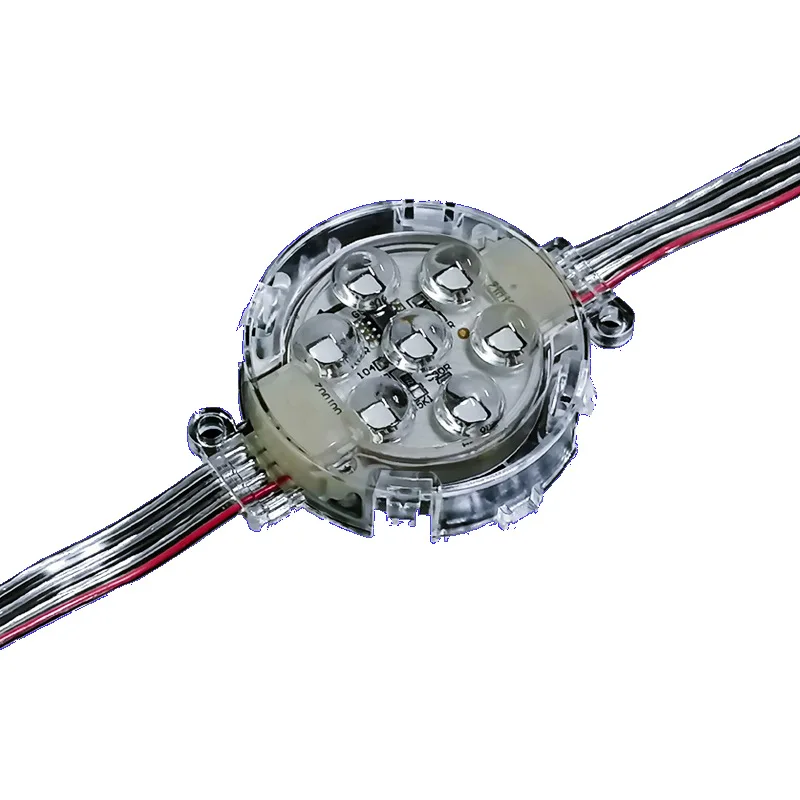

the size is 50mm , with 7 leds , cable length is 12cm , also can customized ,30 leds / string

	Led Dot Light detail

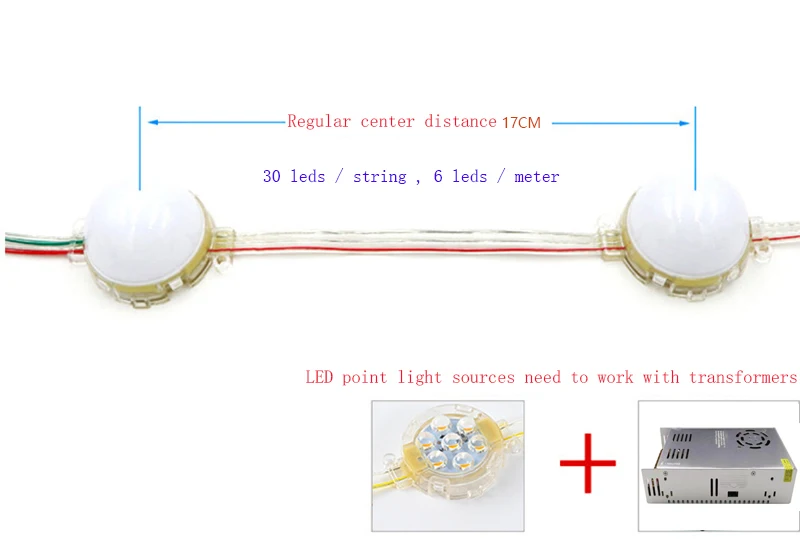

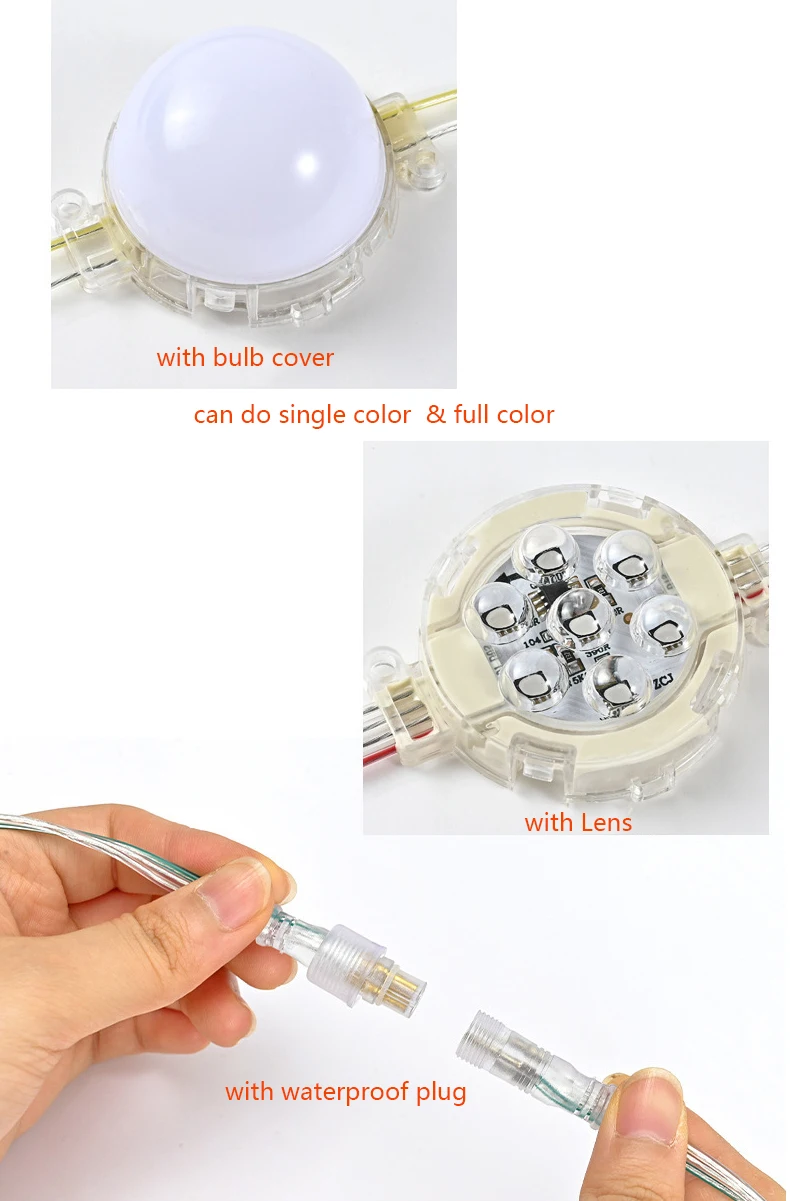

	can do this led light with lens , also can do with bulb cover .

Led Dot Light detail
30 leds / string , full color with 8206ic , need work with controller and power supply

	Led Dot Light detail

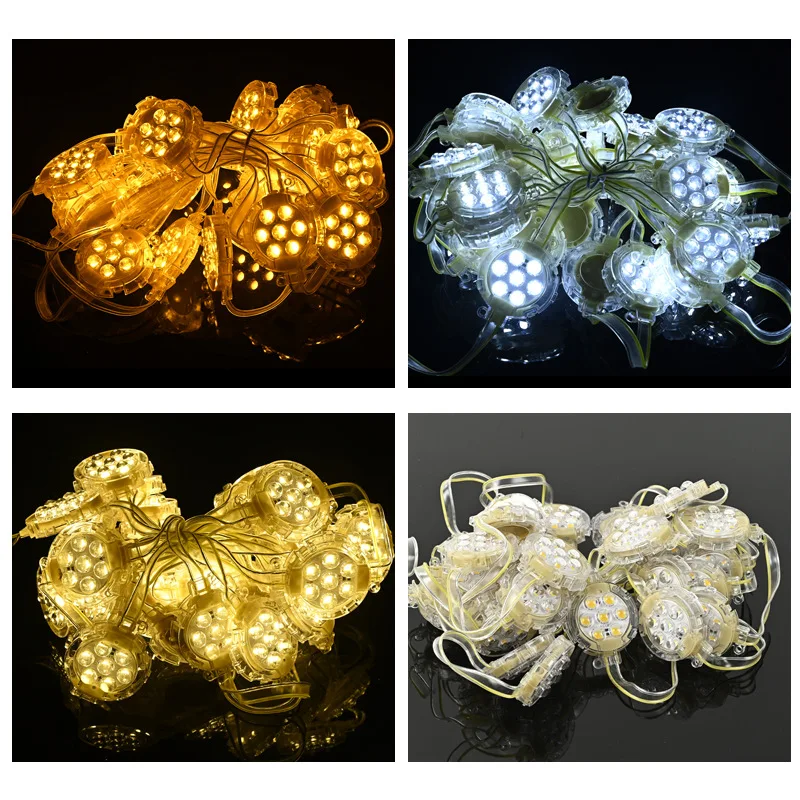

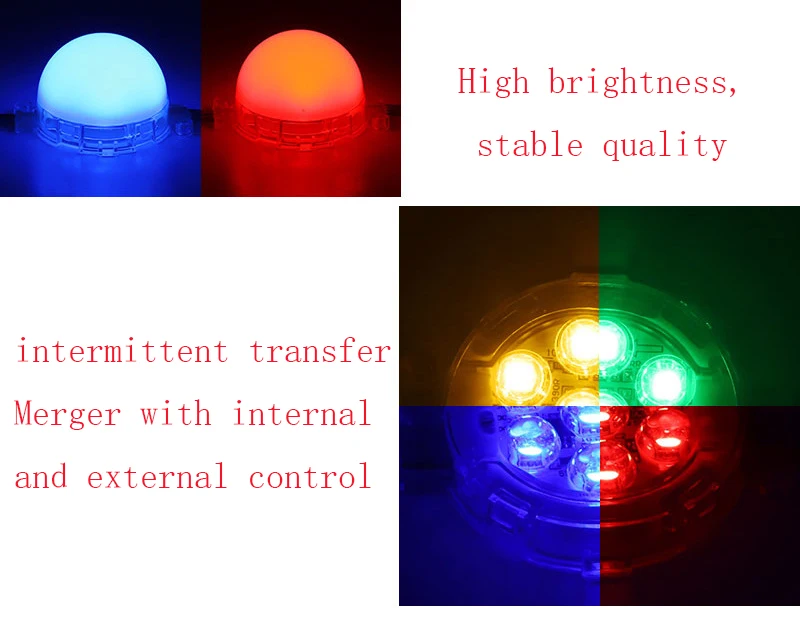

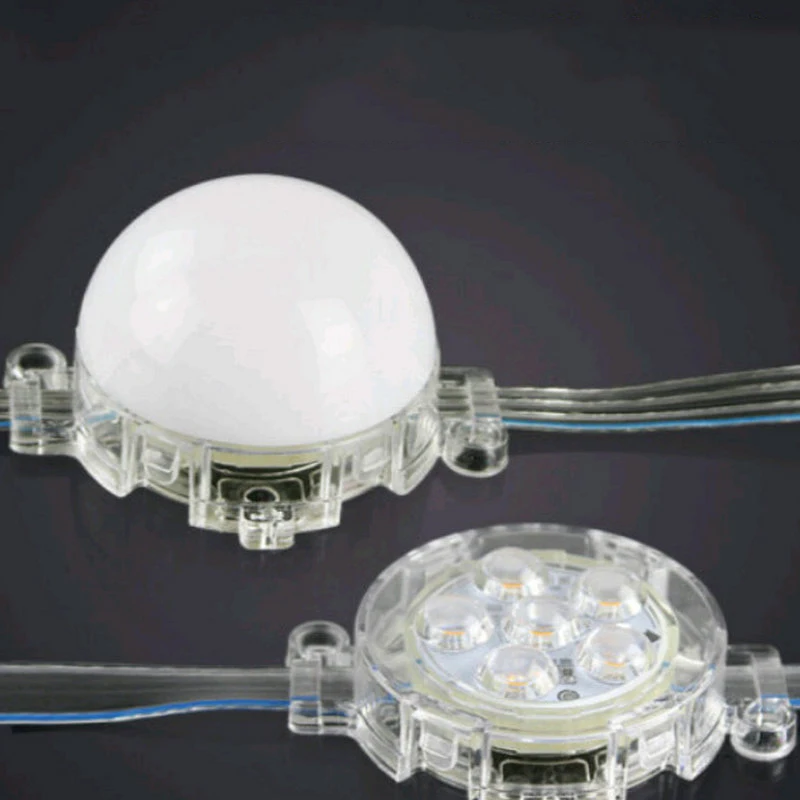

	the color have full color / single color for choose . the cover have bulb cover , with lens for choose .

Similar products :

this type also can do 30mm

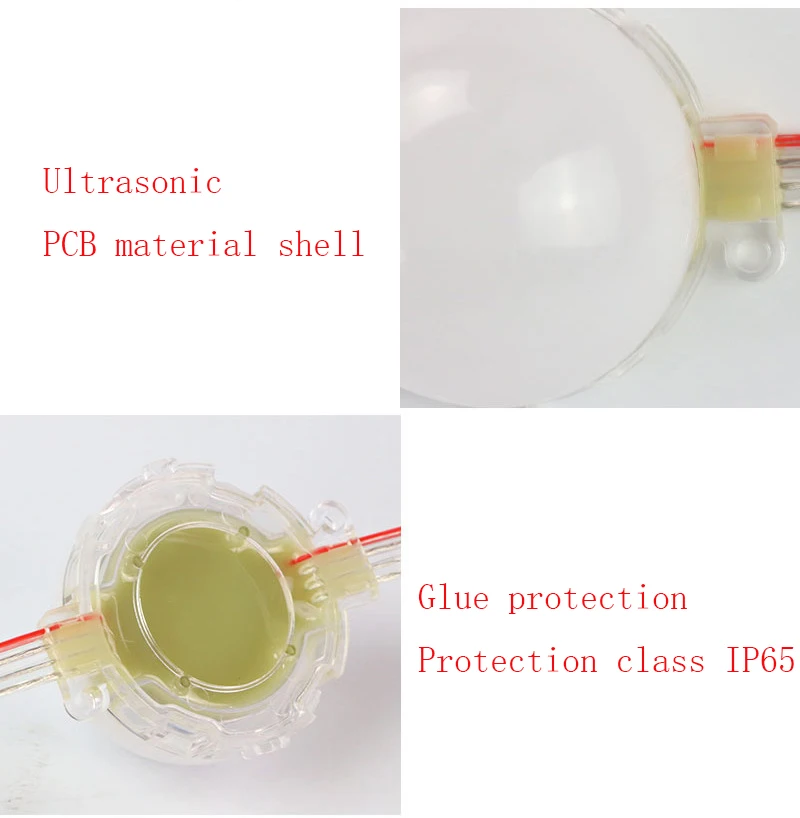

(1) LED Point Light, glue inject fully into, so strong waterproof; PU glue sealing,not easy to crack,High protection grade

(2) Using Taiwan Epistar chip, with high brightness, lighting color consistency, good color saturation, strong stability

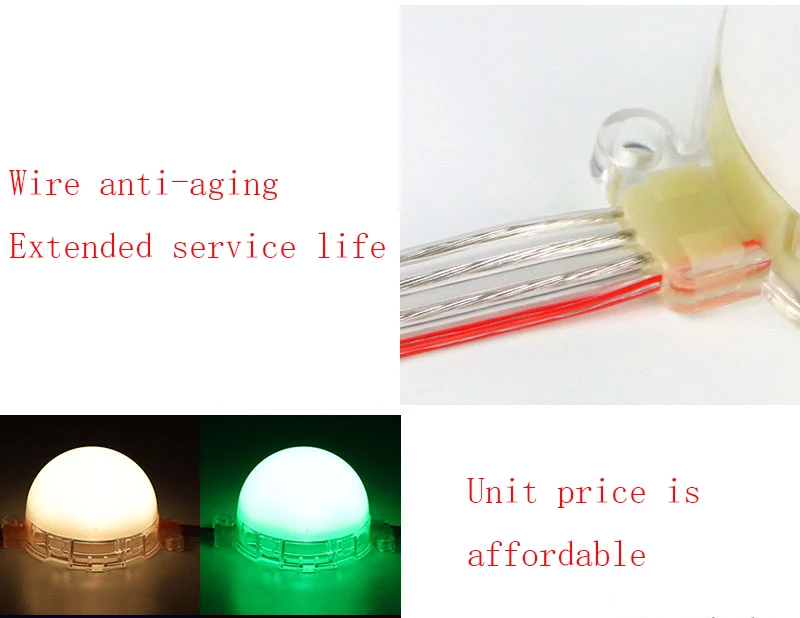

(3) Cables and case are using antu-cold, anti UV, flameresistant, can be used in outdoor for long time

(4) Made by SMD5050 / SMD3535 RGB high brightness LED, with big view angle

(5 )With special snap joint construction, suitable for all kind of board. Directly to install after dig the holes,installation is easy and quickly, very convenient

50mm pixel leds usually application for  :

1.Channel letter lighting

2.Advertising signage lighting

3.Lighting source for light box, lighting box

4.Advertisement bill board inside led lighting

5.Small lighting unit with waterproof IP68

6.Holiday, event, show, exhibition, DIY lighting and home decoration use

Q1. Can I have a sample order for Led Dot Light ?

A: Yes, we welcome Led Dot Light order to test and check quality. Mixed samples are acceptable.

Q2. What about the Led Dot Light lead time?

A: Led Dot Light Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100000 pieces

Q3. Do you have any MOQ limit for Led Dot Light ?

A: Low MOQ, 100 pcs Led Dot Light for sample checking is available

Q4. How do you ship the Led Dot Light and how long does it take to arrive?

A: We usually ship the Led Dot Light by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Led Dot Light ?

A: Firstly let us know your requirements or application of the Led Dot Light
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Led Dot Light ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our Led Dot Light waterproof strings sample.

Q7: Do you offer guarantee for Led Dot Light ?

A: Yes, we offer 2 years warranty to our Led Dot Light

Q8: How to deal with the Led Dot Light  faulty?

A: Firstly, Our Led Dot Light  are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution  including re-call according to real situation.
