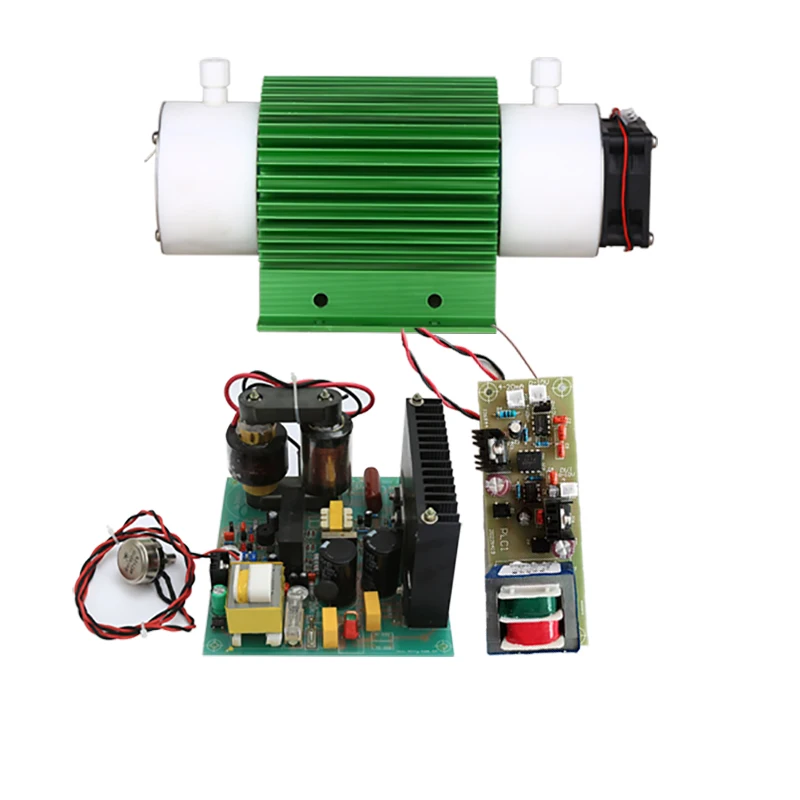

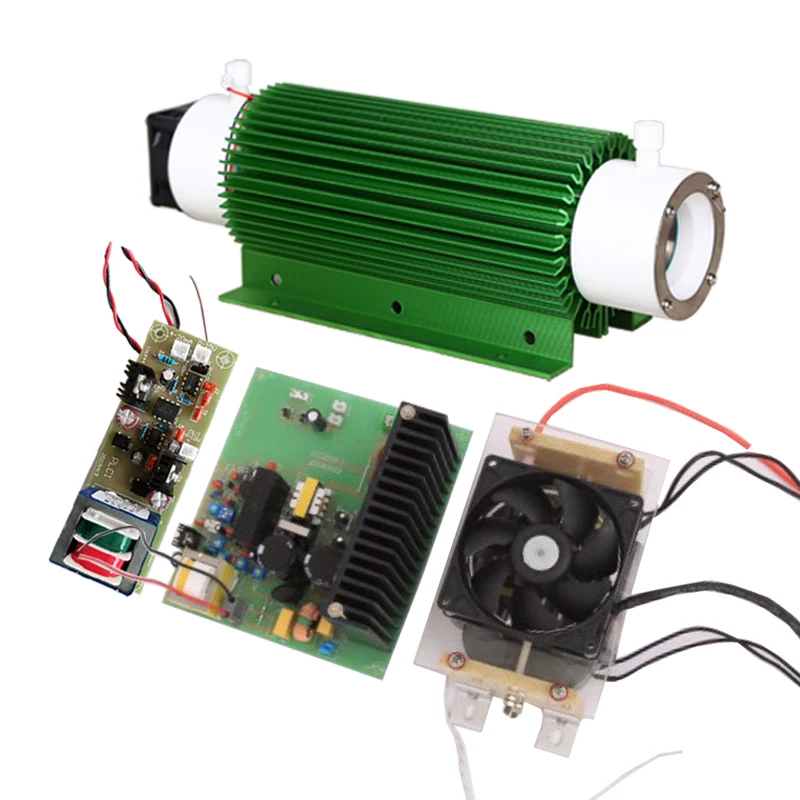

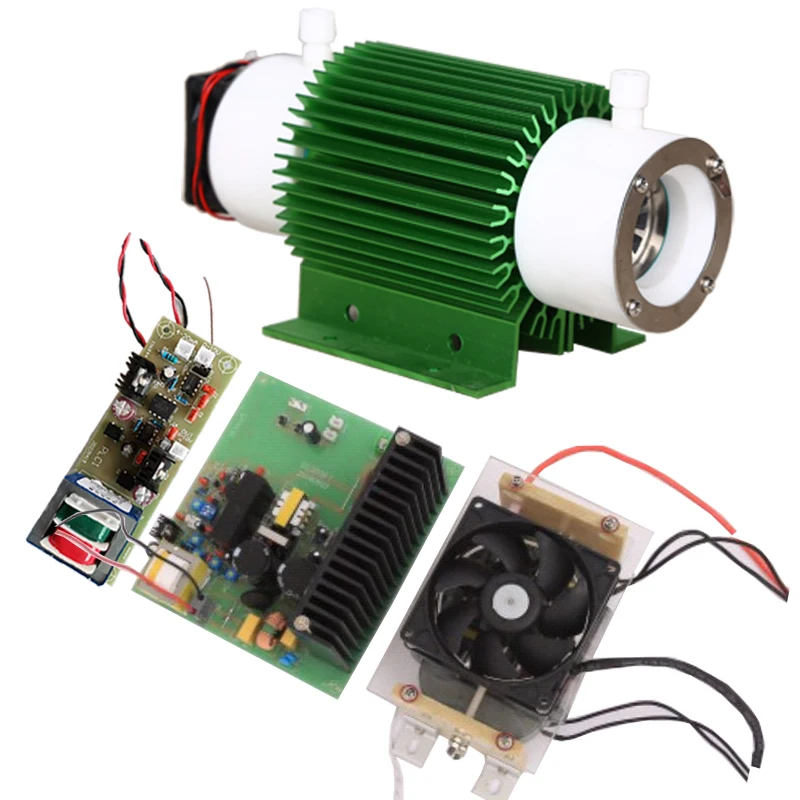

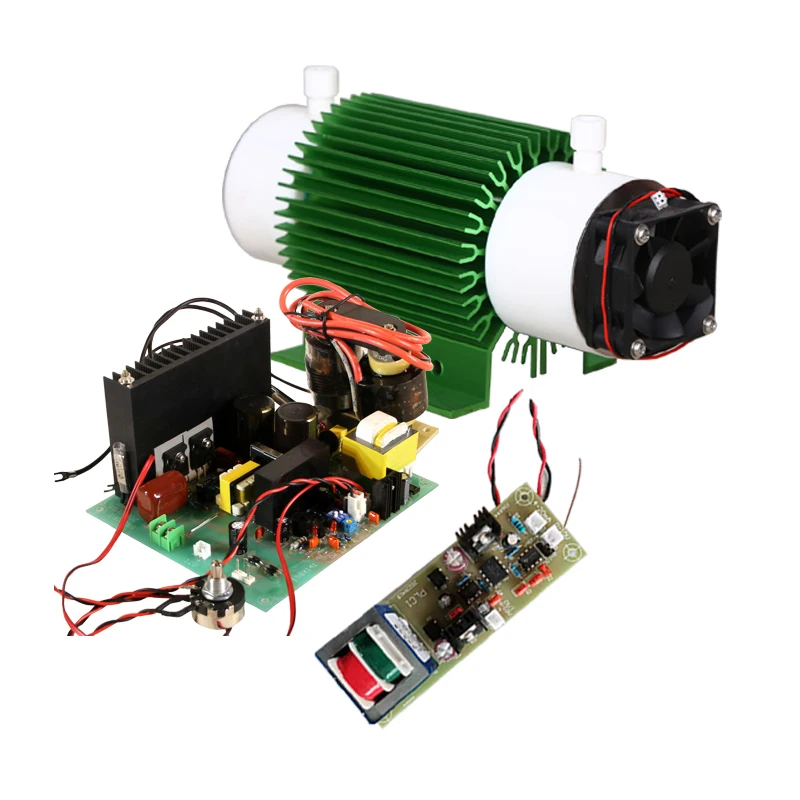

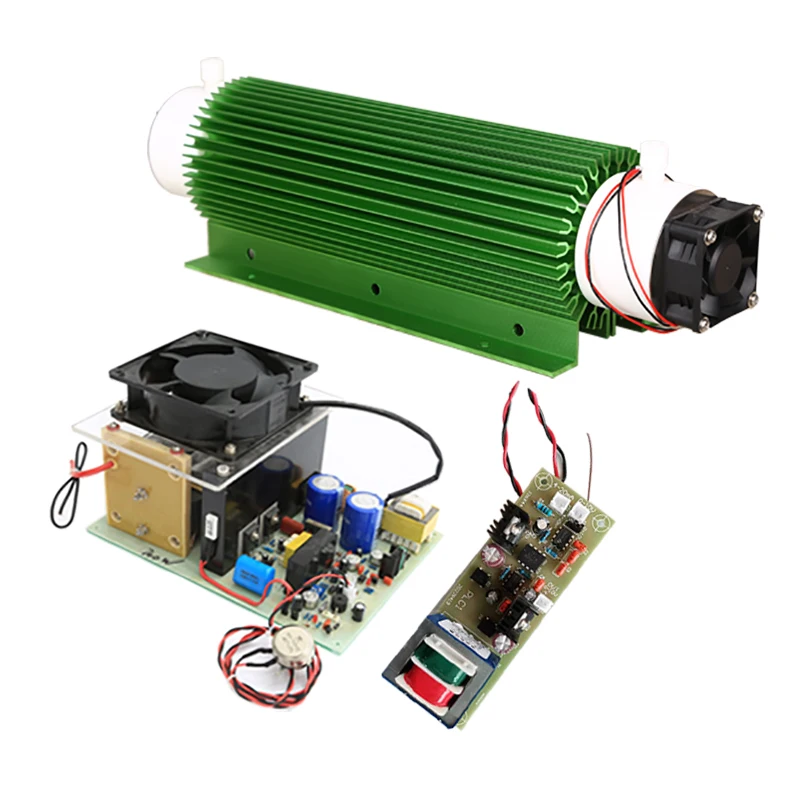

OGP Adjustable 30G Ozone Generator Cell Air Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants
OGP Adjustable 30G Ozone Generator Cell Air-Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants

OGP Adjustable 30G Ozone Generator Cell Air Cooled Quartz Tube Ozone Water Disinfection Control for Manufacturing Plants

Share on (1600791736080):


Price:

Quantity:


Product Overview

Description



Products Description


PLC control type OGP-BC series ozone tube with power supply
It is adopted Imported material of  high pure silica quartz external electrode,SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connections which are best anti-oxidation material for ensuring several years running.


1- Imported material of high pure silica quartz external electrode, SS 316L of internal electrode,high purity fluorine rubber ring seal, teflon connection.
2- Extremely low rate of ozone decay & high ozone concentration.Ozone concentration can be around 60~130Mg/L, which is much higher than conventional products.
3- Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4-PLC control type power supply :
Good heat dissipation,High work efficiency, it can be control by PLC display.
5-Easy to maintain and install
Air cooling for both internal and external electrode, thus it’s easy to maintain and installation



OGP-BC12G PLC control type
OGP-BC15G PLC control type
OGP-BC20G PLC control type


OGP-BC30G PLC control type
OGP-BC40G PLC control type
OGP-BC50G PLC control type




PRODUCT SPECIFICATIONS


Item
Unit
Model : OGP-BC12GPLC , OGP-BC15GPLC ,OGP-BC20GPLC ............OGP-BC50GPLC
OGP-BC

OGP-BC

OGP-BC
OGP-BC
OGP-BC
12G-PLC
15G-PLC
20G-PLC
30GPLC
40G-PLC
50G-PLC
Ozone output
G/Hr
9.6~12.24
9.78~16.05
13.14~18.24~22.6
17.5~25.5~30.5~35.4
16.2~31.2~46.8
50
Oxygen flow rate
LPM
2~3
2~5
3~5~7.5
3~5~7~10
3~8~15
10~15
O3concentration
Mg/L
60~130
81.5~53.5
73~60.8~53
97.4~85~72.7~59
90~65~52
Power
KW
0.15
0.2
0.3
0.33
0.55
0.7
Cooling method
/
Air cooling
Air inlet&outlet
mm
ID6
ID6
ID6
ID6
ID6
ID6
O3 output adjustable range
%
20~100
Dew point
℃
45
Working voltage
V/Hz
110V 60HZ /220V 50HZ
Ozone tube size
mm
183 * 115 * 135
223 * 115 * 135
295* 115 * 135
366*115*135
443 * 115 * 135
523*115*135
Power supply size
mm
158*141*90
158*141*90
177*161*110
240*180 *142
240*180 *142
240*180 *142
PLC board
signal output 0~10V or 4~20mA
PLC connecting board size
mm
126*44*38mm
Ozone tube weight
kg
1.9
2.4
3
4.04
5.7
6.8
Power supply weight
kg
1.75
1.75
3.0
3.0
3.29
3.29

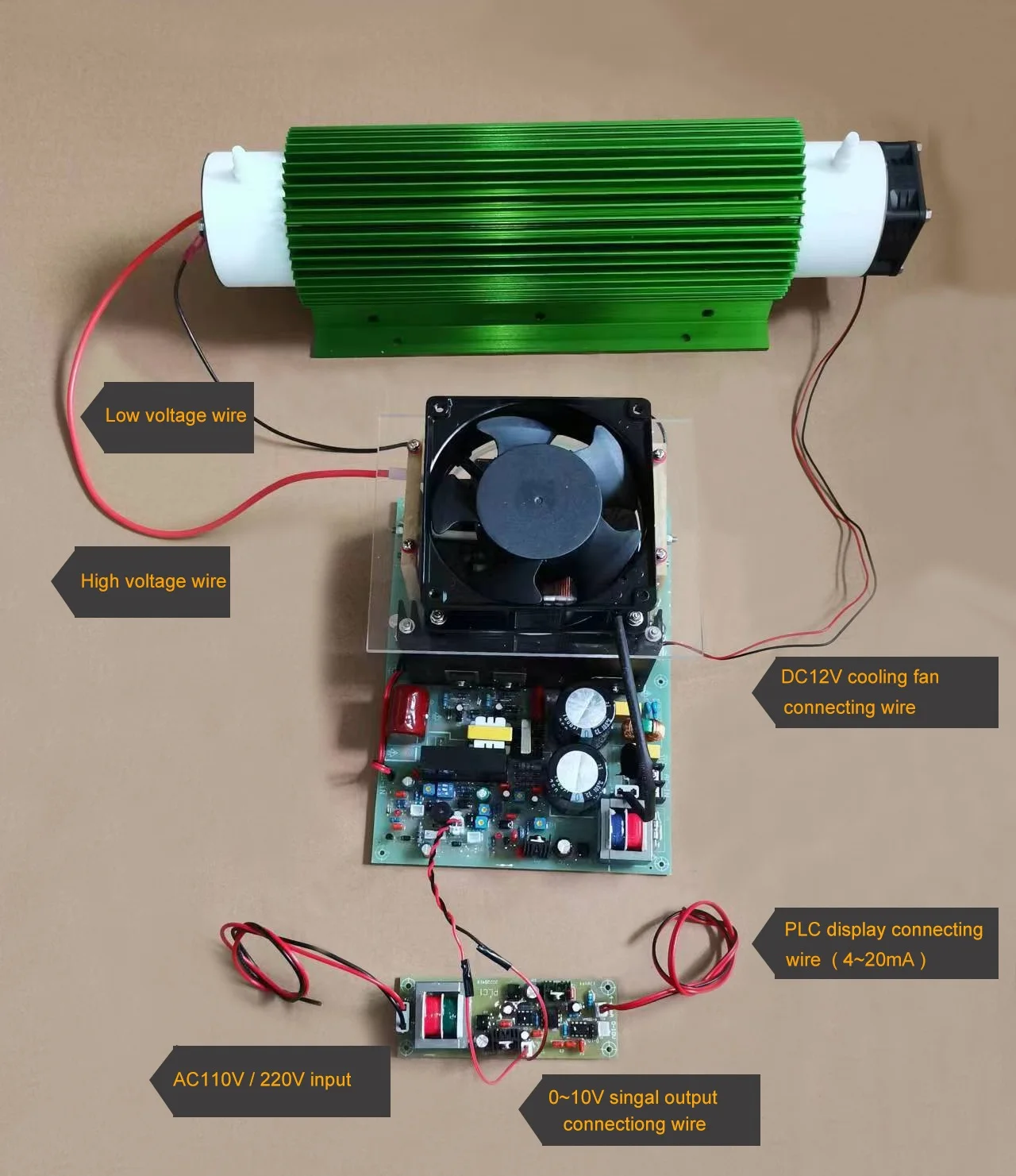

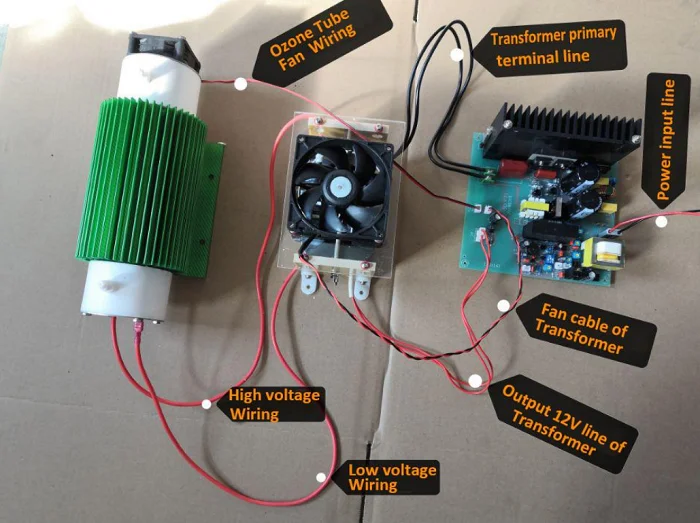

Installation Instructions






Product packaging










Company Profile

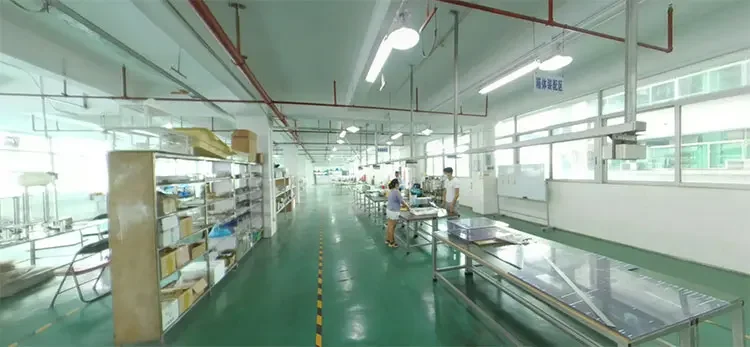

Our Factory
Ozone Green Plant is specialized in the research of ozone production mechanism, design and manufacture of ozone equipment, design of ozone application engineering scheme, and the installation, debugging, running and maintenance of ozone system equipment. As the representative enterprise of domestic ozone industry, the company is gradually becoming a global ozone system supplier. We always make our best efforts to meet the requirements of customers with our many years' experience, continuing research and technical innovation in Ozone industry. We ensure the product with good quality, sufficient quantity and diversification.all the customer appeals can be deal with quickly and effectively provide the most perfect service to all customers. We are confident that our products can get your one hundred percent of trust and help you to achieve your success with our great efforts.

OUR SERVICE
1.Your inquiry related to our products or prices will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your inquiries in fluent English
3.We can follow your design to produce
4.Protect your sales area,ideas of design and all your private information
5.We have Technical staff with 10 years of ozone experience.
6.Products passed CE certification.


















Certifications






SALES AND SERVICE NETWORK




FAQ


1. who are we?
We are based in Guangdong, China, start from 2015,sell to Western Europe(30.00%),North America(14.00%),Domestic
Market(10.00%),Southeast Asia(10.00%),Southern Europe(10.00%),Mid East(6.00%),South America(4.00%),Eastern Europe(4.00%),South
Asia(3.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Oceania(2.00%),Central America(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ozone Generator,Ozone Parts,Oxygen genenerator , oxygen parts etc.

4. why should you buy from us not from other suppliers?
1.We have Technical staff with 10 years of ozone experience.
2.We ensure the product with good quality,suffcient quantity.
3.provide the most perfect sevice to all customers.
4.Products passed CE certification. 5.Protect your sales area

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
