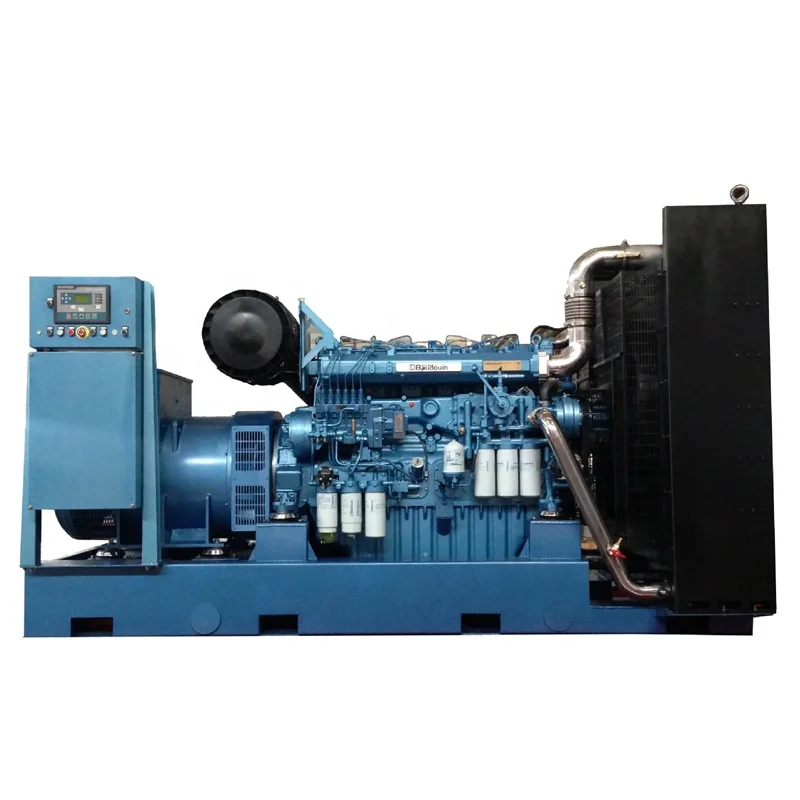

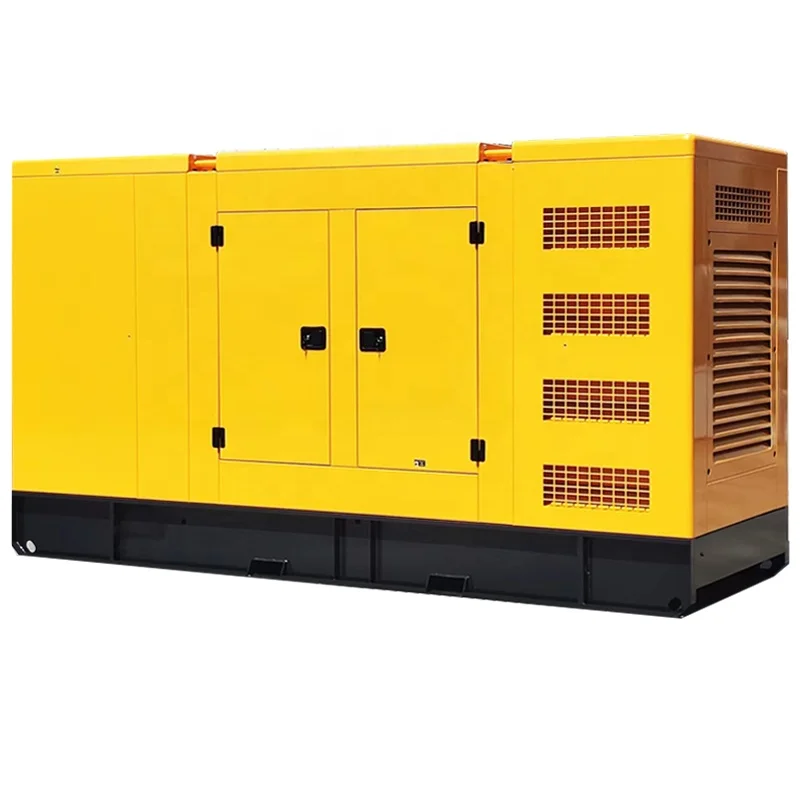

Leton Power 50Hz Three Phase Weichai Baudouin Engine Diesel Generator Silent 360kW 450kVA
- Category: >>>
- Supplier: Sichuan Leton Industry Co. Ltd.
Share on (1600791919984):
Product Overview
Description
Product Description
Generator Model | LT-360WD |
Standby Power | 396kW / 495kVA |
Prime Power | 360kW / 450kVA |
Power Factor | 0.8 |
Frequency | 50Hz |
Rated Voltage | 220V / 380V |
AC Current | 630A |
Engine Model | 6M26D484E200 |
No. of Cylinder | 6 |
Bore*Stroke | 127x165mm |
Displacement | 15.9L |
Speed | 1500RPM |
Engine Oil Capacity | 50L |
Cooling System | Water Cooled |

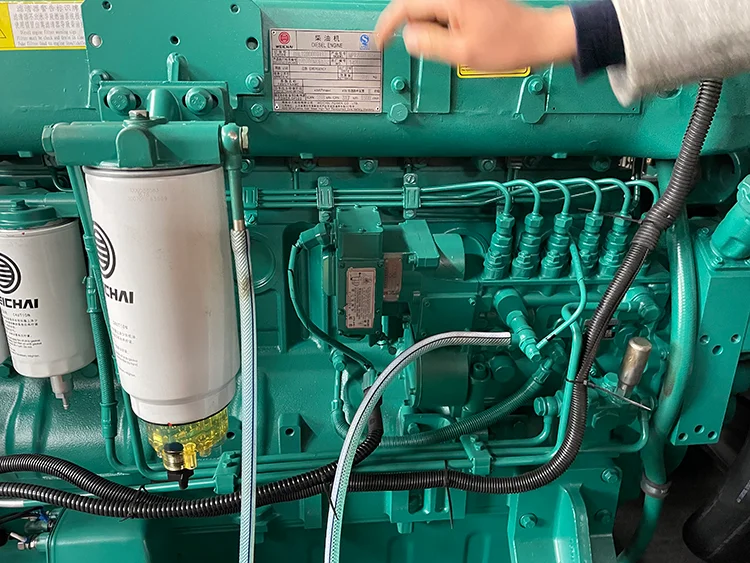

Characteristic of Weichai Engine
1. Well-adapted to different working environment: Generator could self-start in -10 degree without external support equipment.
Power output has no significant decrease in 2000 meter altitude.
2. Excellent Fuel Economy: 205 g/kW.h average fuel consumption under full load working condition.
3. Integrated Control panel: LCD screen control system shows the dynamic working condition. System could automatically shut down
the generator when failure occurs.
4. Good Cooling Performance: Water cooling system ensure the stable consistent running of generator set under full load. Generator set passed factory inspection for 24 hours continuous working.
Power output has no significant decrease in 2000 meter altitude.
2. Excellent Fuel Economy: 205 g/kW.h average fuel consumption under full load working condition.
3. Integrated Control panel: LCD screen control system shows the dynamic working condition. System could automatically shut down
the generator when failure occurs.
4. Good Cooling Performance: Water cooling system ensure the stable consistent running of generator set under full load. Generator set passed factory inspection for 24 hours continuous working.

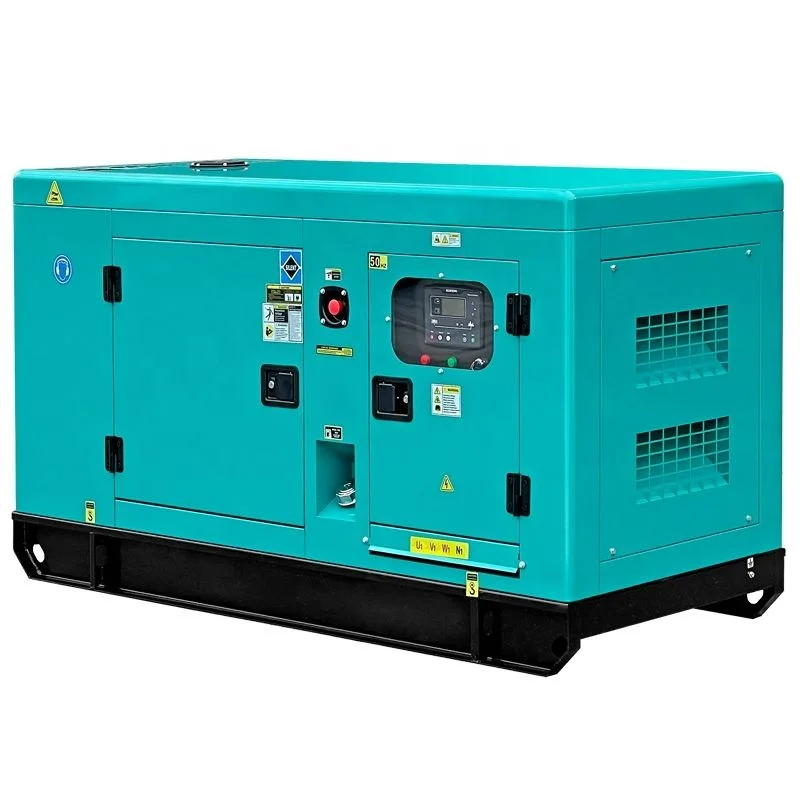

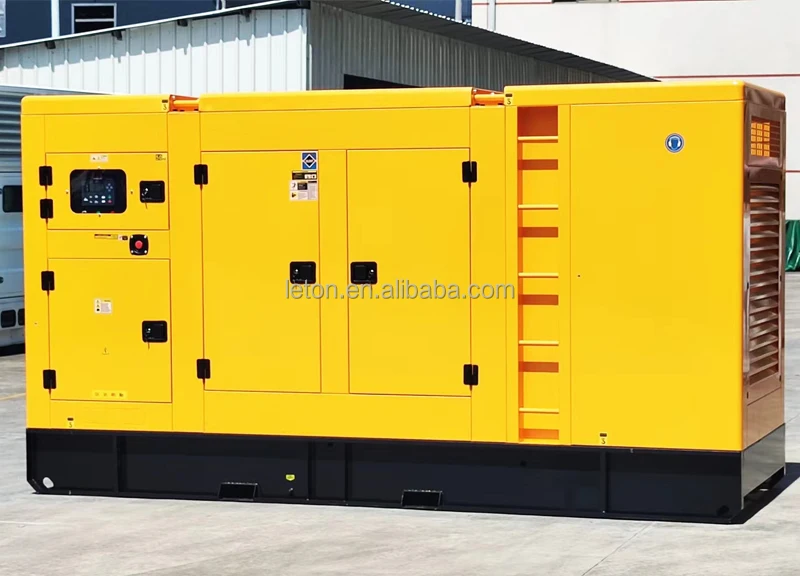

Canopy Details: Silent canopy has employed new damping material to effectively absorb the generator working noise. The center control system is integrated in the canopy. Built-in fuel tank could support 8 hours continuous running.
ATS System: ATS system is available for self-start generator models. Generator with ATS system could automatically activate while main circuit powered off.
Product Parameter

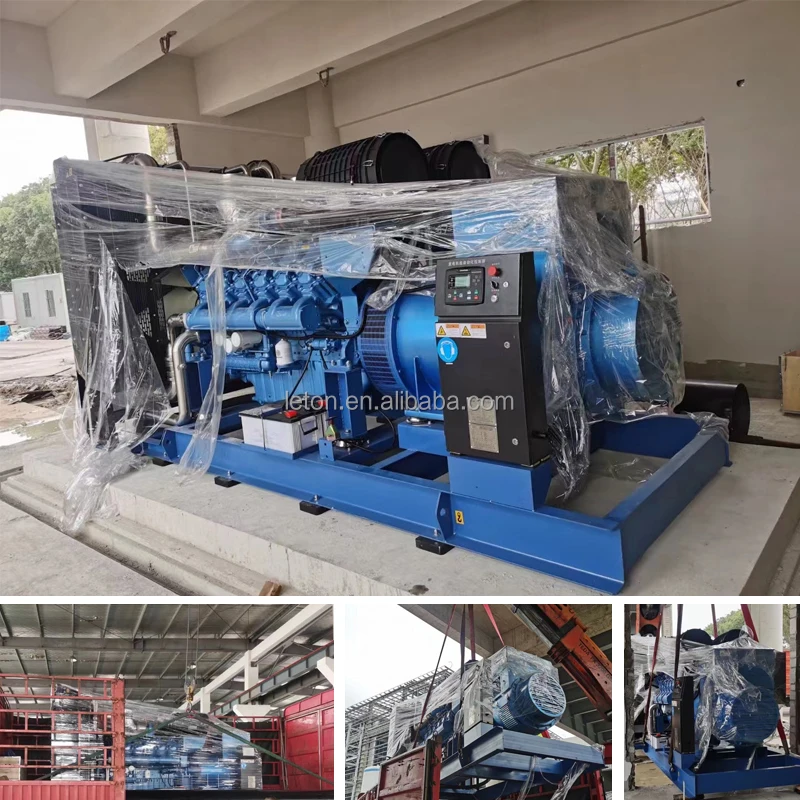

Cooperated Cases
Related Products
Company Profile

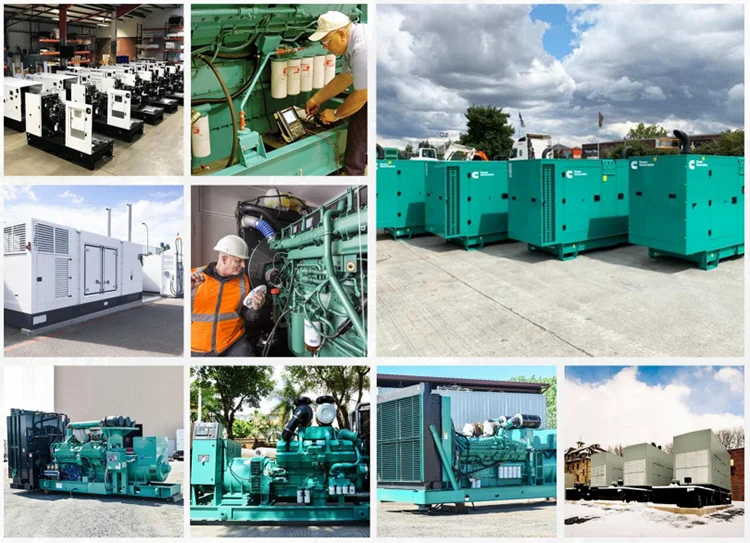

These few pictures can not show all ability of Leton power
A 20 years more history production and design manufacture, we can satisfy you!
LETON power has its unique advantage in manufacturing of alternators,engines, generator sets, interference-free power, switch cabinet and automatic transfer switch.
All components are from the only one manufacturer and designed for cooperative and smooth operation, so high-efficient, cost-effective and seamless solutions can be provided for LETON power customers.
Hot Product

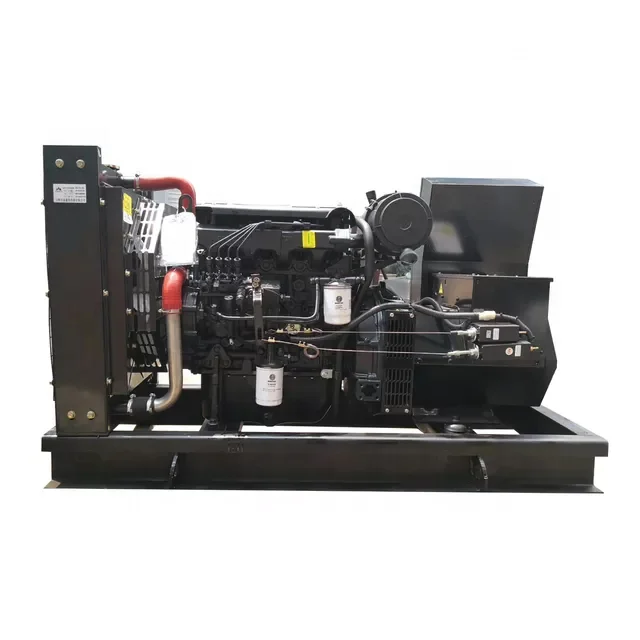

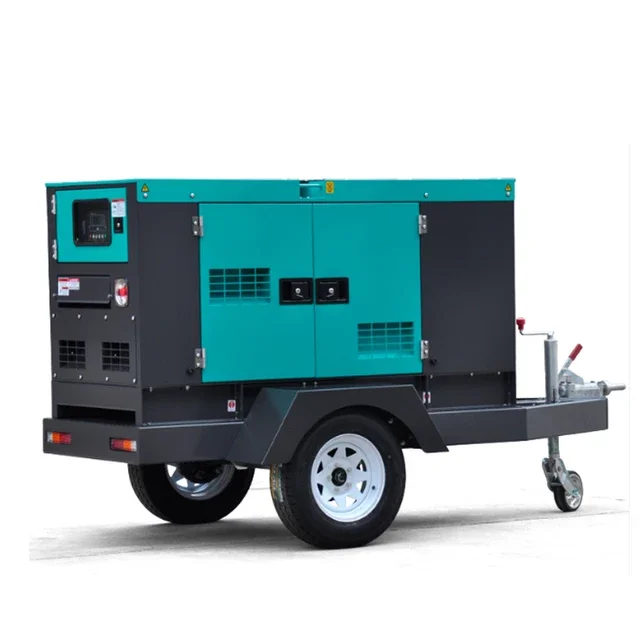

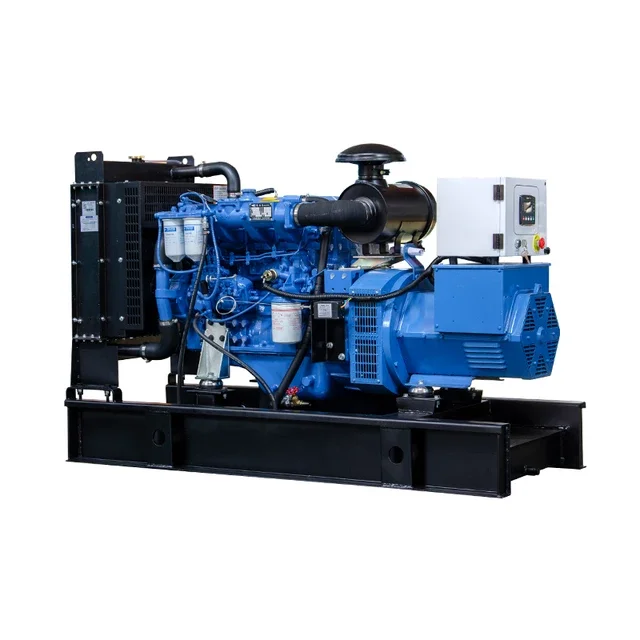

Trailer type, Silent type, Weichai, Yuchai, Perkins engine
All brands engine generators are available for 20-2000kVA genset
Our Advantages
Certifications
FAQ
Q1: Are you a factory or trading company?
We are a manufacturer. Certified via SGS, Intertek, CE and ISO.
Q2. Where is your factory located?
Our factories are in Chengdu City and Ningde, China. It's near to Shanghai/Guangzhou port.
Q3: How many days for production delivery?
Ordinarily it costs 5-7 workdays for normal type. Sample order in 3 days.
Q4: How about quality control in your factory?
1. We strictly operate full QC process, passed the ISO quality system management, CE verified, and intertek verification.
2. We followed, such as incoming inspection,process inspection, final inspection. Each engine,generator and water pump must be tested in production line.
We are a manufacturer. Certified via SGS, Intertek, CE and ISO.
Q2. Where is your factory located?
Our factories are in Chengdu City and Ningde, China. It's near to Shanghai/Guangzhou port.
Q3: How many days for production delivery?
Ordinarily it costs 5-7 workdays for normal type. Sample order in 3 days.
Q4: How about quality control in your factory?
1. We strictly operate full QC process, passed the ISO quality system management, CE verified, and intertek verification.
2. We followed, such as incoming inspection,process inspection, final inspection. Each engine,generator and water pump must be tested in production line.
3. We offer and supply test video for each machines before delivery.
Q5: How about guarantee?
1 year warranty or 1000 hours (which comes first) for all products
Q6: What is your terms of payment ?
Payment<=2500 USD, 100% in advance.
Payment>2500 USD, 30% T/T in advance, balance after production completed.
We have enough ability to make deal on alibaba trade assurance.
Q5: How about guarantee?
1 year warranty or 1000 hours (which comes first) for all products
Q6: What is your terms of payment ?
Payment<=2500 USD, 100% in advance.
Payment>2500 USD, 30% T/T in advance, balance after production completed.
We have enough ability to make deal on alibaba trade assurance.
Q7: Can you do door to door shipping service?
At present, we can do USA, Canada, Mexico, Venezuela, Kenya, India, Spanish, UK, etc.
Please contact and share us your door address, we can give you an acceptable shipping solution
