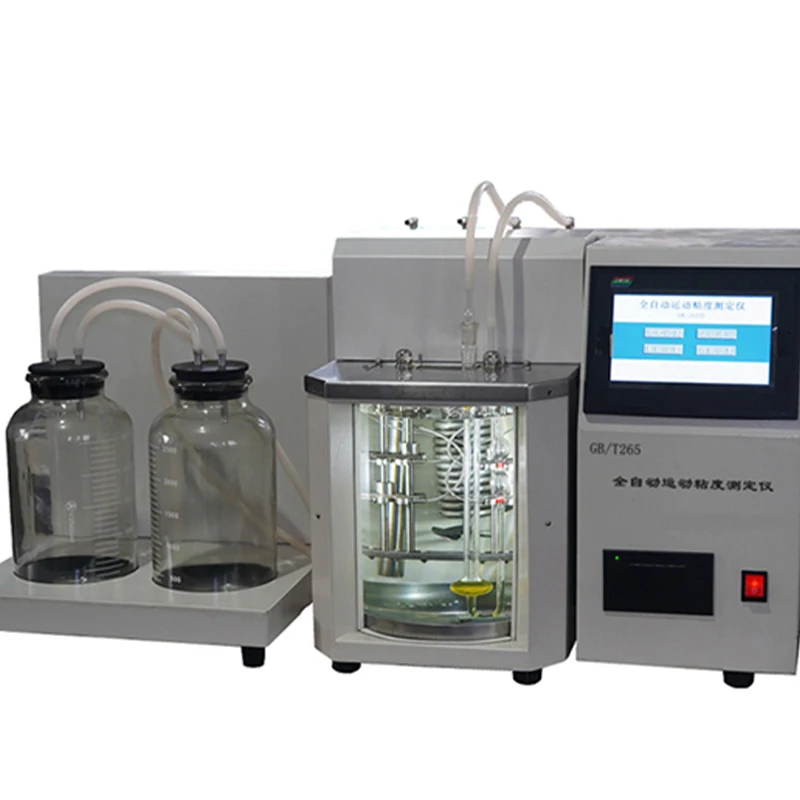

Oil Testing Equipment Fully Automatic Kinematic Viscosity Apparatus Oil Viscosity Meter Kinematic Viscosity Tester
- Category: >>>
- Supplier: Dalian Yeda Technology Development Co. Ltd.
Share on (1600791983240):
Product Overview
Description
Automatic freezing point tester
YD-0510QZD
Applicable standard ASTM D445
Applicable standard | ASTM D445 GB/T 265 |
Temperature control range | room temperature~100 ℃ |
Temperature control accuracy | ± 0.1 ℃ |
Heating method | electric heating rod |
Heating power | 1000W |
Timing method | electronic timing |
Timing accuracy | ± 0.1S |
Mixing method | motor mixing |
Liquid level detection | photoelectric sensor |
Test unit | 2 groups |
Storage records | 200 |
Printing method | micro printer |
Working power supply | AC 220V ± 10% 50HZ |
Scope of application:
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard GB/T265, and is suitable for measuring the kinematic viscosity of liquid petroleum products (refer to Newtonian liquids), with the unit of mm2/s.
This instrument is designed and manufactured in accordance with the Chinese petroleum industry standard GB/T265, and is suitable for measuring the kinematic viscosity of liquid petroleum products (refer to Newtonian liquids), with the unit of mm2/s.
Performance characteristics:

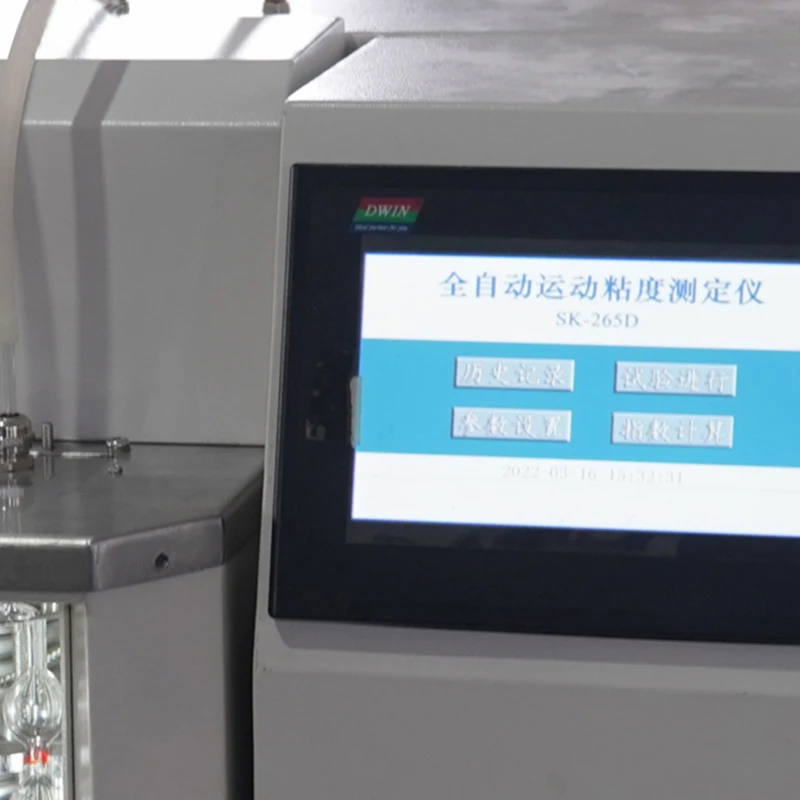

1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.
2. The photoelectric amplifier imported from abroad, equipped with high-quality optical fiber head, is characterized by high temperature resistance and water resistance.

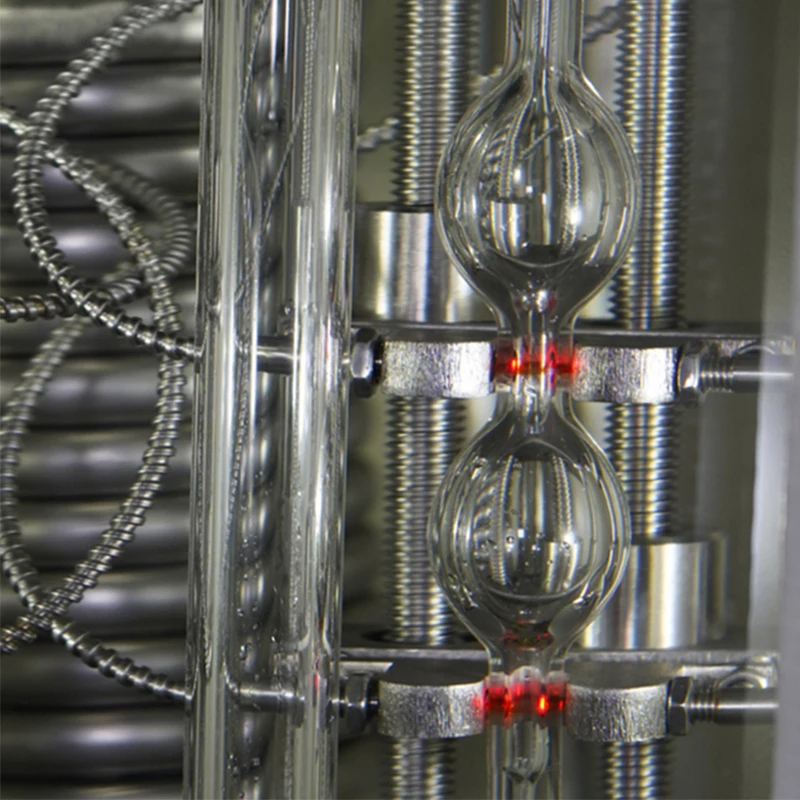

Accurate liquid level detection, coupled with high-frequency electronic timing units, ensures reliable flow timing.
4. Using foreign high-precision temperature control modules, PID tuning, high temperature control accuracy.
The host can store multiple viscometer constants, which can be called at any time during testing.
6. Equipped with multiple sets of viscometers, select different viscometers based on different viscosity values of the sample.
The host is equipped with two sets of test units, which can be tested simultaneously or in a single set.
8. Simple operation, one click start, and the test process is automatically completed.
9. The host computer is controlled by a microprocessor program, with automatic heating, automatic mixing, automatic constant temperature, automatic identification of timing start and end points, automatic timing, automatic sampling, automatic calculation, automatic storage, automatic printing, automatic cleaning, and automatic shutdown at the end of the test.
1.7 inch color LCD touch screen, fashionable and beautiful. Chinese man-machine dialogue interface, clear and intuitive.
2. The photoelectric amplifier imported from abroad, equipped with high-quality optical fiber head, is characterized by high temperature resistance and water resistance.
Accurate liquid level detection, coupled with high-frequency electronic timing units, ensures reliable flow timing.
4. Using foreign high-precision temperature control modules, PID tuning, high temperature control accuracy.
The host can store multiple viscometer constants, which can be called at any time during testing.
6. Equipped with multiple sets of viscometers, select different viscometers based on different viscosity values of the sample.
The host is equipped with two sets of test units, which can be tested simultaneously or in a single set.
8. Simple operation, one click start, and the test process is automatically completed.
9. The host computer is controlled by a microprocessor program, with automatic heating, automatic mixing, automatic constant temperature, automatic identification of timing start and end points, automatic timing, automatic sampling, automatic calculation, automatic storage, automatic printing, automatic cleaning, and automatic shutdown at the end of the test.
Accessory configuration:
1. Two viscosity clamps |
2. Four viscometers |
3.Two thermometers (optional) |
