Product Description

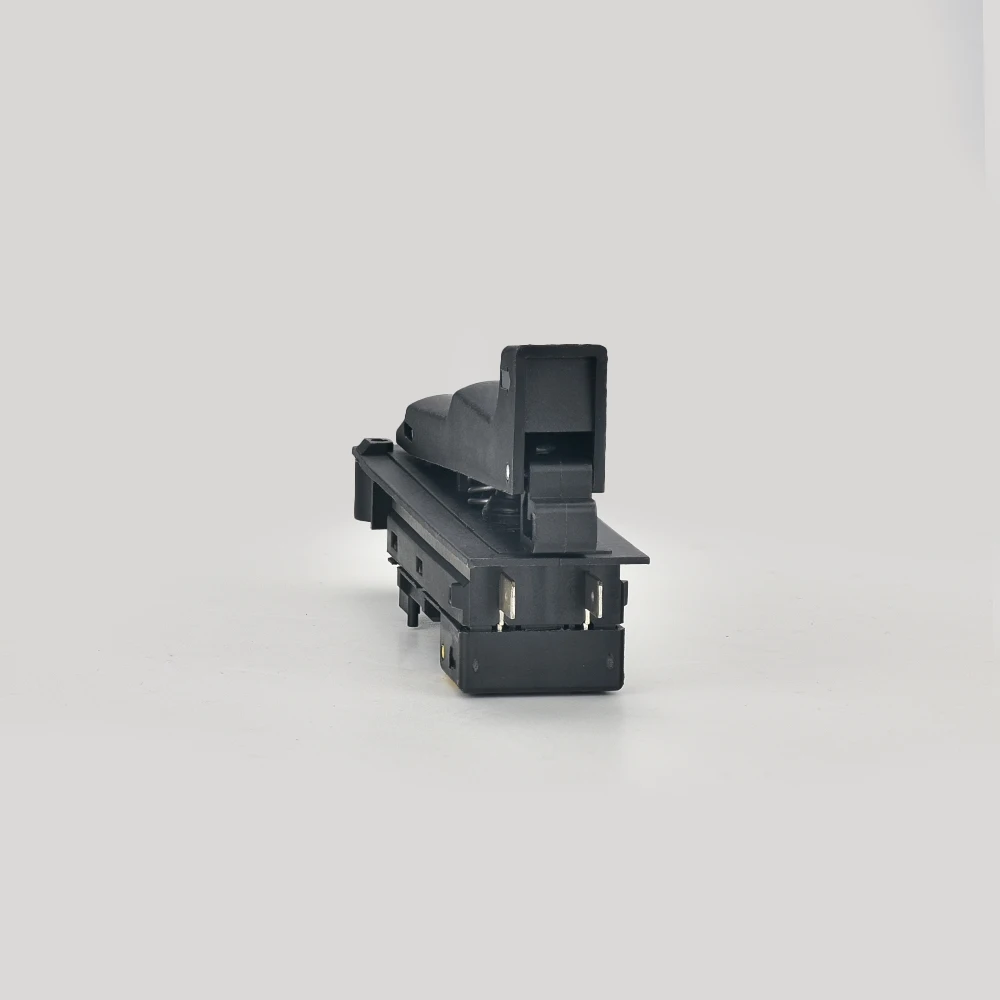

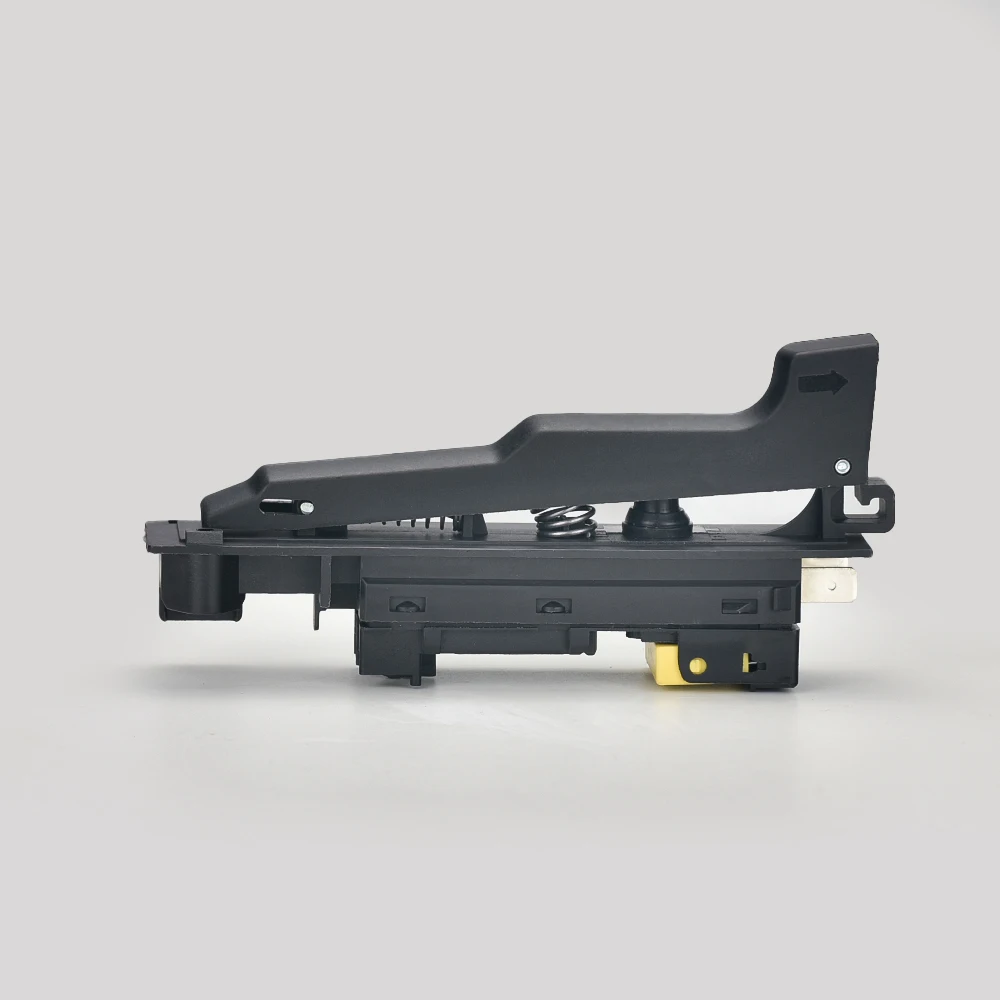

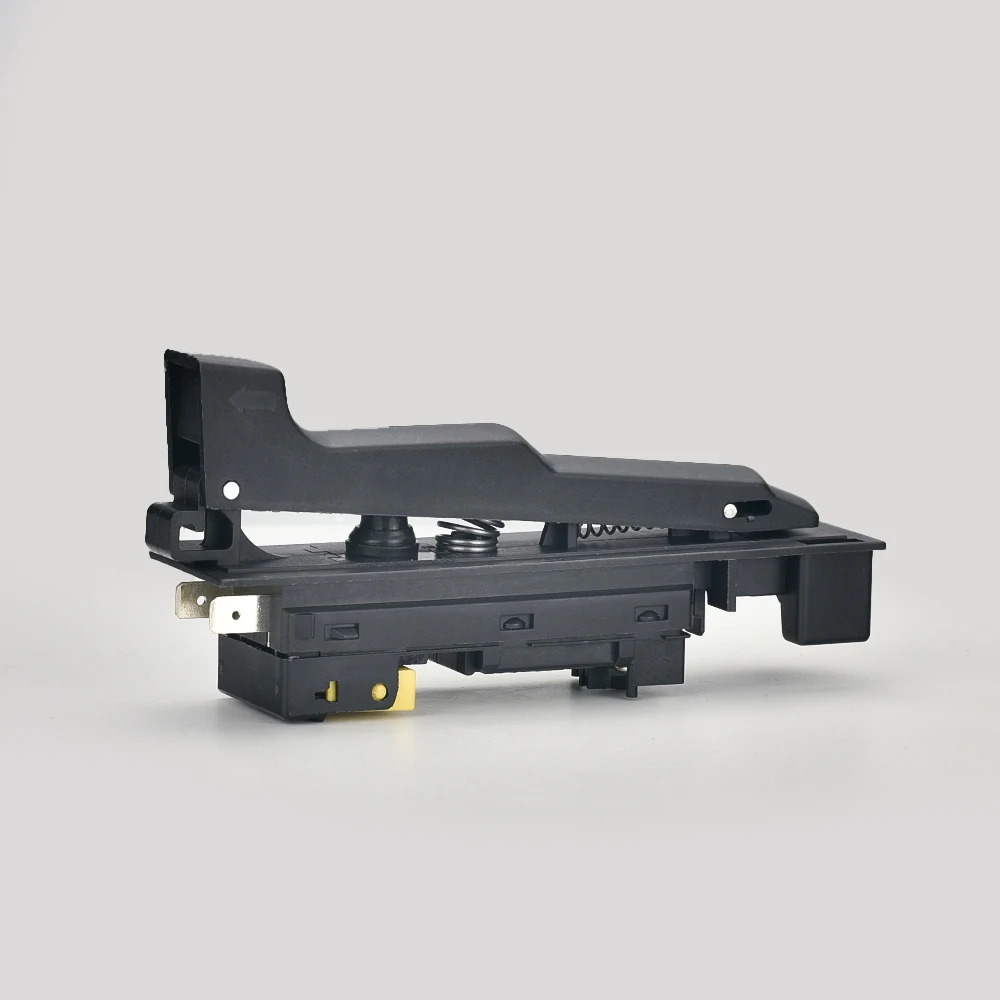

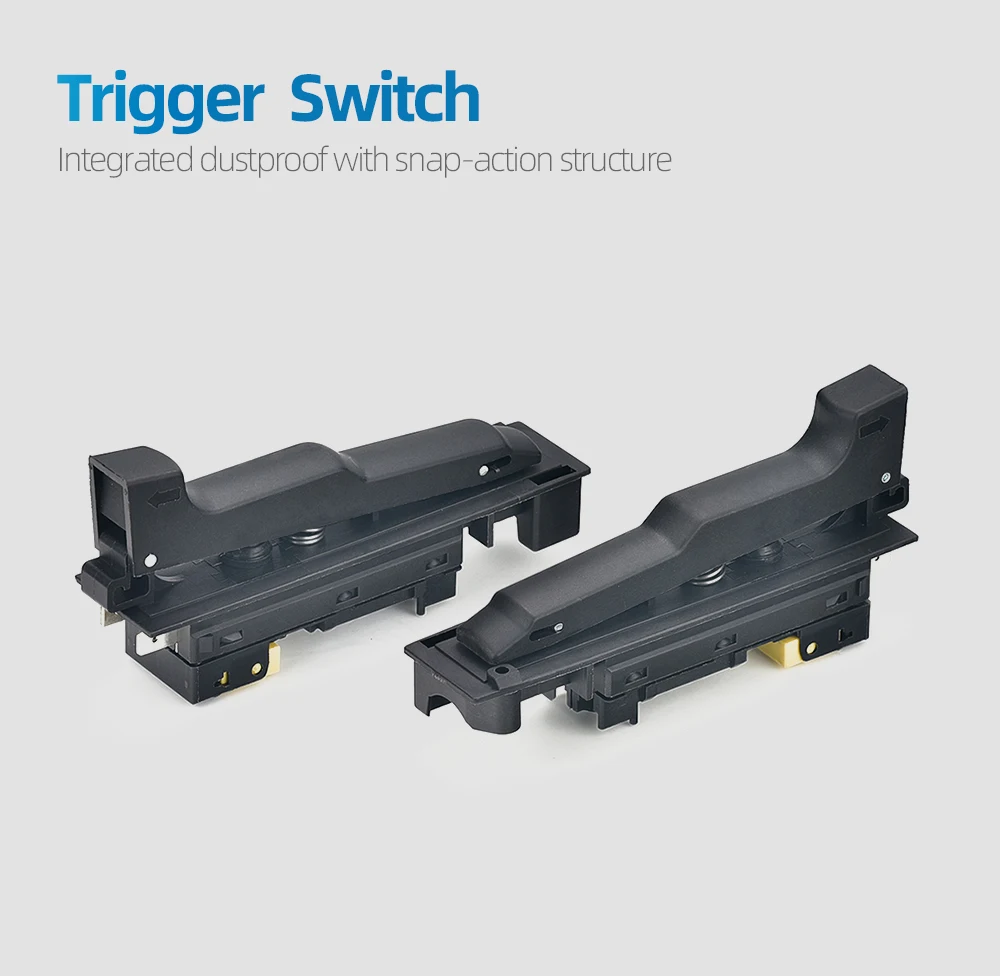

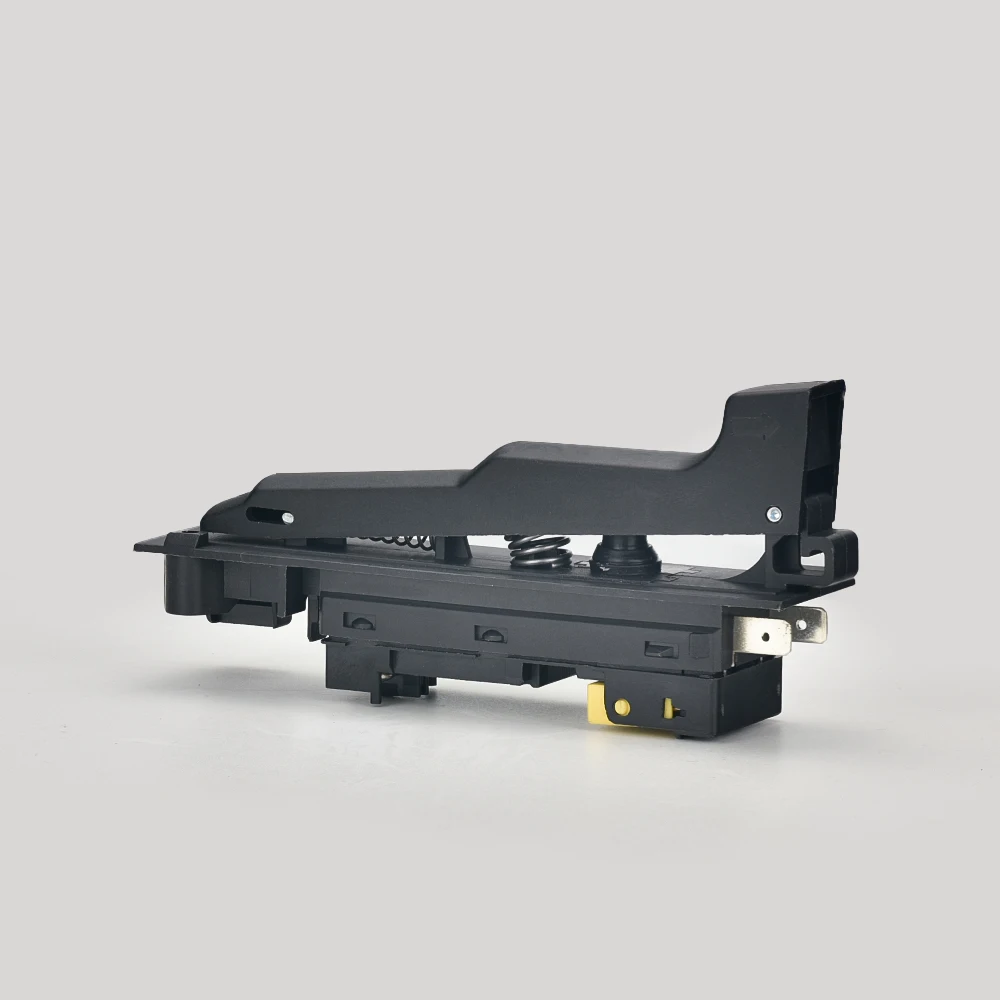

TS 12 series are special type high rated trigger switches,integrated dustproof, with snap-action structure, for used in high rated bench top or portable power-tools such as Cut-off Machines,Miter Saws, 180mm and 230mm Large Angle Grinders, Heavy Rotary Hammers,Heavy Demolition Hammers, etc.The body andtrigger accept customize according to customer's request.

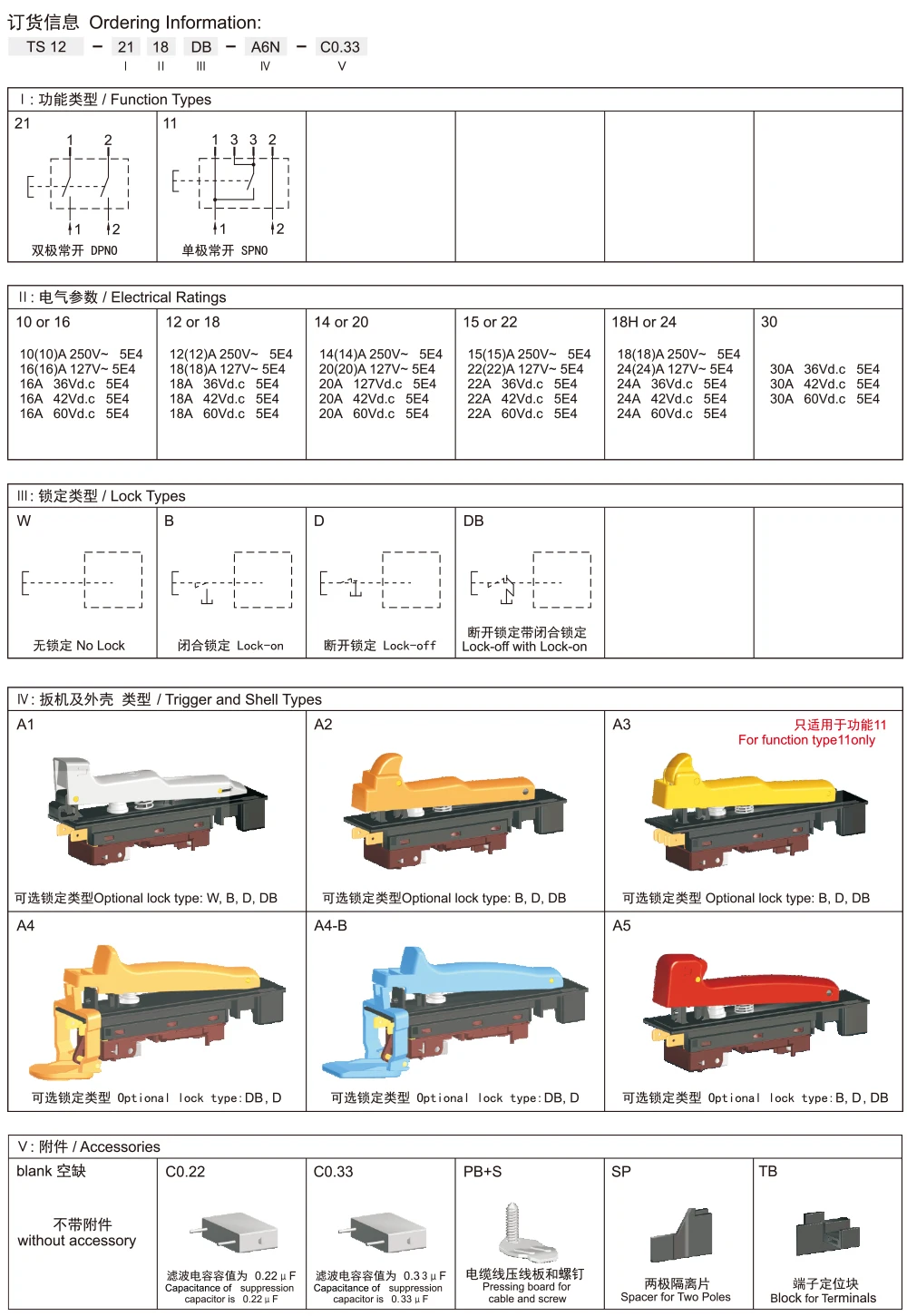

| Features | |
Optional with following lock types | → No lock → Lock-on → Lock-off → Lock-off with lock-on |
Optional with following function | Double Pole Normally Open (DPNO) Single Pole Normally 0pen(SPNO) |

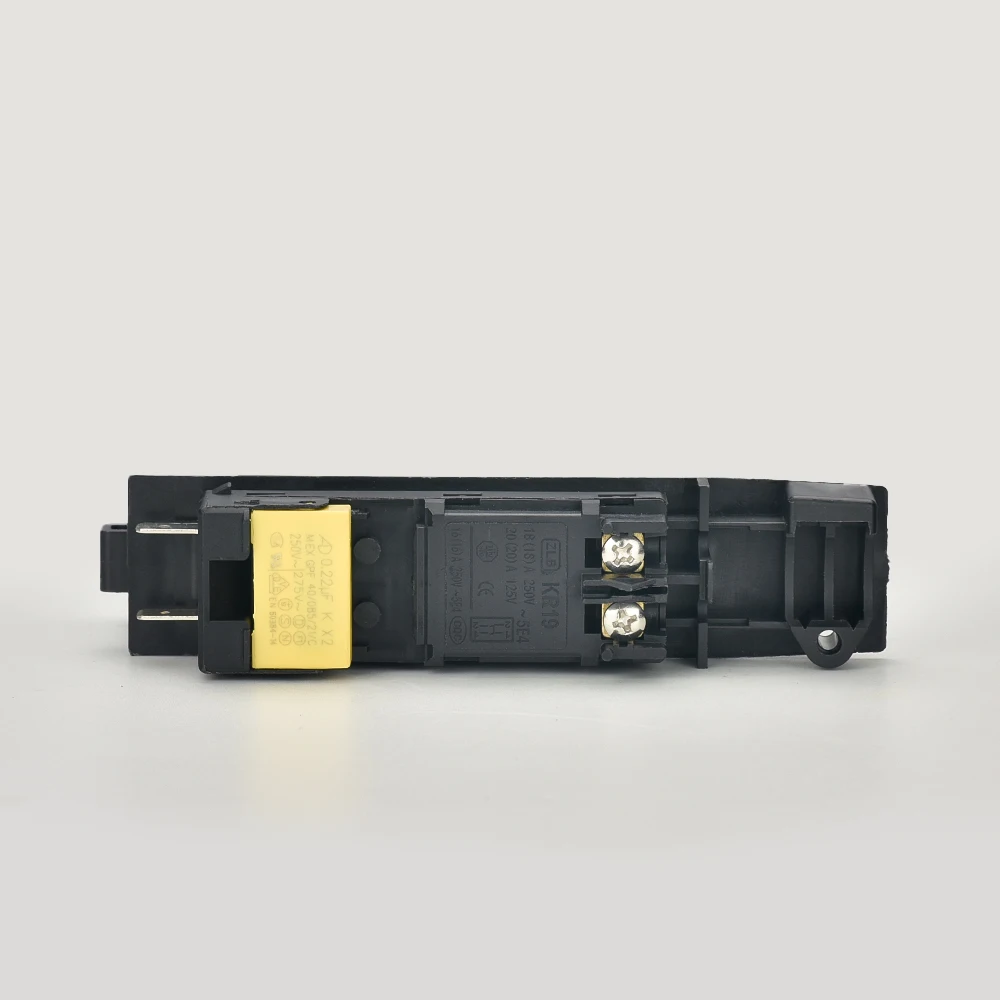

Optional with the accessories as follows | Suppression capacitor (commonly 0.22 or 0.33 μF) |
| Technical data | |||
Mechanical life endurance | ≥1E5 | Electrical life endurance | ≥5E4 |
Max.Inrush current at 250V | 120A | Max.Inrush current at 127V | 144A |
Contact resistance | ≤30m Ohm | Insulation resistance | ≥7M Ohm |
Dielectric strength of function | 1500V | Dielectric strength of reinforced | 3000V |
Ambient temperature | 0℃~55℃ | Flammability | UL 94V-0 |
Protection type | IP40 | Suitable for appliances of protection class II | |

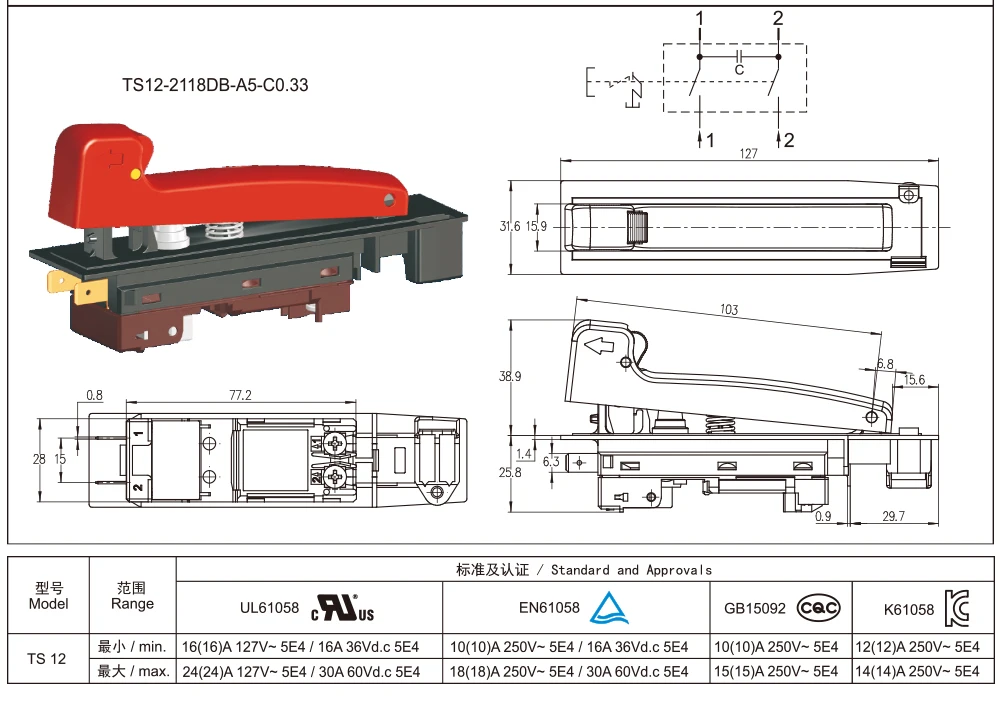

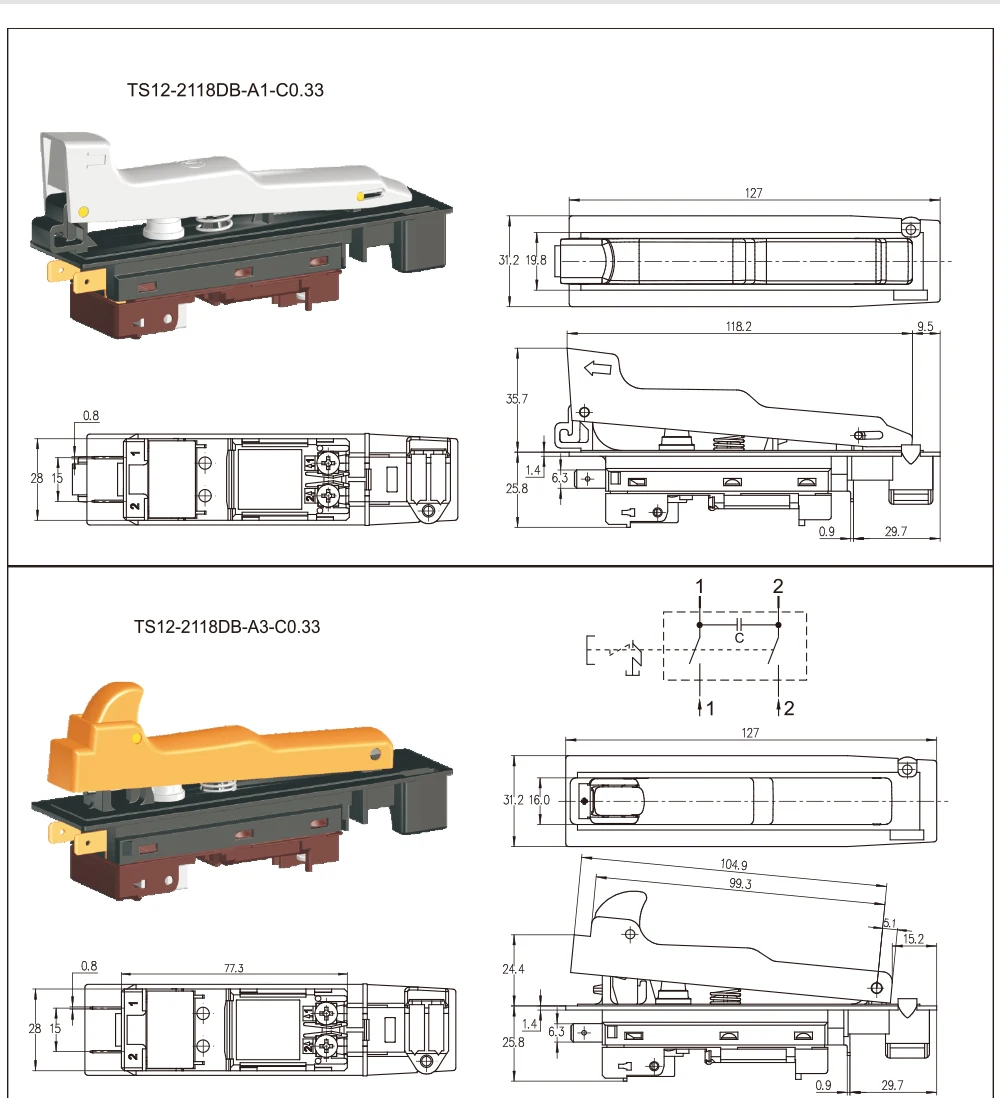

| Terminals | |
Input side | 2× Pillar terminals φ=4mm with M4 Screw |
Output side | 2× Plug-in terminals 6.3×0.8mm |
