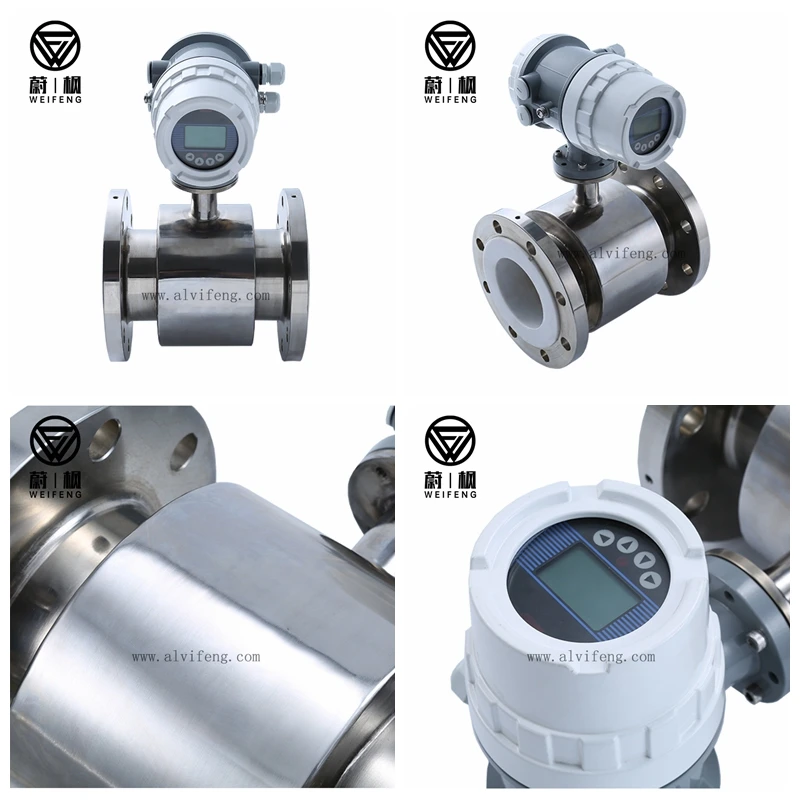

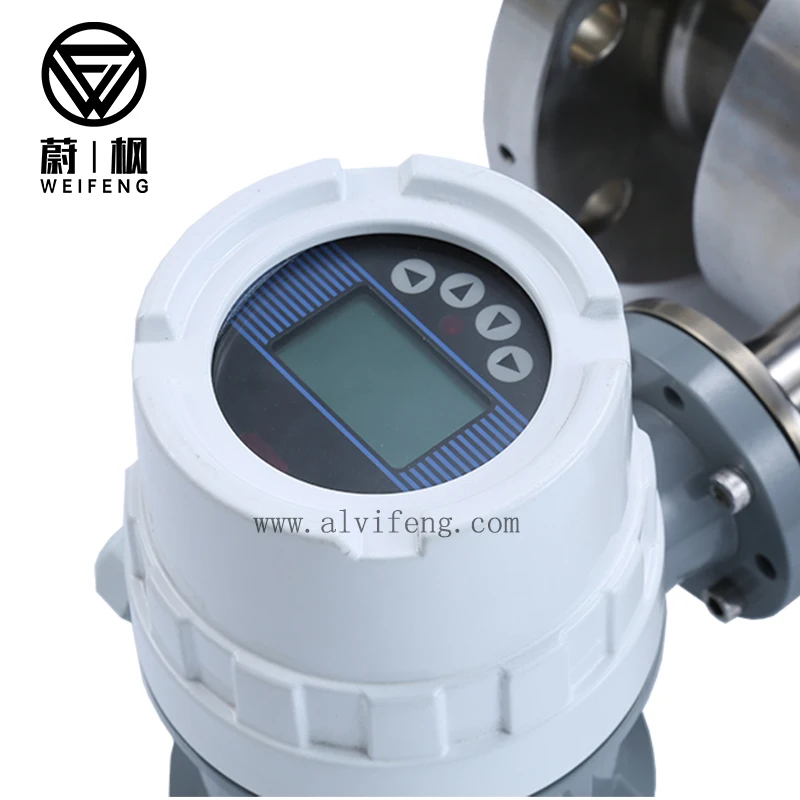

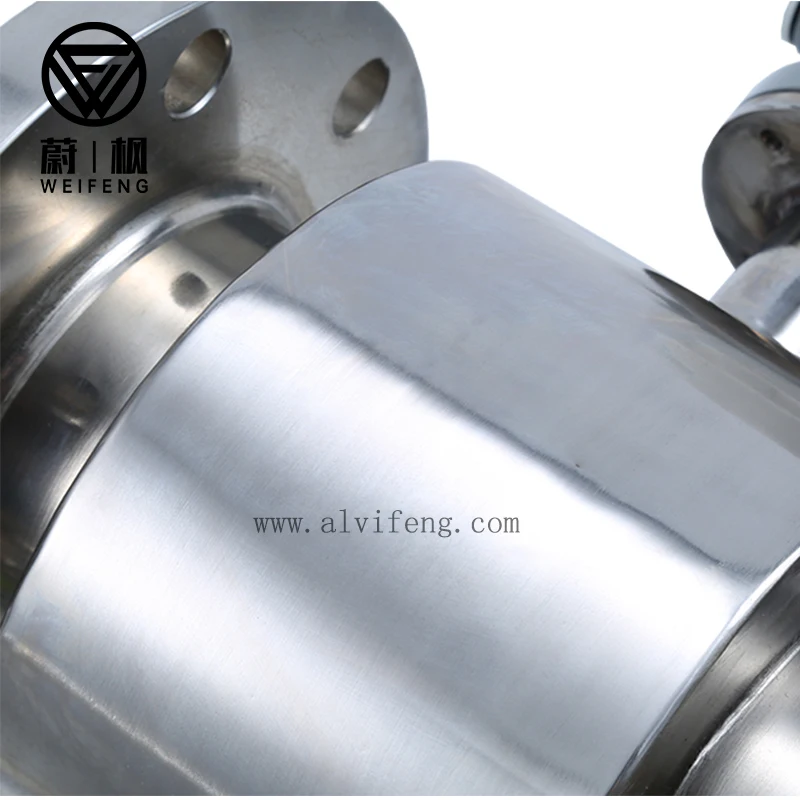

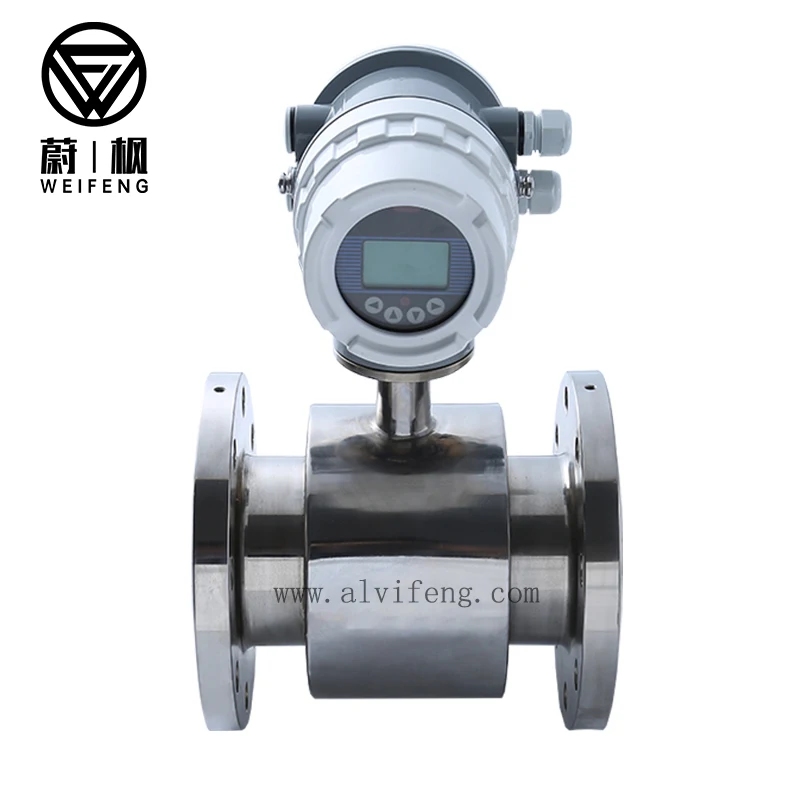

Digital Liquid Output Flow Meters Flowmeter Electromagnetic Turbine Fule Flowmeters Lpg Flow Meter
- Category: >>>
- Supplier: Wenzhou Weifeng Technology Co. Ltd.
Share on (1600792168798):
Product Overview
Description
Product Description
Model | WF-MGFM |
Body material | carbon steel or stainless steel/ standards can be customized(GB,ANSI,JIS, DIN) |
Product Size | DN15-DN2000 |
Max Operating Pressure | DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa |
Medium | water, oil, gas and chemical acid, gas , waste water,etc |
Max.Working Temp | Sensor: -25~60ºC, Transmitter: -10~60ºC |
Protection Grade | IP65, IP68 for Customized |
Accuracy Grade | +or- 0.3% |
Parts | Materials | Max.Pressure or Temperature | |
Body & Covers &Flapper&Spring | 304 Stainless Steel | -112°F to 797°F | |
316 Stainless Steel | -320.8°F to 1202°F | ||
316L Stainless Steel | -320.8°F to 1472°F | ||
Windows | Tempered Soda Lime Glass | 232psig / 212°F | |
Tempered Borosilicate Glass | 290psig / 248°F | ||
Tempered Quartz Glass | 362psig / 392°F | ||
Sealing Gaskets | NBR | -4°F to 248°F | |
Fluororubber | -13°F to 400°F | ||
PTFE | -40°F to 500°F | ||
Thread Standard | NPT,BSPP,BSPT Female Thread | ||
WeiFeng Flow Indicator is dedicated to helping customers monitor and verify whether the medium is flowing normally.Detect and observe the normal flow of products such as liquids, gases, oils, petroleum products, liquefied gases, solvents or dangerous and corrosive chemicals.
Sense and display liquids in operation to help you keep them under your control to ensure production safety.
Flow Indicators Types are divided into Impeller water flow indicator, Flapper Flow Indicator,Paddle Wheel Flow Indicator,Floating Ball Flow indicator and Sight Glass Flow Indicator by our factory.
OEM and Customization Service are based on your various requirements,we will advise and offer suitable types to you for meeting your needs in different conditions of pressure,temperature,flowing fluid types and machanical dimensions. And we accept photo customization.
Sense and display liquids in operation to help you keep them under your control to ensure production safety.
Flow Indicators Types are divided into Impeller water flow indicator, Flapper Flow Indicator,Paddle Wheel Flow Indicator,Floating Ball Flow indicator and Sight Glass Flow Indicator by our factory.
OEM and Customization Service are based on your various requirements,we will advise and offer suitable types to you for meeting your needs in different conditions of pressure,temperature,flowing fluid types and machanical dimensions. And we accept photo customization.
More Products

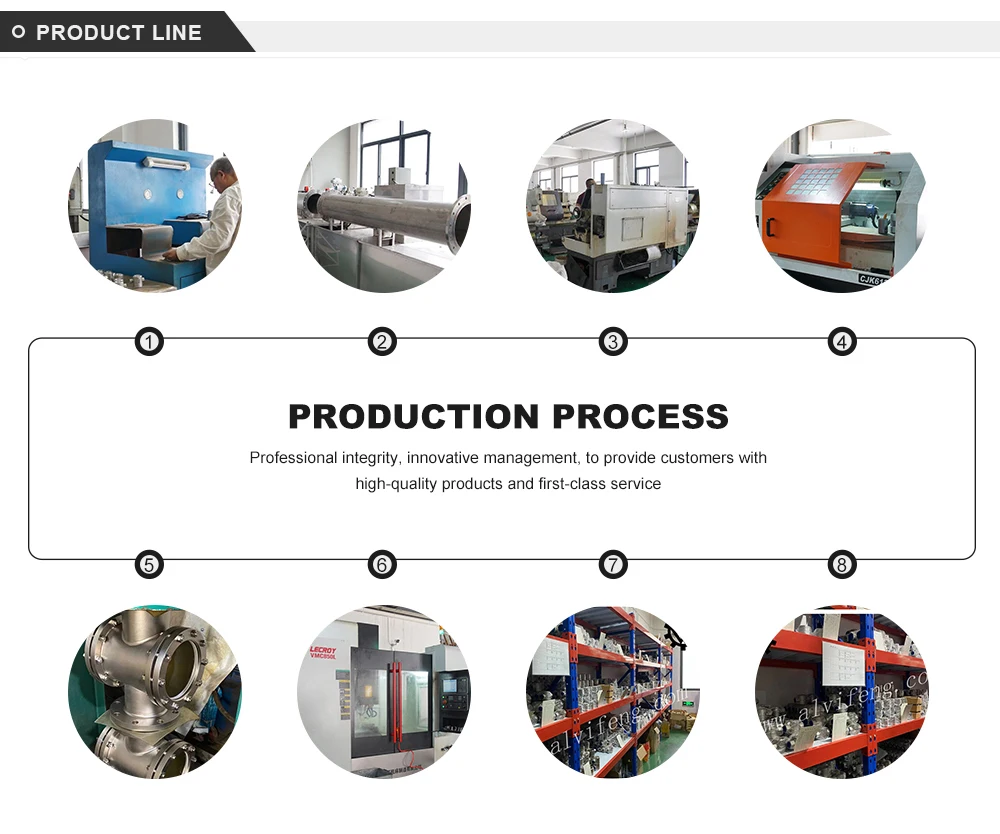

Product Line
Our Company
Certifications
Products Show
Packaging & Shipping
FAQ
1.How long will you reply?
We will reply you as soon as possible within 10 hours.
2.Do you have OEM?
Yes,we have OEM service and have 10 years OEM production experience.
3.In what areas do you use your products?
Suitable for industrial production pipelines such as petroleum, chemical industry, chemical fiber, medicine, food, power plants, pumps, etc.
4. When can I get the price?
5. Which shipping way can you provide?
We can provide shipping by sea, by air and by express.
We will reply you as soon as possible within 10 hours.
2.Do you have OEM?
Yes,we have OEM service and have 10 years OEM production experience.
3.In what areas do you use your products?
Suitable for industrial production pipelines such as petroleum, chemical industry, chemical fiber, medicine, food, power plants, pumps, etc.
4. When can I get the price?
Usually we quote within 8 hours after we get your inquiry.
5. Which shipping way can you provide?
We can provide shipping by sea, by air and by express.
