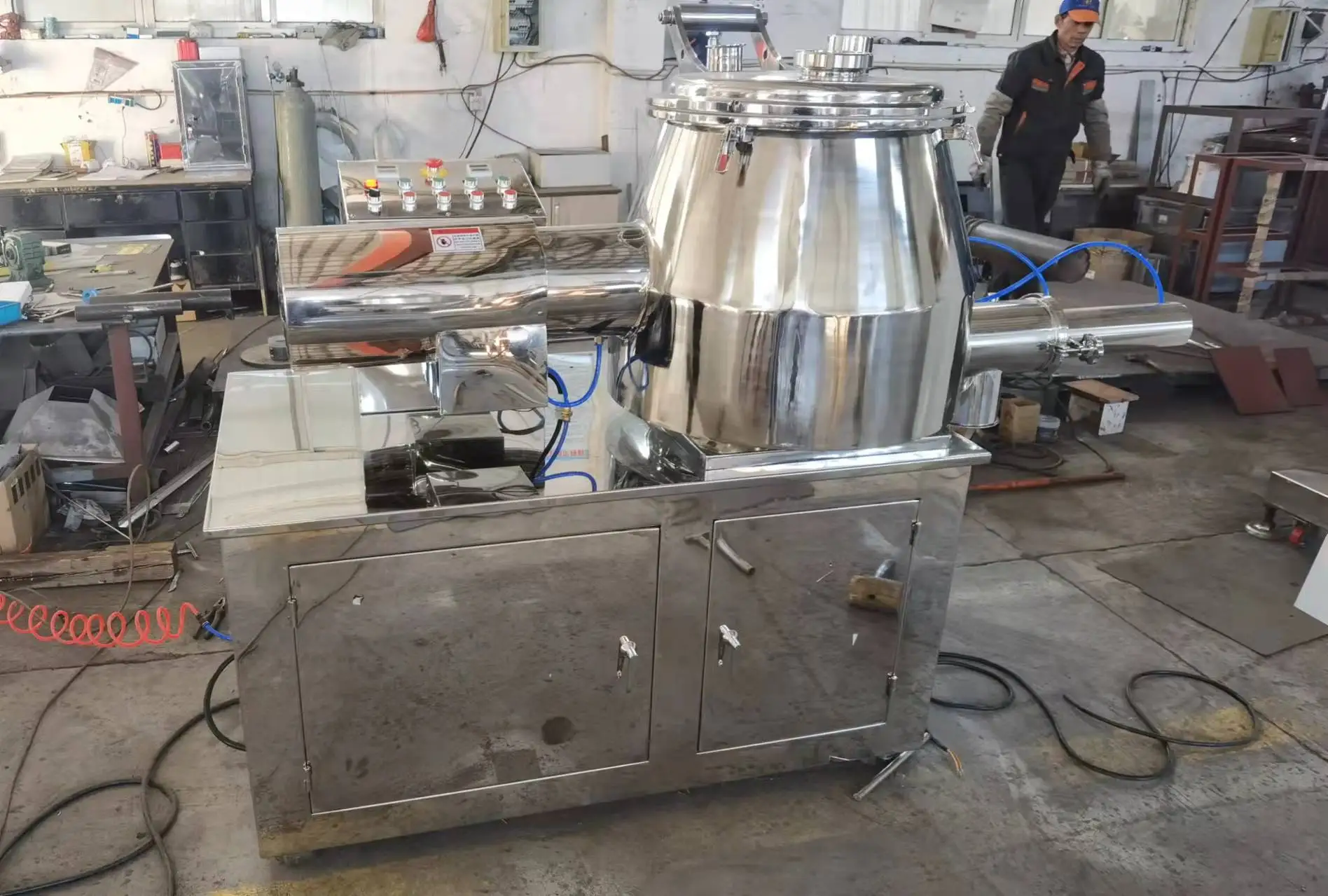

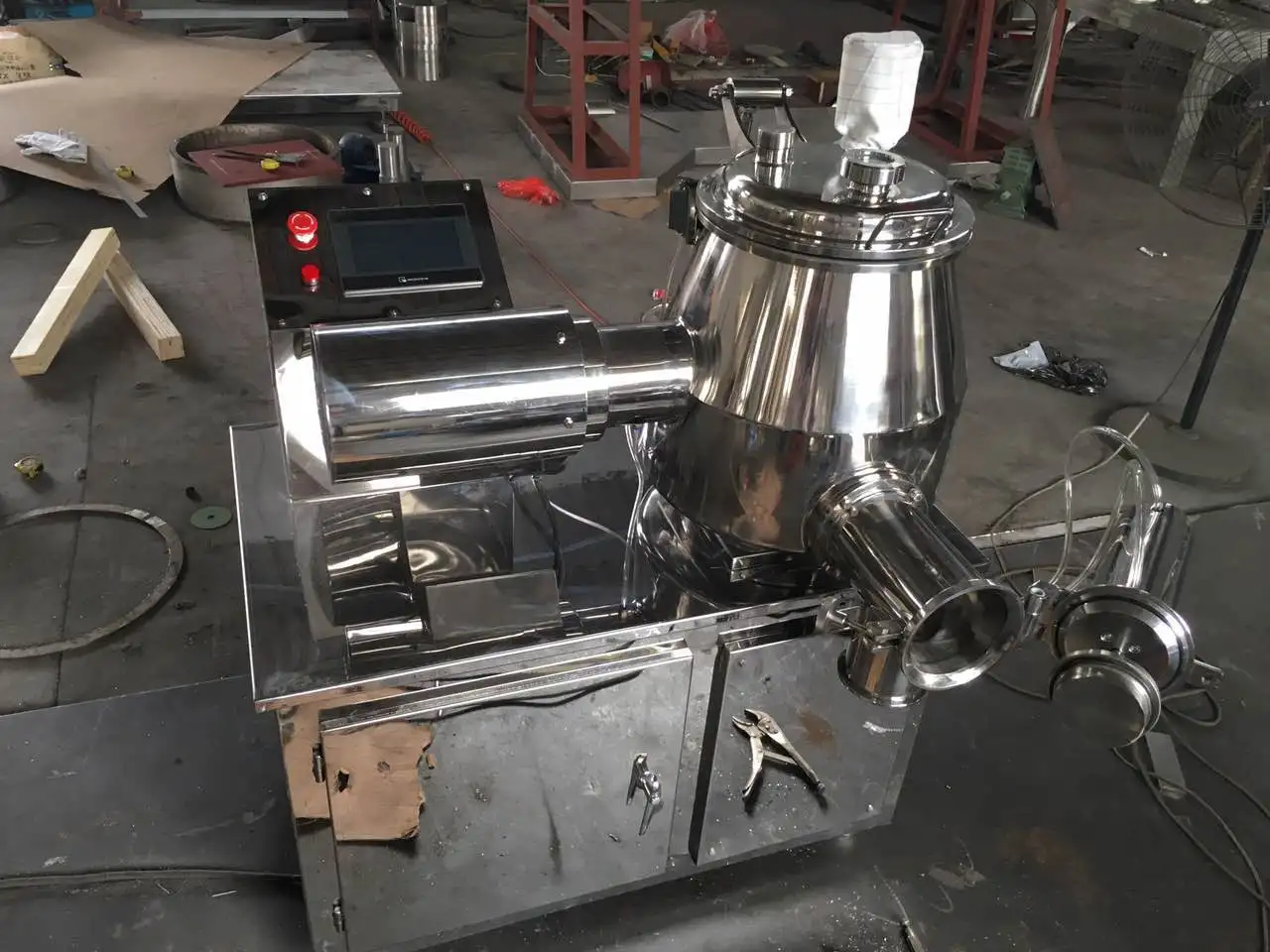

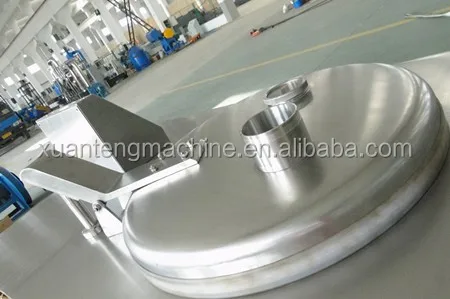

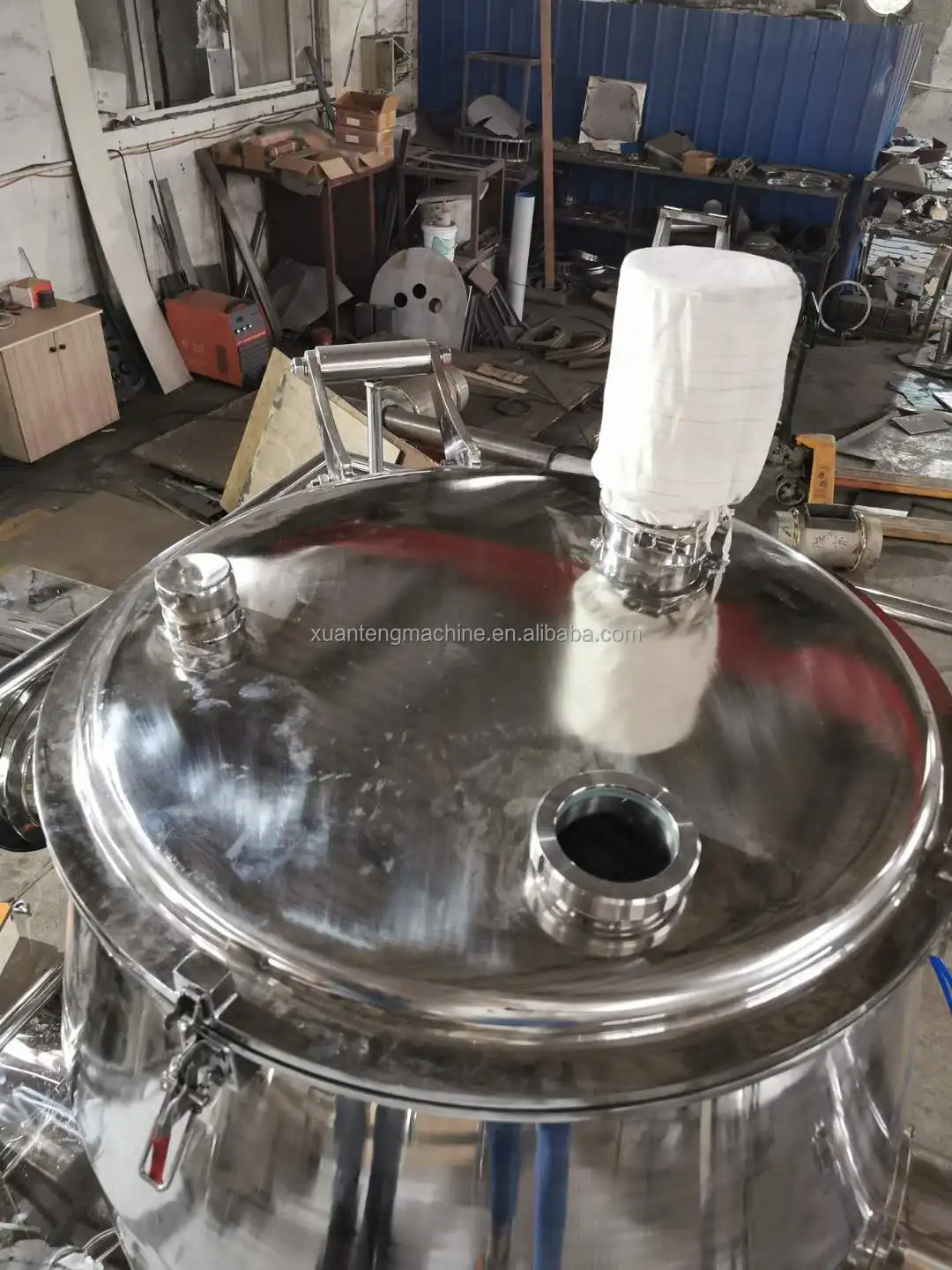

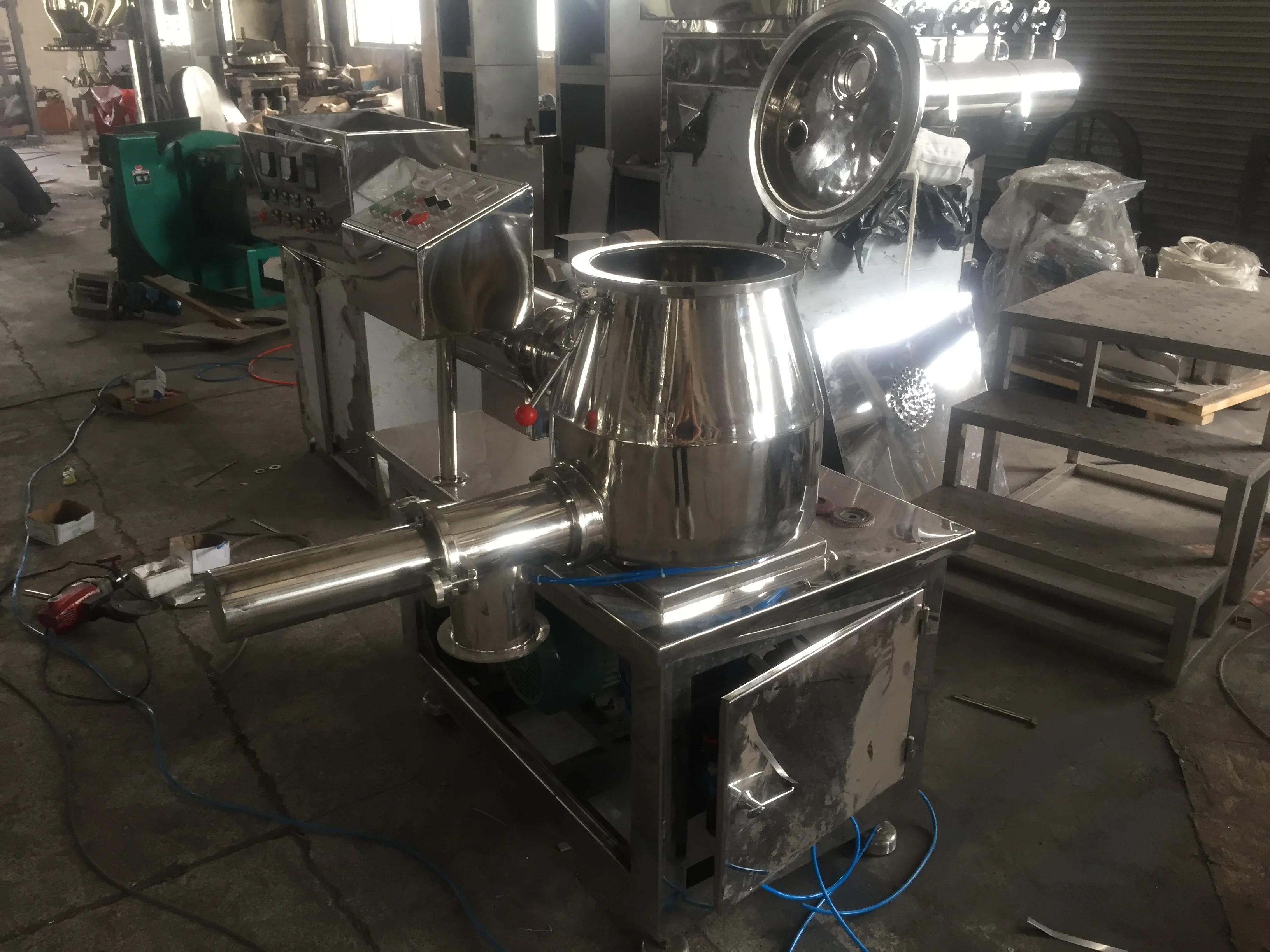

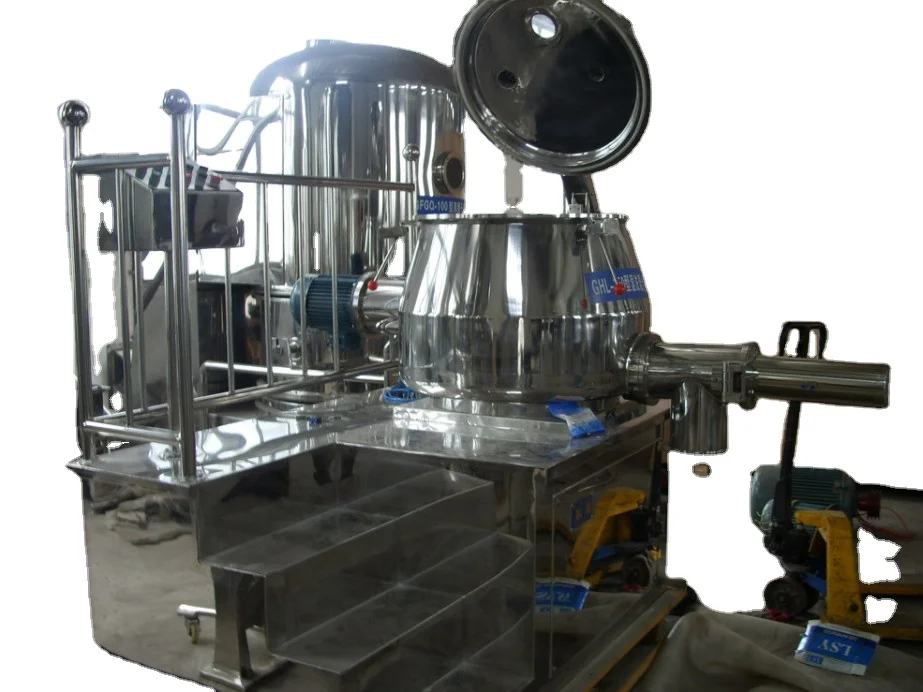

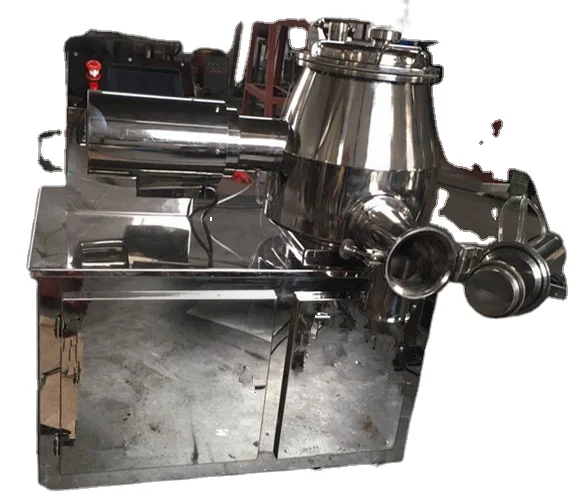

stainless steel GHL High efficient mixing granulator for medicine making pharmacy
- Category: >>>
- Supplier: Jiangyin City Xuan Teng Machinery Equipment Co. Ltd.
Share on (1600792200587):
Product Overview
Description
Product Description
Applications:
It is suitable for pharmaceutical, foodstuff, chemicals industry and so on. The granule is made from power to damp granule in which the adhesive should be injected in it.
Features:
1. The machine adopts horizontal cylinder structure, reasonable structure, no dead corner.
2. Air filled seal shaft for to drive. When washing, it can be changed to water.
3. Fluidity granulation, the granule is around ball shape. Its fluid is good.
4. Compared to traditional process, can reduce 25% of adhesive and short drying time is about 2 minutes; and the granulating time is 1-4 minutes, compared to the traditional process,4-5 times of efficiency is raised.
5. Dry mixing, humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.
6. The whole operation has strict safe and protective measures.
Principle:

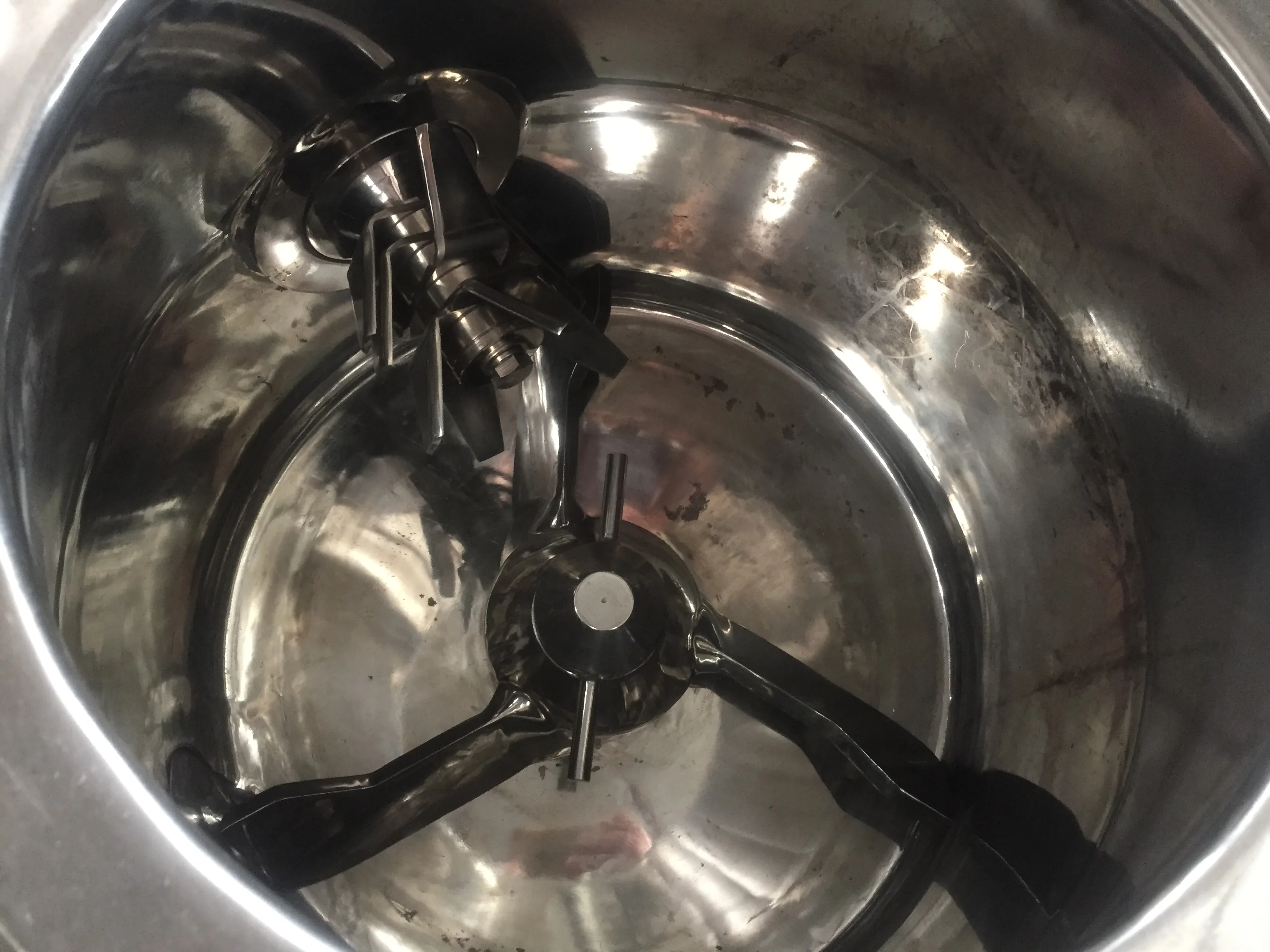

The power raw material and adhesive in a cylinder are fully mixed to a humid soft material by mixed oar at the bottom. Then it is cut by high-speed cutter and become uniform damp granules.
Model | GHL-10 | GHL-50 | GHL-100 | GHL-150 | GHL-200 |
Volume （L） | 10 | 50 | 100 | 150 | 200 |
Group Capacity （kg/batch） | 3 | 15 | 35 | 50 | 80 |
Mixing speed （r/min） | 300/600 | 200/400 | 200/400 | 180/270 | 180/270 |
Mixing power （kw） | 1.5/2.2 | 4/5.5 | 5.5 | 6.5/8 | 9/11 |
Cutting speed （r/min） | 1500 /3000 | 1500 /3000 | 1500 /3000 | 1500 /3000 | 1500 /3000 |
Cutting power（kw） | 0.85/1.1 | 1.3/1.8 | 2.4 | 2.4/3 | 4.5/5.5 |

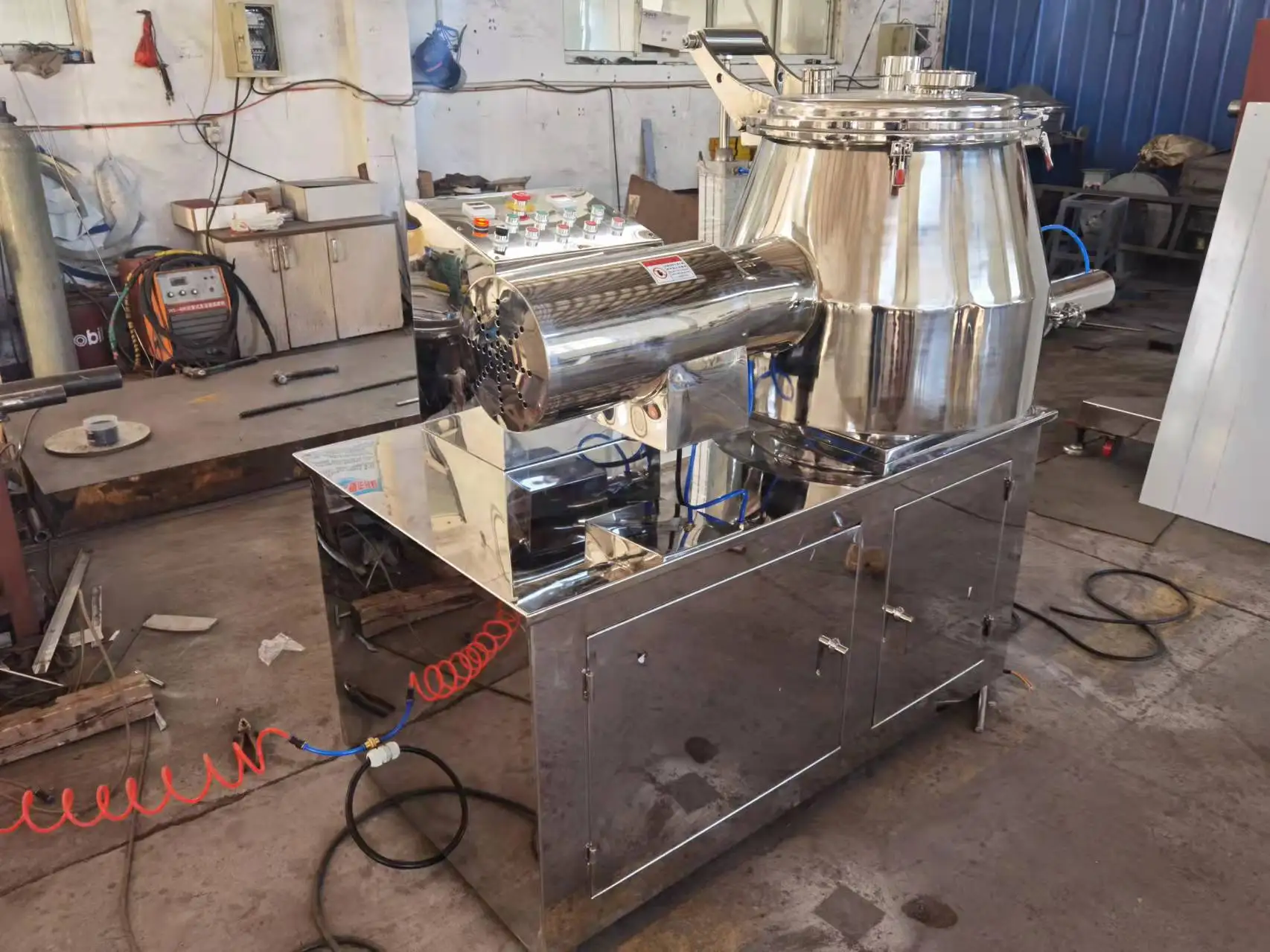

Product Display
Application Scenarios
1.With water cooling system, widely used in pharmaceutical, food, chemical industry.
2.Simple operation, powder can reach 100-120 mesh after crushing. By changing the screen to obtain different sizes of powder.
2.Simple operation, powder can reach 100-120 mesh after crushing. By changing the screen to obtain different sizes of powder.
1.The machine is applied for the sorting of the
granule size of dry power material in the trades medicine, chemical and foodstuff etc.
2.Can be used for single screen or multi screen sorting, easy operation and maintenance, smooth operation. Low noise, wide applicability and so on.
granule size of dry power material in the trades medicine, chemical and foodstuff etc.
2.Can be used for single screen or multi screen sorting, easy operation and maintenance, smooth operation. Low noise, wide applicability and so on.
V SHAPE MIXER
1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry. 2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
