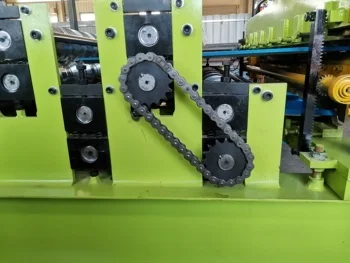

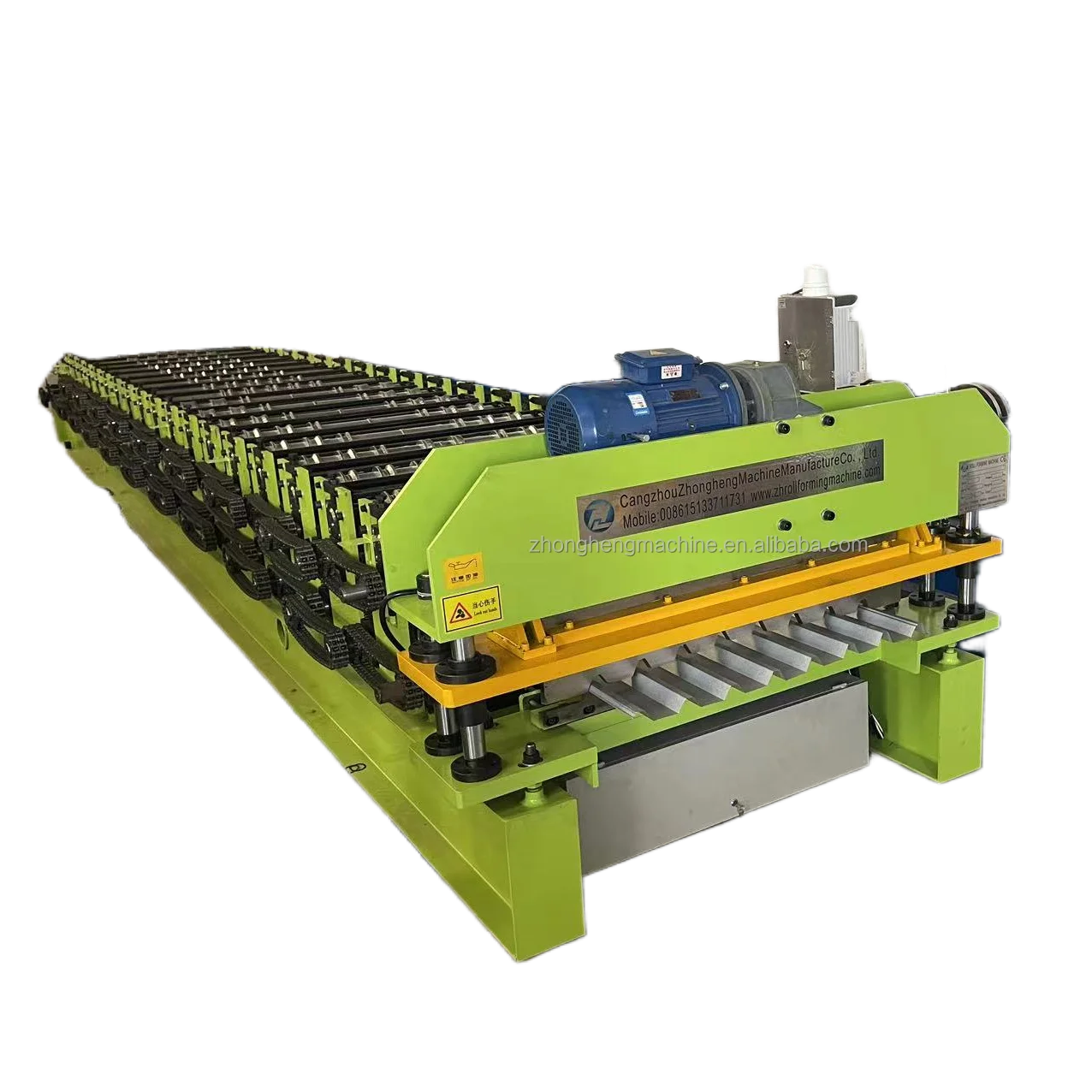

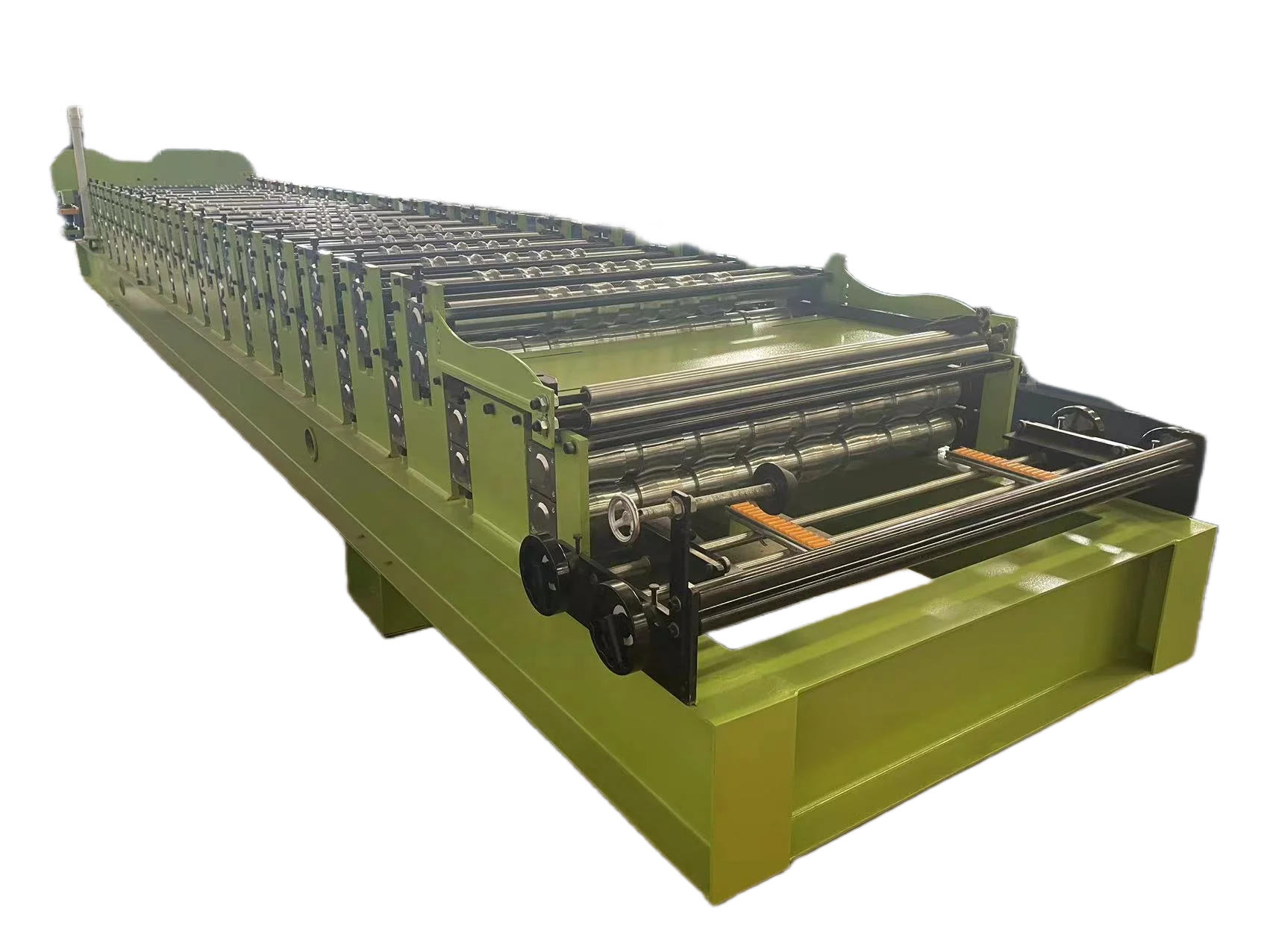

Strength factory engineering building materials machinery double color steel tile making machinery
- Category: Building Material Machinery >>>
- Supplier: Cangzhou Zhongheng Machine Manufacture Co. ltd.
Share on (1600792272027):
Product Overview
Description

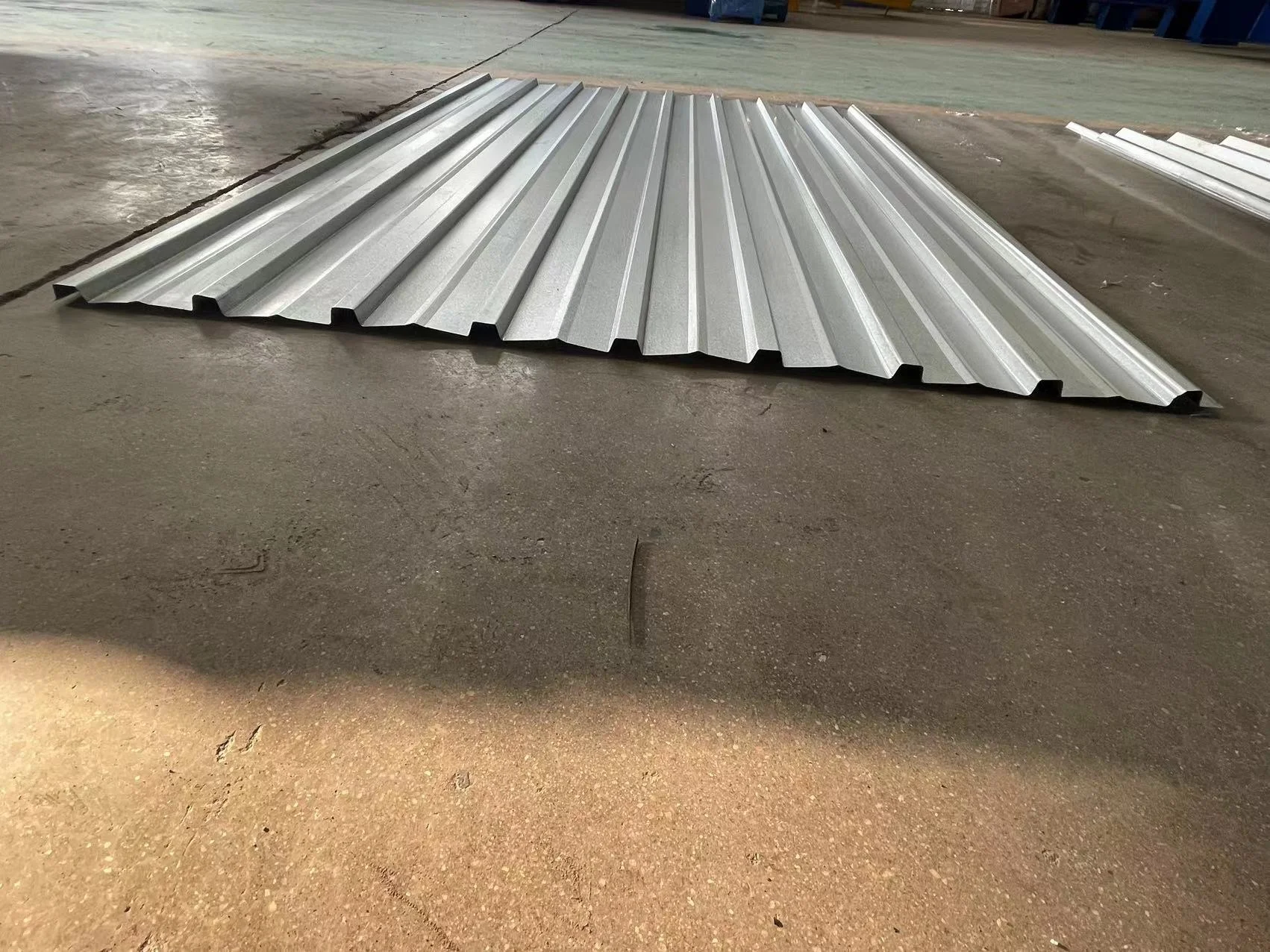

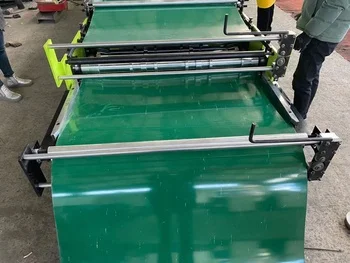

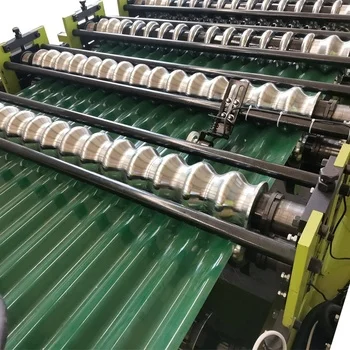

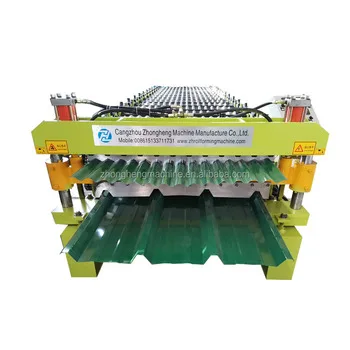

Product Display

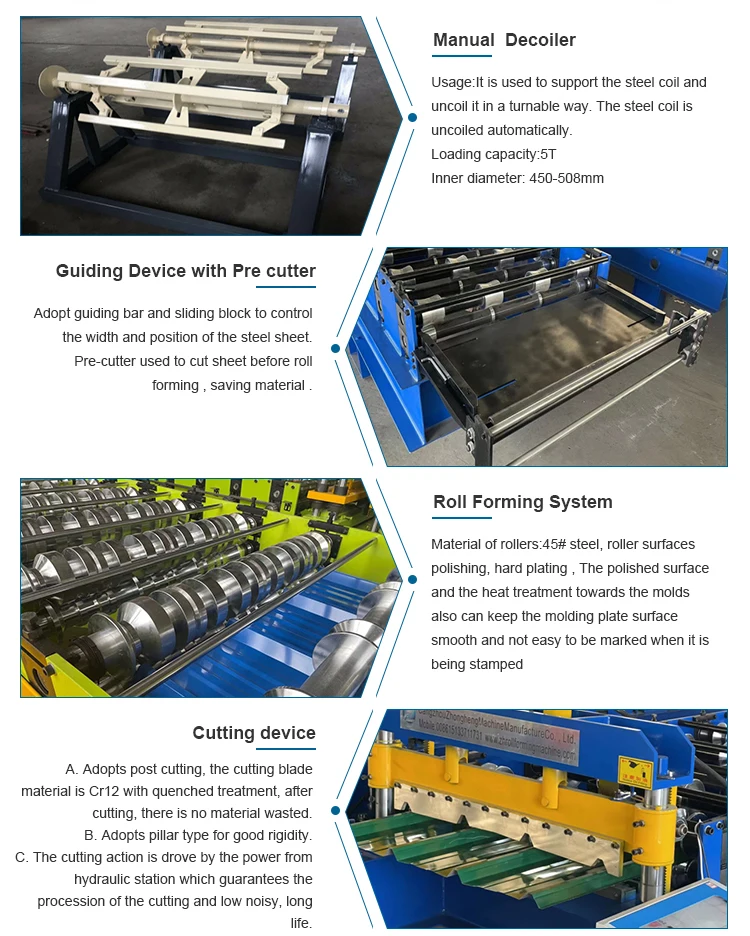

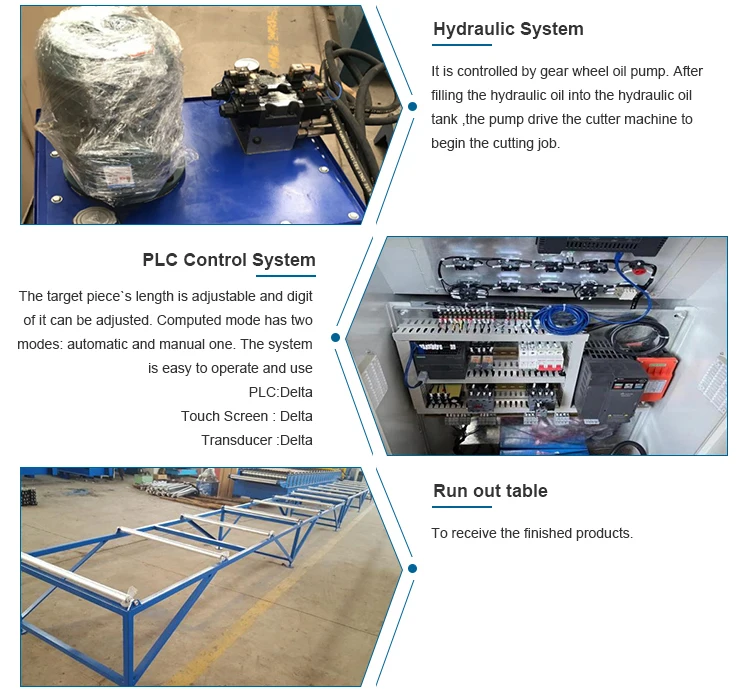

Components and Function
Technical Parameters
Sheet Specifications | ||||
Coil Type | Pre-painted coil,Galvanized steel | |||
Width | 1220mm | |||
Thickness range | 0.3-0.7mm | |||
Yield stress(mm) | Q235 | |||
Machine Specifications | ||||
Power Requirement | Voltage | 220v/3ph/60hz | ||
Power Requirement | Main Motor power | 5.5kw Siemens brand | ||
Cutter power | 4kw | |||
Forming speed | 10-15m/min | |||
Forming stations | 12-18 rows | |||
Forming shaft diameter | 70mm | |||
Chains | 1 inch | |||
Type of cutting | Roll formed and length-set cutting | |||
Control system | PLC Delta Brand | |||
Install dimension(depend on the final design) | 8.8m×1.5m×1.4m | |||
Total weight (Approx) | 6.5T | |||
Associated Products
Company Profile
Cangzhou ZhongHeng Machine Manufacture Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
We would like to invite you to come and join our to build our mutual benefit.
Our Exhibition
Customer Evaluation
Our Certificate
Payment & Delivery
1. Automatic c z Purlin Channel Cold Roll Forming Making Machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .If any damaged parts caused by quality problems after two years,we will also help but customer
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .If any damaged parts caused by quality problems after two years,we will also help but customer
