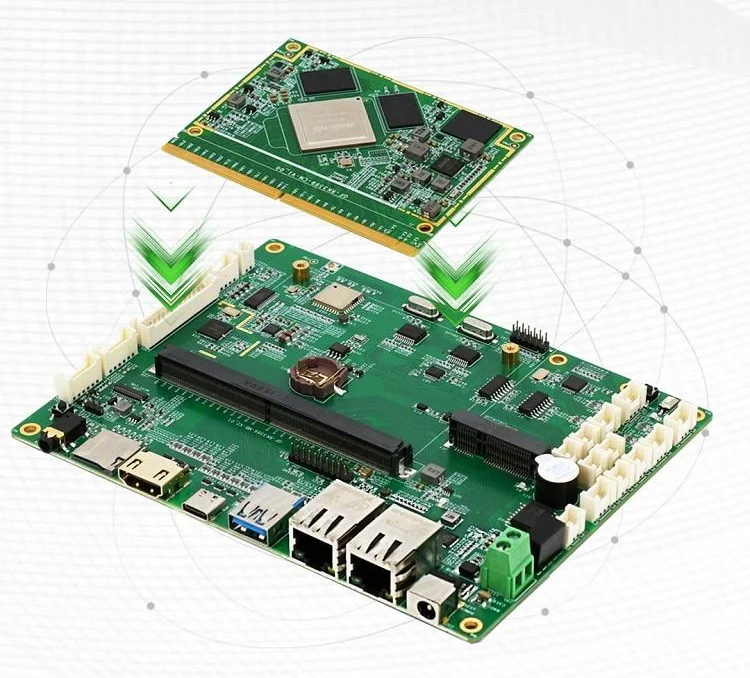

Advanced RK3399 six core SOM system on module android PCBA with gigabit ethernet, pcie, wifi, lvds, mipi,

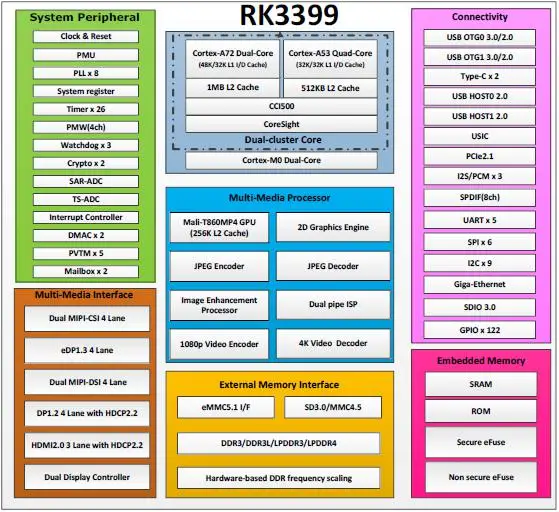

Rockchip RK3399 (28nm HKMG processing) hexa-core 64 bits processor, the CPU frequency reaches up to 1.8Ghz, it is based on the
big.LITTLE architecture, dual core with Cortex-A72(Big Core)+ Quad Core with Cortex-A53(Little Core).

ARM® Mali-T860 MP4 Quad Core GPU.
Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11
Support AFBC (Frame buffer Compression)

Support 4K VP9 and 4K 10bits H265/H264 video decoding , with 60fps
1080p multiformat video decoding (WMV,MPEG-1/2/4,VP8)
1080P video decoding, support H.264, VP8 format
Video anaphase processor: Anti-interlacing, denoising, edge/detail/color optimization

2GBDDR (64bit data bus LPDDR4) (4GB optional)

8GB eMMc, eMMc5.1(8GB/16GB/32GB optional)

RK808 Power Management Unit

5-ch UART, support UART with fluid control.

2-ch USB-HOST2.0: Including 1-ch USB-HOST 3.0, 1-ch USB-Type-C.

Support Gigabit Ethernet

Support 3-ch PWM port

6-ch I2C port

4-ch ADC port

1-ch SPI port

SDIO port

1-ch PCI-e 2.0 connector

I2S to support 8-ch digital voice input

Reserve partial GPIO ports.

Support MIPI display connector (4 channels)

Support EDP display connector (4 channels)

Support HDMI2.0, HD video and audio output port.

MIPI CSI port

5V power input

Support Android, Linux, Ubuntu, Debian

To provide the relative BSP, DEMO, APK

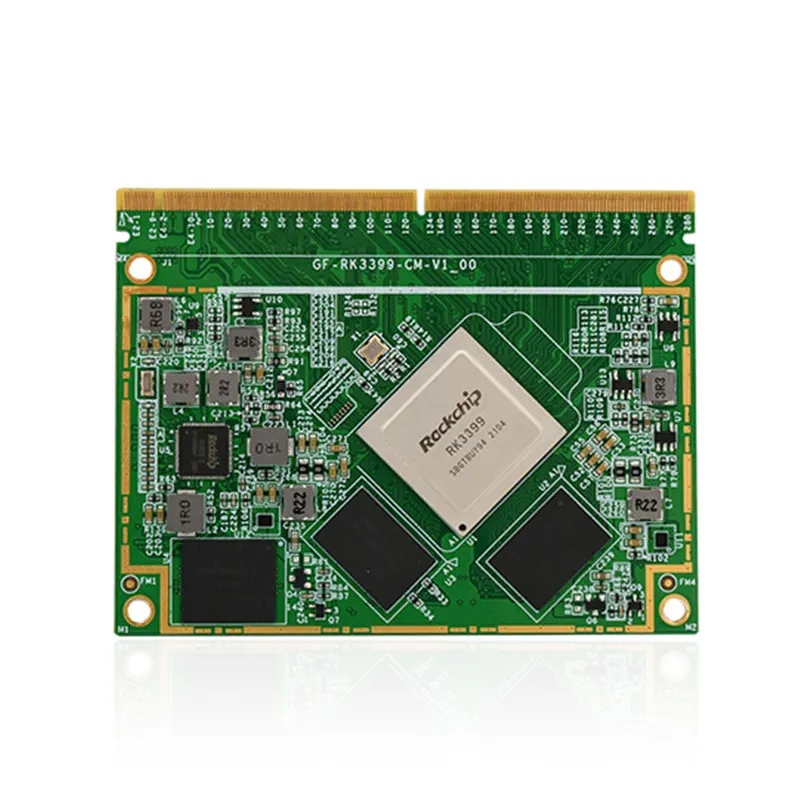

SOM Size

63mmx82mmx4mm

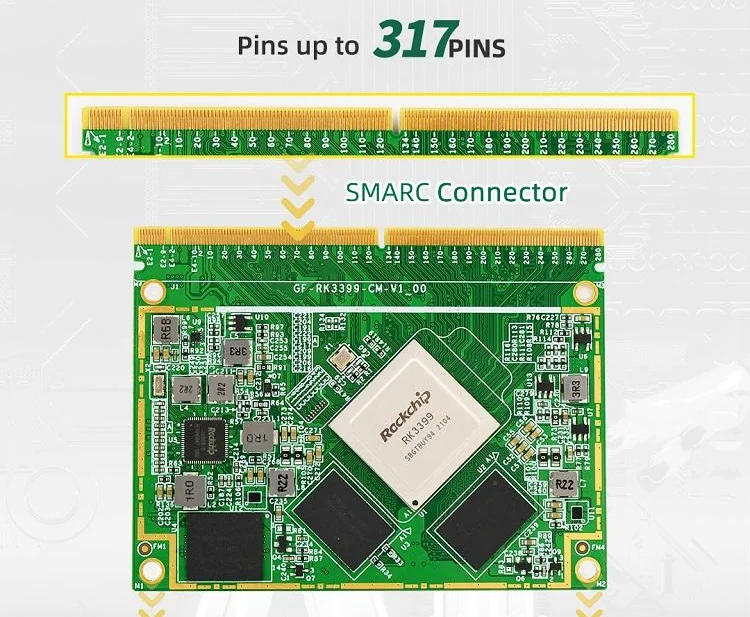

Board To Board
connector

SMARC interface,
1.1mm pitch, 317Pins

Bonding Pad Size

1.3mm*0.7mm

Operational Temperature

-20℃ ~ +70℃

Humidity

5%~95%, non-condensation
