  • Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding
Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding

Automatic closed chamber orbital weld head with TIG powersource aw200A for stainless carbon steel tube to tube welding

Share on:


Price:$13,000.00 - $18,000.00
Price in USD:Details

Quantity:


Product Overview

Description











Product Description











STANDARD EQUIPMENT





























































Specifications


aw200


Power Type


Inverter


Welding current


5 200 A


Duty cycle (20 )


200A 60% /155A 100%


No-load voltage


65 V


Input voltage


220V 10% 50Hz


Power(KW)


4.5


torch cooling


External circulating water cooling


control function


gas control, current control, rotational movement, water pump control


10storable program


10


Weight (kg)


23


Dimensions(mm)


586mm 312mm 370mm


Manufacturing standard


GB 15579.1 2004

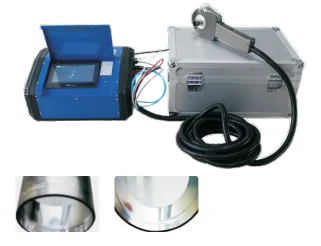

aw200+as series Pipe-to-pipe welding system


The as series sealing welding head is a special head designed for all-position TIG welding, suitable for pipe and pipe welding with pipe diameters ranging from medium 3 to medium 165.2mm.

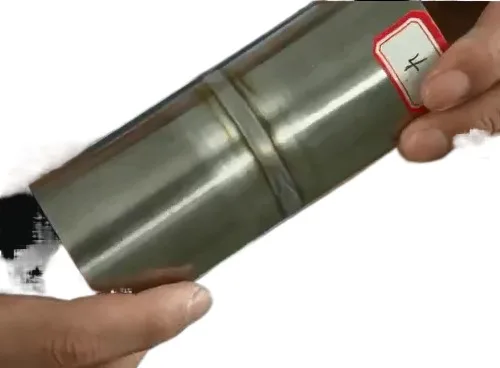

Welded pipe fittings are suitable for butt joints of stainless steel, carbon steel, titanium alloys and other materials.


Mainly used in dry pharmaceutical pipelines, food, bioengineering electronics, instrumentation and other industries pipeline installation

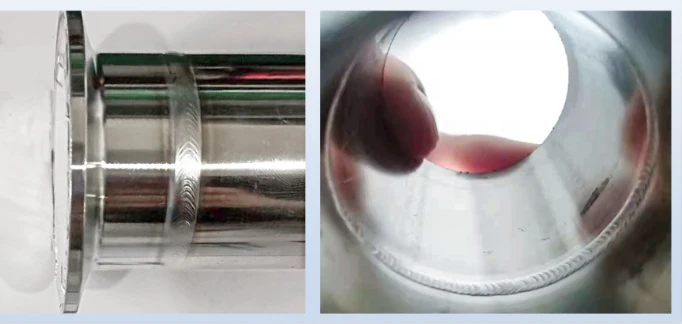

Closed welding, good welding protection effect, beautiful surface shape, suitable for on-site installation with small operating space, good accessibility.


Rotating non-winding structure,the cooling mode of the machine head is mainly water-cooled, light and with high temporary load rate.


The positioning method is the fixture positioning, and the positioning is accurate. There are operation buttons on the handle of the machine head for easy operation.


Use with aw200 welding power source to achieve ideal welding effect.



Switch between Chinese and English to meet the needs of customers in different fields.

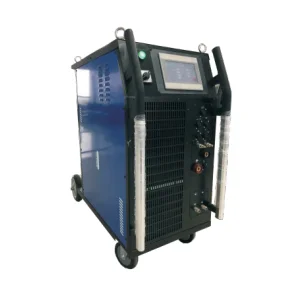

The aw400 program-controlled welding power source is composed of a control system, an inverter core, and a cooling water tank. The equipment adopts German Siemens PLC control system to precisely control various input and output signals. 7-inch touch man-machine interface, the system comes with one-key assignment, reducing tedious data input. Chinese interface, you only need to have basic welder foundation to be able to operate Real-time display of welding parameters to achieve automatic attenuation. Modular design, easy to maintain and maintain. Arc length tracking and yaw motion functions meet the needs of different tooling.



























Welding head water-cooled design, high duty cycle, small footprint, no winding, easy to use Integrated with start (stop) function button and bring welding process indicator light. The clip body is separated and the concentricity is better. Mainly used in laboratory, electronics, instrumentation and other industries pipeline installation and aw200 supporting use, can achieve ideal results.

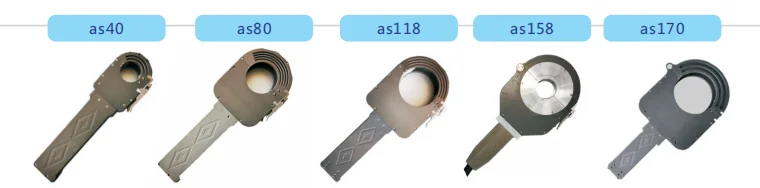

Welding Head Models And Parameters











































































































Model



as40




as80




as118




as158




as170



Main power supply



aw200 all-position programmable power supply















Main weldable materials



Carbon steel, stainless steel, titanium alloy















Welded pipe diameter range (mm)



6~38.1



12.7~76.2


25.4~114.3


50.8~152.4


50.8~165.2


maximum wall thickness



3mm















torch cooling



water cooling















Torch rotation speed


0.3~6.0rpm


0.2657~5.31rpm


0.194~3.87rpm


0.123~0.246rpm


0.123~0.246rpm


Welding shielding gas



Argon



Argon











Weight



3.5kg




5kg




6.5kg




8kg




10kg



Dimensions(mm)


377*129*42


438*155*44


540*195*54


580*300*100


620*290*65





Application








Application for semiconductor, chemical, food, medicine, electronic pipeline and other industries.
