China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising
China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising

China Full Color SMD RGB P2 P2.5 Indoor Wall Video LED Screen Modular For Commercial Advertising

Share on (1600792437014):


Price:$7.90 - $9.90

Quantity:


Product Overview

Description



Product Description

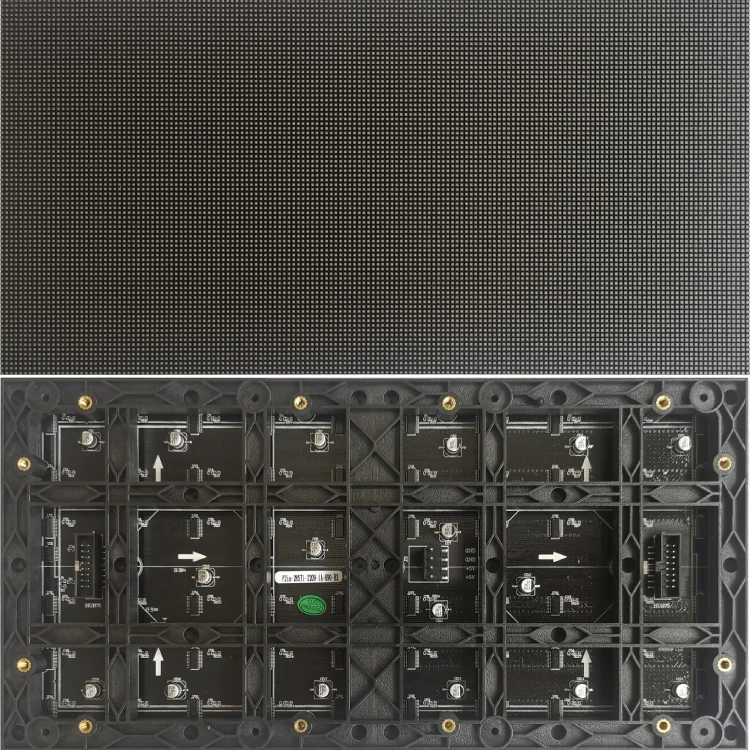

P2 LED MODULE
Pixel pitch:2mm
Driving mode (scan):1/40
Dimension(WxH)/(mm):320mm*160mm
Pixel Density(Pixel/sq.m.):250000
Refresh frequency(Hz):≥3840Hz
Lamp specification:SMD1515
Cabinet size (mm)：960mm*960mm

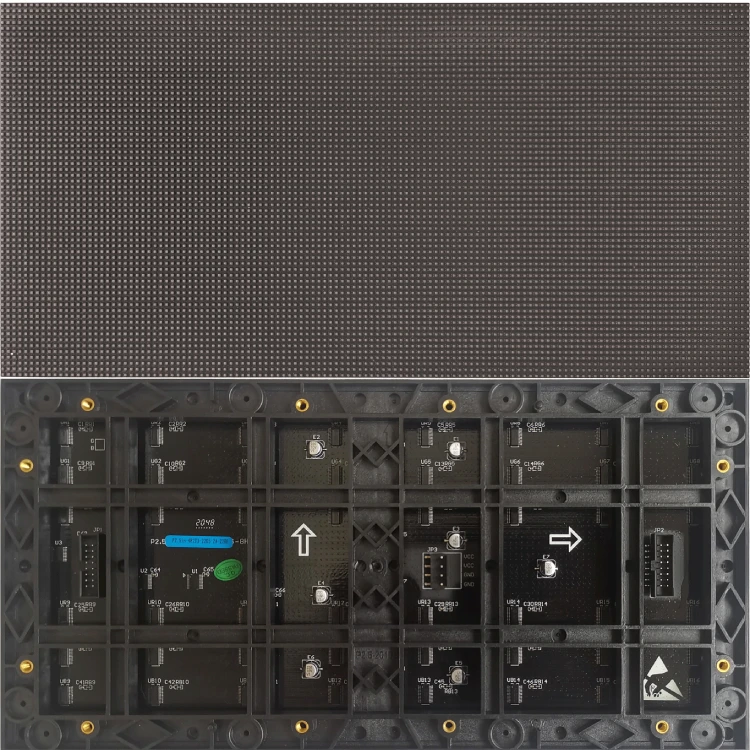

P2.5 LED MODULE
Pixel pitch:2.5mm
Driving mode (scan):1/32
Dimension(WxH)/(mm):320mm*160mm
Pixel Density(Pixel/sq.m.):250000
Refresh frequency(Hz):≥1920Hz
Lamp specification:SMD2020
Cabinet size (mm)：960mm*960mm








Specification


Pixel Information
P1.538-52S
P1.876-43S
P2-40S
P2.5-32S
Dimension(WxH)/(mm)
320*160
320*160
320*160
320*160
Pixel pitch
1.538mm
1.86mm
2mm
2.5mm
Pixel Density(Pixel/sq.m.)
422500
289050
250000
160000
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Lamp specification
SMD1212
SMD1515
SMD1515
SMD2020
Pixel resolution (dot)
208*104
172*86
160*80
128*64
Max Power
20W
20W
20w
22.5W
Panel weight/kg
0.29
0.369
0.369
0.4
Module thickness
15mm
14.7mm
14.7mm
14.5mm
Hub connecting
HUB75E
HUB75E
HUB75E
HUB75E
Best viewing distance
2-20M
2-20M
2-20M
2.5-30M
Working temperature
-20~50
-20~50
-20~50
-20~50
Driving mode (scan)
1/52 SCAN
1/43 SCAN
1/40 SCAN
1/32 SCAN
Refresh frequency(Hz)
≥3840HZ
≥3840HZ
≥3840HZ
≥1920HZ
Brightness(nit）
≥400cd/㎡
≥700cd/㎡
≥600cd/㎡
≥600cd/㎡
Lifetime Typical Value(hrs)
100000
100000
100000
100000


Company Profile








FAQ


Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.

Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days

Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available

Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept FOB train terms,but we can help you order and arrange a shipping agent.It usually takes 20 30 days on the sea.a few days for customs clearance

Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.

Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1 years warranty for our products.
