83031 Universal LCD LED TV Controller Driver Board Kit TV/AV/PC/USB LED driver board T.R83.031
- Category: >>>
- Supplier: Shenzhen,Jiangyuan,Microelectronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
What do you need to help, even if you contact us at any time
Features:

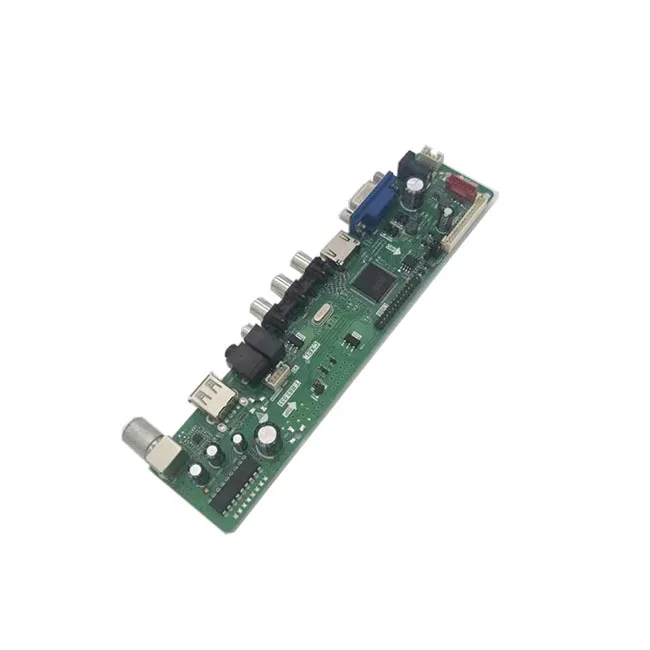

New Module T.R83.031 Universal LCD LED TV Controller Driver Board Kit TV/AV/PC/USB LED driver board instead old module T.R85.031
T.R83.031 is an analog TV control board, which is suitable for the Asia Pacific and the Middle East market. It can support ≤ 26 inch LED panels which resolution is up to 1920×1200.
T.R83.031 support these kinds of main chip: RDA8503, RDA8503C.
| Standard Configuration |
| Features | Asia, 1 AV, 1 HDMI, 1 USB |
| Main chipset | RDA8503 |
| Compatible Chipset | RDA8503C |
| Terminal Functions | VGA,HDMI,CVBS/AUDIO IN,PC AUDIO IN, EARPHONE OUT,USB,ATV |
| Optional Functions | 2USB |
| Power Supply | External Power Supply, 2.0mm Inside Diameter of Power Terminal, 12V input from 4PIN-2.0mm interface |
| Power to Panel | 3.3V, 5V, 12V Reserved,5V Default |
Company Information
Factory
Packaging & Shipping
1-Export standard package
2-Safe cardboard box packaging
3-Foam safe packaging
FAQ
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What’s the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
