OBRK Concrete Resistivity Tester For Concrete Testing
- Category: Other Electronic Measuring Instruments >>>
- Supplier: Cangzhou,Oubeiruike,Instrument,And,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

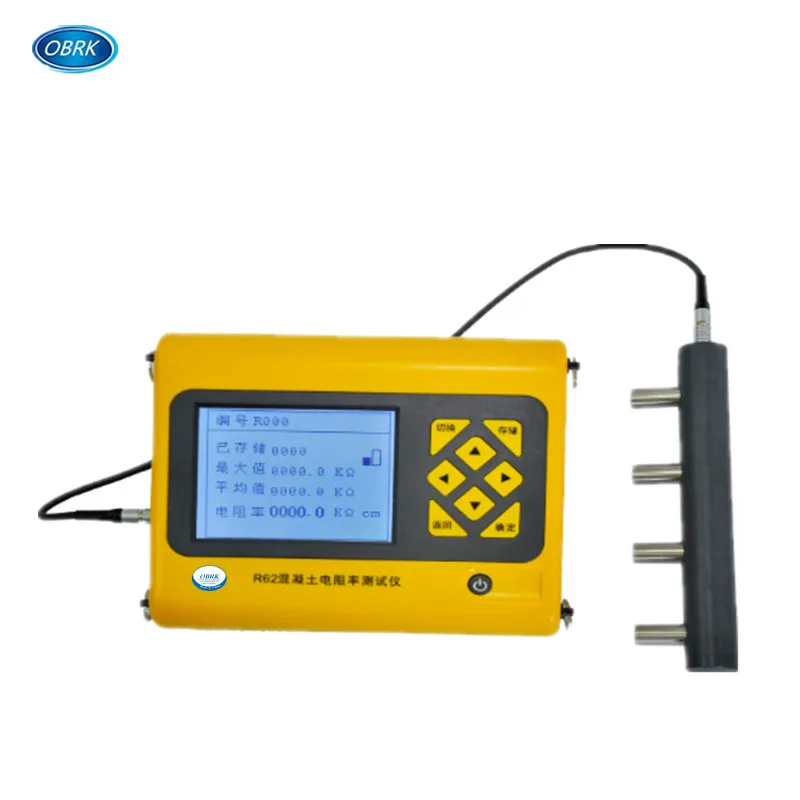

Concrete Resistivity Meter
R62 concrete resistivity tester is also called potential detector. The corrosion of steel bar/ reinforcement in concrete is an
electrochemical process, it creates an electric current to make metal dissociation. The lower the resistivity, the easier
corrosion current flowing through the concrete, and the greater the likelihood of corrosion. So measuring the resistivity of
concrete can effectively evaluate its ability to resist corrosion and evaluate existing steel corrosion deg
electrochemical process, it creates an electric current to make metal dissociation. The lower the resistivity, the easier
corrosion current flowing through the concrete, and the greater the likelihood of corrosion. So measuring the resistivity of
concrete can effectively evaluate its ability to resist corrosion and evaluate existing steel corrosion deg
Performance:
1. Test mode. Sponge type sensor ensures good electrical contact.
2. Easy operation. Test on the surface of the concrete, without destroying or drilling it.
3. Include a standard test block. To ensure the reliability of the measurement results.
4. Automatic measure environmental temperature. The instrument contains a temperature
measuring module. It can measure, record and display environmental temperature quickly , no need for thermometers.
5. Can save test date. Convenient for laborer data management.
6. Display test result visually. Display test result directly. The bigger the value, the higher the
resistivity, and the smaller the possibility of corrosion.
7. Real USB transmission. Data can be transmit to computer for future process and analysis.
2. Easy operation. Test on the surface of the concrete, without destroying or drilling it.
3. Include a standard test block. To ensure the reliability of the measurement results.
4. Automatic measure environmental temperature. The instrument contains a temperature
measuring module. It can measure, record and display environmental temperature quickly , no need for thermometers.
5. Can save test date. Convenient for laborer data management.
6. Display test result visually. Display test result directly. The bigger the value, the higher the
resistivity, and the smaller the possibility of corrosion.
7. Real USB transmission. Data can be transmit to computer for future process and analysis.
PRODUCT SPECIFICATIONS
NO. | Item | Spcefication |
1 | Model | OBRK-R62 |
2 | Test range | 0~300 kΩcm; 0~3000 kΩcm |
3 | Test accuracy | ±1 kΩcm |
4 | Resolution | 0.1 kΩcm |
5 | LCD display | 160*128 |
6 | Batteries | 6 dry cells, work more than 30 hours |

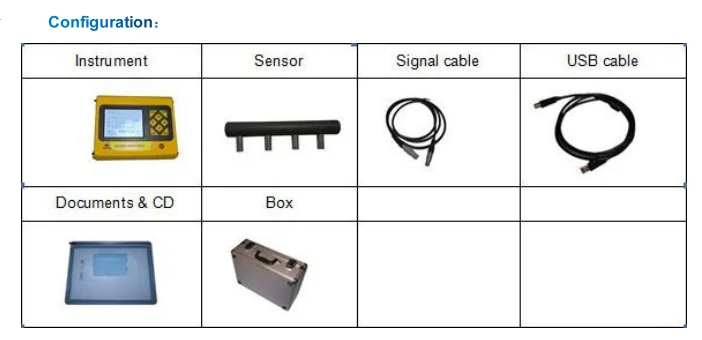

Consist of: | Item | Spcefication | ||
1 | Description | Quantity | ||
2 | Host | 1PC | ||
3 | Proble | 1 PC | ||
4 | Singal line | 1PC | ||
5 | Test sponges | 4PCS | ||
6 | The mouth of USB transmission line | 1PC | ||
7 | Resistivity test plate | 1PC | ||
8 | Instrument strap | 1PC | ||
9 | Host five battery | 1 set | ||
APPLICATIONS
COLLEGES AND UNIVERSITIES
CONSTRUCTION UNIT
TESTING COMPANY
RAILWAY ENGINEERING
HIGHAY ENGINEERING
APPLIED WATER CONSERVANCY
ABOUT US
Oubeiruike is established in 2013. our main products include concrete compression testing machine, concrete cube test
moulds,asphalt test apparatus and others instruments. These products have been exported to more than 30 countries, especially used in building industry, and get lots of supports and praise. The workshop equipped with various advance lathe, CNC(Computer Numerical Control), cutting machines. These imported equipment ensure the quality of our products. Also our management system have been certified by ISO9001. Climate Chambers has been certified by CE. We also can provide every customer OEM request. Any details about us or our products, pls freely contact with us at any times.
moulds,asphalt test apparatus and others instruments. These products have been exported to more than 30 countries, especially used in building industry, and get lots of supports and praise. The workshop equipped with various advance lathe, CNC(Computer Numerical Control), cutting machines. These imported equipment ensure the quality of our products. Also our management system have been certified by ISO9001. Climate Chambers has been certified by CE. We also can provide every customer OEM request. Any details about us or our products, pls freely contact with us at any times.
Our Service
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
Packing&Delivery
1. Package
Your will be packaged by standard export wooden case.
Before delivering, we can send you pictures of your packed goods.
2. Delivery
Before delivering, we can send you pictures of your packed goods.
2. Delivery
We can deliver your by sea, air and door to door express like DHL, FedEx, EMS, UPS and TNT.
FAQ
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q. how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q.What products do you have?
A: We focus on Production Concrete Cube Molds,Compression Testing Machines,Climate Chamber,Ring & Ball Apparatus,Concrete Test Hammer and related testing instruments.
Q.What is your greatest advantage?
A: We have more then 20 years of experience in design research and development.
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q. how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q.What products do you have?
A: We focus on Production Concrete Cube Molds,Compression Testing Machines,Climate Chamber,Ring & Ball Apparatus,Concrete Test Hammer and related testing instruments.
Q.What is your greatest advantage?
A: We have more then 20 years of experience in design research and development.
