New product for hydraulic ironworker punching and cutting metal sheet machine
- Category: >>>
- Supplier: Anhui Zhongrui Machine Manufacturing Co. Ltd.
Share on (1600792749045):
Product Overview
Description
Structure introduction

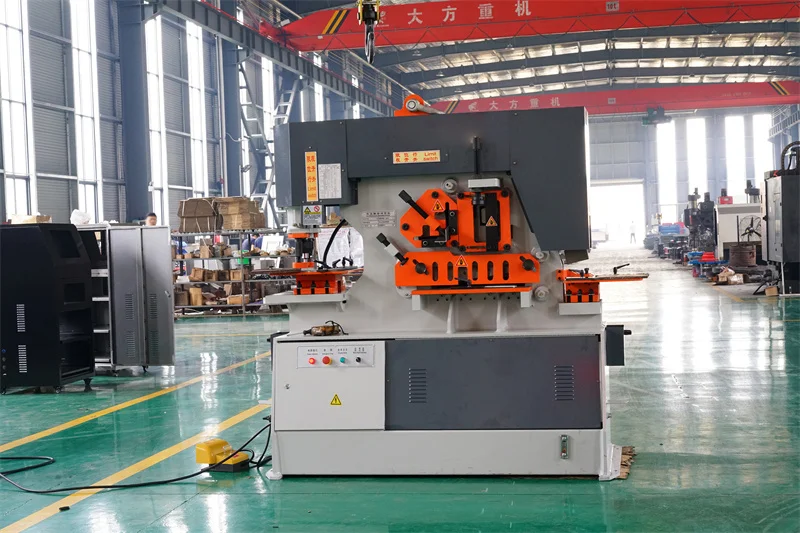

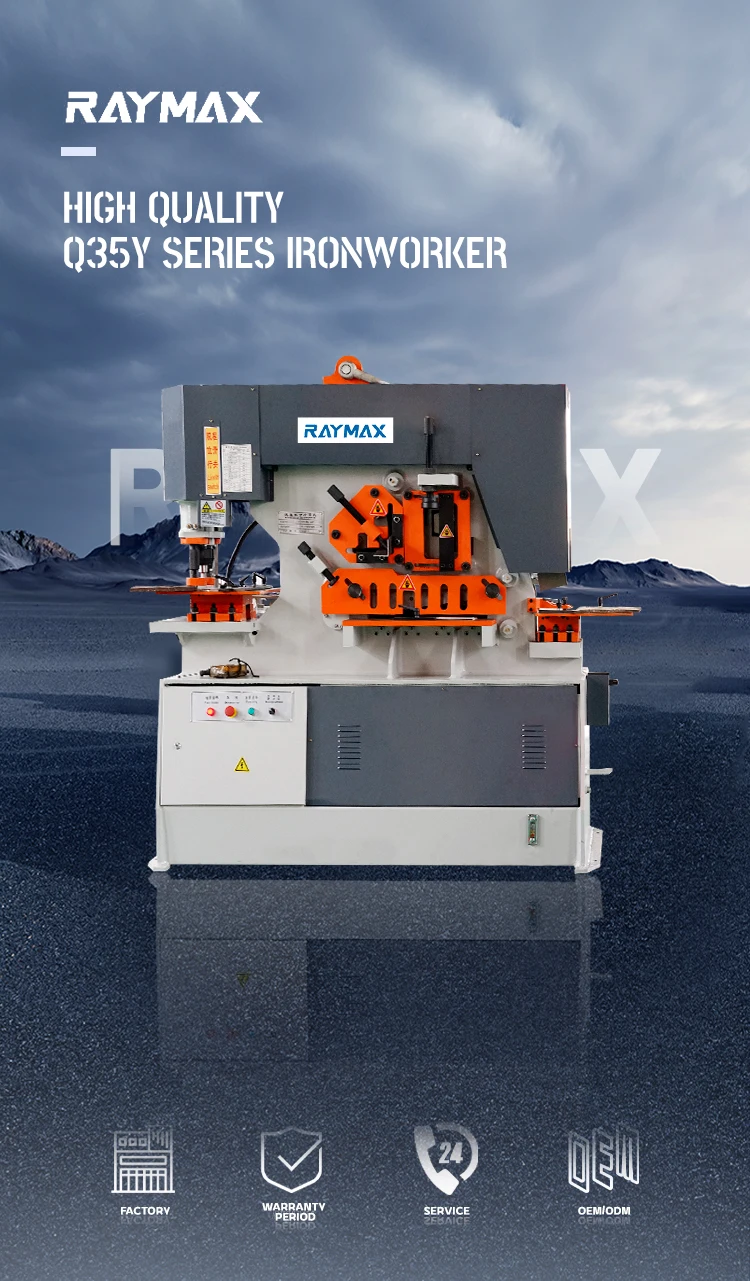

Q35Y Series Ironworker are an ideal equipment for cutting all kinds of angle steel, 1-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching. Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station). Germany Rexroth integrated hydraulic valve block ensures the stability of the machine.
Main Functions
Central lubricating system
Motor-driven rear stopper
Lighting devices for work
More efficient stroke-control functions of piston rod
Q35Y Series Ironworker are an ideal equipment for cutting all kinds of angle steel, 1-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching. Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station). Germany Rexroth integrated hydraulic valve block ensures the stability of the machine.
Main Functions
Central lubricating system
Motor-driven rear stopper
Lighting devices for work
More efficient stroke-control functions of piston rod
Model | Q35Y-12 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
Punching Pressure(T) | 35T | 60T | 90T | 115T | 145T | 200T | 250T |
Max.cutting thickness of steel plates(mm) | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
Plate strength (N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
Angle of Shear | 7 | 7 | 8 | 8 | 8 | 8 | 8 |
A trip size (T×W)(mm) | 12x160 6x300 | 16×250 8×400 | 20×330 10×480 | 25×330 16×600 | 30×335 20×600 | 40×335 30×600 | 50×300 30×750 |
Trips frequency (times/min) | 10-18 | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 | 6-12 |
Throat depth(mm) | 115 | 300 | 355 | 400 | 600 | 530 | 600 |
Punch depth(mm) | 12 | 16 | 20 | 25 | 28 | 35 | 40 |
Max.punching diameter(mm) | 25 | 25 | 30 | 35 | 38 | 40 | 45 |
Main Motor Power(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
Overall diamensions (L× W×H) (mm) | 950×550×1800 | 1740×810×1830 | 1950×900×1950 | 2355×960×2090 | 2800×1050×2450 | 2900×1100×2500 | 3200×1440×2500 |

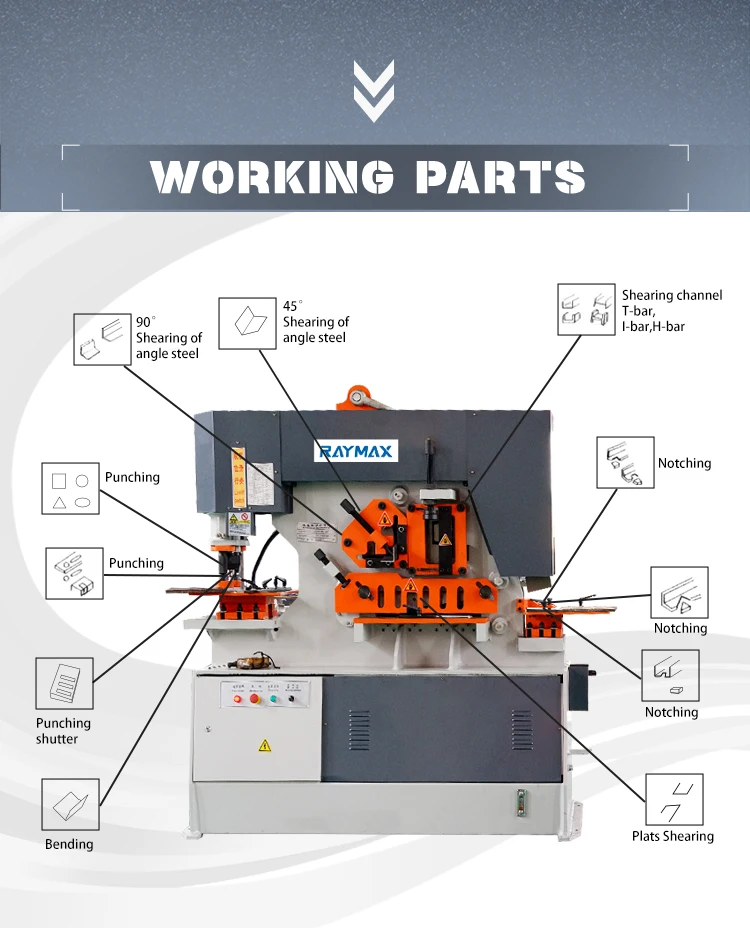

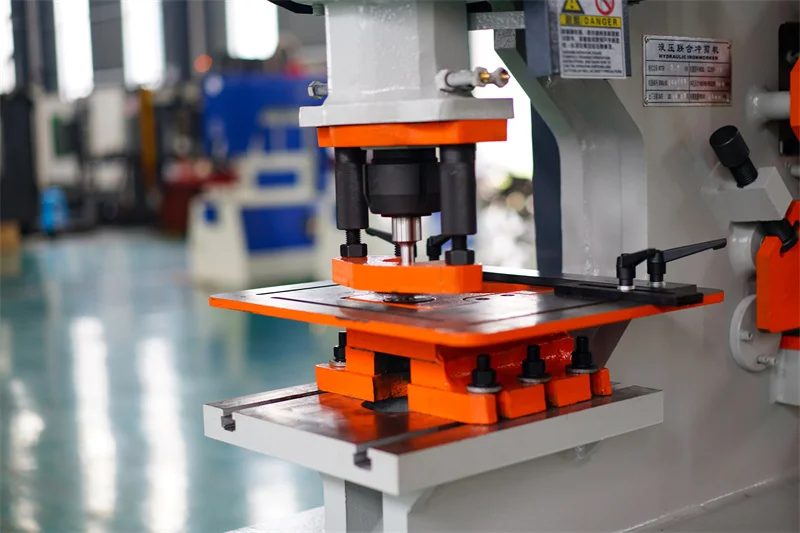

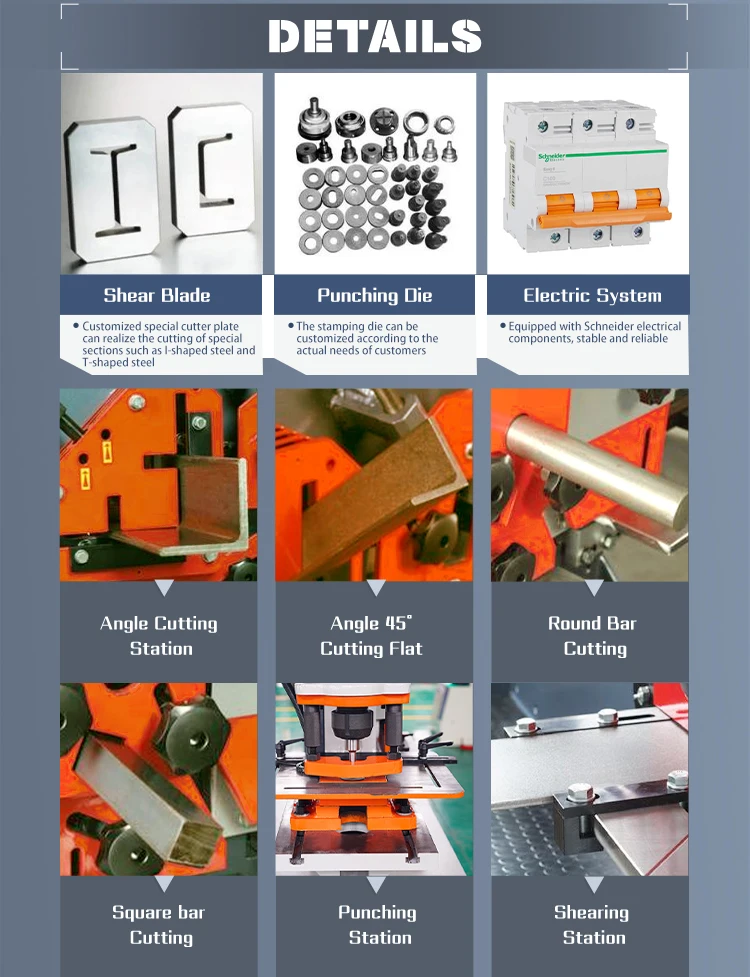

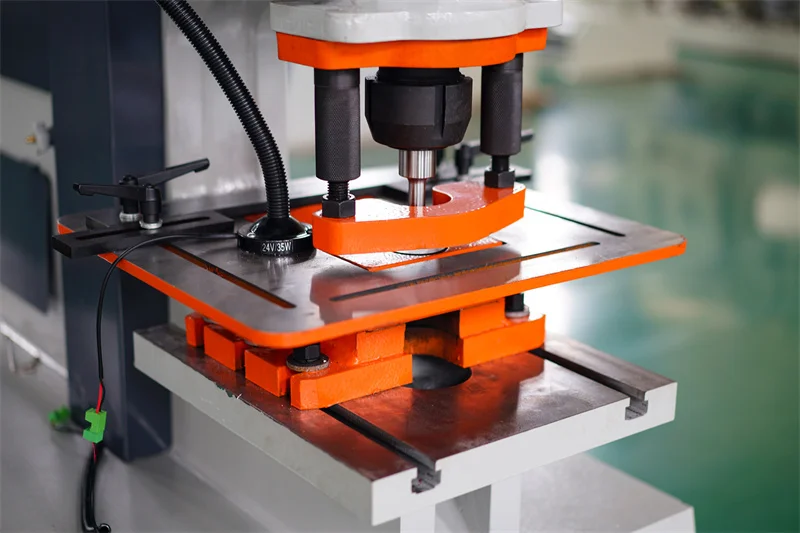

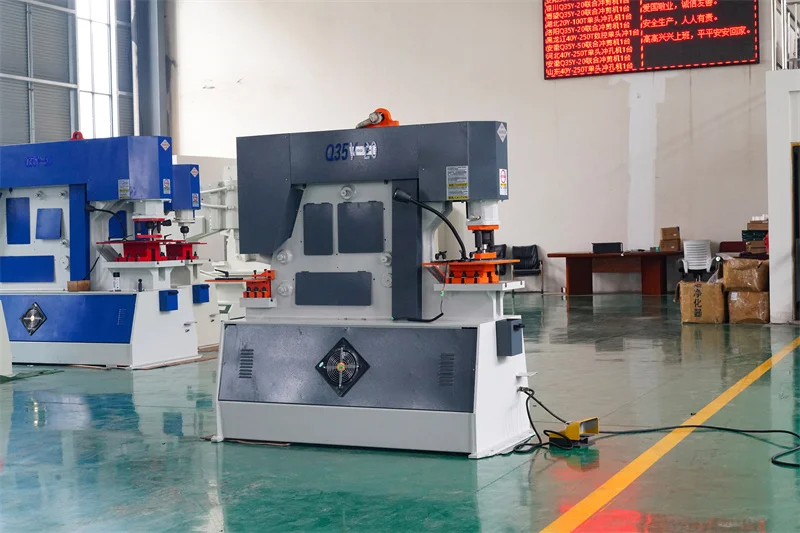

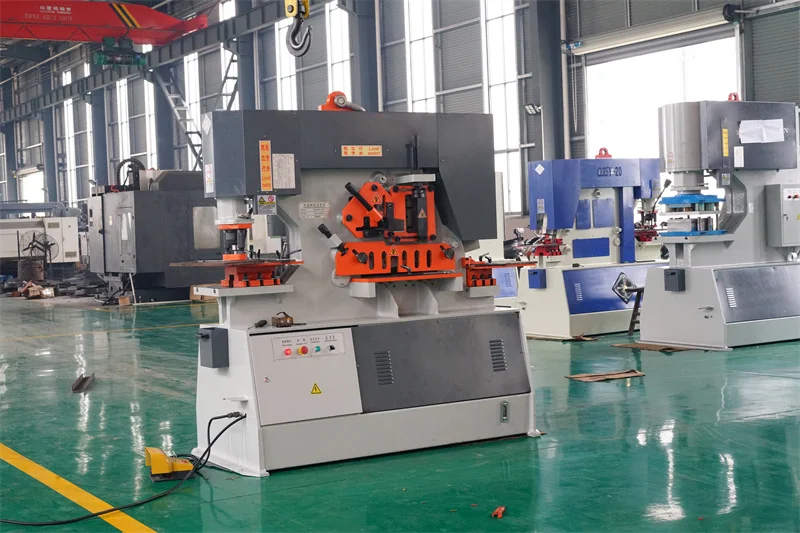

1. Punching
Full range of universal punches and dies are available unique style allows for large angle iron punching and large channel.
Punching large viewing window on stripper swing away design for ease of operation large two piece gauging table with rulers and stop as standard fittings.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/ square bar, channel/ beam cutting. Large strong guarding for max safely.
The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This gives the operator the ability to make a picture frame Conner for perfect welds.
Full range of universal punches and dies are available unique style allows for large angle iron punching and large channel.
Punching large viewing window on stripper swing away design for ease of operation large two piece gauging table with rulers and stop as standard fittings.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/ square bar, channel/ beam cutting. Large strong guarding for max safely.
The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This gives the operator the ability to make a picture frame Conner for perfect welds.
3. Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending
Also bend the plate below 500 mm. All the components of machine are of the highest quality in their safety, function, capability and maintenance.
Also bend the plate below 500 mm. All the components of machine are of the highest quality in their safety, function, capability and maintenance.
