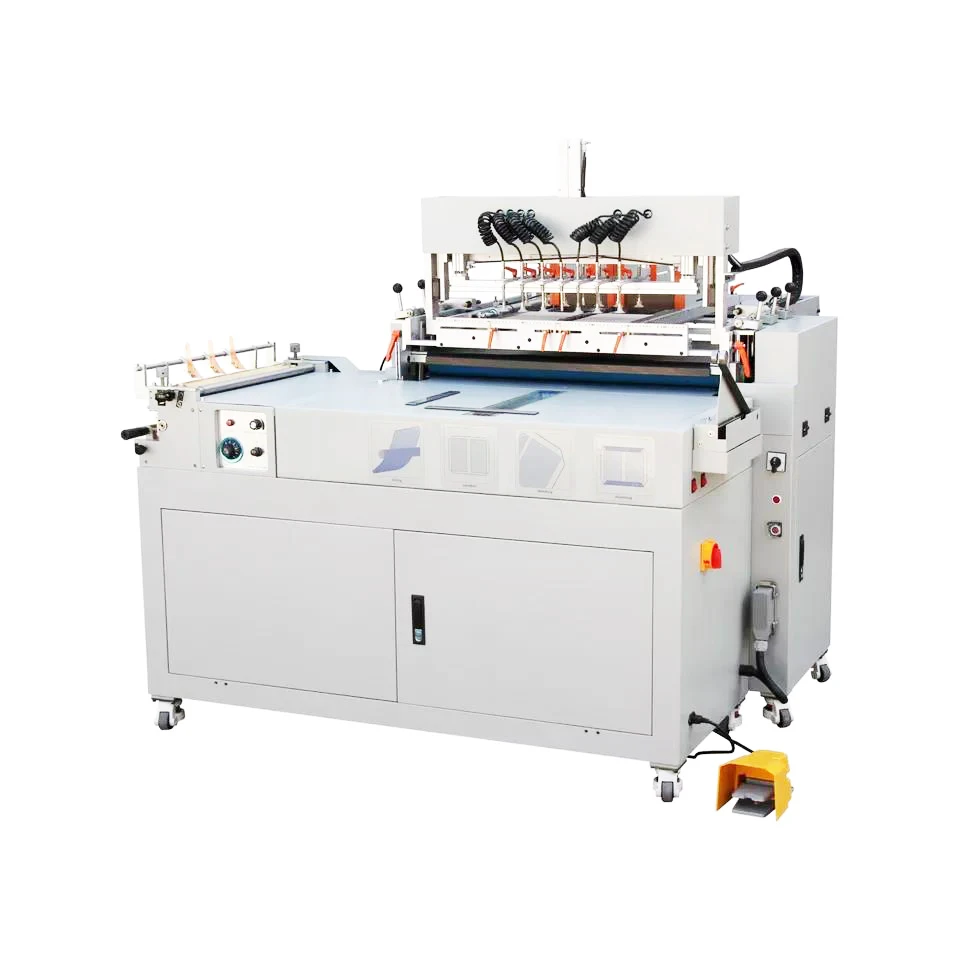

QSK840 Pneumatic Photo Album Hardcover Making Machine Book Cover Making Machine
- Category: >>>
- Supplier: Hangzhou Fuyang Uving Office Equipment Co. Ltd
Share on (1600792836009):
Product Overview
Description
Specification
Product Introduction

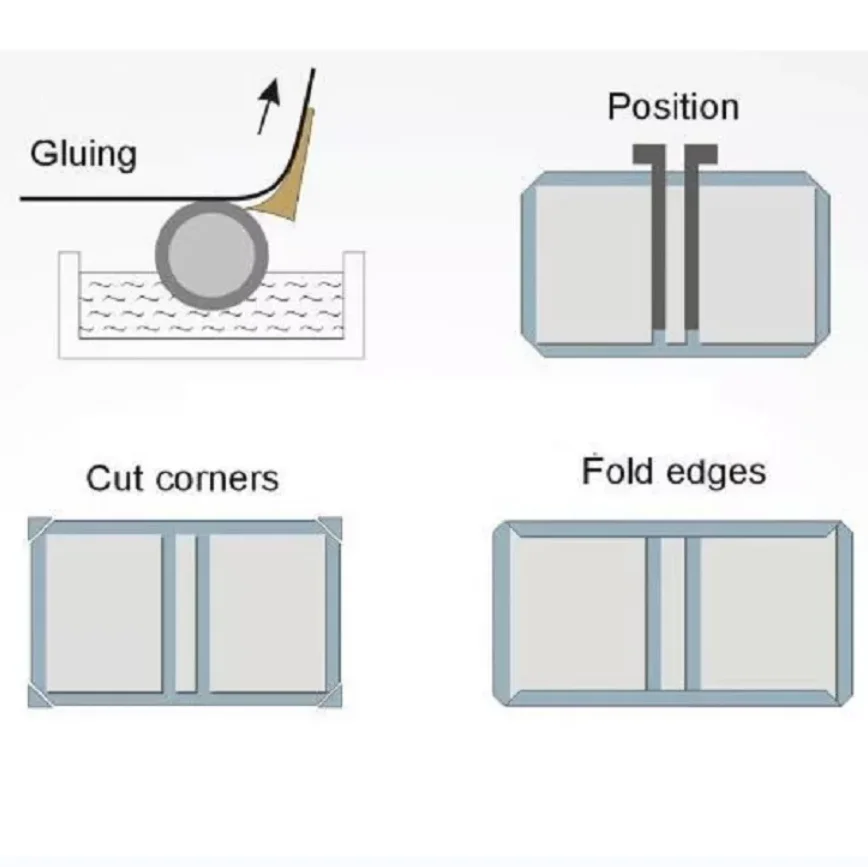

This product is composed of hot melt glue, automatic conveying, automatic hemming, quantitative water replenishment, cover adsorption positioning, cover cutting and other multi-functional system combinations.
PLC program system control, heating animal protein adhesive and water-based latex can be used alone, without professional personnel, a single operation can be quickly produced
All kinds of hardcover books, photo albums, loose-leaf books, diary books, desk calendars, folders and other enclosures are suitable for multi-variety, medium and small batch book shell production.
PLC program system control, heating animal protein adhesive and water-based latex can be used alone, without professional personnel, a single operation can be quickly produced
All kinds of hardcover books, photo albums, loose-leaf books, diary books, desk calendars, folders and other enclosures are suitable for multi-variety, medium and small batch book shell production.
Main Feature
1)Automatic conveying positioning cardboard and medium diameter cardboard, linear guide rail and electromagnetic air suction device control automatic pick-up and delivery.
2)Automatic hemming, bidirectional reciprocating automatic hemming system can complete the hemming operation on both sides at one time.
3)Cover hot melt glue, constant temperature water heating, step-less speed regulation, heated animal glue, and water-based latex can be the main components such as the top roller, rubber plate, heating water plate and anti-coiling baffle are made of copper alloy material, with uniform heat conduction and fast heating.
4)The upper rubber part is equipped with an anti-water vapor evaporation device to avoid the paper curling and winding roll caused by the moisture on the cover.
5)Anti-rolling file adaptive design, without adjustment. The coating thickness can be adjusted as needed.
6)Quantitative water replenishment, which can be freely adjusted and controlled to maintain the appropriate viscosity of the glue.
7)Plug-in hemming pressure quick adjustment to adapt to different thicknesses of the cardboard. The hemming position can be adjusted according to the requirement.
2)Automatic hemming, bidirectional reciprocating automatic hemming system can complete the hemming operation on both sides at one time.
3)Cover hot melt glue, constant temperature water heating, step-less speed regulation, heated animal glue, and water-based latex can be the main components such as the top roller, rubber plate, heating water plate and anti-coiling baffle are made of copper alloy material, with uniform heat conduction and fast heating.
4)The upper rubber part is equipped with an anti-water vapor evaporation device to avoid the paper curling and winding roll caused by the moisture on the cover.
5)Anti-rolling file adaptive design, without adjustment. The coating thickness can be adjusted as needed.
6)Quantitative water replenishment, which can be freely adjusted and controlled to maintain the appropriate viscosity of the glue.
7)Plug-in hemming pressure quick adjustment to adapt to different thicknesses of the cardboard. The hemming position can be adjusted according to the requirement.
Model | U-QSK840 |
Max Book Case Size | 700*430mm |
Min Book Case Size | 150*150mm |
Cover Thickness | 80-400gsm |
Cardboard Thickness | 1.5-4mm |
Glue Width | 500mm |
Hemming Width(Cover Feeding Width) | 840mm |
Work Table Size | 980*466mm |
Voltage/Power | 220V,50HZ,2800W |
Pneumatic Pressure | 0.6MPa |

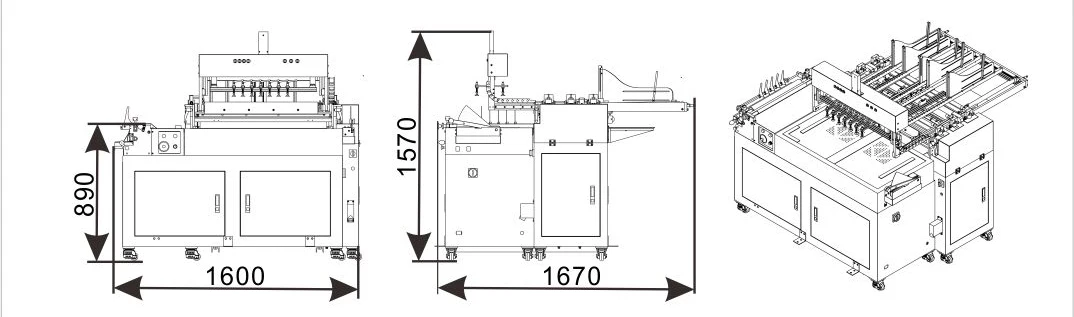

Machine Dimension | 165*167*157cm |
Machine Weight | 730kg |
※ The machine air source is optional, and the equipment reserves Φ8 mm external air source air pipe interface.
※ The manual positioning mechanism can be customized, and the bench calendar set can be selected to complete the production of the bench calendar.
※ Machine design and specification parameters, color, etc. are constantly improving, without notice if there are changes
※ The manual positioning mechanism can be customized, and the bench calendar set can be selected to complete the production of the bench calendar.
※ Machine design and specification parameters, color, etc. are constantly improving, without notice if there are changes
Product Description
Hardcover Book Case Making Machine
Related Products

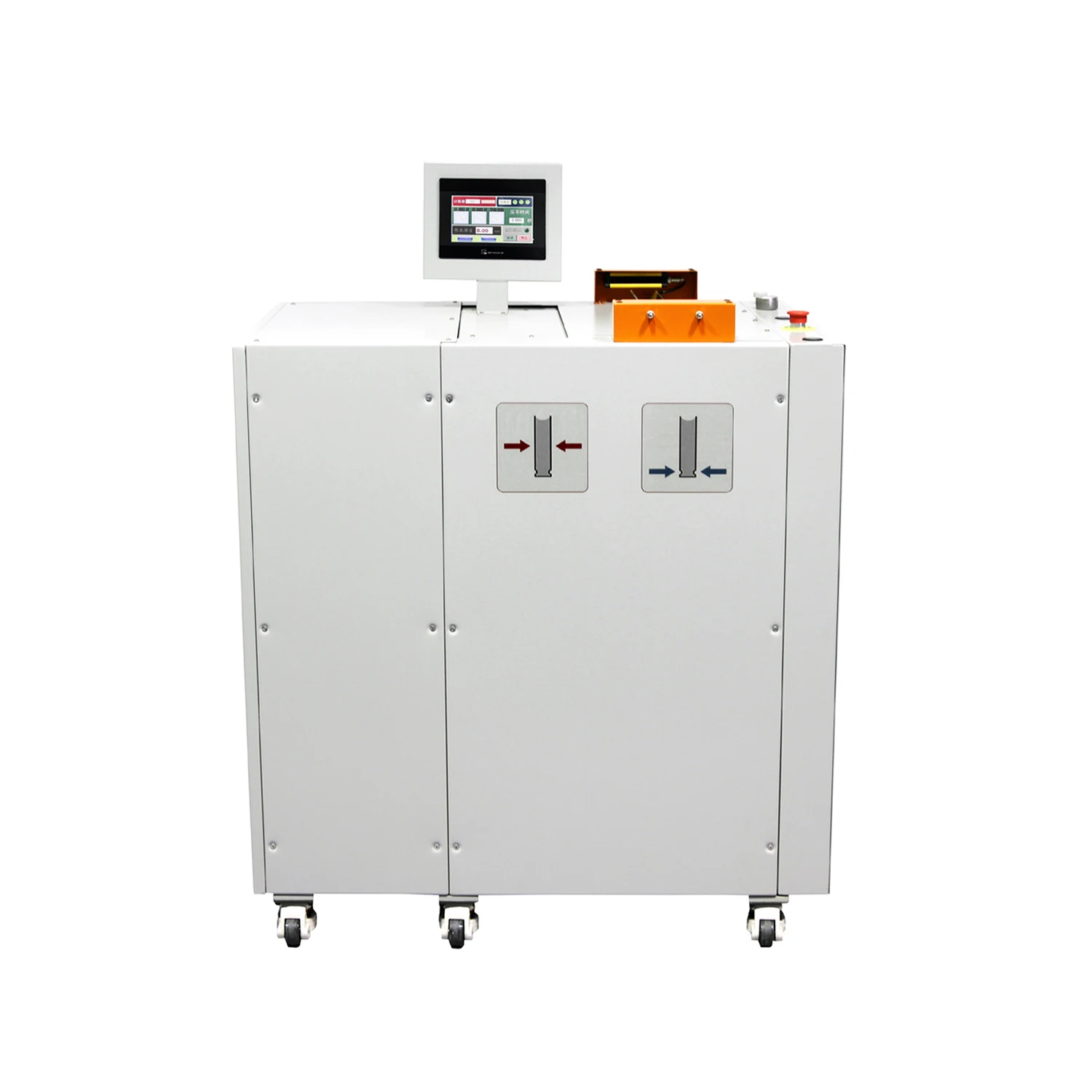

U-SSK360A

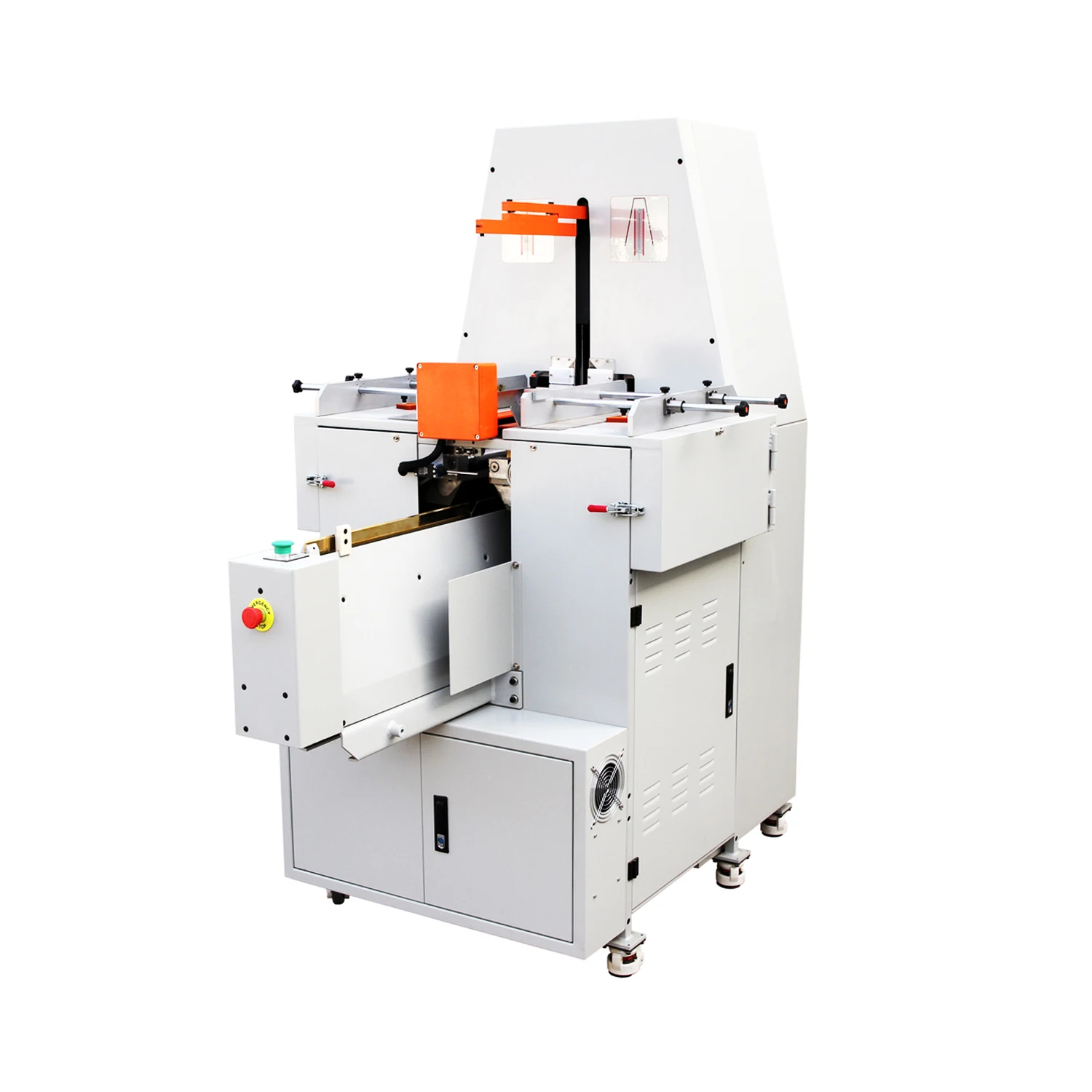

U-PJ360A
